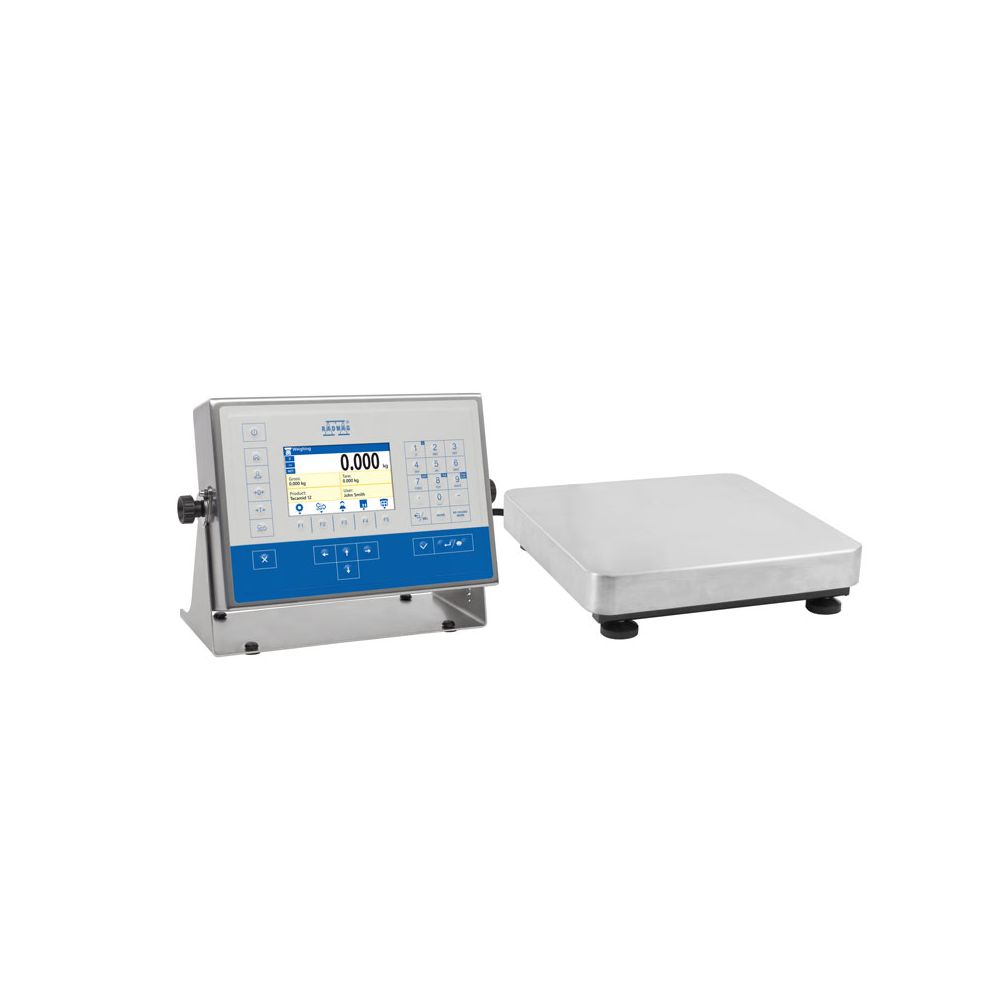

HX5.EX-1.3.F1 One Load Cell Platform Scale
Enquire for Price
- Functions: Weighing, Labelling, Plus/Minus Control, Percent Weighing, Parts Counting, Dosing, Statistics, ALIBI Memory
- Zones: Certified for hazardous areas (Zones 1/21 and 2/22)
- Interfaces: 2 × RS232, 1 × RS485 (intrinsically safe); optional: Ethernet, USB, Profibus DP, analog outputs (4–20 mA / 0–10 V), and additional I/O via IM01.EX module
- Display: 5" colour LCD with customizable interface and bar graph
- Construction: Single load cell platform with stainless steel weighing pan, IP66/IP68 protection
- Power Supply: PM01.EX-1 for hazardous zones, PM01.EX-2 for safe zones (ordered separately)
- Compliance: Fully compliant with ATEX directive; suitable for use in explosive atmospheres
- Applications: Ideal for industrial weighing, process control, dosing, and hazardous material handling
- Accessories: Optional accessories (barcode scanners, printers, signal towers) available separately
Availability:On Request
SKU
WW-006-0002
BrandRADWAG
Product Overview
The HX5.EX-1.3.F1 platform scale is designed for precision weighing in environments classified as explosive atmospheres, compliant with ATEX directive requirements. It features a single load cell construction and is certified for use in Zones 1/21 and 2/22, where flammable gases, vapours, or dust may be present.
This model integrates the PUE HX5.EX-1 weighing terminal, which provides a 5" colour LCD display, a robust stainless steel IP66/IP68 housing, and intrinsically safe communication interfaces (2 × RS232 and 1 × RS485). The display allows for flexible configuration of widgets, colour bar graphs, and operating modes, contributing to a more intuitive workflow.
The weighing platform is built with a stainless steel weighing pan and mild steel construction, and is equipped with a high-precision strain gauge load cell. The entire structure is designed for durability, reliability, and compliance in hazardous industrial settings such as chemical plants, refineries, and paint shops.
The HX5.EX-1.3.F1 scale supports advanced weighing operations such as parts counting, dosing, percent weighing, and labelling. Data management and traceability are enhanced via ALIBI memory, and extended connectivity is available through the optional IM01.EX module, installed in the safe zone.
The system requires connection to a RADWAG-certified intrinsically safe power supply, either PM01.EX-1 (hazardous area) or PM01.EX-2 (safe area).
Key Features
- Certified for use in ATEX Zones 1/21 and 2/22
- Integrated PUE HX5.EX-1 weighing terminal with colour LCD
- Single high-accuracy strain gauge load cell (F1 Class)
- Stainless steel weighing pan and durable platform construction
- IP66/IP68 ingress protection rating
- Built-in ALIBI memory for secure data archiving
- Functions include: weighing, dosing, counting, percent weighing, and labelling
- Optional communication module (IM01.EX) allows for expanded connectivity (Ethernet, USB, analog outputs, Profibus DP, etc.)
| Metrological parameters | |
|---|---|
| Maximum capacity [Max] | 3 kg |
| Minimum load | 20 g |
| Readability [d] | 1 g |
| Tare range | -3 kg |
| OIML Class | III |
| Physical parameters | |
| Display | 5” graphic colour |
| Cable length | 1 m |
| Weighing pan dimensions | 300×300 mm |
| Packaging dimensions (W × D × H) | 390×640×390 mm |
| Net weight | 12.3 kg |
| Gross weight | 13.3 kg |
| Construction | |
| Protection class | IP 65 construction, IP 66 / 68 terminal |
| ATEX Certification | II 2G Ex ib IIB T4 Gb |
| IECEx Certification | Ex ib IIB T4 Gc |
| Construction | mild steel ST3S |
| Weighing pan material | Stainless steel AISI304 |
| Communication interface | |
| Communication interface | 2×RS232, RS485 |
| Electrical parameters | |
| Power supply | 100 – 240 V AC 50/60 Hz |
| Power consumption max. | 15 W |
| Environmental conditions | |
| Operating temperature | -10 – +40 °C |
| Relative humidity | 10% – 85% RH no condensation |
| Indicator | PUE HX5.EX-1 |
| Brand | RADWAG |
|---|
