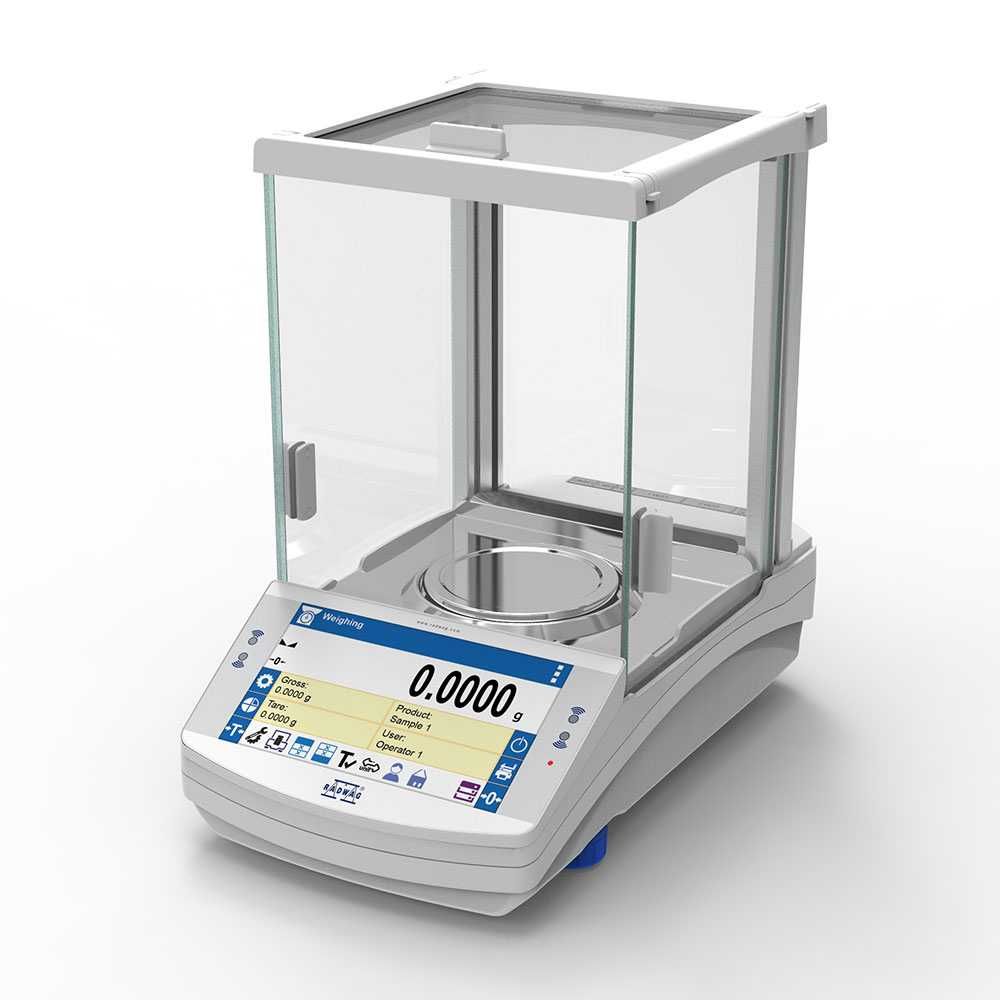

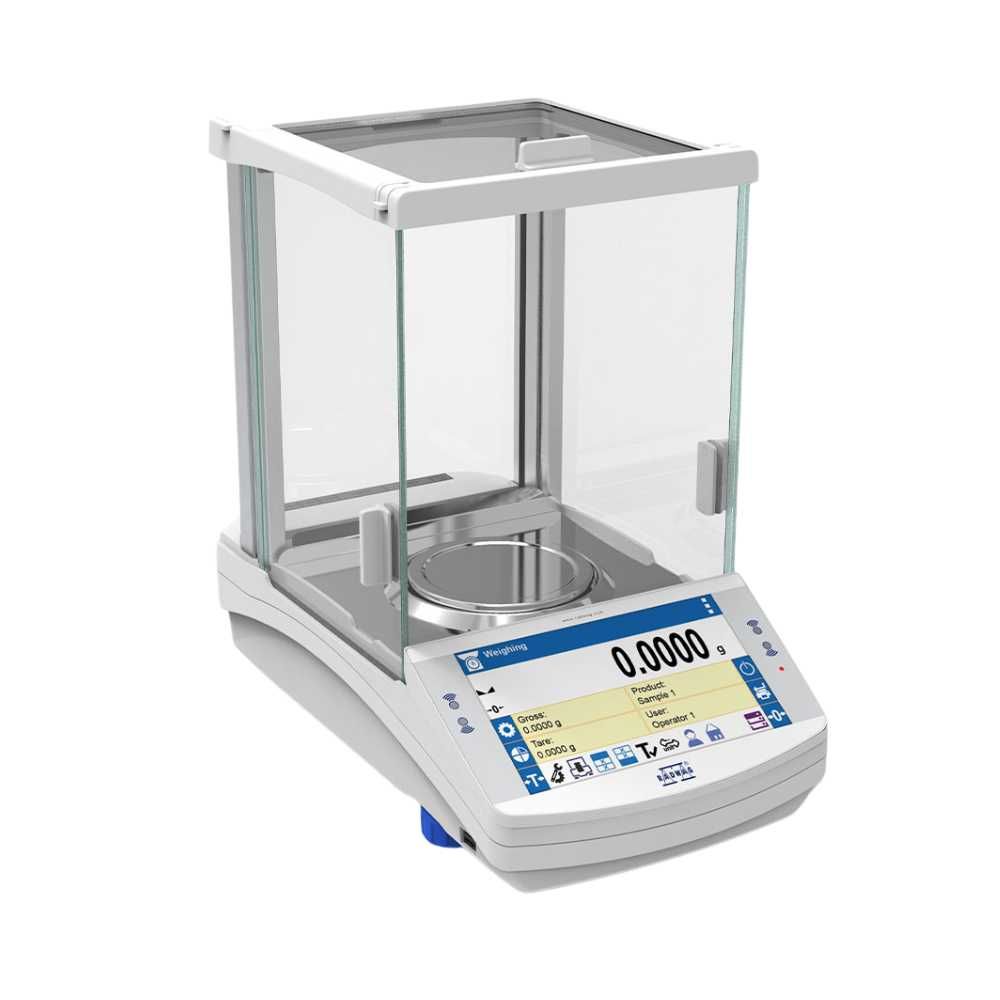

RADWAG AS 220.X7 Analytical Balance

AS X7 Analytical Balance is characterised by very good repeatability, high readability, and high resolution. These devices, designed for weighing small masses, serve as laboratory balances and are commonly used in fields such as pharmacy, physics, chemistry, biology, medicine, and more.

Ergonomic Mechanical Design

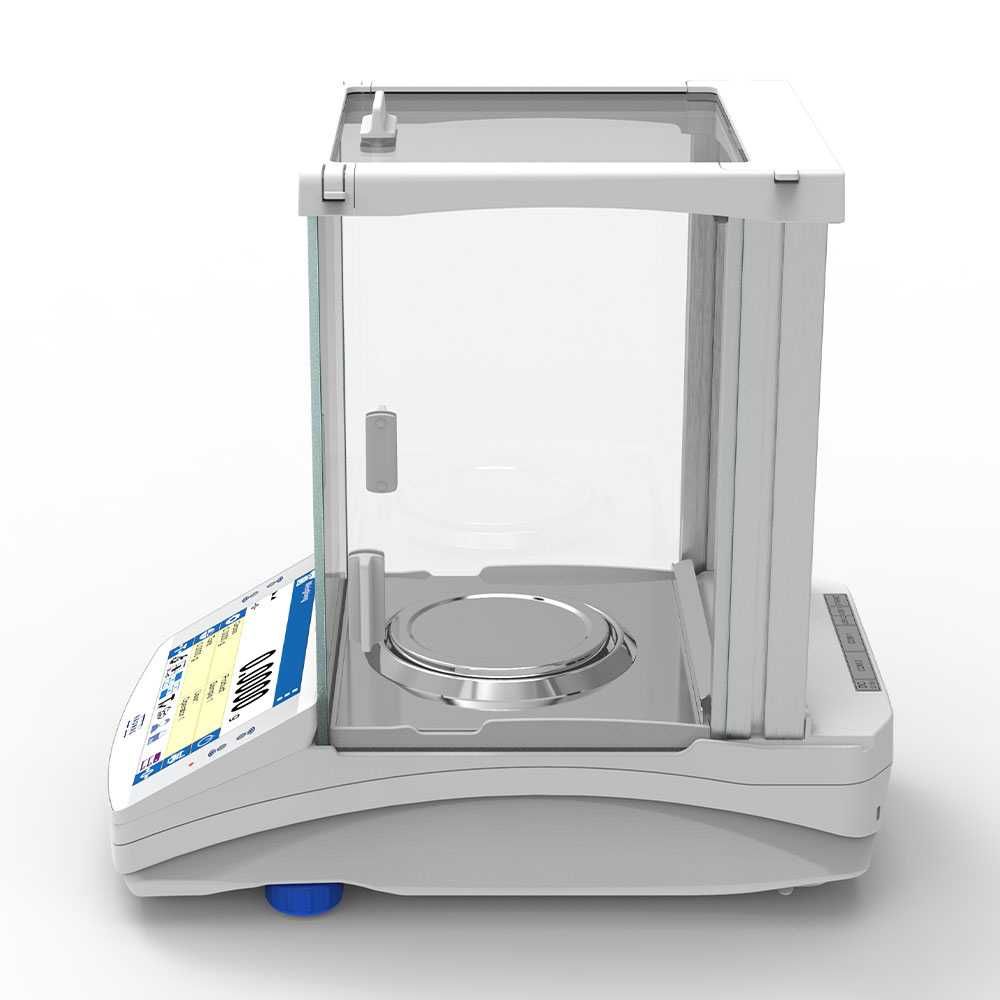

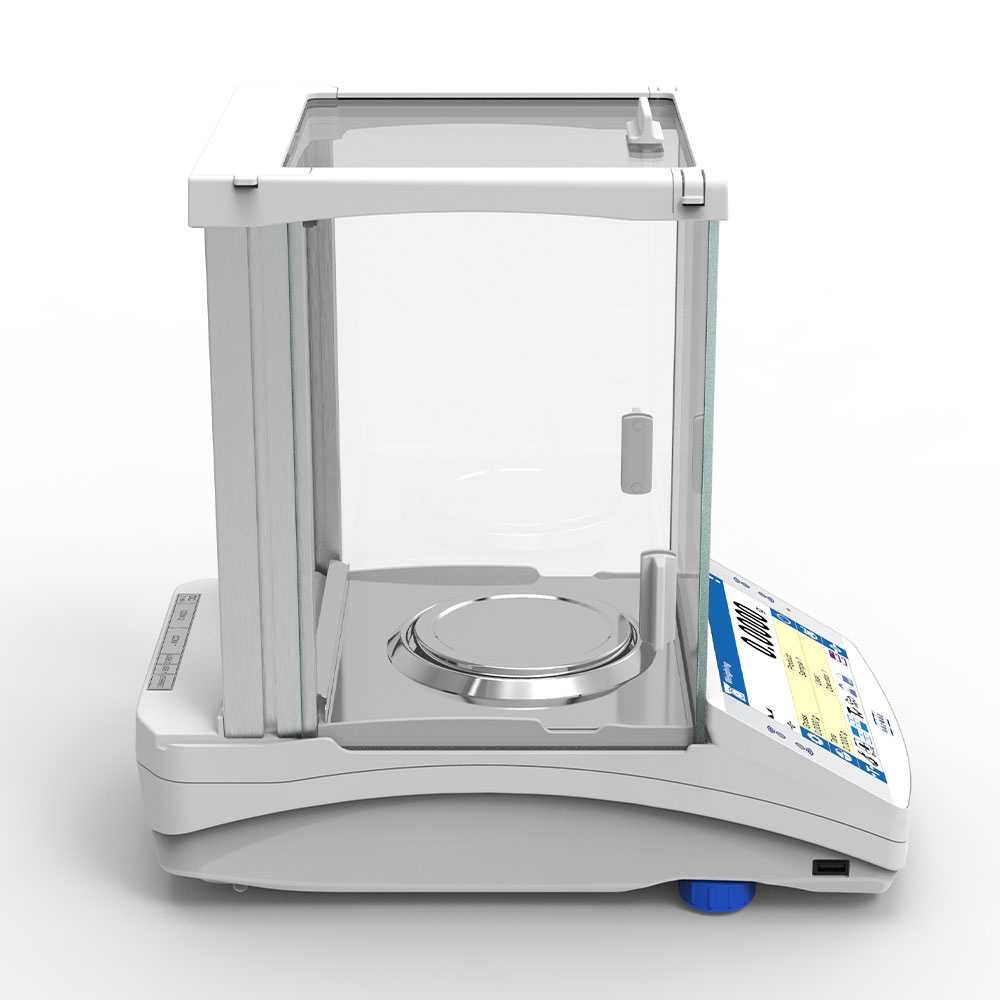

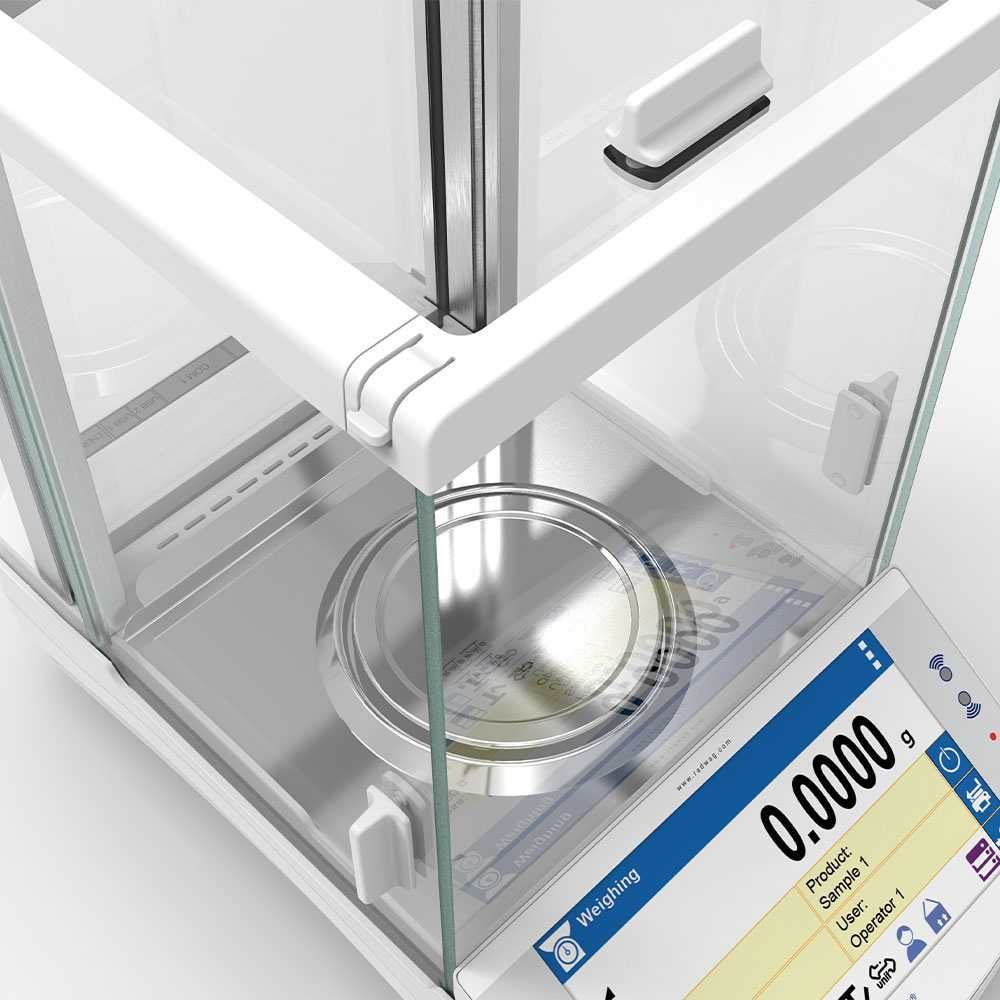

The latest AS X7 analytical balance features a spacious weighing chamber, and the open-door clearance facilitates easy access to the weighing pan. This design enables the use of laboratory glassware of various sizes. The new aluminium base guarantees the stability of the weighing system.

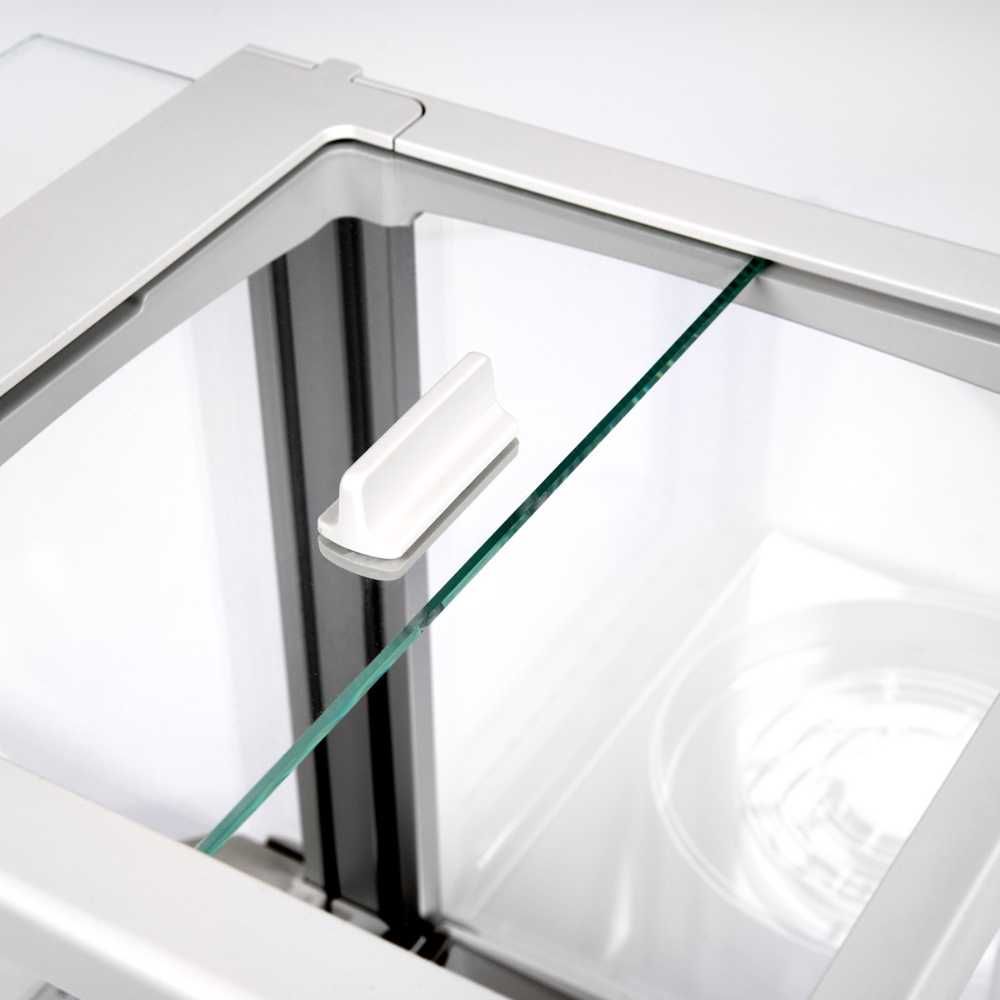

The Dual-CLICK system allows for tool-free assembly and disassembly of the weighing chamber, and the rimless design of the weighing chamber panes simplifies cleaning.

Innovative construction solutions enhance the balance's durability and reliability during long-term operation.

Colour Touch Screen

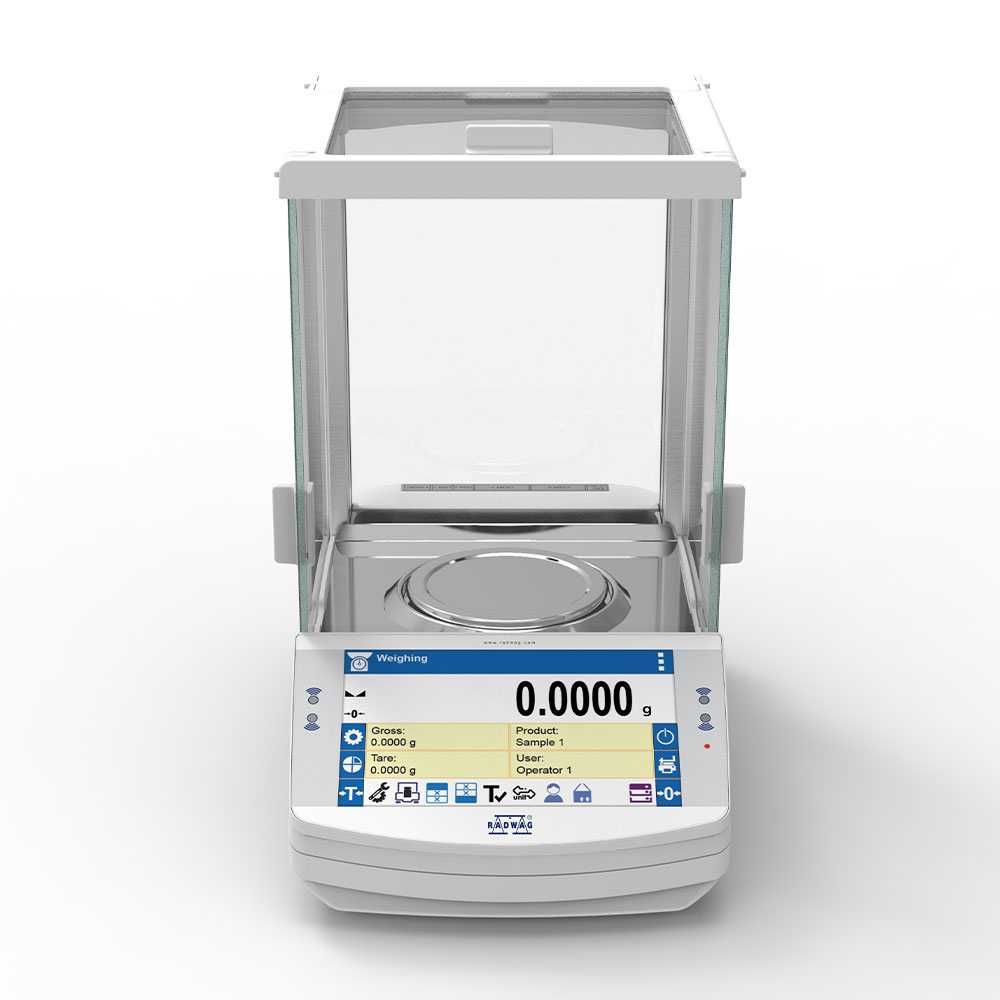

The latest-generation 7-inch compact display enables comfortable operation, even while wearing laboratory gloves. The AS X7 Analytical Balances ensure intuitive operation through a wide selection of widgets that can be freely configured to meet user needs.

Personalisation enables access to essential information and work results directly from the main display panel. Users can fully configure button sets, link them to specific operation modes, and define information and text fields.

LevelSENSING System

The built-in sensors measure tilt and display a graphic message on the weighing device's screen. In accordance with GLP and GMP standards, the LevelSENSING system simplifies adjustment, ensures continuous level control, and provides notifications about deviations.

Internal Adjustment: The modernised internal adjustment system guarantees accurate measurements even under extremely unfavourable conditions.

SMARTLab

AS X7 analytical balances are equipped with the SMARTLab system, which offers extensive functionality. It provides support and supervision for the mass measurement process and reduces the risk of errors caused by the so-called 'human factor.'

• Automatic Adjustment: The automatic internal adjustment system ensures complete efficiency in eliminating balance sensitivity deviations, regardless of external ambient conditions.
• Sensors: Touch-free operation and programmable sensors facilitate daily tasks and reduce the number of actions required during the weighing procedure.
• Alibi Memory: Data safety is ensured with the ALIBI memory, integrated into AS X7 balances. The memory can record up to 500,000 weighings and ensures continuity of data collection over extended periods.
• Wi-Fi^®: The balance can be remotely controlled via devices operating on Android, iPhone, or Windows 10 systems.
• Data Control: Access to balance information depends on the user's permission level, which the administrator can manage across three tiers.
• Automatic Weighing Records: Reports on processes and partial weighings can be generated and archived via USB to external devices.
• Ambient Conditions Monitoring: The RADWAG thermo-hygro-barometer enables monitoring of ambient conditions, including temperature and atmospheric humidity.

Databases

The information system of the AS X7 balances is based on seven databases that support multiple users and numerous products. All stored data can be analysed.

Weighing data is recorded in seven databases:

• Operators: Maximum 100 entries
• Products: Maximum 5,000 entries
• Weighings: Maximum 50,000 entries
• Packaging: Maximum 100 entries
• Formulations: Maximum 100 entries
• Customers: Maximum 1,000 entries
• ALIBI Memory: Maximum 512,000 weighings

Communication Interfaces

The functionality of AS X7 balances can be enhanced through the following communication interfaces: 2×RS232, 2×USB-A, USB-B, Ethernet, and Wi-Fi^®. An additional USB port, located on the front of the balance, enables fast and convenient communication with USB flash drives and supports connection to other devices.

Device Security: AS X7 balances are equipped with a Kensington Lock, which secures the device against theft.
