IM01.EX-1 Communication Module
Enquire for Price
- Function: Communication module to extend interfaces of HX5.EX weighing terminals
- Zones: Installed in the safe area; interfaces with equipment in hazardous areas (zones 1/21 and 2/22) via RS485
- Interfaces (Standard): 2 x RS232, USB, 4 digital IN/OUT, Ethernet
- Interface Expansion Options (via additional IM01.EX modules):
– Analog outputs (4–20 mA / 0–10 V)
– Profibus DP
– 12 IN / 12 OUT digital
– PROFINET, CANopen, DeviceNet (available or upcoming) - Power Supply: Powered externally in the safe zone
- Compliance: ATEX directive compliant; designed for safe communication with EX-rated terminals
- Applications: System integration, remote control, barcode/data transfer, industrial automation
- Accessories: Part of modular system for HX5.EX; compatible accessories sold separately
Availability:On Request
SKU
WX-016-0133
BrandRADWAG
Product Overview

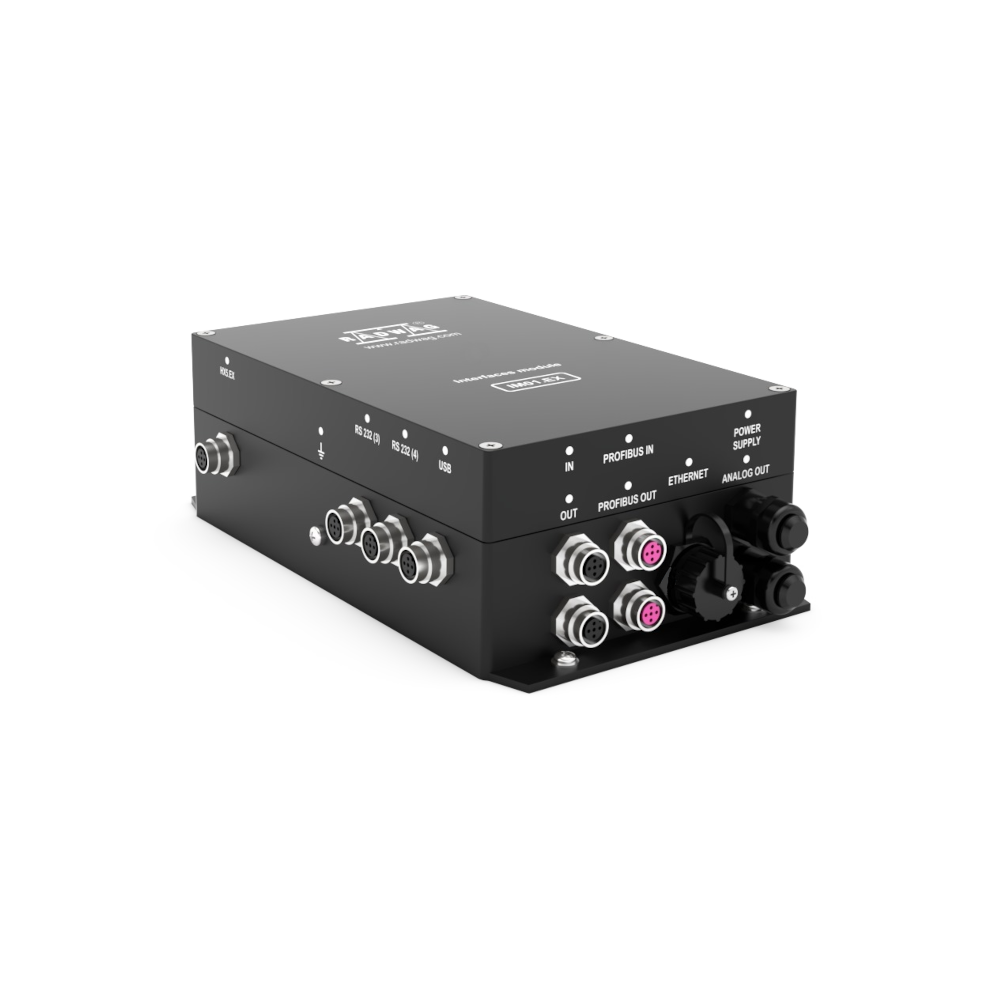

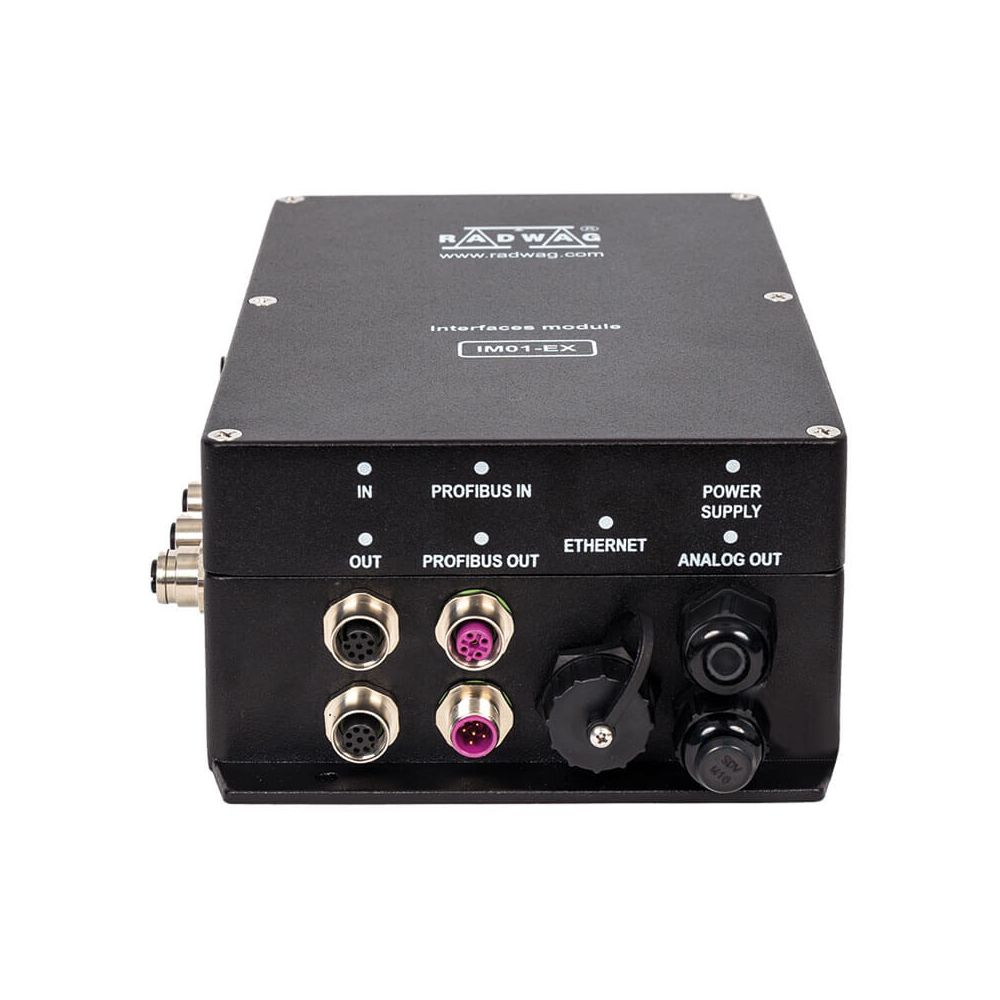

The IM01.EX-1 is a communication module designed to extend the interface capabilities of RADWAG's HX5.EX series weighing terminals. Installed outside the hazardous area, the IM01.EX-1 connects to the terminal through an intrinsically safe RS485 interface, ensuring both safe and compliant data exchange between the terminal and external devices.
This module is essential for integrating EX-rated weighing systems into larger industrial automation or IT infrastructures, offering multiple additional communication options including Ethernet, USB, RS232, analog outputs, and digital inputs/outputs. With its robust, ATEX-compliant design, the IM01.EX-1 is suitable for use in regulated and safety-critical environments, enabling seamless process control and system integration while maintaining full compliance with international safety directives.
Ideal for applications in the chemical, petrochemical, pharmaceutical, and food industries, the IM01.EX-1 supports communication with devices such as barcode scanners, printers, external displays, PLCs, and industrial controllers. Its modular architecture allows you to scale your system as needed by selecting the appropriate interface configuration.
Key Features
- Extends communication options for RADWAG HX5.EX terminals
- Installed outside hazardous zones; communicates via intrinsically safe RS485
- Multiple interface options available depending on model:
– RS232
– USB
– Ethernet
– Analog outputs (4–20 mA / 0–10 V)
– Digital inputs/outputs
– Profibus DP (IM01.EX-4) - Ensures safe integration of EX-rated equipment with automation systems
- Designed for Zone 0/1/2 and 20/21/22 compatibility (when used with compliant devices)
- Fully ATEX directive compliant
- Supports LIMS connectivity, remote data handling, and process control integration
| Construction | |
|---|---|
| Protection class | IP 66 / 68 (1.5m) |
| ATEX Certification | II (2)G [Ex ib] IIC Gb II (2)D [Ex ib] IIIC Db |
| Housing | Aluminum |
| Communication Interface | |
| Communication interface | 2×RS232, USB, 4IN / 4OUT, Ethernet |
| Electrical Parameters | |
| Power supply | 100 – 240 V AC 50/60 Hz |
| Power consumption max. | 10 W |
| Environmental Conditions | |
| Operating temperature | -10 – +40 °C |
| Storage temperature | -20 – +60 °C |
| Relative humidity | 10% – 85% RH no condensation |
| Physical Parameters | |
| Device dimensions W × D × H | 222×146×81 mm |
| Net weight | 1.9 kg |
| Gross weight | 2.5 kg |
| Brand | RADWAG |
|---|
