HX5.EX-1.4N.60.H1 Stainless Steel Ramp Scale
Enquire for Price
- Functions: Weighing, Labelling, Plus/Minus Control, Percent Weighing, Parts Counting, Dosing, Statistics, ALIBI Memory
- Zones: Certified for hazardous areas (Zones 1/21 and 2/22)
- Interfaces: 2 × RS232, 1 × RS485 (intrinsically safe); optional: Ethernet, USB, Profibus DP, analog outputs (4–20 mA / 0–10 V), and digital I/O via IM01.EX module
- Display: 5" colour LCD with configurable interface and colour bar graph
- Construction: Low-profile ramp platform, AISI 304 stainless steel, 4-load-cell design, IP66/IP68 housing
- Power Supply: PM01.EX-1 (hazardous zones) or PM01.EX-2 (safe zones); ordered separately
- Compliance: ATEX directive compliant for explosive gas and dust environments
- Applications: Ideal for hazardous-area weighing in pharmaceutical, food, chemical, and industrial sectors
- Accessories: Optional accessories available, including external indicators, scanners, and printers
Availability:On Request
SKU
WW-009-0026
BrandRADWAG
Product Overview

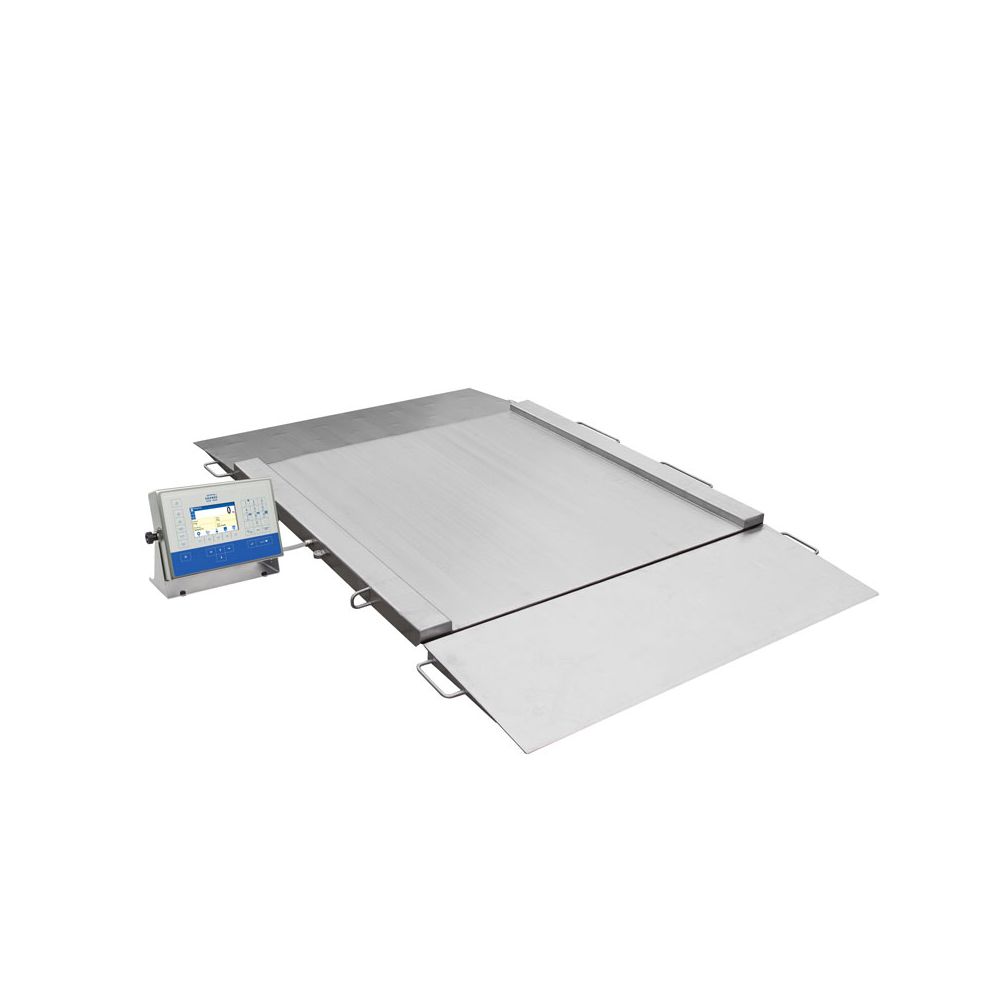

The HX5.EX-1.4N.60.H1 is a stainless steel ramp scale designed for precision weighing in explosive atmospheres, fully compliant with the ATEX directive for Zones 1/21 and 2/22. This model integrates the PUE HX5.EX-1 weighing terminal with a low-profile 4-load-cell platform, making it suitable for use in environments requiring both durability and strict explosion safety.
The scale offers a maximum capacity of 60 kg with a readability of 20 g, ensuring reliable measurement of medium-weight items. Its platform is constructed entirely of AISI 304 stainless steel, providing resistance to chemicals, corrosion, and mechanical damage. The ramp design allows for easy loading and unloading, including the use of trolleys or carts, making it well-suited to pharmaceutical, chemical, and food processing industries operating in hazardous zones.
The attached PUE HX5.EX-1 terminal features a 5” colour LCD display, membrane keypad, and a robust housing with IP66/IP68 protection. It is equipped with 2 × RS232 and 1 × RS485 intrinsically safe interfaces, with optional extension through the IM01.EX communication module (used outside the hazardous area) to add Ethernet, USB, analog outputs (4–20 mA / 0–10 V), Profibus, and additional I/O.
Built-in ALIBI memory ensures traceability and regulatory compliance, while multifunctional software supports advanced weighing processes such as parts counting, dosing, and labelling.
Key Features
- Designed for ATEX Zones 1/21 and 2/22
- Low-profile ramp platform for ease of loading
- Max capacity: 60 kg; Readability: 20 g
- Stainless steel construction (AISI 304) for durability and chemical resistance
- 4 × high-precision load cells ensure consistent weight distribution
- PUE HX5.EX-1 terminal with 5” colour display and IP66/IP68 protection
- Supports complex functions: weighing, dosing, counting, labelling, statistics
- Optional integration with external systems via IM01.EX module
- Suitable for wet and hygienically critical industrial environments
| Metrological parameters | |
|---|---|
| Maximum capacity [Max] | 60 kg |
| Minimum load | 400 g |
| Readability [d] | 20 g |
| Tare range | -60 kg |
| OIML Class | III |
| Physical parameters | |
| Display | 5” graphic colour |
| Cable length | 3 m |
| Weighing pan dimensions | 840×860 mm |
| Device dimensions W x D x H | 1710×1160×76 mm |
| Net weight | 72.8 kg |
| Gross weight | 73 kg |
| Construction | |
| Protection class | IP 66 / 69 construction, IP 66 / 68 terminal |
| ATEX Certification | II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db |
| IECEx Certification | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db |
| Construction | Stainless steel AISI304 |
| Communication interface | |
| Communication interface | 2×RS232, RS485 |
| Electrical parameters | |
| Power supply | 100 – 240 V AC 50/60 Hz |
| Power consumption max. | 15 W |
| Environmental conditions | |
| Operating temperature | -10 – +40 °C |
| Relative humidity | 10% – 85% RH no condensation |
| Indicator | PUE HX5.EX-1 |
| Brand | RADWAG |
|---|
