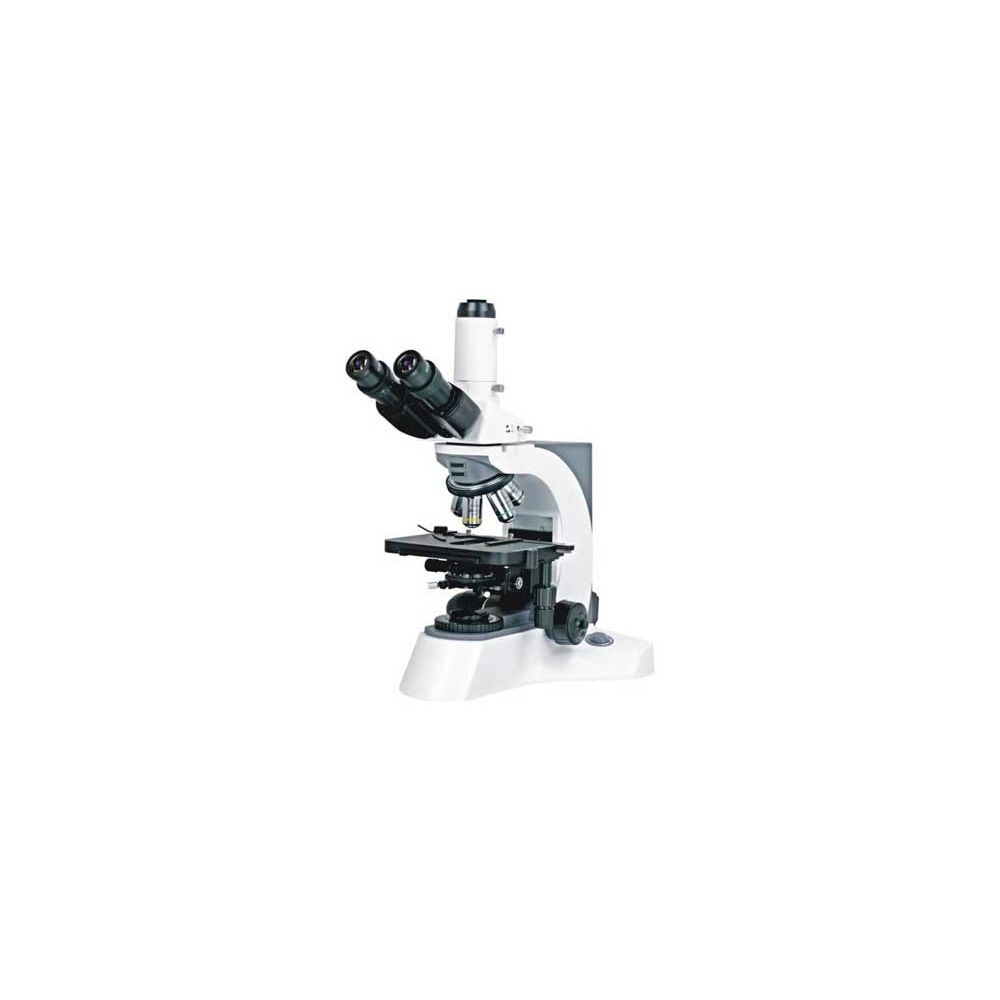

Trinocular Compound Microscope, BS-2080

Home
Trinocular Compound Microscope, BS-2080

Trinocular Compound Microscope, BS-2080

Be the first to review this product

R41,959.08

Model: BS-2080

Optional System: Infinite Optional System

Viewing Head: Siedentopf Trinocular Head, Inclined at 30°, 360°Rotatable, Interpupillary 48-75mm

Eyepiece: Extra Wide Field Eyepiece EW10×/ 22mm, Eyepiece Tube Diameter 30mm

Nosepiece: Backward Quintuple Nosepiece

Objective: Infinite Plan Achromatic Objective 4×/0.10, W.D.=17.3mm; 10×/0.25, W.D.=10mm; 40×/0.65(S), W.D.=0.54mm; 100×/1.25(S, Oil), W.D.=0.13mm

Condenser: Swing-out Condenser NA 0.9/ 0.25

Focusing: Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm

Stage: Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm

Illumination: External Illumination, Aspherical Collector with Kohler Illumination, Halogen Lamp 6V/30W, Brightness Adjustable

Filter: Blue Filter; Green Filter

Package: 1carton/set, 43.5cm*39.5cm*59cm, 14kg

DISCLAIMER:

All product images are for illustrative purposes only. Actual products may vary slightly in terms of colours, controls and visible features.

Availability:On Request

SKU

IMICBS-2080

BrandBestScope

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The BS-2080 Laboratory Biological Microscope is a high-level microscope designed specifically for laboratory research. It has an infinite optical system, a sensible structure, and an ergonomic design. This laboratory biological microscope makes your laboratory work more enjoyable with an innovative optical and structural design concept, excellent optical performance, and an easy-to-use system.

Features:

With Infinite Optical System, Kohler Illumination provides excellent optical quality and makes the image perfect.
With the low and forward position of coarse and fine coaxial focus system, focusing knobs and brightness-adjustable knob within reaching location, stable integral structure, and reasonable ergonomic design, making operators feel more comfortable and effective.

Applications:

This microscope is an ideal instrument in biological, histological, pathological, bacteriology, immunizations, and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges, and universities
