Measuring range:
Resolution 0,1 / 0,01 pH - 0,01 μS
Automatic and manual temperature compensation
Data logger auto and manual, up to 1000 savings in GLP
GLP function
DHS digital sensors management.
Equipped with: Field support with 3 holes for electrodes, colored buffer solutions of pH and conductivity, USB cable and power supply, instructions for use, and plastic carrying case. Without pH electrode. With conductivity cell 2301 T, temperature sensor NT55, S7-BNC cable, and accessories.

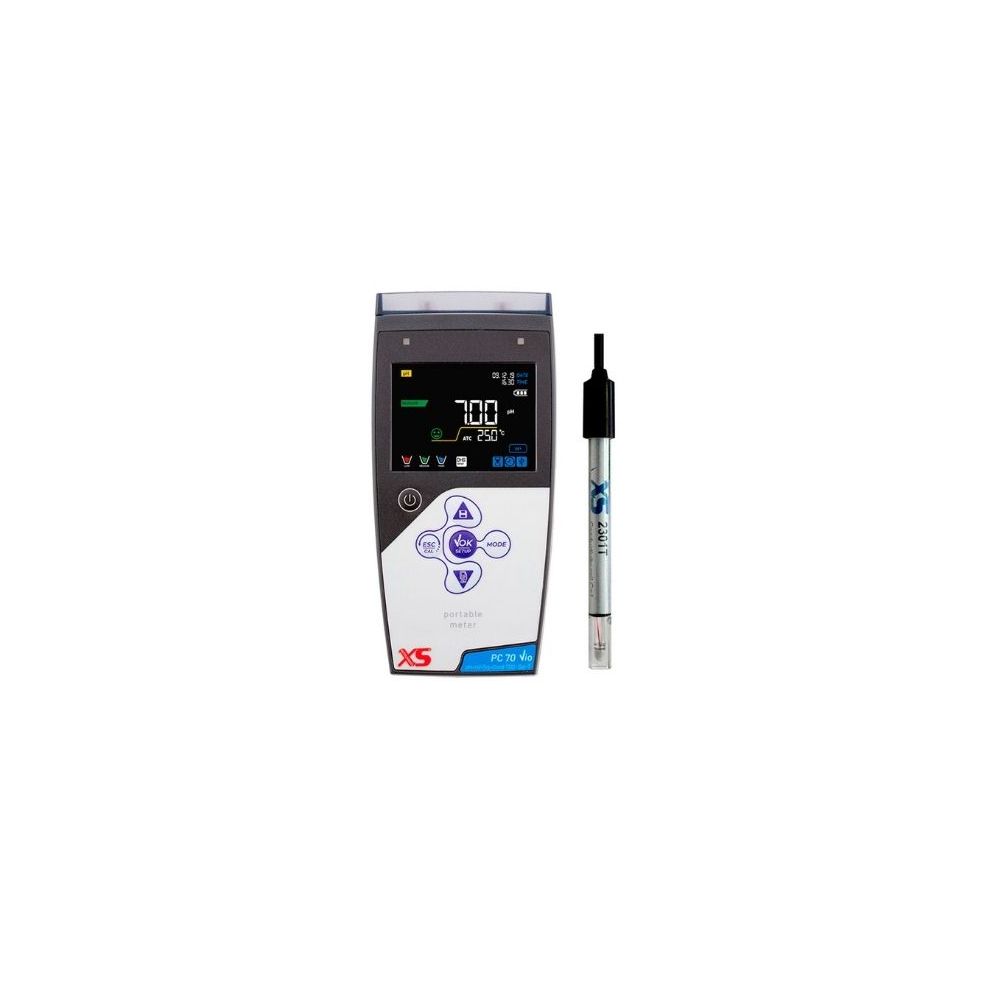

Description: Professional portable multiparameter with triple power supply (battery, PC, mains) with innovative high-resolution color display, for excellent data visualization in all cooling conditions, also thanks to the possibility of automatically and manually adjusting control and lighting of the screen. Measurement of pH, mV, ORP, Conductivity, TDS, Salinity with temperature display and the possibility to select the parameters you want to view. The online guide in setup and calibration allows simple and immediate use of the device. Automatic pH calibration with USA and NIST buffers up to 3 points and 2 points defined by the user. Automatic ORP calibration 1 point. Automatic calibration of conductivity up to 5 points and a user-defined point. Indication with icons of the calibrated points. Measurement stability indicator and possibility to select 3 stability levels. GLP functions: Date and time, display of calibration data, and calibration notification. Manual and automatic Data Logger with the possibility of downloading data to PC via micro-USB. Data-Link software is freely downloadable from www.giorgiobormac.com. All operations are constantly monitored and shown to the operator via the colored LED above the display and the self-diagnosis messages.
REGULATIONS | |
Regulations | CE |
PERFORMANCE | |
Accuracy (Cond) | ± 2 % f.s. |
Accuracy (pH) | ± 0.02 |
Accuracy (Temperature) | ± 0.5 °C |
Cond measuring range (max.; min.) | 200 mS; 0.00 μS |
Cond resolution | 0.01 / 0.1 / 1 μS/cm (automatic scale) |
ORP measuring range (max.; min.) | + 1900; - 1000 |
ORP resolution | 0.1 |
pH measuring range (max.; min.) | + 16.00; - 2.00 |
pH resolution | 0.01 |
Reference temperature (max.; min.) | + 30 °C; + 15 °C |
Salinity measuring range (max.; min.) | 100 ppt; 0.1 ppm |
TDS Factor (max.; min.) | 1.00; 0.40 |
TDS measuring range (max.; min.) | 200 g/l; 0.1 mg/l |
Temperature coefficient (max.; min.) | 10.00 % / °C; 0.00 % / °C |
Temperature compensation | 0.0...100.0 °C |
Temperature measuring range (max.; min.) | + 110.0 °C; - 10.0 °C |
Temperature resolution | 0.1 °C |
Working temperature (max.; min.) | + 45 °C; 0 °C |
FEATURES | |
Automatic brightness control | Yes |
Calibration report | Yes |
DHS compatible | Yes |
Display | Backlight coloured high-definition LCD |
GLP | Yes |
GLP | calibration Yes |
Inputs | BNC - RCA |
IP protection | IP 57 |
Memory | 1000 data |
Output | Micro USB |
Points of calibration Cond | 1...4 |
Points of calibration ORP | 1 |
Points of calibration pH | 1...3 auto / 2 user values |
Printer connection | Yes |
Selectable Cell constant | 0.1 / 1 / 10 |
Stability criteria | 3 levels |
Standard approved Cond | 84 μS - 147 μS - 1413 μS - 12.88 mS - 111.8 mS - 1 user value |
Standard approved pH | USA - NIST |
Timer calibration due | Yes |
POWER SUPPLY | |
Power supply | 3 batteries AA 1.5 V |
DIMENSION AND WEIGHT | |
Dimension (LxWxH) | 185 x 85 x 45 mm |
Weight | 400 g |
Brand | Giorgio Bormac s.r.l |
---|
