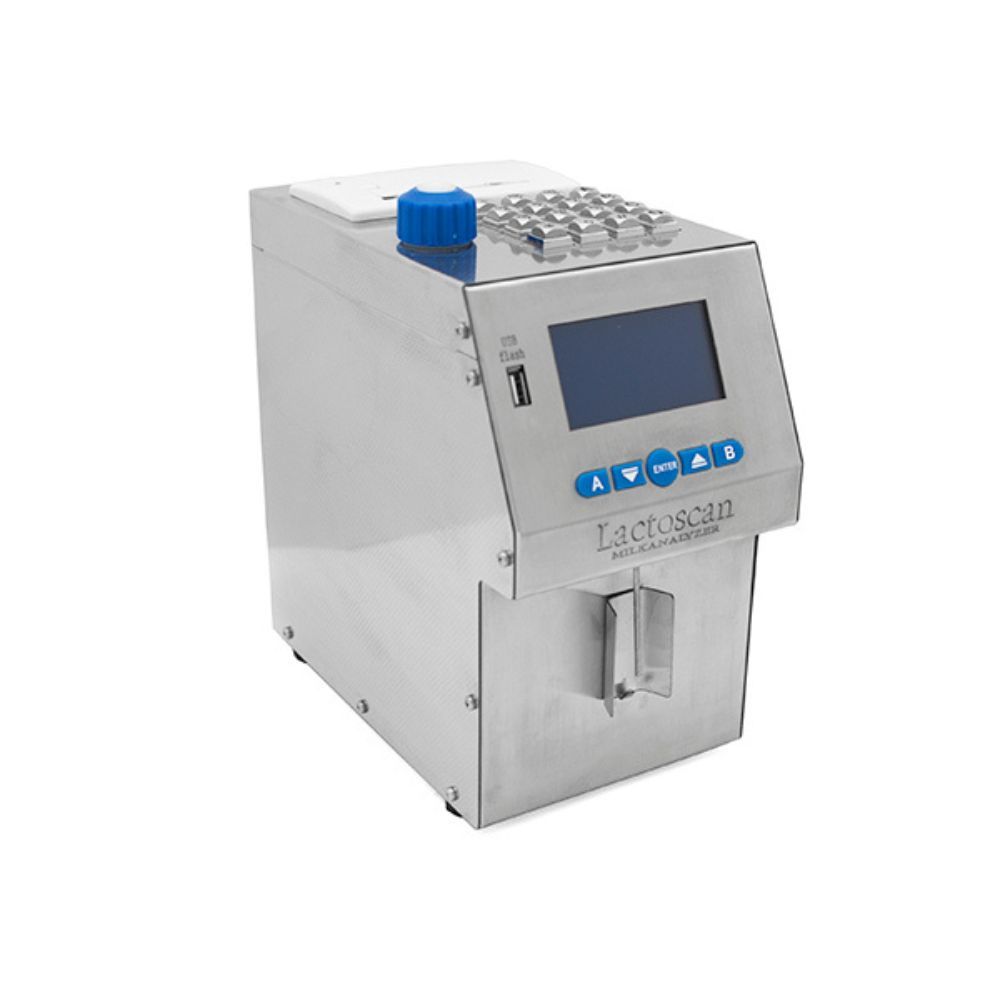

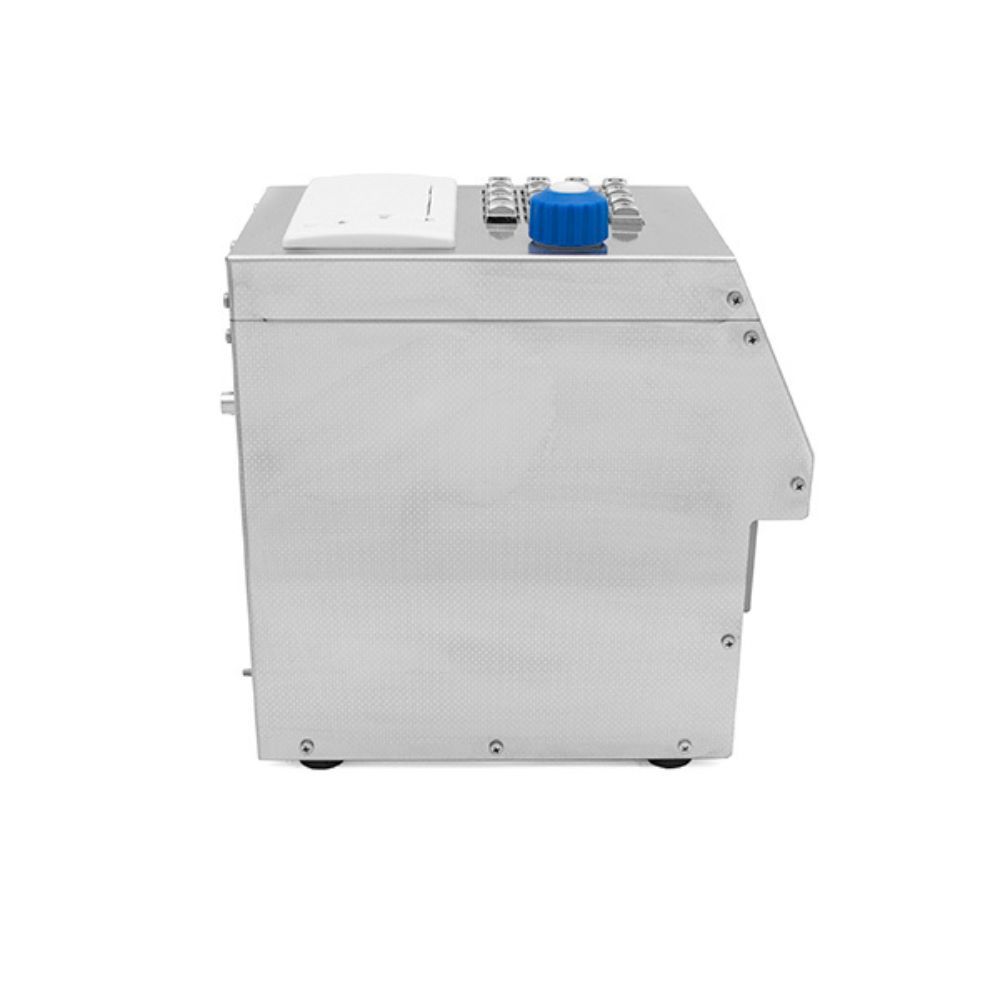

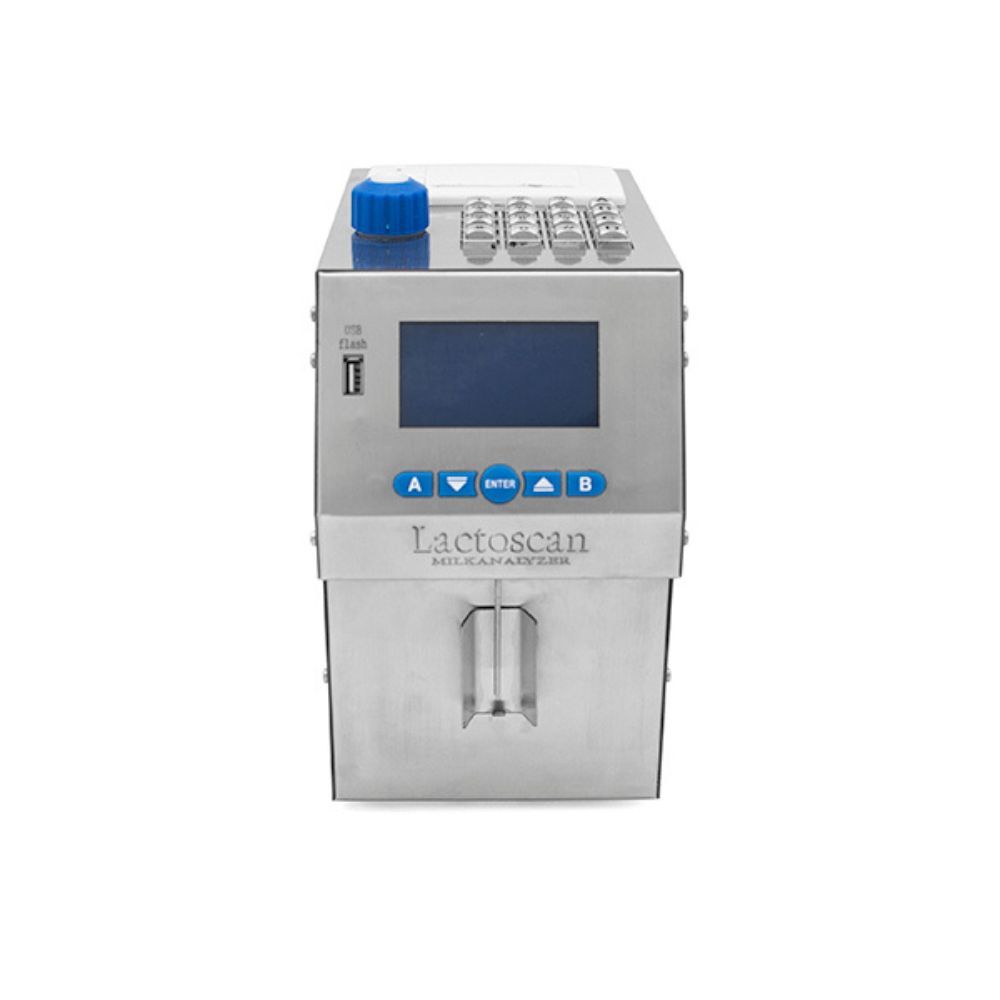

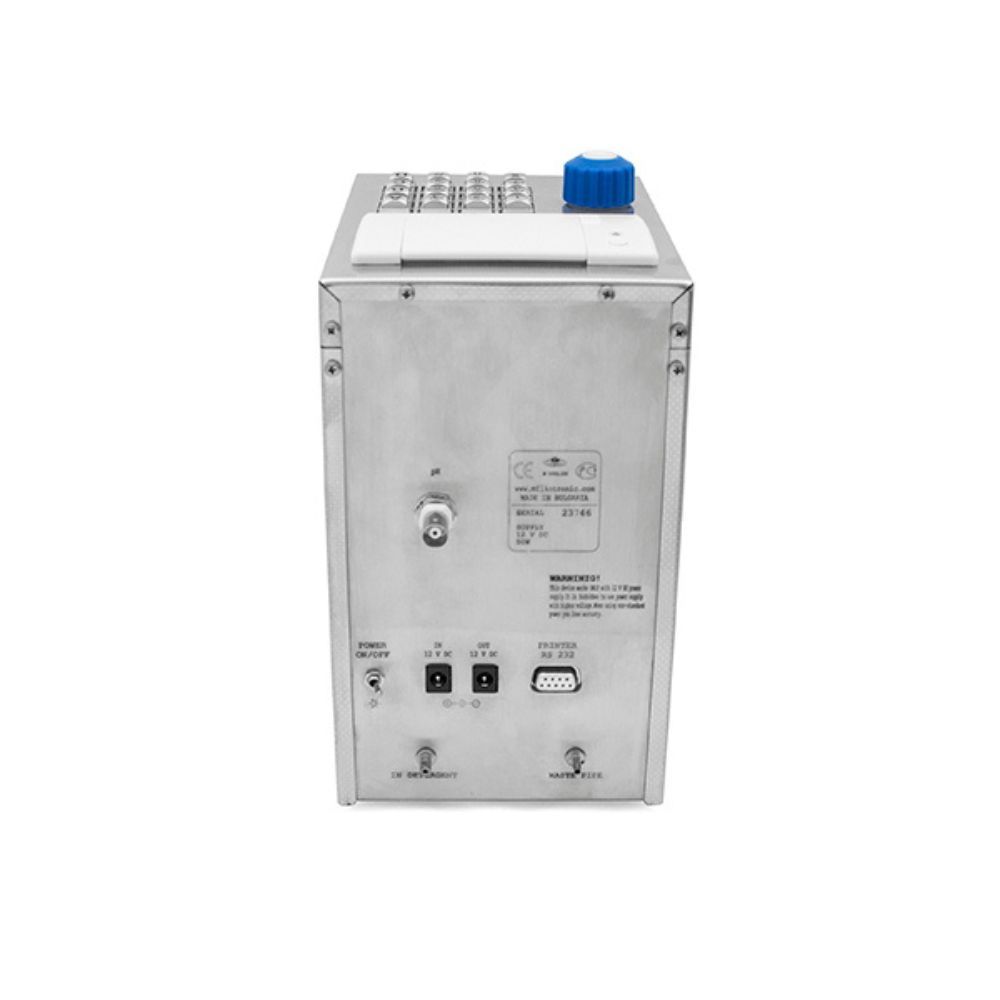

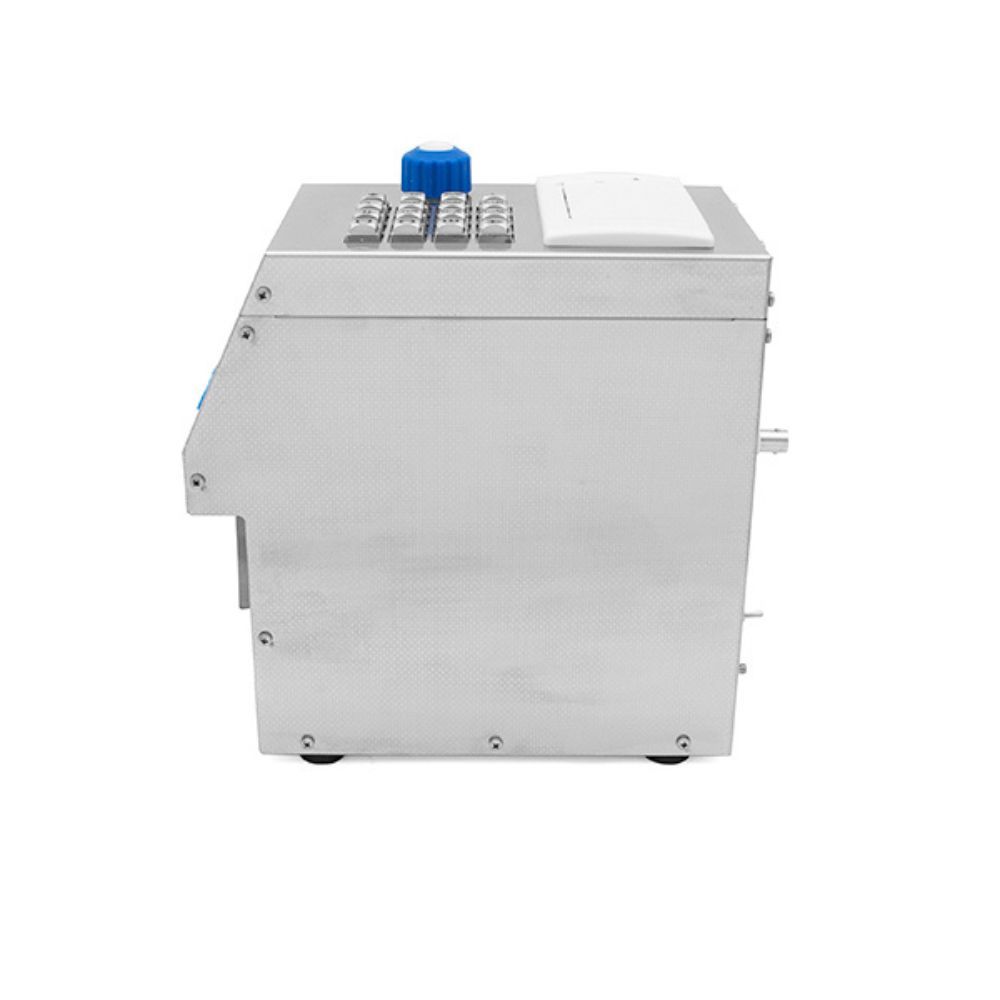

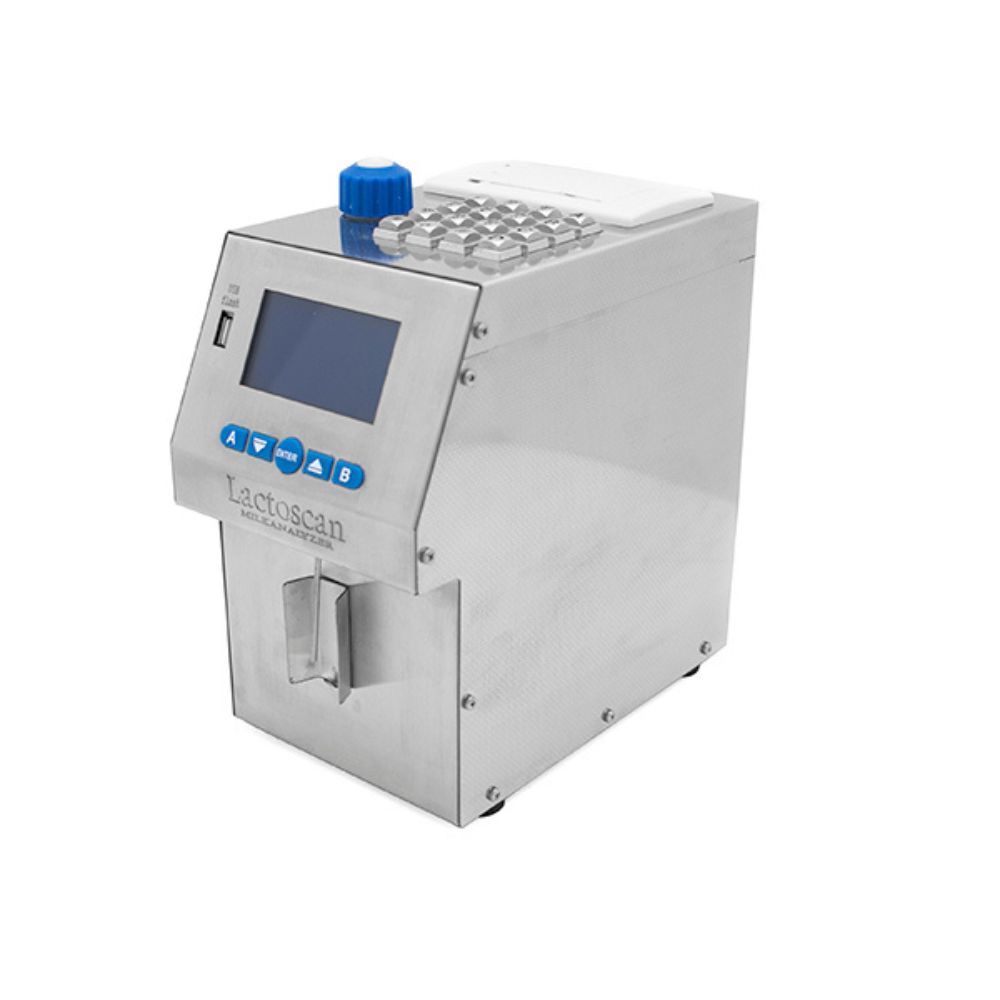

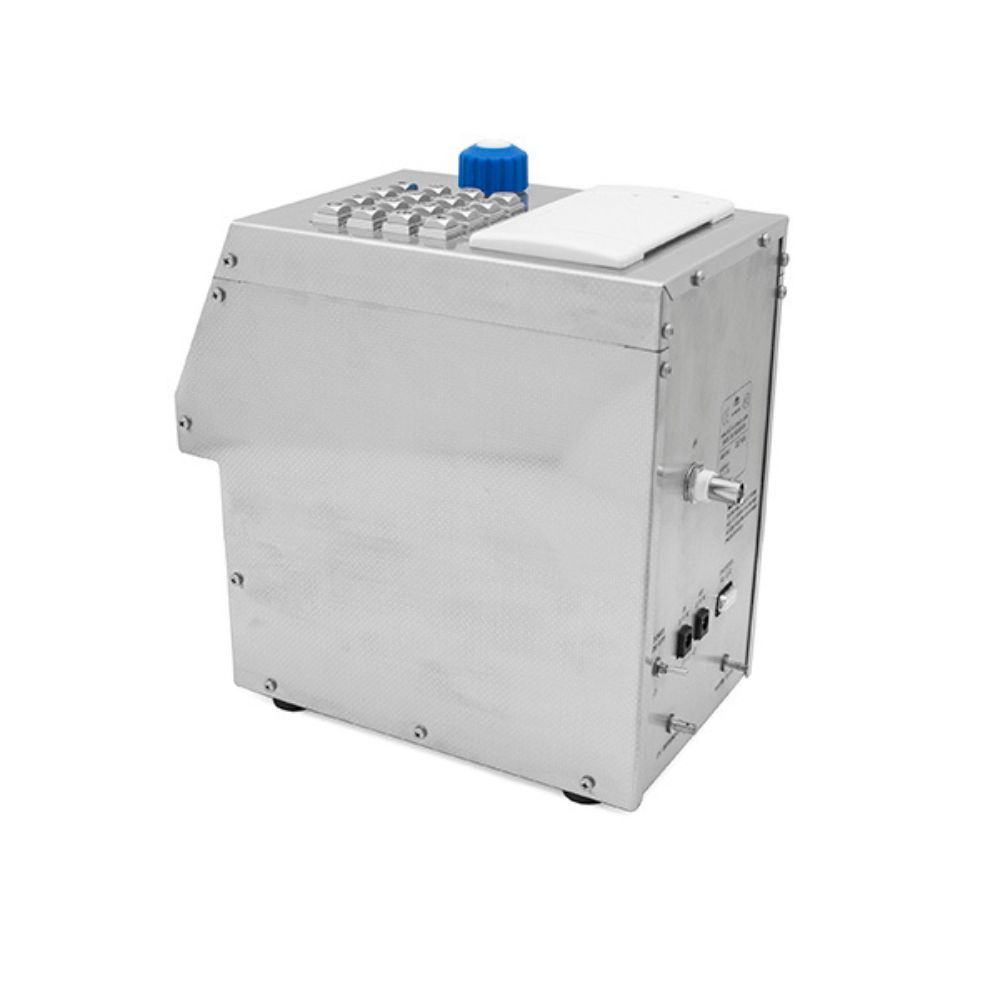

Lactoscan SA Ultrasonic Milk Analyzer
Lactoscan SA Ultrasonic Milk Analyzer
Enquire for Price
- Ultrasonic technology for accurate, reagent-free testing
- Measures fat, SNF, protein, lactose, density, salts, pH, and more
- Integrated printer, USB and RS232 data output
- Automatic cleaning with dual peristaltic pumps
- Compact and lightweight design (less than 1.5 kg)
- Suitable for multiple milk types: cow, buffalo, goat, and sheep
- Self-calibrating system for consistent performance
- Optional pH and conductivity measurement integration

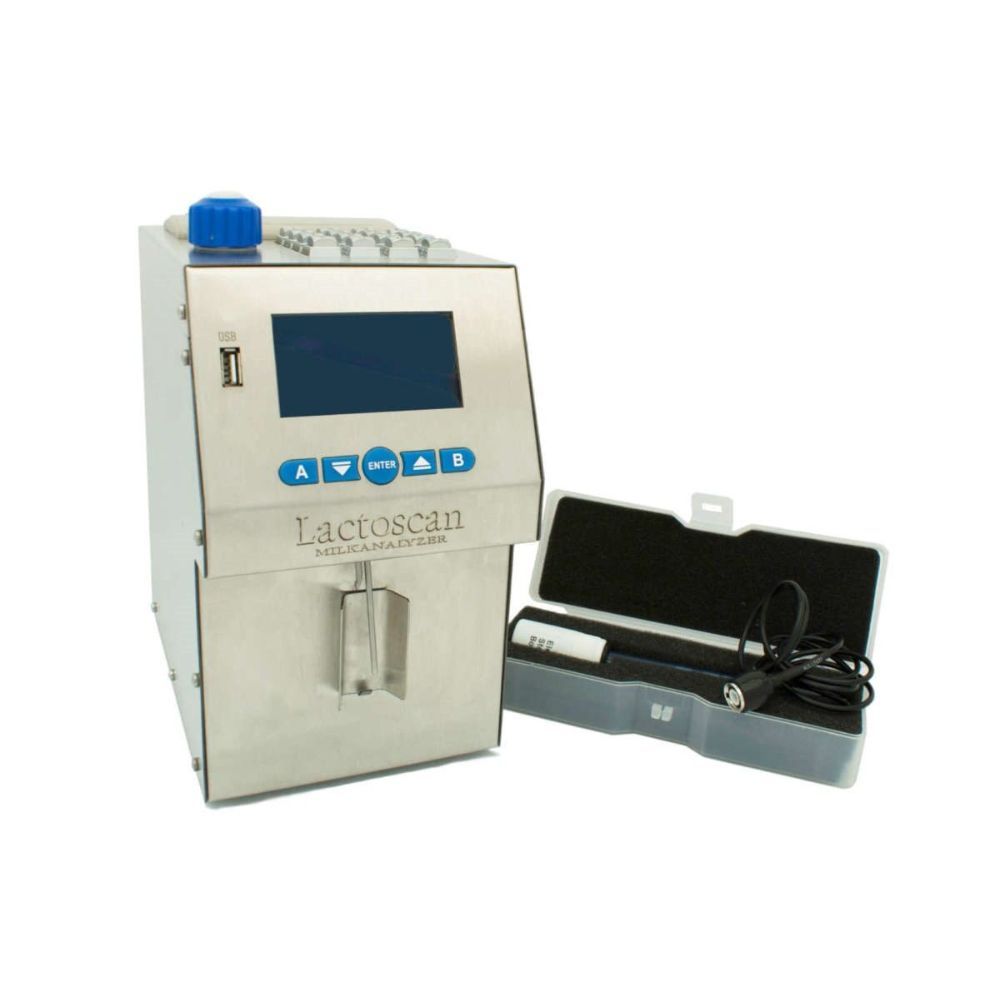

- A carry case is available for milk analysis on the move and in remote areas
Availability:On Request
SKU
ILASSA
BrandLactoscan
The Lactoscan SA Ultrasonic Milk Analyzer is a compact and portable device designed for rapid and accurate analysis of milk composition. Utilising advanced ultrasonic technology, it provides precise measurements of key milk parameters, making it an essential tool for dairy farms, milk collection centers, and laboratories.
Key Features of the Lactoscan SA Ultrasonic Milk Analyzer
- User-Friendly Operation: Simple in operation, maintenance, calibration, and installation.
- Automatic Cleaning: Equipped with two peristaltic pumps for efficient cleaning.
- Compact Design: Portable and space-saving, suitable for various working environments.
- Low Sample Volume: Requires a very small quantity of milk for analysis.
- Energy Efficient: Low power consumption ensures cost-effective operation.
- Chemical-Free: No use of hazardous chemicals during analysis.
- Data Management: Features RS232 interface, USB, and USB flash drive support for data transfer.
- Integrated Functions: Includes real-time clock, embedded printer, and keypad.
- Self-Calibration: Two-sample self-calibration ensures consistent accuracy.
- Extended Measurement Capabilities: Possibility of connecting a pH probe; integrated pH and conductivity measuring.
Applications
- Dairy Farms: On-site milk quality assessment.
- Milk Collection Centers: Rapid analysis during collection processes.
- Laboratories: Detailed compositional analysis for research and quality control.
- Milk Processing Plants: Monitoring and verification of milk parameters during processing.
Why Choose the Lactoscan SA Ultrasonic Milk Analyzer?
- Precision and Reliability: Delivers accurate measurements essential for quality control.
- Efficiency: Fast analysis time enhances productivity.
- Versatility: Suitable for various types of milk, including cow, buffalo, sheep, and goat.
- Ease of Use: Intuitive interface and minimal maintenance requirements.
- Data Integration: Seamless data transfer capabilities support efficient record-keeping.
Frequently Asked Questions (FAQs)
Q: What types of milk can the Lactoscan SA Ultrasonic Milk Analyzer analyze?
A: It can analyze various milk types, including cow, buffalo, sheep, goat, and more, with appropriate calibration.
Q: Is Lactoscan SA Ultrasonic Milk Analyzer device portable?
A: Yes, its compact design and lightweight make it highly portable.
Q: Does the Lactoscan SA Ultrasonic Milk Analyzer require regular calibration?
A: The device features two-sample self-calibration, reducing the need for frequent manual calibration.
Q: Can the Lactoscan SA Ultrasonic Milk Analyzer measure pH and conductivity?
A: Yes, it has integrated pH and conductivity measuring capabilities.
Q: What is the power requirement?
A: It operates on 220V/110V AC or 12V – 14.2V DC, with a maximum power consumption of 30W.
| Category | Parameter | Range | Tolerance |
|---|---|---|---|
| Measurement Parameters | Fat | 0.01% – 45% | ±0.06% |
| Solids-Non-Fat (SNF) | 3% – 40% | ±0.15% | |
| Density | 1015 kg/m³ – 1160 kg/m³ | ±0.3 kg/m³ | |
| Protein | 2% – 7% | ±0.15% | |
| Lactose | 0.01% – 6% | ±0.2% | |
| Added Water | 0% – 70% | ±3% | |
| Milk Sample Temperature | 1°C – 40°C | ±1% | |
| Freezing Point | –0.4°C to –0.7°C | ±0.001% | |
| Salts | 0.4% – 1.5% | ±0.05% | |
| pH | 0 – 14 | ±0.05% | |
| Conductivity | 3 mS/cm – 14 mS/cm | ±0.05% | |
| Total Solids | 0% – 25% | ±0.17% | |
| Environmental Conditions | Ambient Air Temperature | 10°C – 43°C | - |
| Milk Temperature | 1°C – 40°C | - | |
| Relative Humidity | 30% – 80% | - | |
| Electrical Parameters | AC Power Supply Voltage | 220V/110V | - |
| DC Power Supply Voltage | 12V – 14.2V | - | |
| Power Consumption | Maximum 30W | - | |
| Mechanical Parameters | Dimensions (W x D x H) | 175 x 175 x 150 mm | - |
| Weight | Less than 1.5 kg | - | |
| Housing | Plastic cover box | - |
| Brand | Lactoscan |
|---|
