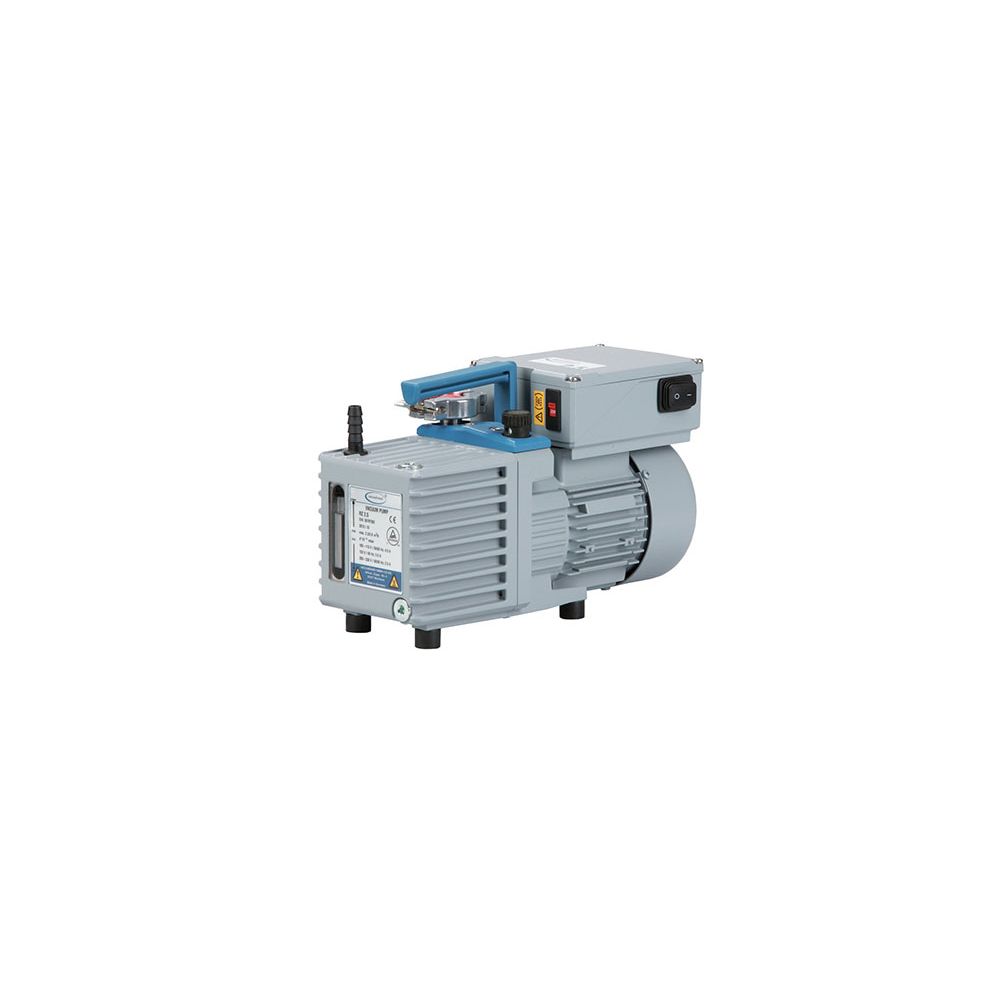

Rotary Vane Oil Pump RZ 2.5

Rotary Vane Oil Pump RZ 2.5

  • Ultimate vacuum: 2 x 10-3mbar

  • Max pumping speed: 2.3m3/h

  • Oil capacity min/max: 0.1/0.25L

  • Inlet connection: small flange KF DN 16

  • Outlet connection: Hose nozzle DN 8-10mm

  • Rated motor power: 0.18kW

  • Rated motor speed: 1500rpm

  • Dimensions (LxWxH): 316x125x190mm

  • Weight: 11.4kg

  • Items supplied: Pump oil-filled and completely mounted, ready for use, with the manual.


Availability:On Request

The RZ 2.5 is a high-performance rotary vane pump with an extra compact design and low weight. It is an ideal solution for a wide range of laboratory and process applications that require a low ultimate vacuum at a medium gas flow rate. The RZ 2.5 can also be equipped with an oil mist filter (FO) and the VS 16 valve as a package.
