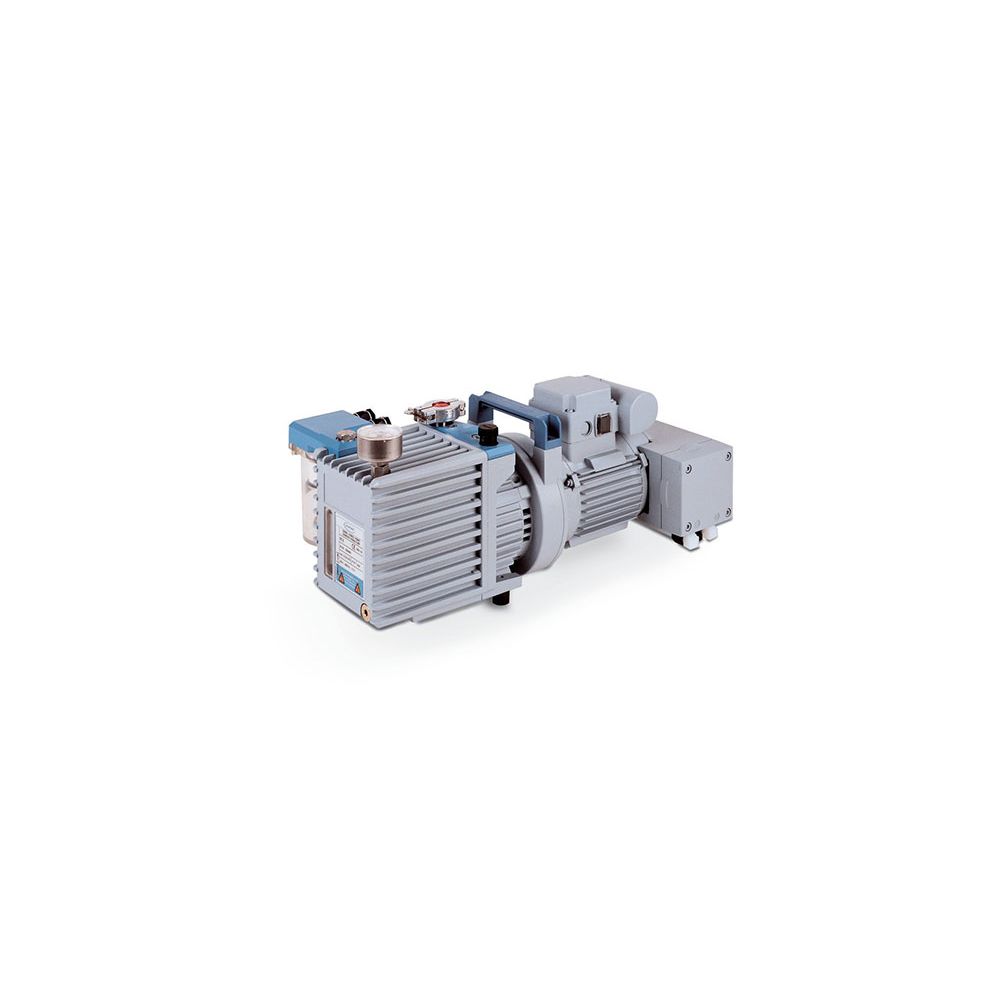

Chemistry-HYBRID Pump, RC 6
R 118,078.85
- Ultimate vacuum: 2 x 10-3mbar
- Max. pumping speed 50 Hz: 5.9m3/h
- Ultimate vacuum with gas ballast: 1 x 10-2 mbar
- Oil capacity min/max: 0.34/0.50L
- Inlet connection: small flange KF DN 16
- Outlet connection: Hose nozzle DN 8-10mm
- Rated motor power: 0.37kW
- Rated motor speed: 1500rpm
- Dimensions (LxWxH): 510x305x230mm
- Weight: 25 kg
- Items supplied: Pump completely mounted, ready for use after oil filling (bottle 0.5 l enclosed), with manual.
Need a customised solution?
Optional accessories are available for purchase separately. If your order needs a customised configuration, our technical specialists will follow up with full details before your order is finalised. Contact us via the enquiry form or sales@lasec.com.
Installation, training and special delivery
Some products require installation, training, or special delivery (such as tail-lift trucks, extra labour, or hazardous material packaging). If your order needs this, we'll contact you with the additional cost before dispatch, so your final invoice may differ from the listed price.
Ordering from outside South Africa
Online ordering is currently limited to South African customers, but our full range is still available. Log an enquiry or email international@lasec.com and our international sales team will assist you through our traditional sales channels.
DISCLAIMER: All product images are for illustrative purposes only. Actual products may vary slightly in colours, controls, and visible features.
Availability:On Request
SKU
IVAC20698560
BrandVACUUBRAND
The RC 6 chemistry-HYBRID pump is a combination of a two-stage rotary vane pump and a two-stage chemistry diaphragm pump for optimized corrosion resistance. The diaphragm pump maintains the oil reservoir under vacuum in order to keep the partial pressures of solvent vapors at levels below their condensation points and to reduce largely the concentration of oxygen and corrosive gases. Therefore, the RC 6 chemistry-HYBRID pump has a much higher solvent vapor pumping capability and resistance to aggressive gases than conventional rotary vane pumps.
- Reduced internal corrosion, even when working with corrosive vapours.
- Oil changes are typically reduced by 90% or more compared with rotary vane pumps alone.
- Most economical solution: In practical operation, a cold trap is often no longer necessary.
- Ease of maintenance due to telescopic design.
| Brand | VACUUBRAND |
|---|
