Model: Standard T-BNC
Code: 32200473
Head: Cable fix / BNC
pH range: 0…14
Temperature range: -10…100 °C

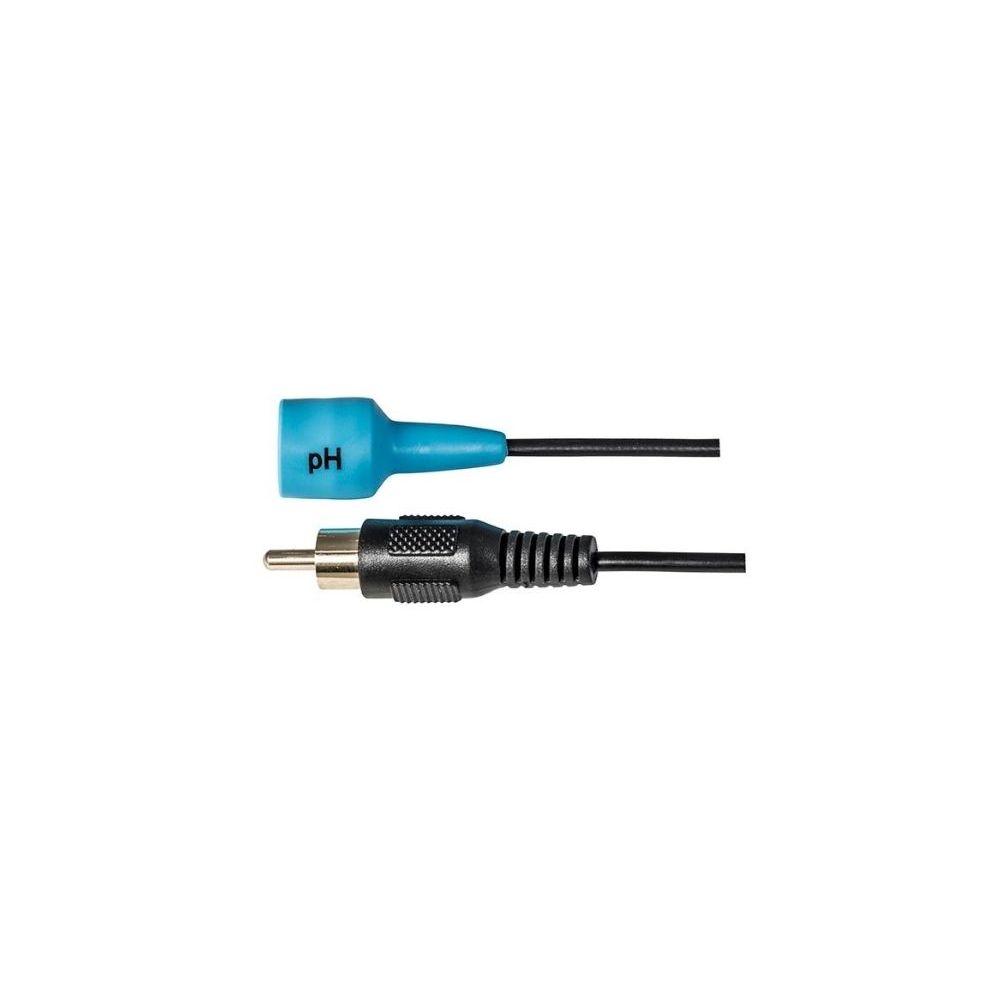

Temperature sensor: Yes/plug RCA Cinch
Shaft material: Glass
Diaphragm: Ceramic
Reference system: Ag/AgCl Cartridge
Electrolyte: KCl 3M
Shaft length: 120 mm
Shaft diameter: 12 mm
Note / Application: Temperature sensor NTC 30 KΩ

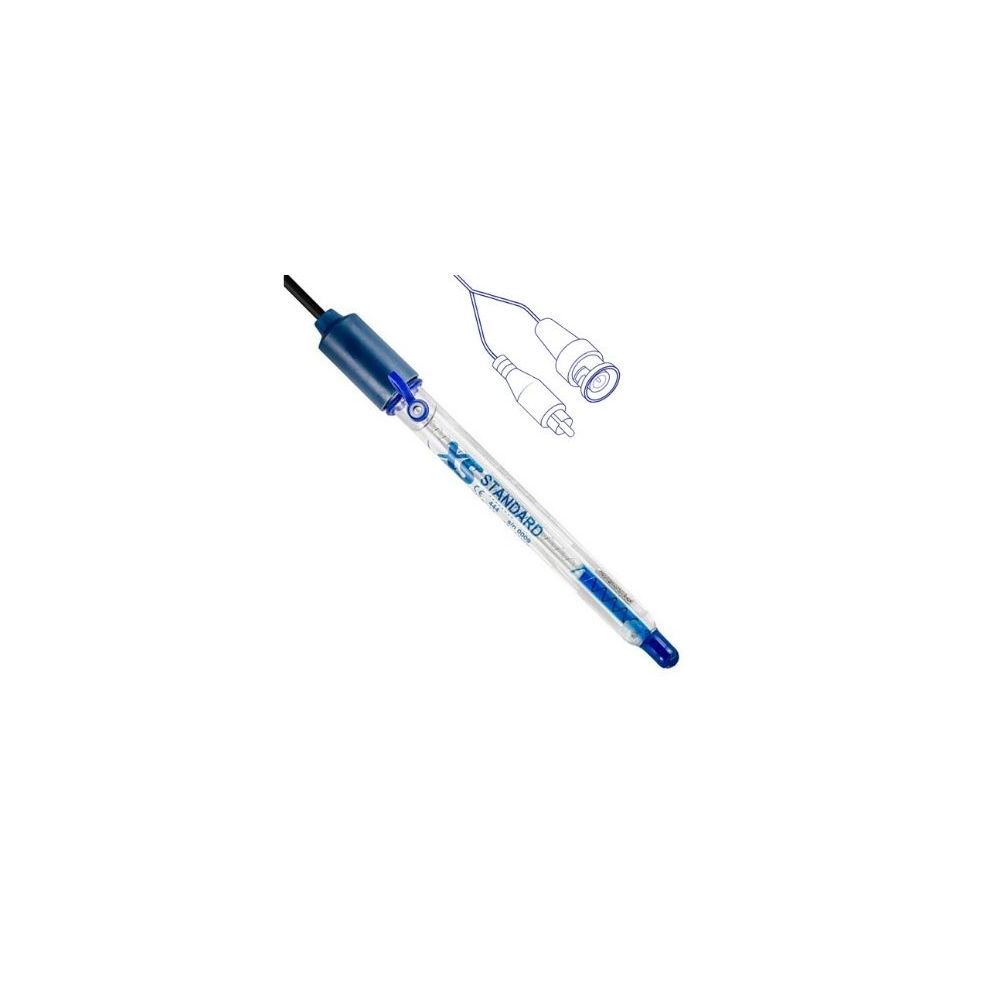

Description: pH electrode combined, length 120 mm, with temperature sensor NTC 30KΩ with fixed cable plug BNC + RCA Cinch L = 1m. Glass Body (Ø 12 mm) and cylindrical membrane, for general use. Electrolyte KCl 3M rechargeable. Excellent chemical resistance and easy to clean. pH 0 ... 14, Temperatures -10 ... 100 ° C.
REGULATIONS | |
Regulations | Dir 2011 / 65 / EU |
PERFORMANCE | |
pH measuring range (max.; min.) | 14; 0 |
Temperature measuring range (max.; min.) | 100 °C; -10 °C |
FEATURES | |
Body material | Glass |
Connection | Fixed cable / BNC |
Diaphragm | Ceramic |
Electrolyte | KCl 3M |
Reference system | Ag / AgCl Cartridge |
Temperature probe | Yes / plug RCA Cinch |
DIMENSION AND WEIGHT | |
Body diameter | 12 mm |
Body length | 120 mm |
Brand | Giorgio Bormac s.r.l |
---|
