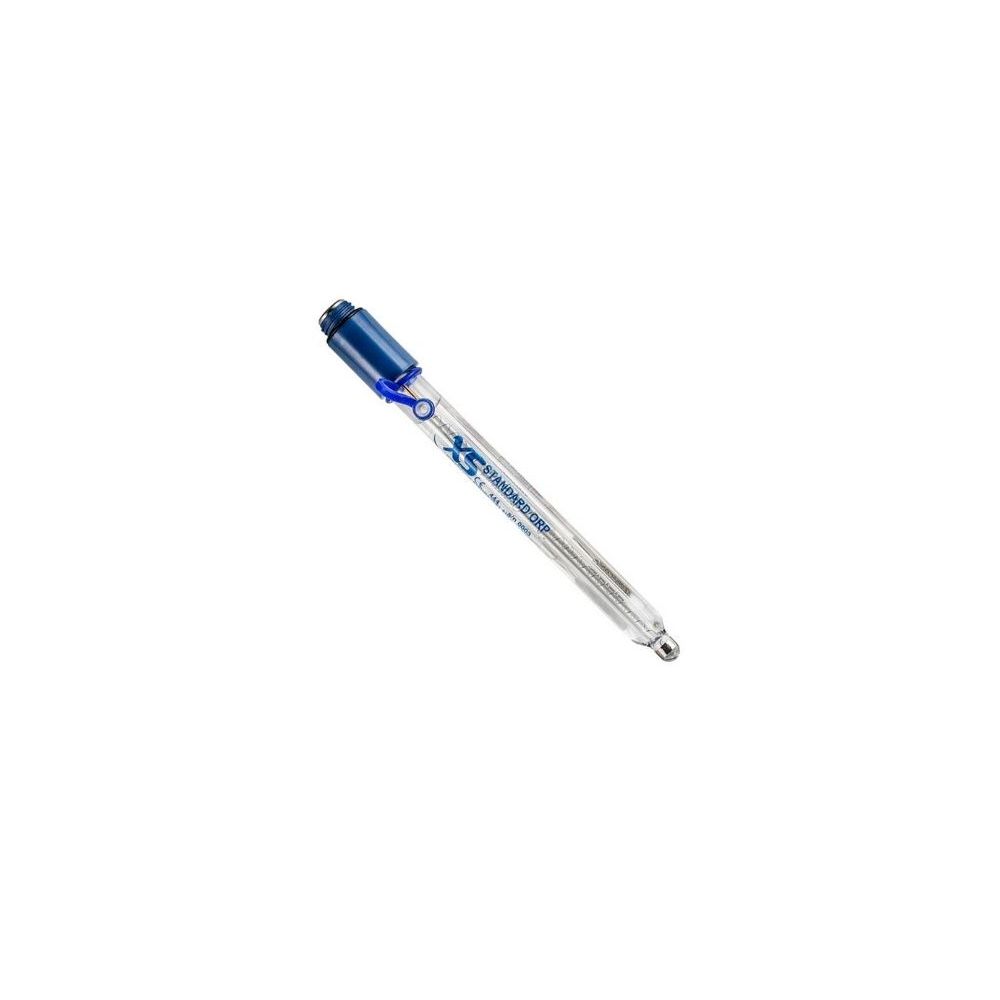

XS Sensor Standard ORP S7
XS Sensor Standard ORP S7
R3,065.27
Model: Standard ORP
Code: 32200233
Head: S7 connector
mV range: ±2000
Temperature range: -10…100 °C
Temperature sensor: No
Shaft material: Glass
Diaphragm: 3 ceramics
Reference system: Ag/AgCl Cartridge
Electrolyte: KCl 3M
Shaft length: 120 mm
Shaft diameter: 12 mm
Note / Application: Platinum ring for REDOX measurement
Availability:On Request
SKU
IBOR32200233
BrandGiorgio Bormac s.r.l
Description: S7 Head Screw Redox combined electrode. Glass Body. Temperatures -10 ... 100 ° C. Filling KCl 3M.
TECHNICAL SPECIFICATIONS
| REGULATIONS | |
| Regulations | Dir 2011 / 65 / EU; Dir 2015 / 863 / EU |
| PERFORMANCE | |
| ORP measuring range (max.; min) | + 2000 mV; - 2000 mV |
| Temperature measuring range (max.; min) | 100 °C; - 10 °C |
| FEATURES | |
| Application | REDOX measures |
| Body material | Glass |
| Connection | S7 connector |
| Diaphragm | Ceramic |
| Electrolyte | KCl 3M |
| Number of diaphragm | 3 |
| Reference system | Ag / AgCl Cartridge |
| DIMENSION AND WEIGHT | |
| Body diameter | 12 mm |
| Body length | 120 mm |
| Brand | Giorgio Bormac s.r.l |
|---|
