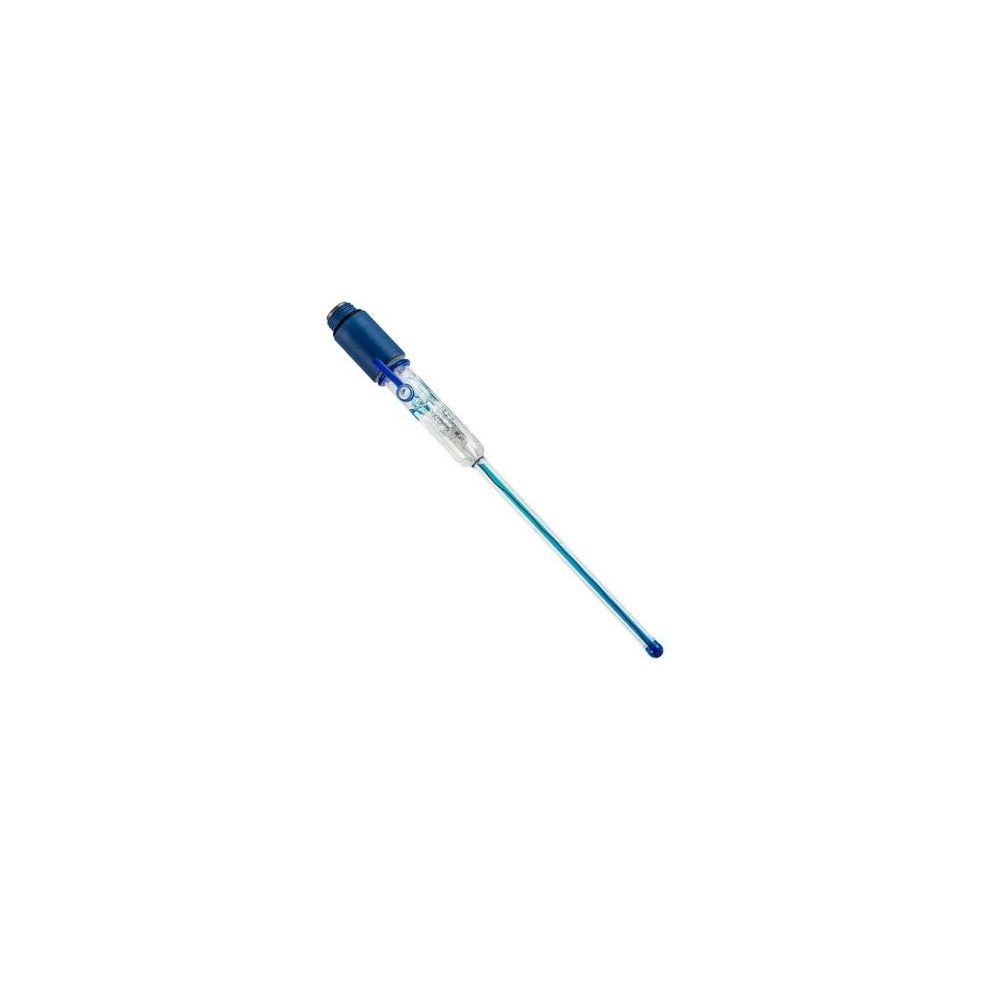

XS Sensor Semi Micro S7
XS Sensor Semi Micro S7
R3,624.02
Model: Semi-Micro
Code: 32200383
Head: S7 connector
pH range: 0…14
Temperature range: 0…100 °C
Temperature sensor: No
Shaft material: Glass
Diaphragm: Ceramic
Reference system: Ag/AgCl Cartridge
Electrolyte: KCl 3M
Shaft length: 150 mm / 100 mm
Shaft diameter: 12 mm / 6 mm
Note / Application: Test tube measurement
Electrode excludes:
- IBOR33551733 - S7/BNC cable for connection to pH meter with a BNC pH port (required)
- IBOR50002012 - Temperature probe for meters with RCA temperature port (optional)
Availability:On Request
SKU
IBOR32200383
BrandGiorgio Bormac s.r.l
Description: pH Electrode combined with S7 screw head. "Micro 6" glass body. Electrolyte KCl 3M. Dimensions (LXØ) 100x6 mm. Suitable for measurements in test tubes. pH 0 ... 14, Temperature 0 ... 100 ° C.
TECHNICAL SPECIFICATIONS
| REGULATIONS | |
| Regulations | Dir 2011 / 65 / EU |
| PERFORMANCE | |
| pH measuring range (max.; min.) | 14; 0 |
| Temperature measuring range (max.; min.) | 100 °C; 0 °C |
| FEATURES | |
| Application | Test tube measurements |
| Body material | Glass |
| Connection | S7 connector |
| Diaphragm | Ceramic |
| Electrolyte | KCl 3M |
| Reference system | Ag / AgCl Cartridge |
| DIMENSION AND WEIGHT | |
| Body diameter | 12 mm / 6 mm (tip) |
| Body length | 150 mm / 100 mm |
| Brand | Giorgio Bormac s.r.l |
|---|
