Code: 32200223
Head: S7 connector
pH range: 0…14
Temperature range: -10…80 °C
Temperature sensor: No
Shaft material: Glass
Diaphragm: Open pore
Reference system: Ag/AgCl Cartridge
Electrolyte: Polymer
Shaft length: 120 mm
Shaft diameter: 12 mm
Note / Application: Maintenance-free
Electrode excludes BNC connection cable and built-in temperature probe.

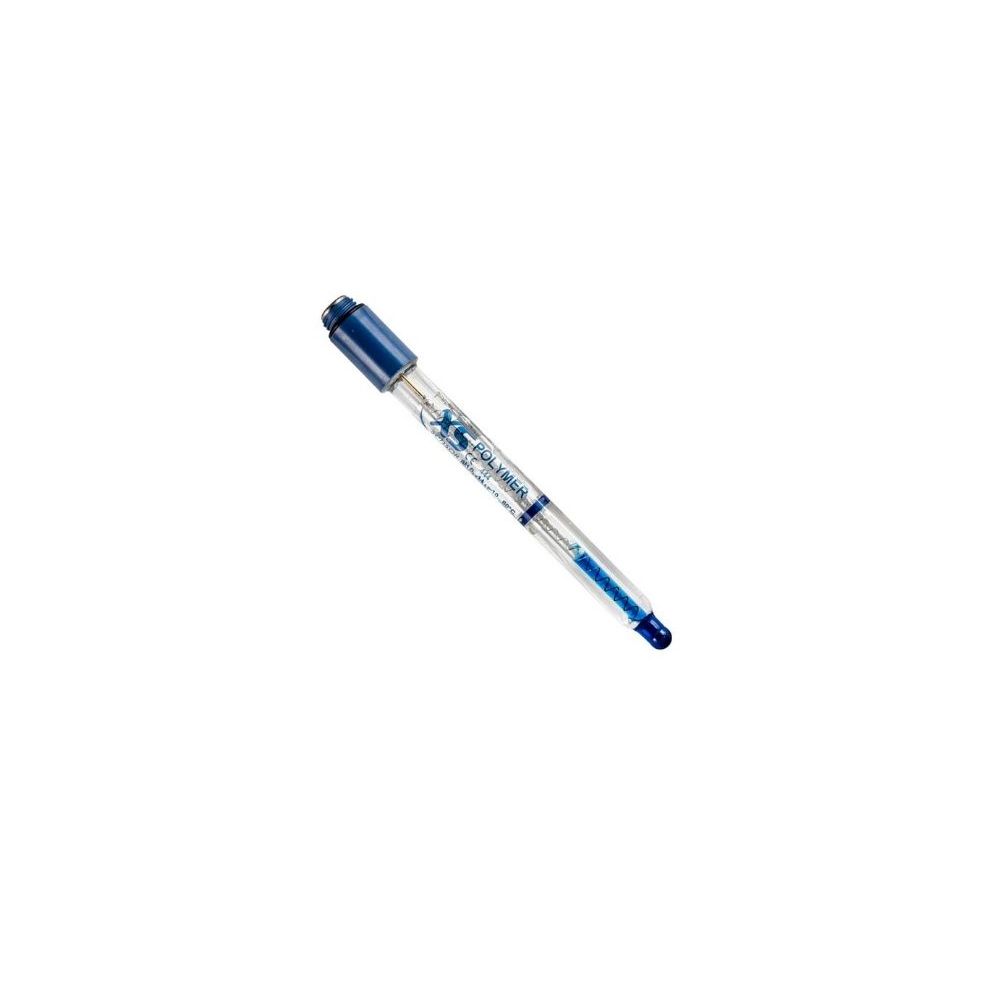

Description: pH Electrode combined S7 screw head. Glass Body for general use. Dimensions (LXØ) 120x12 mm, cylindrical membrane. Filling polymer, without pore. For a fast response with high accuracy in samples that may contaminate normal diaphragms. Maintenance - free.
REGULATIONS | |
Regulations | Dir 2011 / 65 / EU, Reg (EC) 1935 / 2004, Reg (EU) 2016 / 1416 |
PERFORMANCE | |
pH measuring range (max.; min) | 14; 0 |
Temperature measuring range (max.; min) | 80 °C; - 10 °C |
FEATURES | |
Body material | Glass |
Connection | S7 connector |
Diaphragm | Open pore |
Electrolyte | Polymer |
Reference system | Ag / AgCl Cartridge |
DIMENSION AND WEIGHT | |
Body length | 120 mm |
Brand | Giorgio Bormac s.r.l |
---|
