Code: 32200213
Head: S7 connector
pH range: 0…14
Temperature range: 0…100 °C
Temperature sensor: No
Shaft material: Glass
Diaphragm: Ceramic
Reference system: Ag/AgCl Cartridge
Electrolyte: KCl 3M
Shaft length: 120 mm / 60 mm
Shaft diameter: 12 mm / 3 mm
tubeNote / Application: Small volume sample < 2 ml
Electrode excludes BNC connection cable and built-in temperature probe.

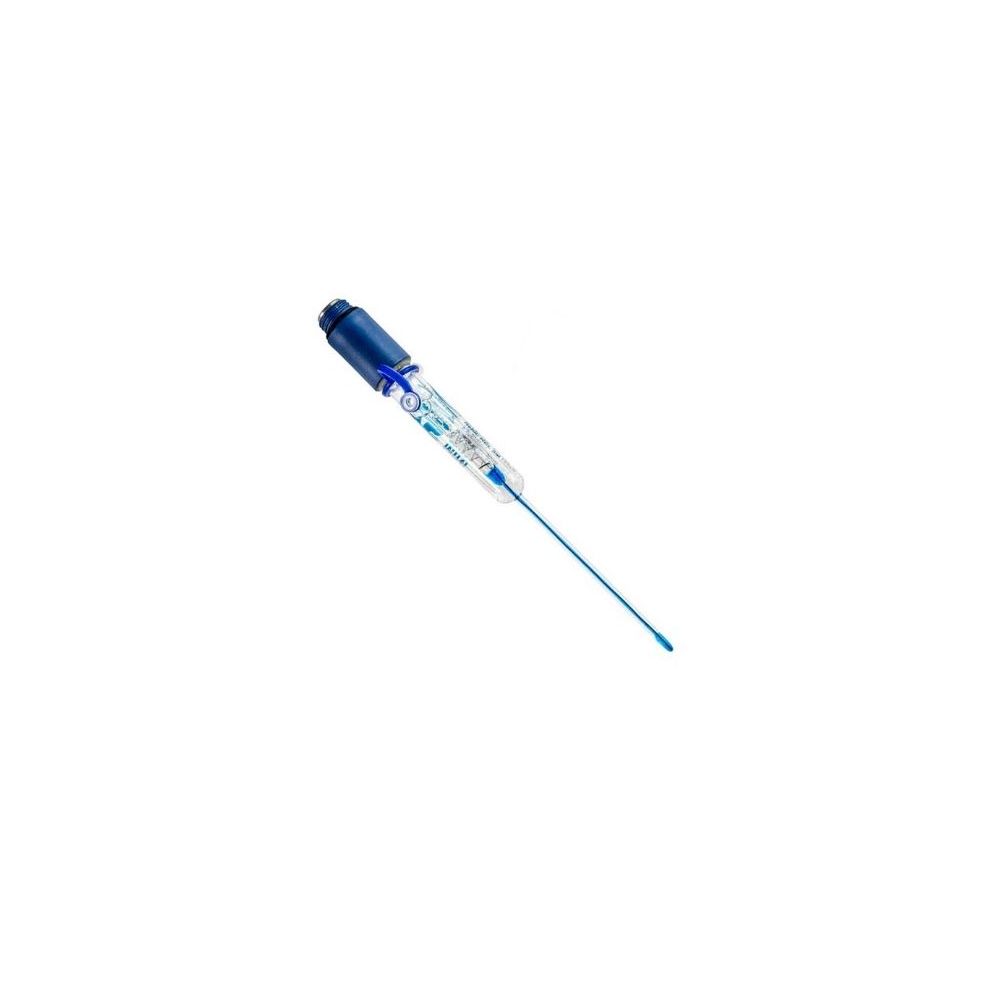

Description: Combined pH electrode, S7 screw head. Body in glass "micro-3". Dimensions (LXØ) 60x3 mm. Electrolyte KCl 3M. For small volumes of samples <2 ml. pH 0 ... 14, temperature 0 ... 100 °C
REGULATIONS | |
Regulations | Dir 2011 / 65 / EU, Dir 2015 / 863 / EU |
PERFORMANCE | |
pH measuring range (max.; min) | 14; 0 |
Temperature measuring range (max.; min) | 100 °C; 0 °C |
FEATURES | |
Application | Small volumes of samples < 2ml |
Body material | Glass |
Connection | S7 connector |
Diaphragm | Ceramic |
Electrolyte | KCl 3M |
Reference system | Ag / AgCl Cartridge |
DIMENSION AND WEIGHT | |
Body diameter | 12 mm / 3 mm (tip) |
Body length | 120 mm / 60 mm |
Brand | Giorgio Bormac s.r.l |
---|
