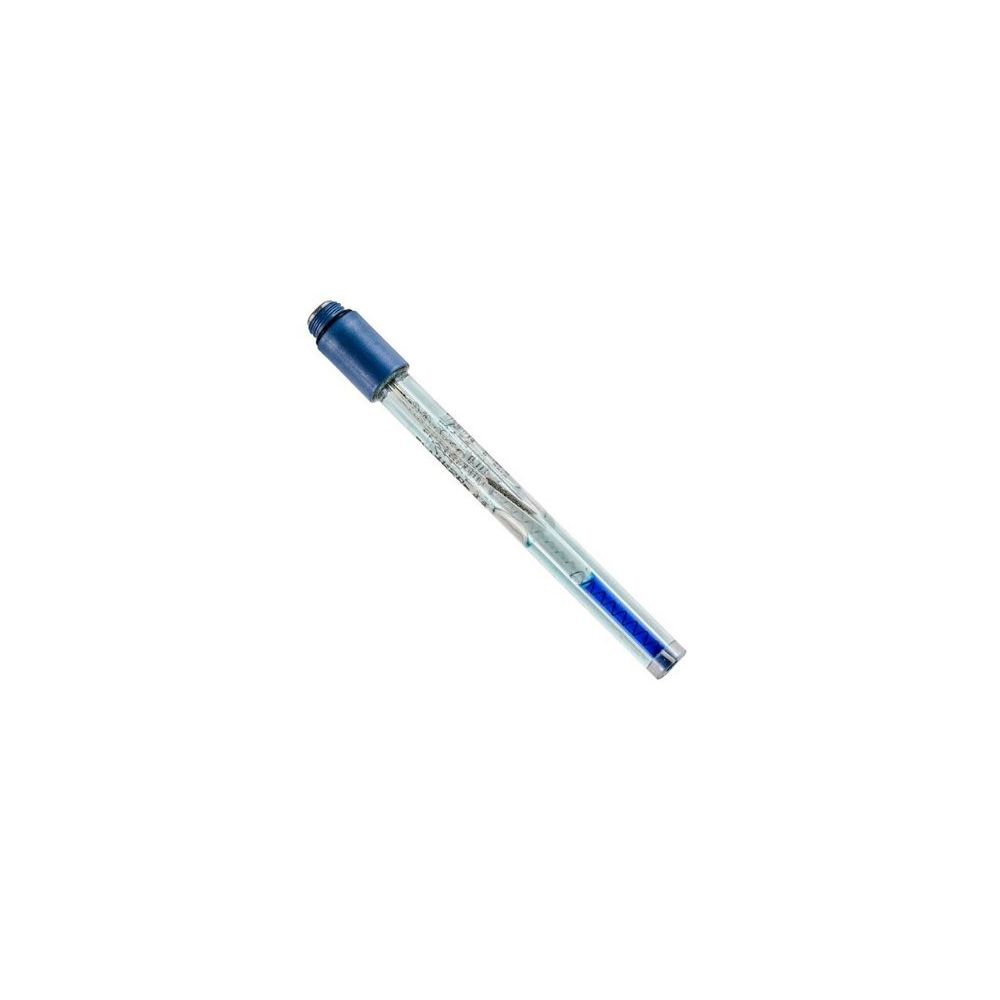

XS Sensor Flat
XS Sensor Flat
R3,163.13
Model: Flat
Code: 32200413
Head: S7 connector
pH range: 0…14
Temperature range: 0…60 °C
Temperature sensor: No
Shaft material: Glass
Diaphragm: Teflon with 3 open pore
Reference system: Ag coated
Electrolyte: Polymer
Shaft length: 120 mm
Shaft diameter: 12 mm
Note / Application: For surface measurement e. g. paper and skin
Electrode excludes:
- IBOR33551733 - S7/BNC cable for connection to pH meter with a BNC pH port (required)
- IBOR50002012 - Temperature probe for meters with RCA temperature port (optional)
Availability:On Request
SKU
IBOR32200413
BrandGiorgio Bormac s.r.l
Description: pH Electrode combined with S7 screw head. Glass body. Dimensions (LXØ) 120x12 mm. Polymer filled. With flat membrane for surface measurements. pH 0 ... 14, Temperature 0 ... 60 ° C.
TECHNICAL SPECIFICATIONS
| REGULATIONS | |
| Regulations | Dir 2011 / 65 / EU |
| PERFORMANCE | |
| pH measuring range (max.; min.) | 14; 0 |
| Temperature measuring range (max.; min.) | 60 °C; 0 °C |
| FEATURES | |
| Application | Superficial measures |
| Body material | Glass |
| Connection | S7 connector |
| Diaphragm | Teflon |
| Electrolyte | Polymer |
| Number of diaphragms | 3 |
| Reference system | Ag coated |
| DIMENSION AND WEIGHT | |
| Body diameter | 12 mm |
| Body length | 120 mm |
| Brand | Giorgio Bormac s.r.l |
|---|
