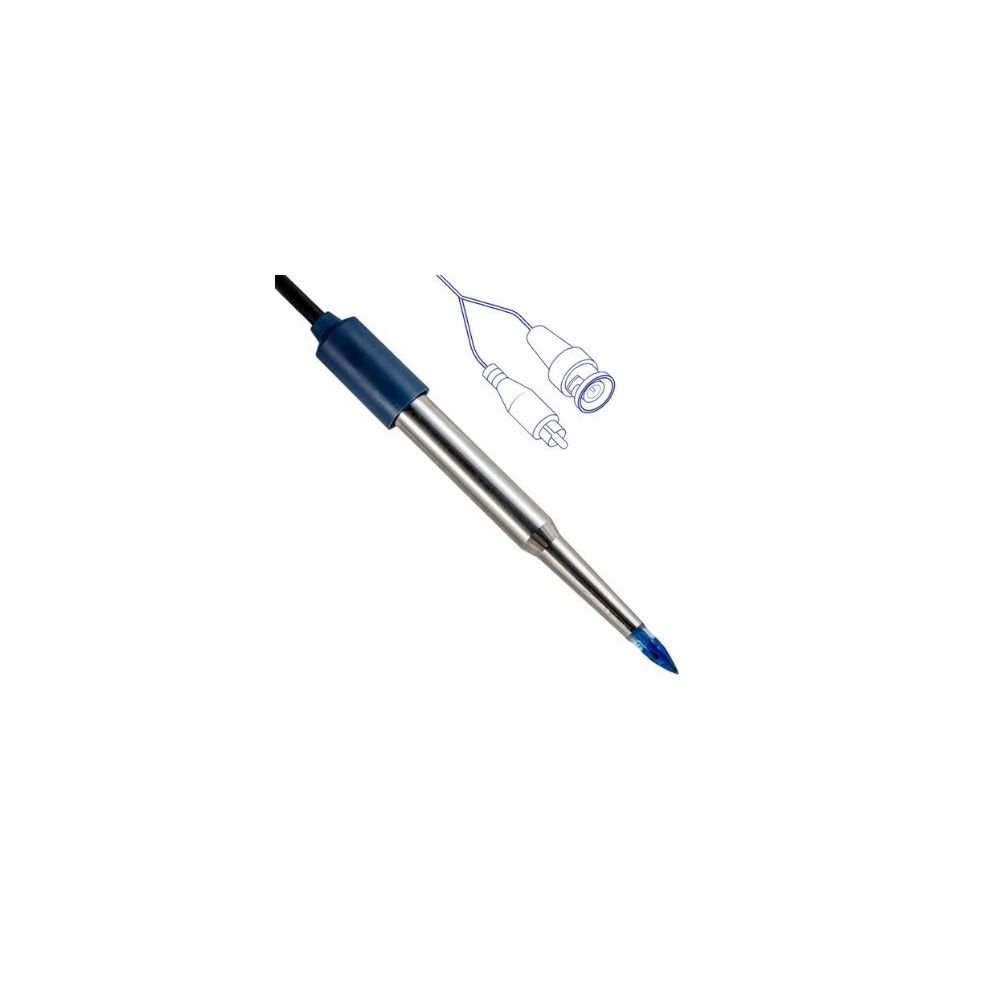

XS Sensor 2-Pore, Stainless Steel NTC with 1mt cable BNC
XS Sensor 2-Pore, Stainless Steel NTC with 1mt cable BNC
R5,318.92
Model: 2 Pore Steel T
Code: 32200313
Head: Cable fix / BNC
pH range: 0…14
Temperature range: 0…80 °C

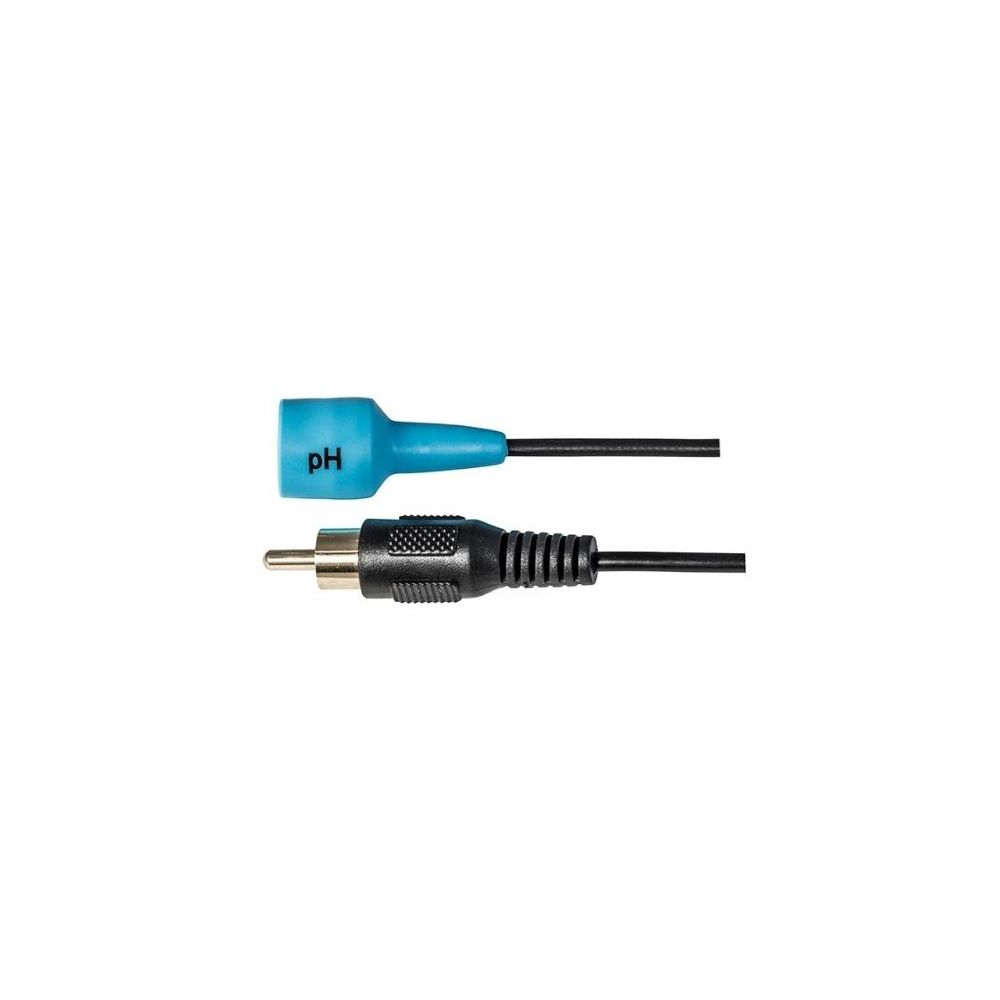

Temperature sensor: Yes/plug RCA Cinch
Shaft material: Glass/Polish steel
Diaphragm: 2 open pore
Reference system: Ag coated
Electrolyte: Polymer
Shaft length: 105 mm / 50 mm
Shaft diameter: 12 mm / 6 mm

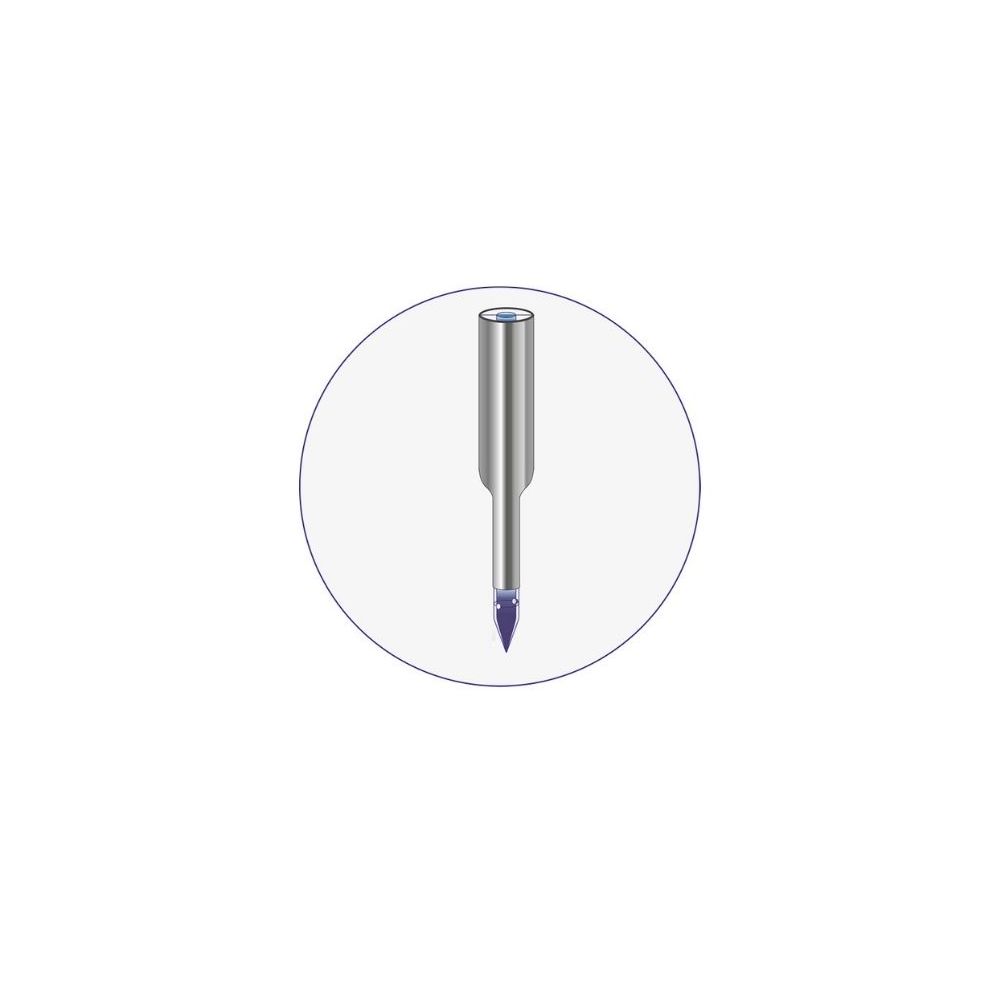

Note / Application: Penetration tip for hard samples
Availability:On Request
SKU
IBOR32200313
BrandGiorgio Bormac s.r.l
Description: pH electrode combined with temperature sensor NTC, with fixed cable plug BNC + Cinch 1m. Steel body. Dimensions (LXØ) 50x6 mm. Filled polymer, maintenance-free. Thanks to 6 mm tip is ideal for meats. For penetration measurements. pH 0 ... 14, Temperature 0 ... 60 °C.
TECHNICAL SPECIFICATIONS
| REGULATIONS | |
| Regulations | Dir 2011 / 65 / EU; Reg (EC) 1935 / 2004; Reg (EU) 2016 / 1416 |
| PERFORMANCE | |
| pH measuring range (max.; min.) | 14; 0 |
| Temperature measuring range (max.; min.) | 80 °C; 0 °C |
| FEATURES | |
| Application | Ideal for meat and penetration measurements |
| Body material | Glass / Polish steel |
| Connection | Fixed cable / BNC |
| Diaphragm | Open pore |
| Electrolyte | Polymer |
| Number of diaphragms | 2 |
| Reference system | Ag coated |
| Temperature probe | Yes / plug RCA Cinch |
| DIMENSION AND WEIGHT | |
| Body diameter | 12 mm / 6 mm (tip) |
| Body length | 105 mm / 50 mm |
| Brand | Giorgio Bormac s.r.l |
|---|
