Measuring range:

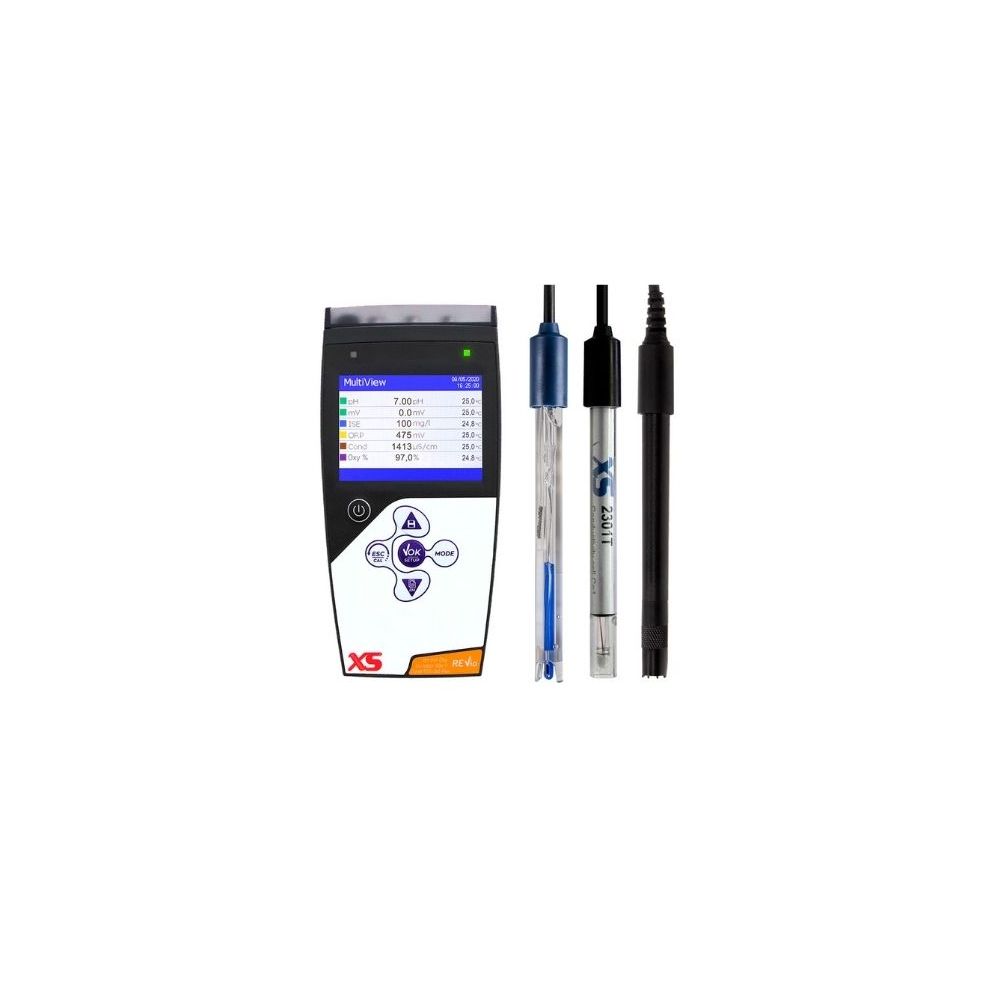

Complete with pH electrode 201 T, conductivity cell 2301T and polarographic sensor, with built-in temperature sensor and fixed cable 3m, in carrying case.

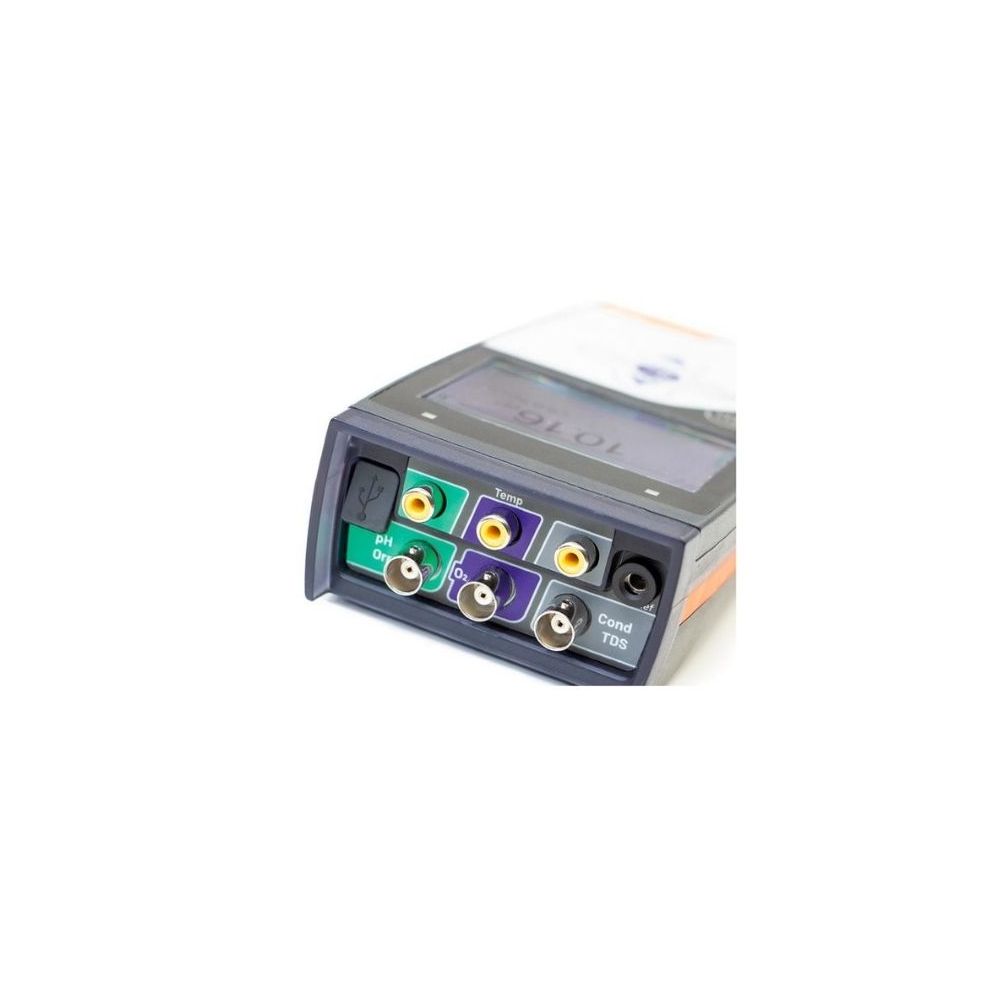

SENSORS: XS REVIO is equipped with 3 pairs of BNC - RCA (temperature) inputs. This makes it suitable for most sensors on the market. Using XS Sensor electrodes, maximum accuracy and reliability are achieved. It is supplied with XS sensors, with an integrated T sensor 3-meter cable: pH electrode 201T DHS, Conductivity cell 2301T (C = 1), Polarographic oxygen sensor

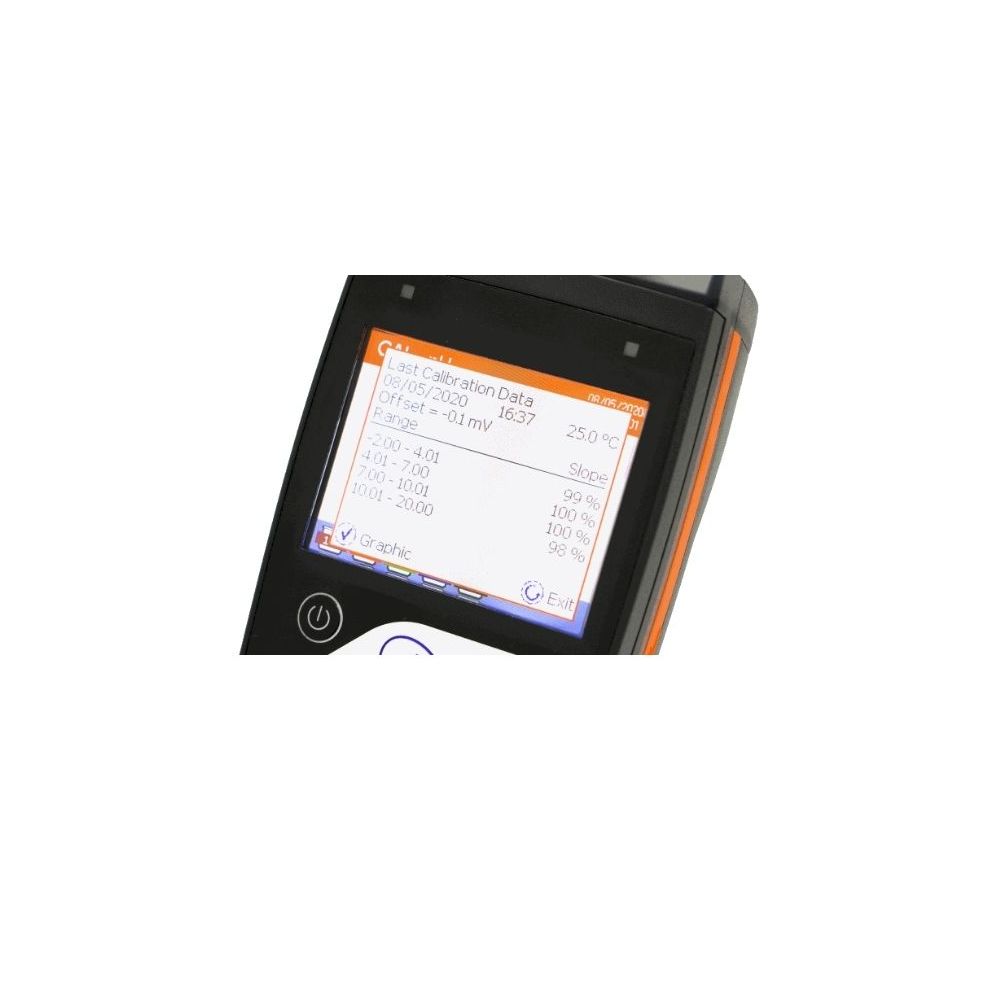

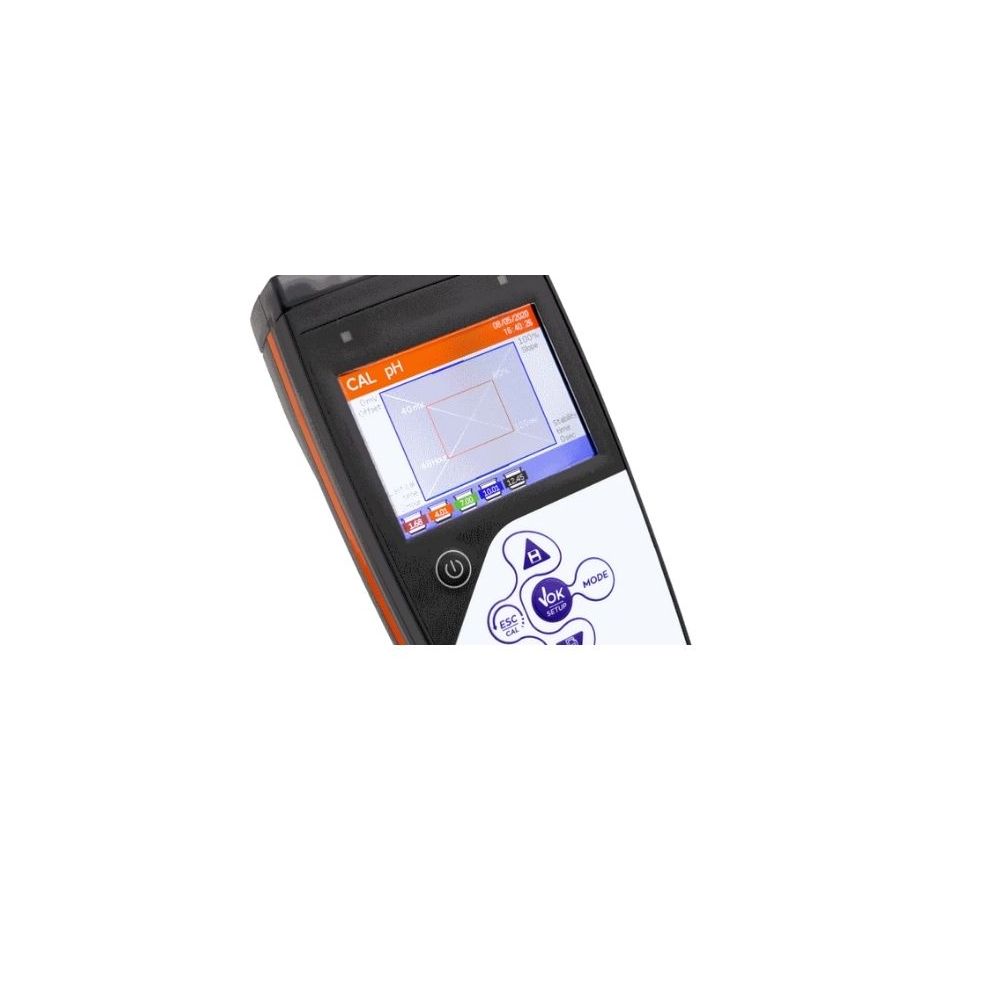

SMART CALIBRATION: Guided automatic calibration with recognition of standards, or values chosen by the user. At the end of each calibration, the graph (pH) and the calibration data are displayed. The calibrated points are always shown on the display.
GLP - GOOD LABORATORY PRACTICE: Work safely and according to GLP standards by setting the calibration expiry date and the 4-digit password, which protects calibrations, settings, and sensitive data. Using the XS DHS digital sensors, the serial number and model of the electrode can also be traced.
DATA RECORDING: 10,000 data internal memory, or direct recording on PC. The free DataLink + software allows the download of the saved data, the export In Excel and PDF format, as well as the practical graphic and table display. Micro USB connection port.

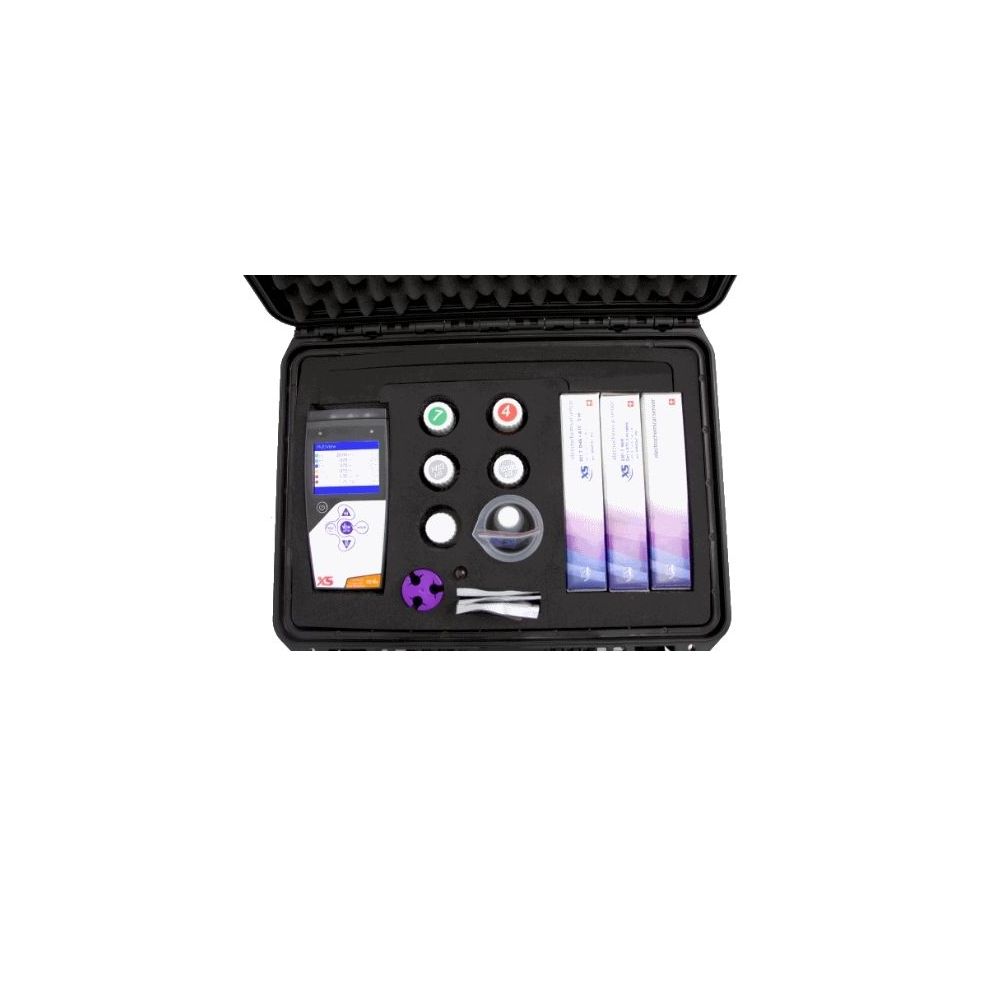

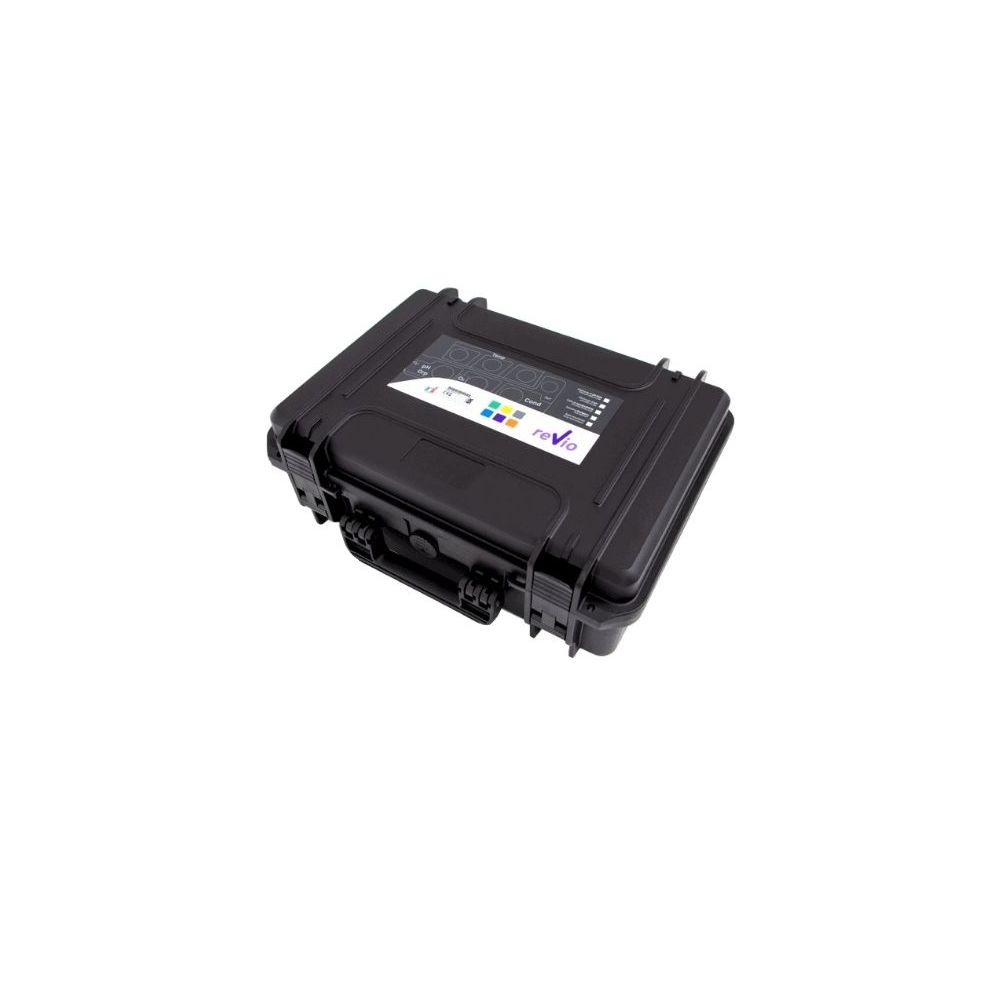

ON THE FIELD: The IP67 carrying case, impact resistant and with a pressure adapter, turns into a real mobile laboratory, complete with all accessories needed for measurement.
REGULATIONS | |
Regulations | CE |
PERFORMANCE | |
Accuracy (Cond) | ± 1 % f.s. |
Accuracy (pH) | ± 0.002 |
Accuracy (Resistivity) | ± 1 % f.s. |
Accuracy (Salinity) | ± 1 % f.s. |
Accuracy (TDS) | ± 1 % f.s. |
Accuracy (Temperature) | ± 0.2 °C |
Barometric pressure accuracy | ± 0.5 % |
Barometric pressure measuring range (max.; min.) | 1100 mbar; 300 mbar |
Barometric pressure resolution | 1 mbar |
Cond measuring range (max.; min.) | 1000 mS; 0.01 μS |
Cond resolution | 0.01 / 0.1 / 1 μS/cm (automatic scale) |
Dissolved Oxygen measuring range (max.; min.) | 50.0 mg/l; 0.00 mg/l |
DO Accuracy | 1.5 % f.s. |
DO resolution | 0.01 mg/l |
ISE accuracy | 0.5 % f.s. / 1 % f.s. |
ISE measuring range (max.; min.) | 19999 ppm; 0.001 ppm |
ISE resolution | 0.001 / 0.1 (automatic scale) |
O2 saturation accuracy | ± 10 % |
O2 saturation measuring range (max.; min.) | 400 %; 0.0 % |
O2 saturation resolution | 0.1 % |
ORP measuring range (max.; min.) | + 2000; - 2000 |
ORP resolution | 0.1 / 1 |
Parameters | pH. ORP. ISE. EC. TDS. Salinity. Resistivity. DO. Temperature |
pH measuring range (max.; min.) | + 20.00; - 2.00 |
pH resolution | 0.1 / 0.01 / 0.001 |
Reference temperature (max.; min.) | + 30 °C; + 15 °C |
Resistivity measuring range (max.; min.) | 10.00 MOhm*cm; 1.00 Ohm*cm |
Salinity compensation | Yes |
Salinity measuring range (max.; min.) | 100 ppt; 0.01 ppt |
TDS Factor | 0.40...1.00 |
TDS Factor (max.; min.) | 1.00; 0.40 |
TDS measuring range (max.; min.) | 500 g/l; 0.1 mg/l |
Temperature coefficient (max.; min.) | 10.00 % / °C; 0.00 % / °C |
Temperature compensation | 0.0...100.0 °C |
Temperature measuring range (max.; min.) | + 130.0 °C; - 30 °C |
Temperature resolution | 0.1 °C |
FEATURES | |
Alarm settings | Yes |
Auto-off | Yes |
Automatic brightness control | Yes |
Automatic pressure compensation | Yes |
Calibration point indication | Yes. with value |
Calibration report | Yes |
Cell type | 2 poles |
DHS compatible | Yes |
Display | Backlight coloured high-definition TFT |
Electrode status indication | Yes |
GLP | Yes |
Inputs | 3x BNC - RCA - Banana 4 mm Ref |
ION calibration points | 2...5 |
ISE measuring unit | mg/l - g/l - mol/l |
Memory | 10.000 data |
Multilanguage | Eng - Ita - Deu - Esp - Fra - Cze |
Online help | Yes |
Output | Micro USB |
Password | Yes. 4 numerical scripts |
pH alarm range | Yes |
Points of calibration Cond | 1...4 automatic values / 1 custom value |
Points of calibration ORP | 1 |
Points of calibration pH | 1...5 automatic values / 5 custom values |
Selectable Cell constant | 0.1 / 1 / 10 |
Stability criteria | 3 levels |
Standard approved Cond | 84 μS - 147 μS - 1413 μS - 12.88 mS - 111.8 mS |
Standard approved pH | USA - NIST - DIN 19266 |
Temperature calibration | Yes |
Timer calibration due | Yes |
Ultrapure water compensation | Yes |
POWER SUPPLY | |
Power supply | 4 x AA 1.5 V battery/USB Adaptor |
DIMENSION AND WEIGHT | |
Dimension (LxWxH) | 185 x 85 x 45 mm |
Weight | 455 g |
Brand | Giorgio Bormac s.r.l |
---|
