VPT 80/10 Platinum Glass Conductivity Cell
R 4,115.07
Model: VPT 10
Code: 50004072
Head: Cable fix / BNC
COND range: 100 μS…200 mS
Temperature range: 0…80 °C
Temperature sensor: Yes/plug RCA Cinch
Shaft material: Glass
Plate: Platinum
Shaft length: 120 mm
Shaft diameter: 12 mm
Note / Application: Cell constant C=10 Temperature sensor NTC 30 KΩ. For sea water
- Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email internationallabsales@lasec.com, and our international sales team will gladly assist you through our traditional sales channels.
Availability:On Request
SKU
IBOR50004072
BrandGiorgio Bormac s.r.l

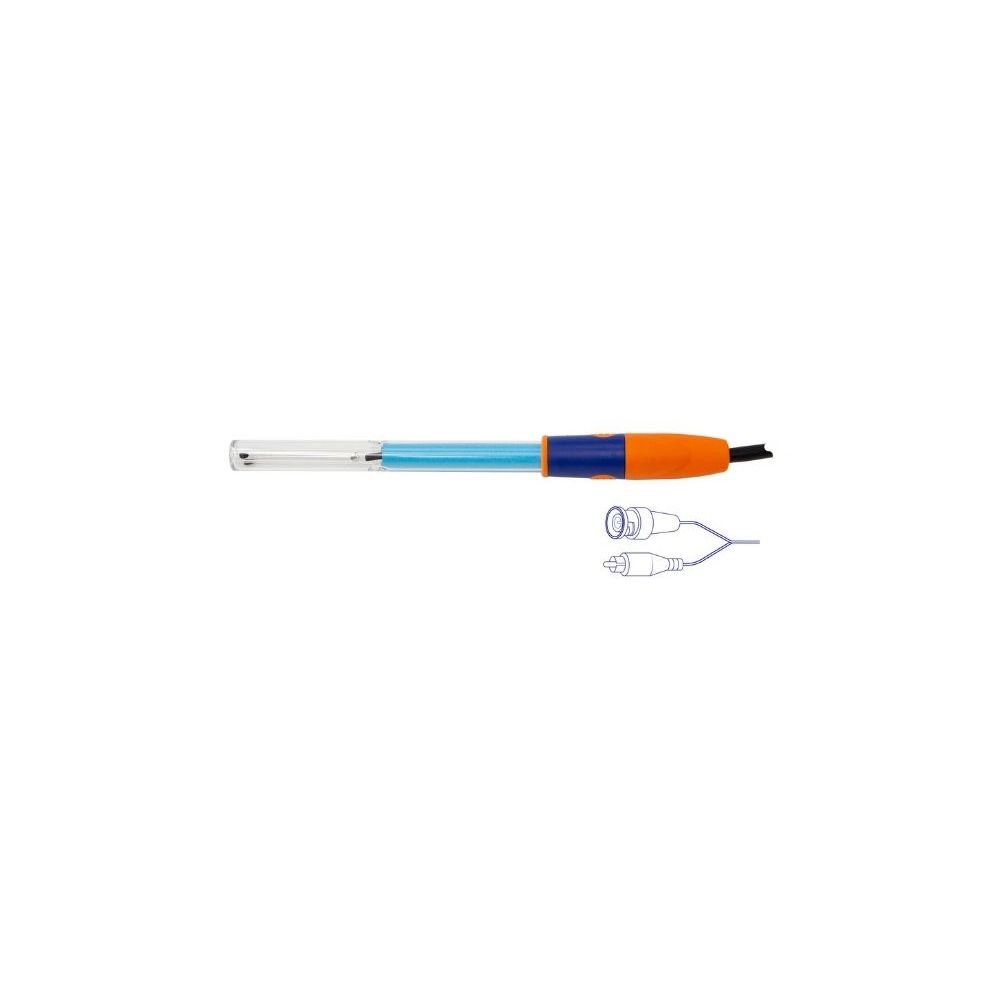

Description: VPT 80/10 conductivity cell in glass body with platinum plates C=10, temperature sensor integrated, fixed cable 1 mt. with BNC + RCA Cinch plug. Measuring range: 100μS…200 mS.
TECHNICAL SPECIFICATIONS
| REGULATIONS | |
| Regulations | Dir 2011 / 65 / EU; Dir 2015 / 863 / EU |
| PERFORMANCE | |
| Cond measuring range (max.; min.) | 200 mS/cm; 100 μS/cm |
| Temperature measuring range (max.; min.) | 80°C; 0°C |
| FEATURES | |
| Body material | Glass |
| Compliance | No |
| Connection | Fixed cable/BNC |
| Diaphragm | Platinum plate |
| Serial number | No |
| Temperature probe | Yes/plug RCA Cinch |
| DIMENSION AND WEIGHT | |
| Body length | 120 mm |
| Brand | Giorgio Bormac s.r.l |
|---|
