Model: VPT 1
Code: 50003352
Head: Cable fix / BNC
COND range: 10 μS…10 mS
Temperature range: 0…80 °C
Temperature sensor: Yes/plug RCA Cinch
Shaft material: Glass
Plate: Platinum
Shaft length: 120 mm
Shaft diameter: 12 mm
Note / Application: Cell constant C=1 Temperature sensor NTC 30 KΩ (VPT 1)

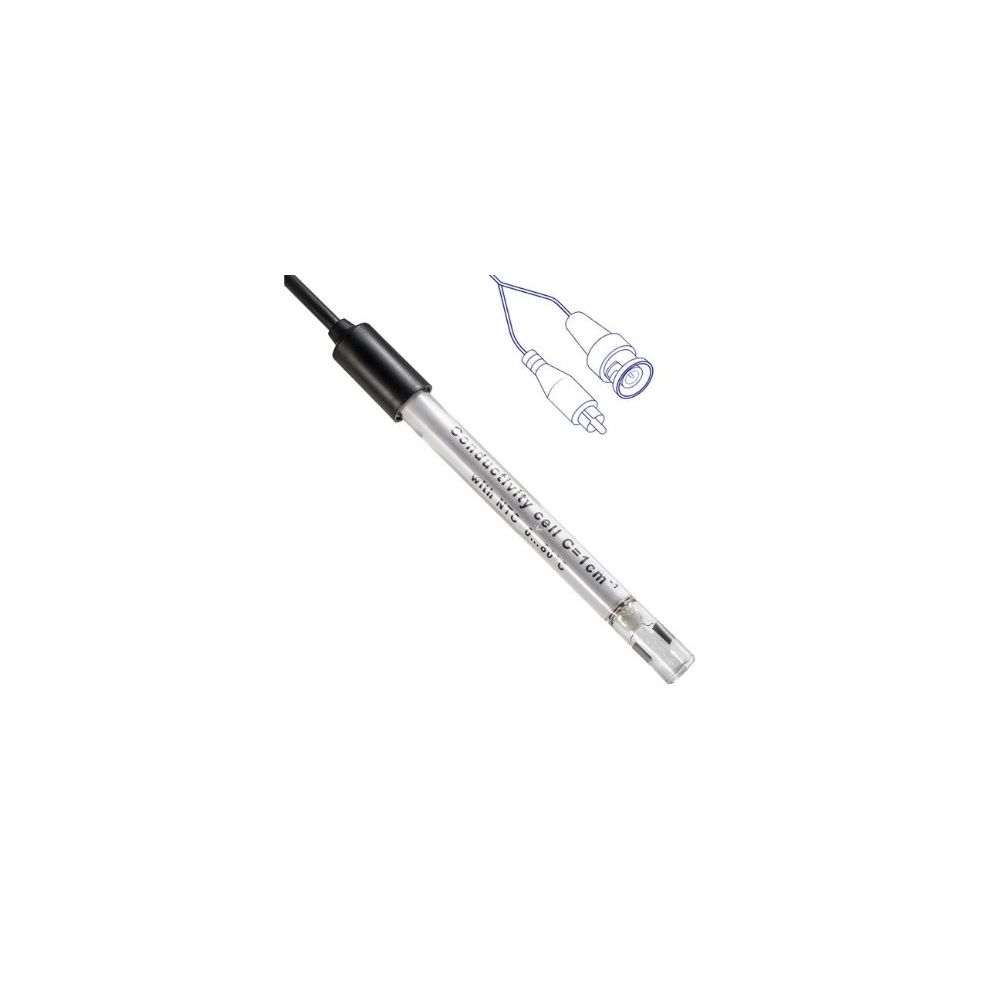

Description: VPT 1 conductivity cell in glass body with platinum plates C=1, with temperature sensor NTC 30KΩ, integrated. Fixed cable 1 mt. with BNC + RCA Cinch plug. Measuring range: 10μS…100 mS – Temperature 0…80 °C.
REGULATIONS | |
Regulations | Dir 2011 / 65 / EU; Dir 2015 / 863 / EU |
PERFORMANCE | |
Cond measuring range (max.; min.) | 100 mS/cm; 10 μS/cm |
Temperature measuring range (max.; min) | 80°C; 0°C |
FEATURES | |
Body material | Glass |
Compliance | No |
Connection | Fixed cable/BNC |
Diaphragm | Platinum plates |
Serial number | No |
Temperature probe | Yes/Cinch RCA plug |
DIMENSION AND WEIGHT | |
Body diameter | 12 mm |
Body length | 120 mm |
Brand | Giorgio Bormac s.r.l |
---|
