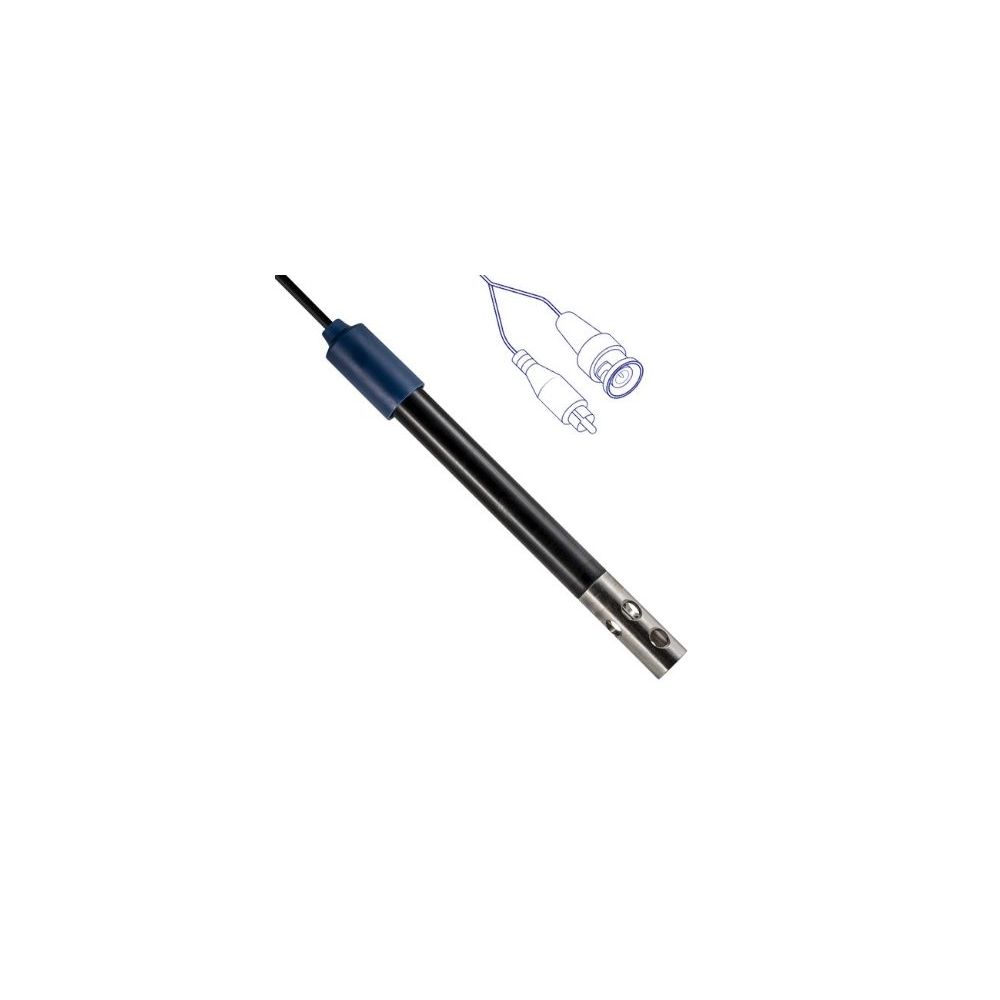

VPT 51/01 Steel and PVC Conductivity Cell
R 4,009.02
Model: VPT 01
Code: 50004012
Head: Cable fix / BNC
COND range: 0,1 μS…1 mS
Temperature range: 0…60 °C
Temperature sensor: Yes/plug RCA Cinch
Shaft material: PVC/Polish steel
Plate: Steel
Shaft length: 120 mm
Shaft diameter: 12 mm
Note / Application: Cell constant C=0,1 Temperature sensor NTC 30 KΩ. For ultrapure water
Optional accessories are available for purchase separately. If you require a customised solution, please contact our technical specialists by selecting the "Add to enquiry" button and using our enquiry form or at sales@lasec.com.
Installation, training and special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, are chargeable in addition to standard freight and will be quoted separately before dispatch.
Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email internationallabsales@lasec.com, and our international sales team will gladly assist you through our traditional sales channels.
Availability:On Request
SKU
IBOR50004012
BrandGiorgio Bormac s.r.l
Description: VPT 51/01 steel and PVC cell with built-in temperature sensor, C = 0.1, 1m fixed cable with BNC + RCA plug. Measuring Range 0.1µS ... 1 mS. Temperature 0…60 °C for COND 7 / 70 / 51.
TECHNICAL SPECIFICATIONS
| REGULATIONS | |
| Regulations | Dir 2011 / 65 / EU; Dir 2015 / 863 / EU |
| PERFORMANCE | |
| Cond measuring range (max.; min.) | 1 mS/cm; 0,1 μS/cm |
| Temperature measuring range (max.; min.) | 60°C; 0°C |
| FEATURES | |
| Body material | PVC/Polish steel |
| Compliance | No |
| Connection | Fixed cable/BNC |
| Diaphragm | Steel plate |
| Serial number | No |
| Temperature probe | Yes/plug RCA Cinch |
| DIMENSION AND WEIGHT | |
| Body length | 120 mm |
| Brand | Giorgio Bormac s.r.l |
|---|
