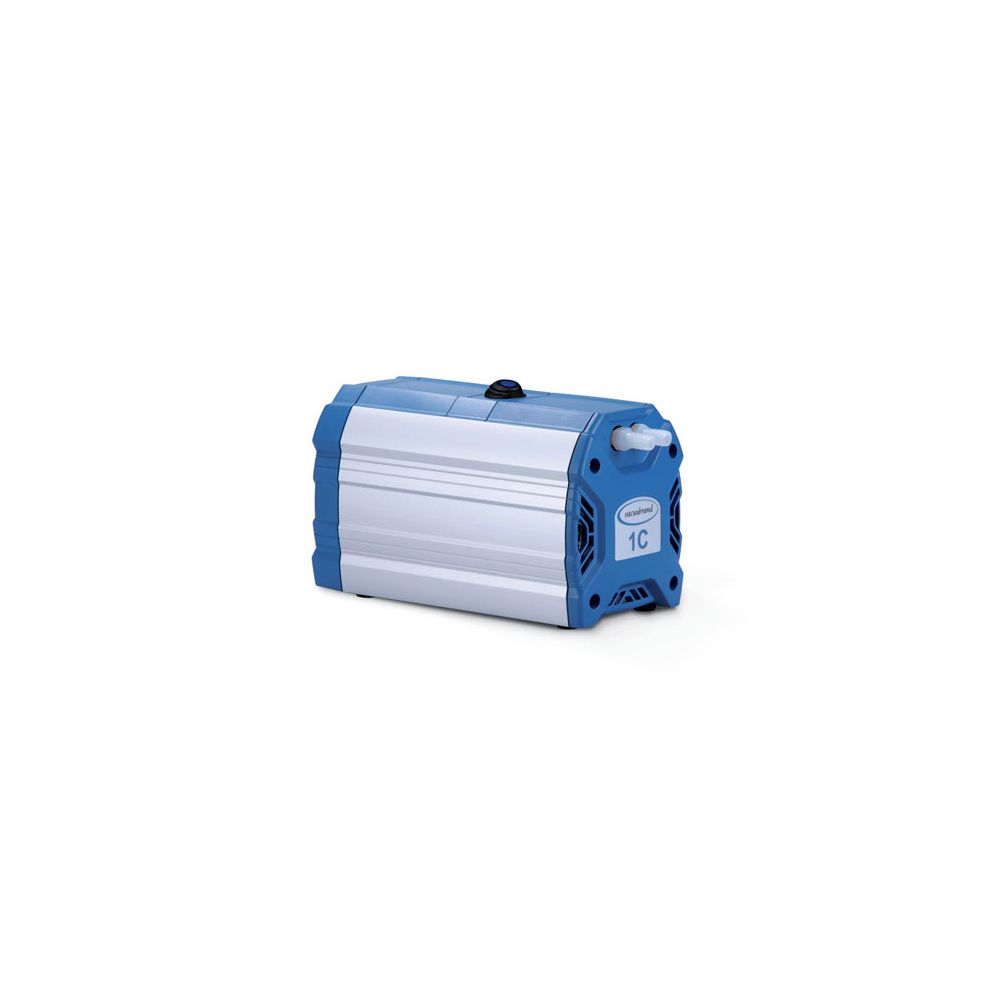

Chemistry Diaphragm Pump, ME 1C

  • Max. pumping speed 50 Hz: 0.7 m3/h
  • Max. pumping speed 60 Hz: 0.5 cfm
  • Ultimate vacuum: 100 mbar / 75 torr
  • Number of heads: 1
  • Number of stages: 1
  • Lower ambient temperature (operation): 10 °C
  • Upper ambient temperature (operation): 40 °C
  • Lower ambient temperature (storage): -10 °C
  • Upper ambient temperature (storage): 60 °C
  • Max. back pressure (abs.): 1.1 bar
  • Inlet connection: Hose nozzle DN 8-10 mm
  • Outlet connection: Hose nozzle DN 8-10 mm
  • Rated motor power: 0.04 kW
  • Rated motor speed at 50/60 Hz: 1500/1800 min-1
  • Protection class: IP 40
  • Dimension L x W x H: 247 x 121 x 145 mm
  • Weight: 5.4 kg
  • Noise level at 50 Hz, typ.: 49 dBA
  • NRTL certification: Yes
  • Items supplied: Pump completely mounted, ready for use, with manual.
  • Rated mains voltage range 1: 220-230 V
  • Mains frequency 1: 50-60 Hz
Out of stock

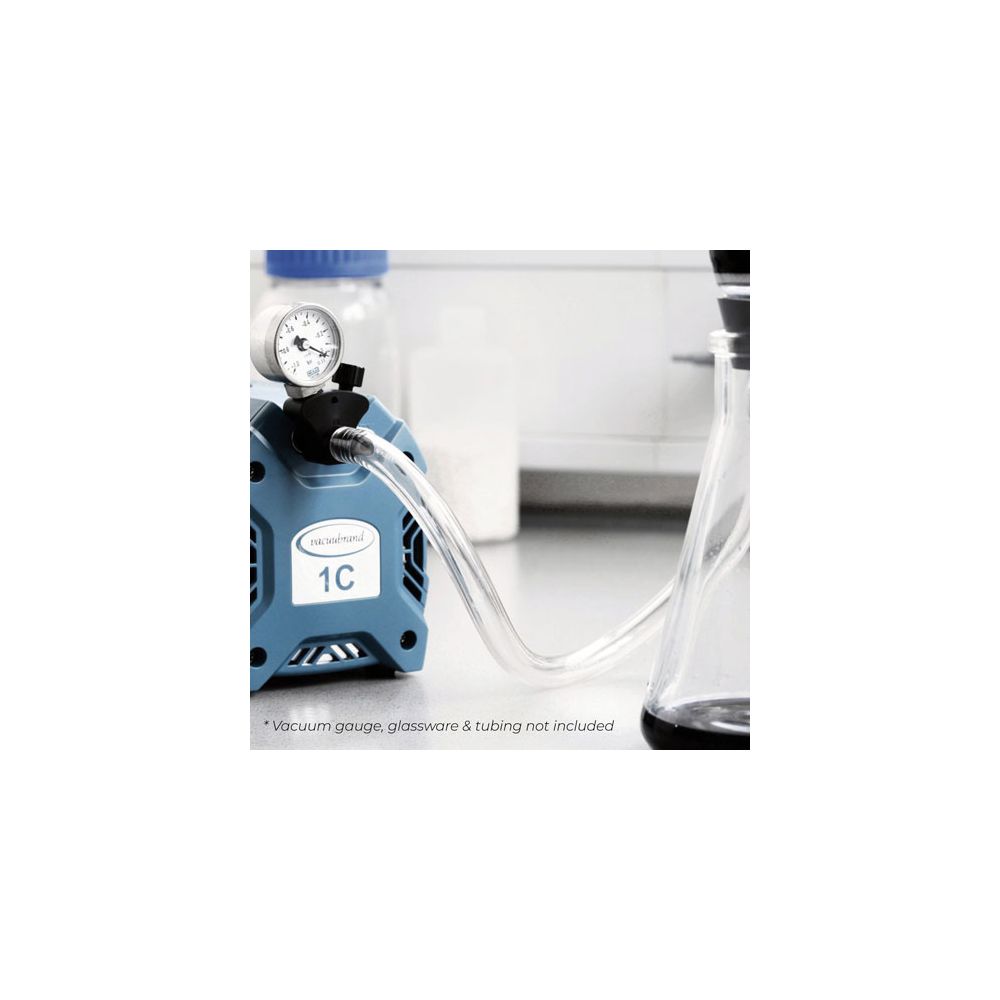

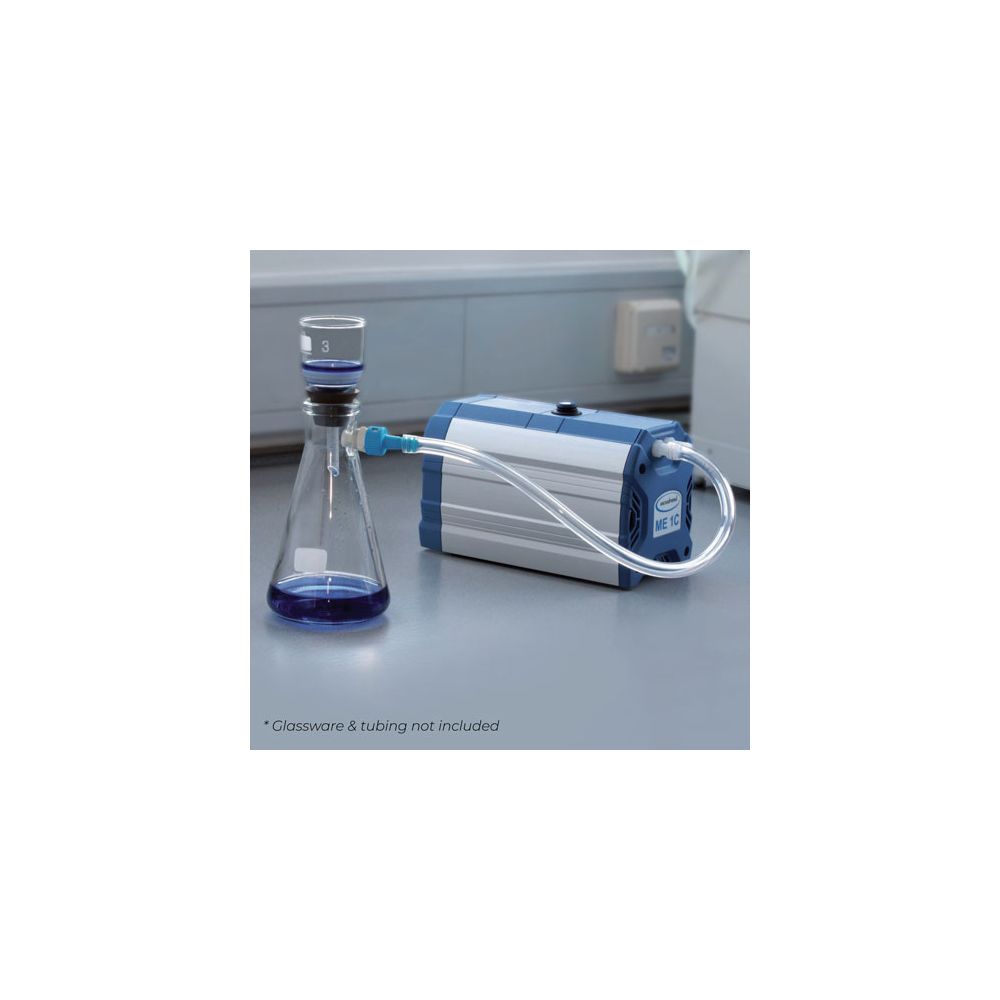

The ME 1C diaphragm pump offers a compact, high-performance and easy-to-use solution which is perfect for single filtrations. The functional, space-saving and innovative design with an easily accessible, top-mounted power switch ensure convenient and quick operation for day-to-day lab work. Robust PTFE diaphragms and valves provide optimal chemical resistance. One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapours with a modest vacuum requirement. Typical applications for the ME 1C are filtrations and solid phase extractions with solvents.


Convenient, quick and simple to use due to the new top-mounted power switch

Whisper quiet and very low vibration

Requires minimal benchtop space

Maintenance-free drive system and proven long diaphragm life

High chemical resistance

More Information
Product Name Chemistry Diaphragm Pump, ME 1C
SKU IVAC20721100
