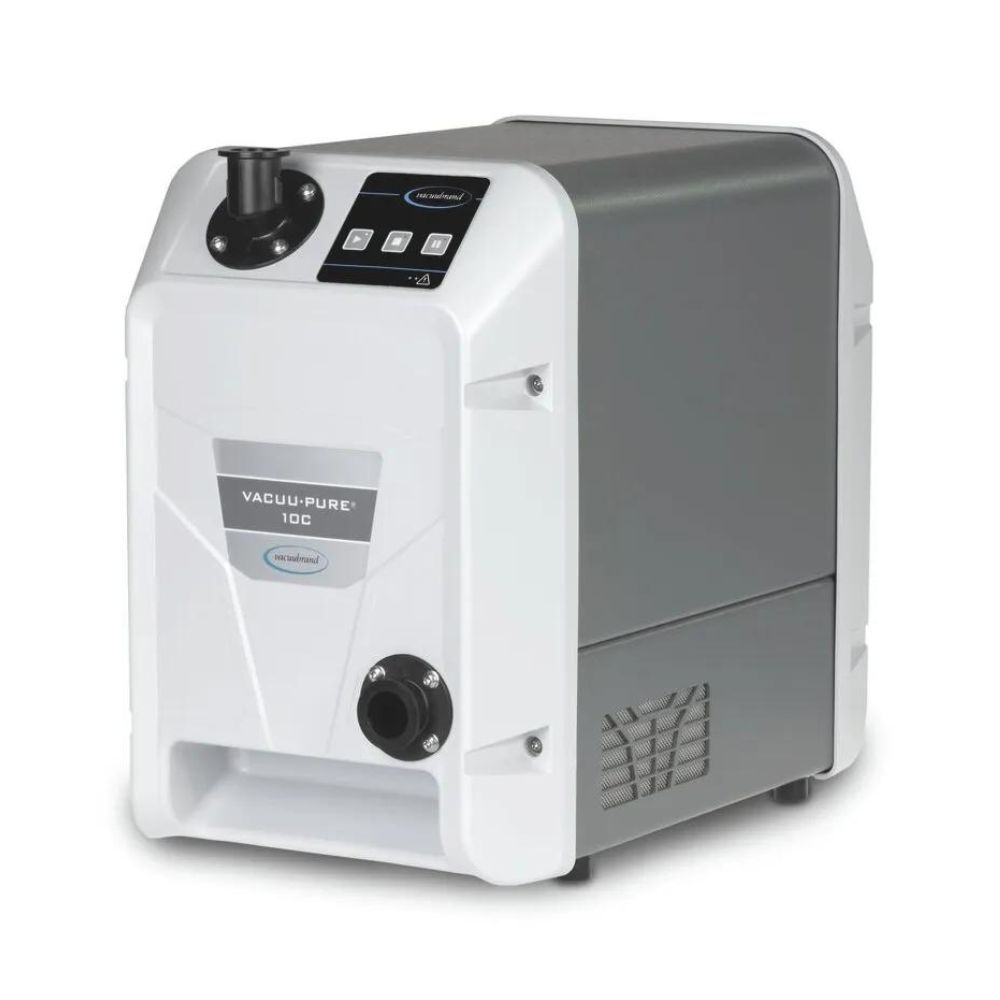

The dry screw pump VACUU·PURE 10C Vacuum Pump reliably delivers the benefits of oil-free vacuum technology in the pressure range of 10^-3 mbar. The new vacuum pump combines three important benefits for the user: 100% oil-free, chemically resistant, and no wear parts.

VACUU·PURE 10C Vacuum Pump is ideally suited for clean processes and the production of pure products. The screw pump is especially designed for processes in the vacuum range down to 10^-3 mbar, however, unlike other fine vacuum technologies, it can be used across the entire pressure range, from atmospheric pressure to its ultimate vacuum. At the same time, aggressive gases and vapours can be pumped without any worries because of the high chemical resistance. The use of a cold trap is no longer necessary in the majority of applications.

VACUU·PURE 10C Vacuum Pump easily handles high vapour loads through its extraordinary condensate compatibility. Thanks to this capability, a gas ballast is unnecessary, avoiding associated disadvantages like the reduction in pumping speed and an increase in noise levels. The integrated regeneration mode enables rapid drying of the pump at the end of the process. This allows sample throughput to be increased significantly as compared to other pump technologies.

Application Examples for the VACUU·PURE 10C Vacuum Pump

Drying
Heat treatment
Freeze drying
Fore vacuum generation for turbomolecular pumps
Distillation
Schlenk line
Analytical applications
Degassing
Coating

Max. pumping speed 50 Hz	9 m³/h
Ultimate vacuum	5 x 10^-3 mbar / 3.8 x 10^-3 torr (at 1013 mbar ambient pressure)
Vacuum controller	without controller
Lower ambient temperature (operation)	10 °C
Upper ambient temperature (operation)	40 °C
Lower ambient temperature (storage)	-10 °C
Upper ambient temperature (storage)	60 °C
Max. back pressure (abs.)	15 mbar above atmospheric pressure bar
Inlet connection	small flange KF DN 25
Outlet connection	small flange KF DN 25
Rated motor power	0.7 kW
Protection class IEC 60529	IP 20

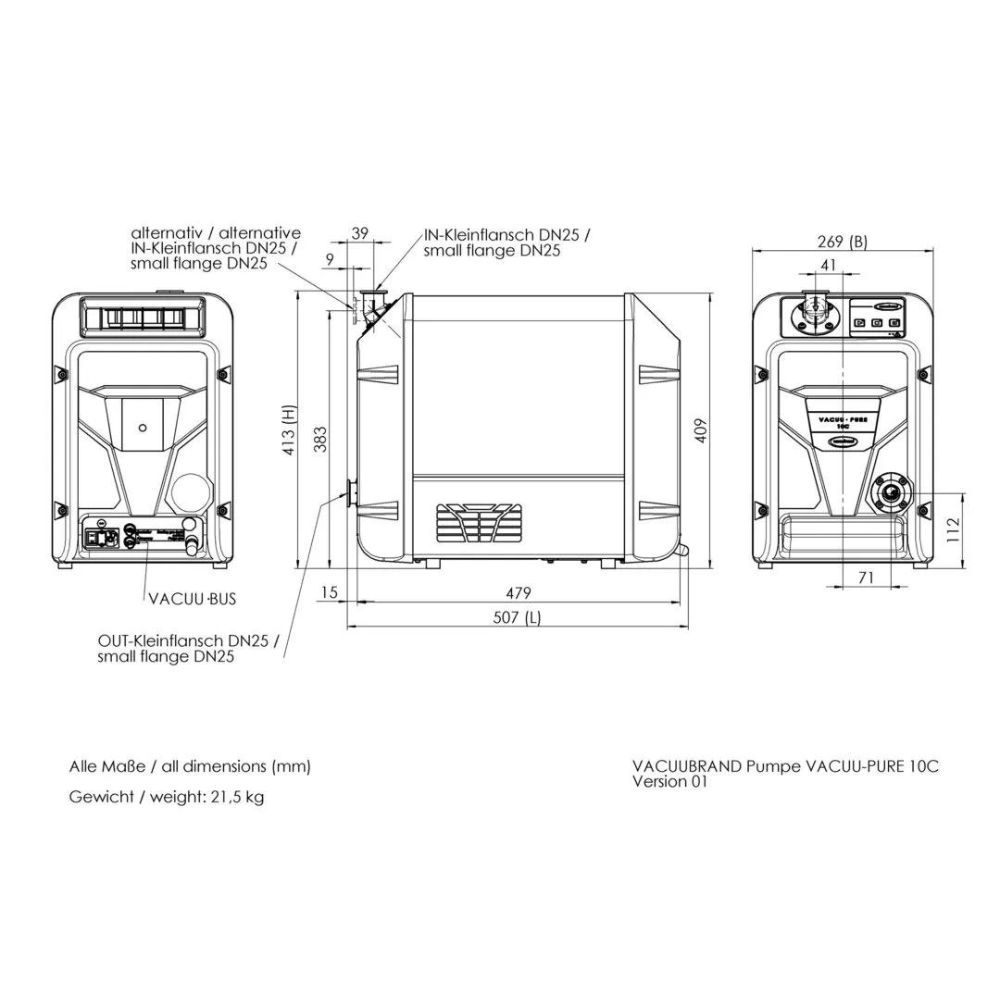

Dimension L in mm	507 mm
Dimension B in mm	269 mm
Dimension H in mm	413 mm
Weight	21.5 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE^®)	52 dBA
NRTL certification	Yes
Items supplied	Pump completely mounted, ready for use, connection with small flange KF DN 25 (2x centering and clamping rings included), with manual. To establish a hose nozzle connection, suitable KF flanges with hose nozzle are available for order.
Rated mains voltage range 1	100-230 V
Mains frequency 1	50-60 Hz
Interface	VACUU·BUS: Modbus RTU
