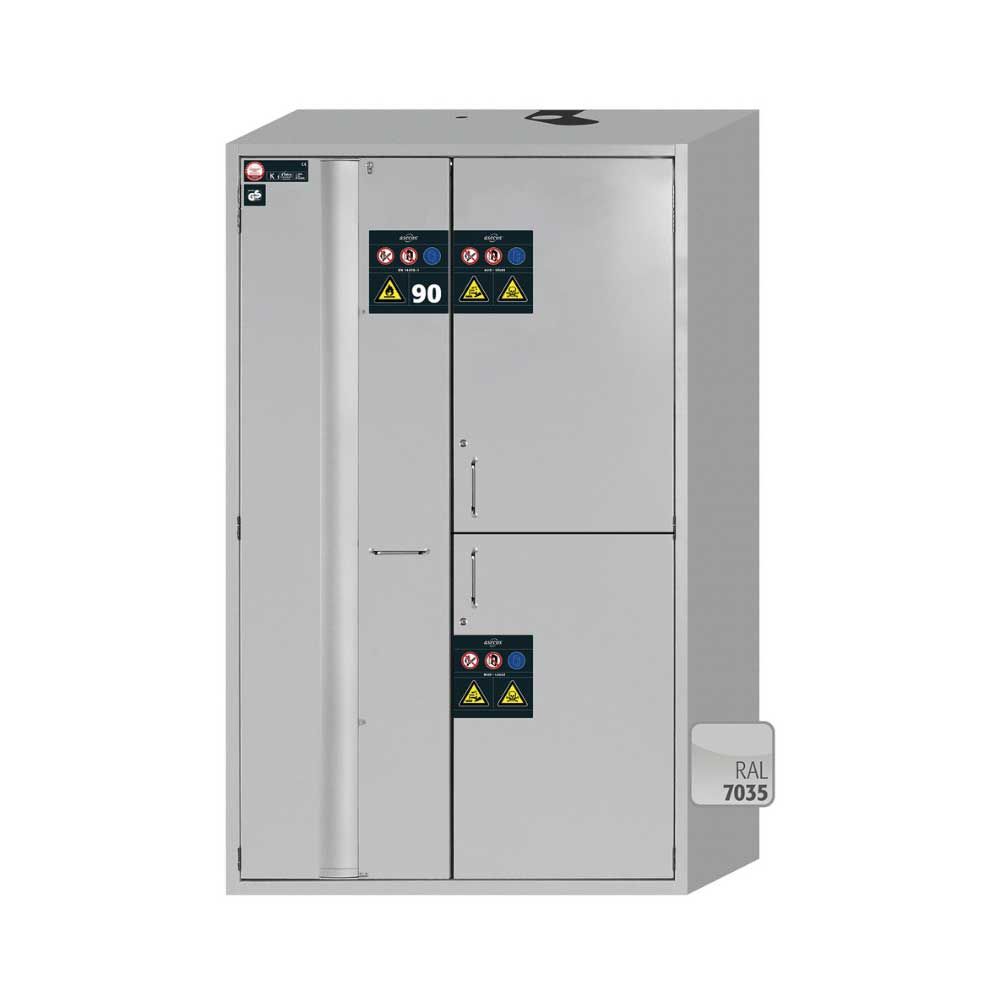

K-LINE (Type 90) Combi Safety Storage Cabinets for the combined storage of flammable and non-flammable, aggressive chemicals in separate storage compartments.

Combi safety storage cabinets provide unrestricted storage for flammable and aggressive hazardous materials in working areas. They ensure safe and separate storage for acids, alkalis, and flammable hazardous materials within a single cabinet. The cabinets feature two hermetically separated storage compartments, each with a fire-resistant dividing wall. Additionally, they are equipped with an integrated aeration and venting system, and the air ducts are corrosion-resistant and made of metal-free materials.

Fire resistance of 90 minutes (type 90), type-tested in accordance with EN 14470-1
GS-tested
Conformity in accordance with the requirements of EN 16121 and 16122

Features and Benefits:

Three-in-one combi safety storage cabinet: safe and separated storage of acids, alkalis, and flammable hazardous materials in one cabinet.
Safe, separate storage: two hermetically separated storage compartments with a fire-resistant dividing wall; an integrated aeration and venting system; corrosion resistance of the metal-free air ducts.
Storage compartment type 90 for model PHOENIX Vol. 2 (FWAC): doors remain open in the serial door open arrest system; convenient and safe removal or storage of containers; doors close automatically after approx. 60 seconds; acoustic and visual signal before closing.
No unauthorized use: doors are lockable with a profile cylinder and cylinder lock.
Ventilation: even ventilation and extraction of the entire cabinet interior. Integrated air ducts ready for connection (DN 75) to a technical exhaust system. The potential formation of explosive atmospheres or harmful vapours is safely prevented.
Hazardous substances center: storage box for toxic materials; storage box separately lockable.
Fire resistance of 90 minutes (type 90): type-tested in accordance with EN 14470-1
GS-tested (document EK5/AK4 09-10, ProdSG): 50,000 wear-free opening and closing actions; Test basis: all cabinets of this model group correspond to the requirements of the Product Safety Act (§21 Para. 1) with respect to the guarantee of safety and health
Conformity in accordance with the requirements of EN 16121 and 16122: requirements and test methods for safety, strength, durability, and stability.

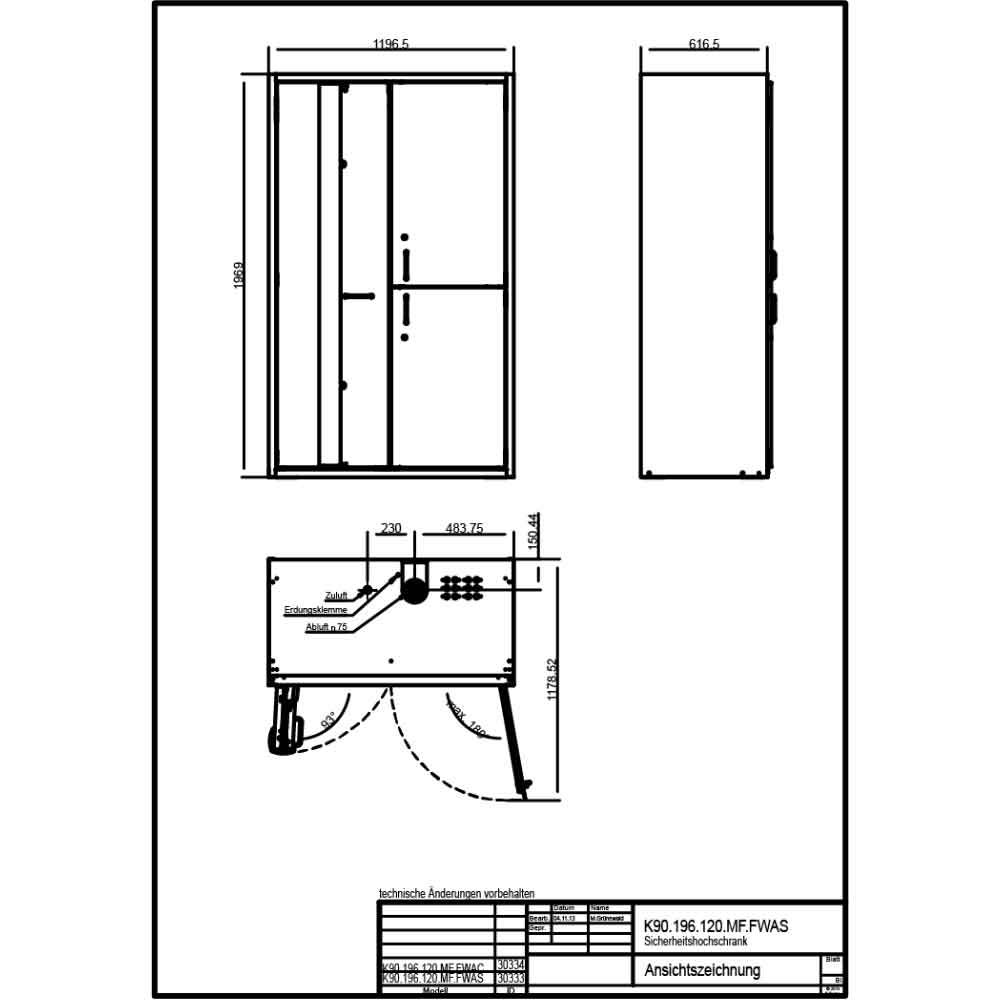

External dimensions W x D x H	1197 x 617 x 1969 mm
Internal dimensions W x D x H	left: 450 x 524 x 1742 mm top right: 491 x 542 x 862 mm bottom right: 491 x 542 x 862 mm
Weight	551 kg
Minimum exhaust air quantity 10 times	9 m³/h
Differential pressure (10 times air change)	5 Pa
Differential pressure (10 times air change EK5/AK4)	5 Pa
Recom. exhaust air quantity 30 times	29 m³/h
Differential pressure (30 times air change)	28 Pa
Distributed load	576 kg/m²
Maximum load	600 kg
Entry width optional transport base	2 x 440 mm
Entry height optional transport base	100 mm

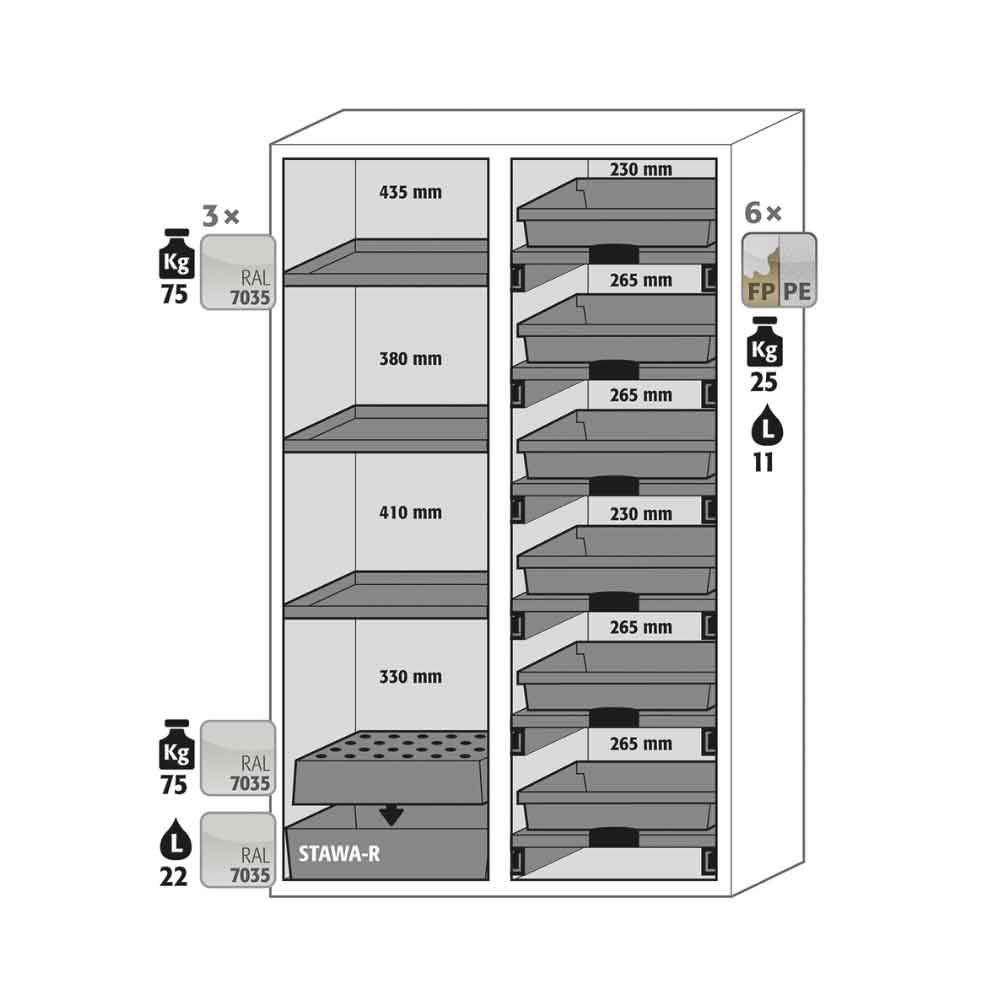

Max. load of shelves	30.00 kg
Max. load of perforated insert	75.00 kg
Max. load of drawers	25 kg
Capacity of drawers	11.00 litres
Capacity of bottom collecting sump	22.00 litres
ecl@ss 5.1.4	21-10-04-07
ecl@ss 9.1	40-06-01-02
ecl@ss 10.0	40-06-01-02
ecl@ss 11.0	40-06-01-02
ecl@ss 8.1	40-06-01-02
