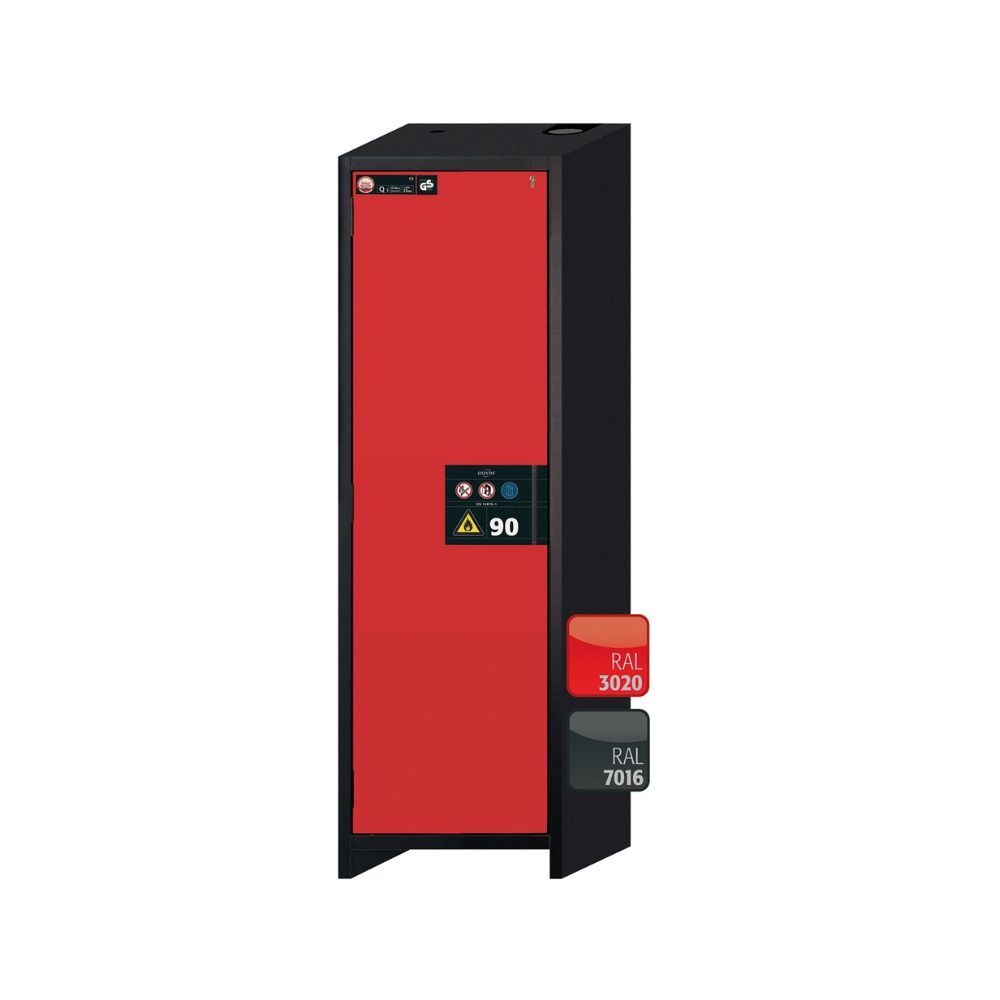

Safety Storage Cabinet Q-CLASSIC-90 Model Q90.195.060

Safety Storage Cabinets for Flammable Liquids

Q-LINE Model Line (Type 90 / Type 30)

The Q-LINE model line (Type 90 / Type 30) consists of safety storage cabinets designed for the unrestricted storage of flammable hazardous materials in work areas. These cabinets comply with the requirements of EN 14470-1 and TRGS 510, ensuring a high level of fire safety and chemical resistance. Constructed with a robust and durable design, each cabinet features a scratch-resistant surface and a triple-hinged door engineered to endure extreme mechanical stress.

To facilitate ease of use, the cabinet doors remain in position at any chosen opening angle, thereby enabling the safe and efficient handling of containers. An integrated transport base allows for in-house relocation of the cabinets, which can be moved upright through standard doorways. This design feature is incorporated into all Q-LINE models.

Product Overview: Q-LINE Safety Storage Cabinets

These safety storage cabinets are distinguished by their sturdy construction and conformity with international safety standards:

• Fire Resistance: Offers fire resistance of up to 90 minutes (Type 90), verified through type testing in accordance with EN 14470-1.
• GS Certification: Selected models are GS-tested, providing additional safety assurance.
• Standards Compliance: Compliant with EN 16121 and EN 16122, which govern strength, durability, and safety for storage furniture.
• Manufacturer Warranty: High-quality products backed by a special manufacturer's warranty. [For further details, click here.]
• FM Standard Certification: Certain models have undergone additional testing according to FM Standard 6050.
• UL/ULC Certification: Selected units are also tested in compliance with UL/ULC Standard 1275 by Underwriters Laboratories.

Key Features and Benefits

High Flexibility

All Q-LINE cabinets are equipped with an integrated transport base, enabling simple in-house transport. Cabinets can be moved upright through standard doorways without requiring disassembly.

Triple Certification for International Applicability

Q-LINE safety storage cabinets are certified in accordance with EN 14470-1 and additionally meet FM and UL standards, making them suitable for use in international environments where diverse regulatory frameworks apply.

Exceptional Durability

The design is extremely robust, incorporating a scratch-resistant surface and a triple-hinged door capable of withstanding substantial mechanical strain. Door positioning stability at any angle enhances safety and usability during routine operations.

Integrated Technical Ventilation

Each cabinet includes integrated air ducts (DN 75) that are prepared for connection to an external exhaust system. This feature enables the effective extraction of hazardous vapours and prevents the accumulation of potentially explosive or harmful atmospheres within the storage space.

Secure Locking Mechanism with Visual Indicator

Cabinet doors are equipped with a cylinder lock system and can be integrated into existing master key systems. A red/green status indicator visually communicates the lock status, enhancing operational safety.

Optional Dividing Wall System

An optional partitioning system allows the interior to be divided into up to four separate compartments. This feature supports the safe, organised, and cost-effective storage of different hazardous substances within a single cabinet.

Modern Bicolour Design with Multilingual Accessibility

Q-LINE cabinets are available in a selection of seven door colours at no additional cost, offering visual customisation to suit various workplace environments. All cabinets feature language-free labelling to ensure optimal usability across international settings.

Why Choose the Q-LINE Model

The Q-LINE series of safety storage cabinets offers a comprehensive solution for the secure and compliant storage of flammable hazardous materials. Through its adherence to multiple international safety standards, durable construction, user-centric features, and global applicability, the Q-LINE product line represents a reliable and versatile option for modern laboratory, industrial, and institutional environments.

Frequently Asked Questions

Q: What is the asecos Q-LINE series?

A: The Q-LINE is a series of high-quality safety storage cabinets designed to safely store flammable hazardous substances in compliance with EN 14470-1 and TRGS 510.

Q: What fire resistance rating do Q-LINE cabinets offer?

A: All Q-LINE cabinets offer 90-minute fire resistance (Type 90), meeting the highest safety standards for hazardous materials storage.

Q: What are the key features of Q-LINE cabinets?

A: Key features include self-closing doors triggered by heat, integrated air ducts, adjustable shelves, and robust powder-coated steel construction.

Q: Are there different models available in the Q-LINE?

A: Yes, the Q-LINE includes a variety of models, such as the Q-CLASSIC-90, Q-PHOENIX-90, and more, with different dimensions and internal configurations.

Q: What standards do Q-LINE cabinets comply with?

A: They comply with EN 14470-1 (European standard for fire safety cabinets) and TRGS 510 (Technical Rules for Hazardous Substances in Germany).

Q: Can Q-LINE cabinets be connected to exhaust air systems?

A: Yes, Q-LINE cabinets are designed with integrated air ducts (DN 75) for easy connection to technical ventilation systems.

Q: What types of storage solutions are available in Q-LINE?

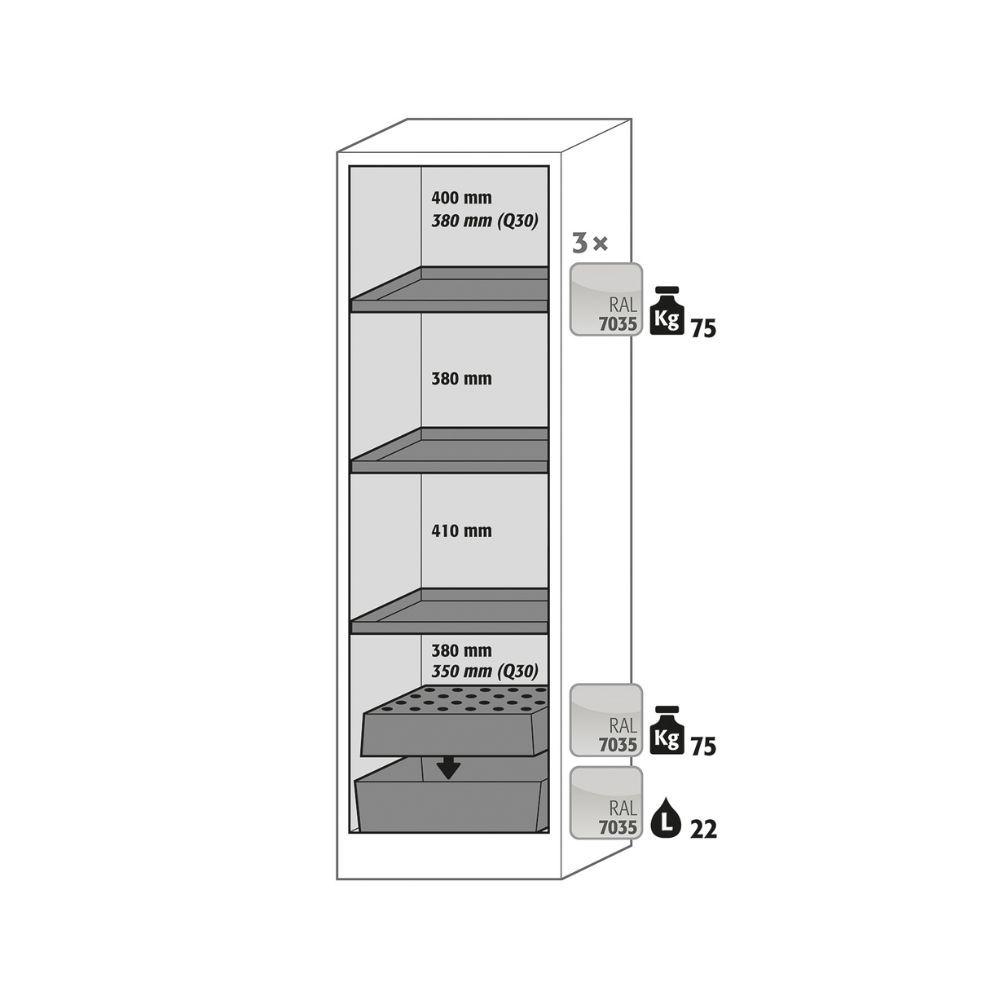

A: Options include shelves, pull-out trays, bottom collection sumps, and internal configurations tailored to specific storage needs.

Q: Where can Q-LINE cabinets be used?

A: They are ideal for laboratories, industrial facilities, research centres, and any workplace requiring safe storage of flammable substances.
