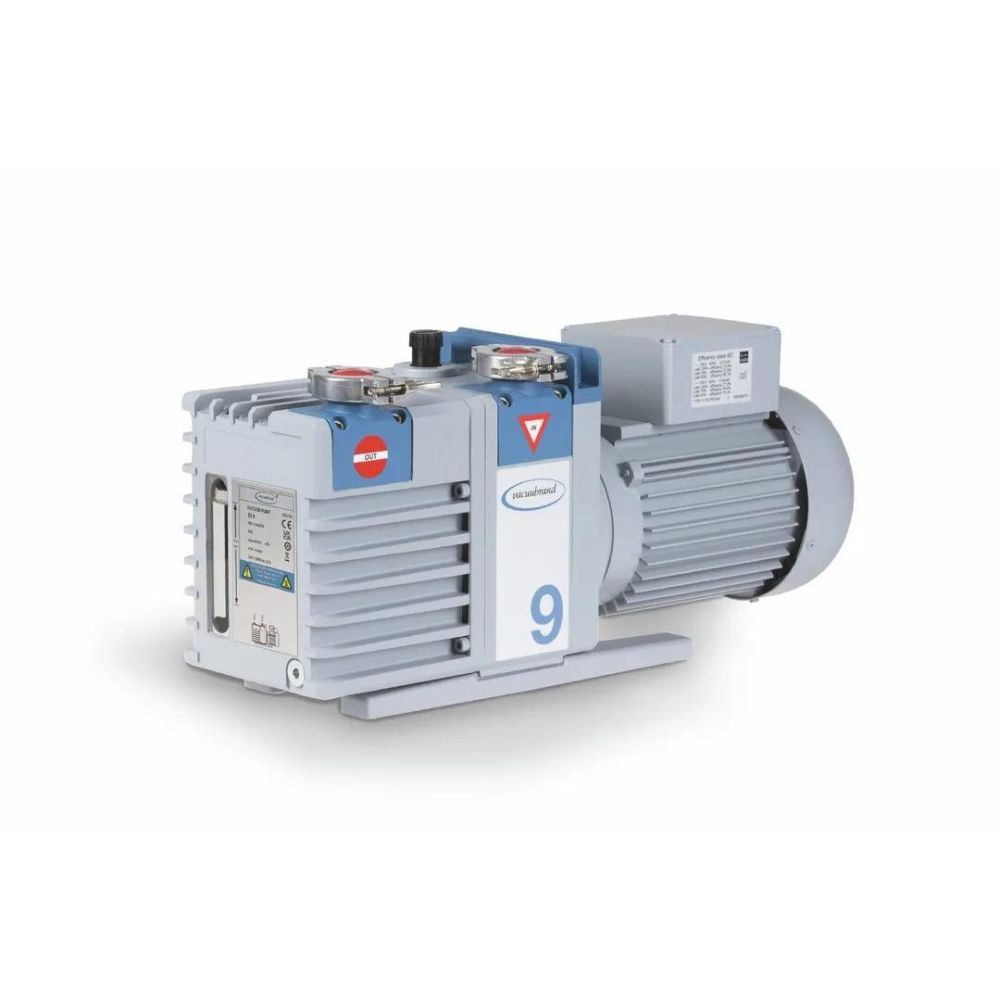

Rotary Vane Oil Pump RZ 9

Home
Rotary Vane Oil Pump RZ 9

Rotary Vane Oil Pump RZ 9

Be the first to review this product

R93,821.47

Ultimate vacuum: 2 x 10^-3mbar

Max pumping speed: 8.9m3/h

Oil capacity min/max: 0.2/0.7L

Inlet connection: small flange KF DN 25

Outlet connection: small flange KF DN 25

Rated motor power: 0.37kW

Rated motor speed: 1500rpm

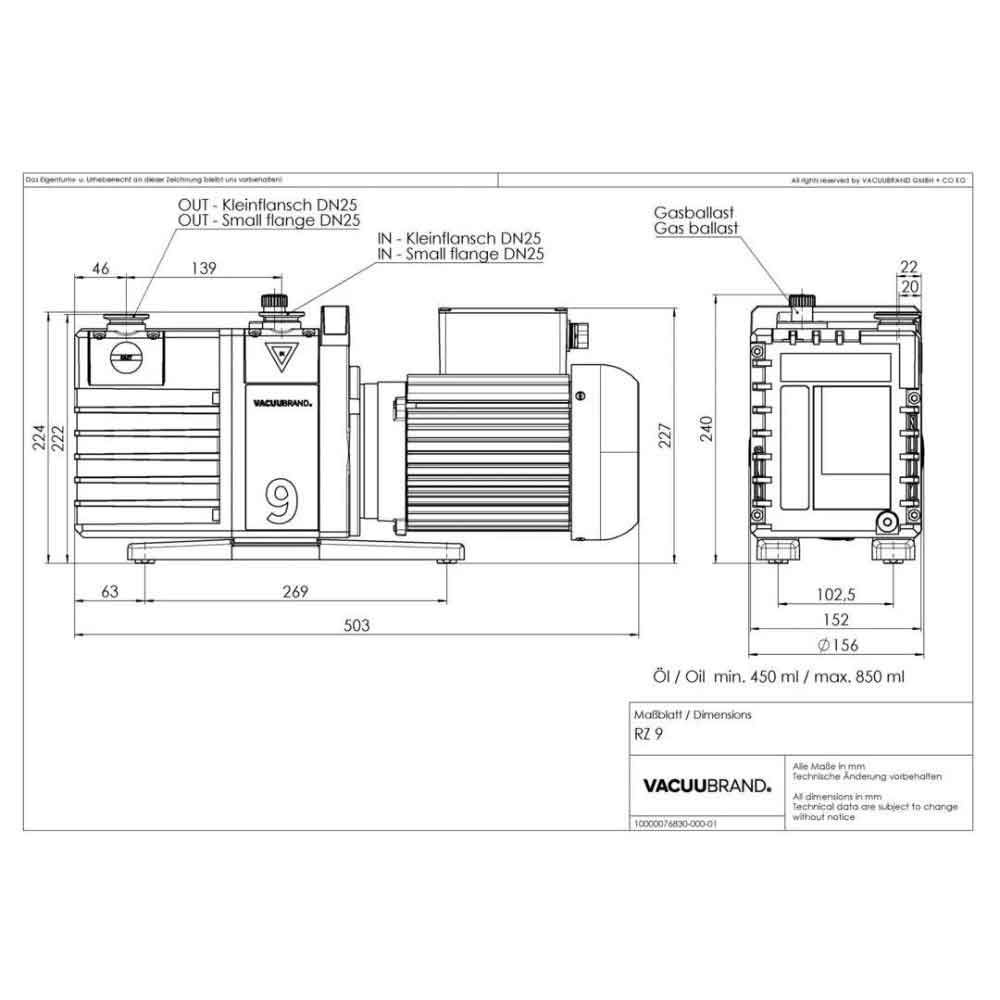

Dimensions (LxWxH): 460x152x232mm

Weight: 24.2kg

Items supplied: Pump oil-filled and completely mounted, ready for use, with the manual.

DISCLAIMER:

All product images are for illustrative purposes only. Actual products may vary slightly in terms of colours, controls and visible features.

Availability:On Request

SKU

IVAC20698140

BrandVACUUBRAND

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The RZ 9 is a powerful mid-size rotary vane pump that is the ideal solution for a wide range of laboratory and process applications that require high pumping speed. The RZ 9 can also be equipped with an oil mist filter (FO) and many other optional accessories.

*Items that are out of stock can be purchased to order; add the name and SKU of the item to your enquiry list (CLICK HERE) and we will get back to you with a quote.

More Information
