A universal enclosure built with the application and operator in mind
Rear wall filtration zone featuring HEPASafe™ filter change-out technology
Real-time monitoring of face velocity and filter condition via AirSafe™
High mass polypropylene construction for balance stability

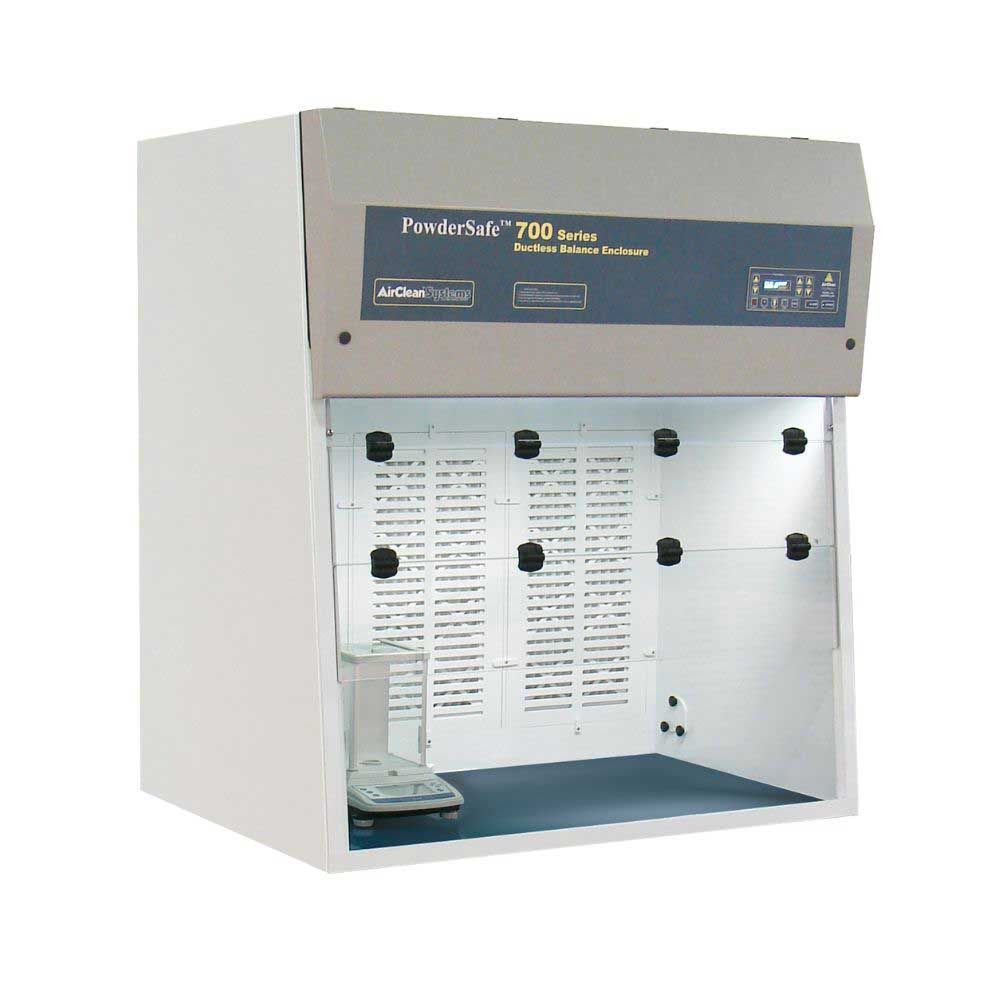

AirClean® Systems Type C PowderSafe ductless balance enclosures incorporate the airflow dynamics and HEPASafe™ features of the PowderSafe Type B with the user-friendly features and chemical fume containment capabilities of an AirClean Systems ductless fume hood. Thermally fused polypropylene construction makes the PowderSafe Type C enclosure perfect for weighing powders or solvents.
AirSafe® Automatic Safety Controller
AirSafe provides a simple-to-use interface combined with powerful airflow control, filtration monitoring, and gas detection capabilities. A proprietary sensor is used to accurately monitor and display face velocity on the LCD display. Blowers can be controlled manually or in 'automatic' mode, where AirSafe automatically controls blower speed in order to maintain a user-set face velocity. A solid-state hydrocarbon gas detector is linked to the controller for monitoring filtration breakthroughs. Audible and visible alarms alert the user in the event of low airflow or a required filter replacement.
Features
Benefits
GENERAL SPECIFICATIONS | |
---|---|
Work Surface | Polypropylene - No Rust |
Walls | Polypropylene - No Rust |
Front Sash | Clear Polycarbonate |
Filtration Housing | Polypropylene - No Rust |
Top Outside Cover | Epoxy Powder - Coated Steel |
Initial HEPASafeTM Filter | Installed; 99.99% Efficient at .3 µm |
Controls | AirSafeTM Automatic Safety Controller |
Face Velocity - Variable | User Defined; 0.2-0.6 (m/s) |
Lighting | Vapor-Proof Fluorescent* |
Electrical Cord Pass-Through | 2; Right and Left Side Ports |
Lab Event Timer | Adjustable Audible / Visual Timer |
Blowers | Variable-Speed; Brushless-Sparkless |
Low Airflow Alarm | Custom Audible / Visible Alarm |
Filter Monitoring Package | Audible / Visible Alarm |
Certifications | ASHRAE 110 |
DIMENSIONS | |
External Dimensions (mm) | |
Width | 1219 |
Depth at Base | 768 |
Max Depth | 819 |
Height | 1372 |
Internal Dimensions (mm) | |
Width | 1194 |
Depth | 559 |
Height | 889 |
Sash Opening Dimensions (mm) | |
Width | 1124 |
Height: Sash Opening | 203 |
Height: Sash Fold 1 | 406 |
Height: Sash Fold 2 | 711 |
TECHNICAL SPECIFICATIONS | |
Voltage | 220 V |
Amps | 2.0 A |
Power | 380 W |
Volume of Filtered Air | 14.4 CMM |
Prefilters | 3 |
HEPASafeTM HD Powder Filtration | |
Primary HEPA Filtration Layer | 3 HEPAs |
Redundant HEPA Filtration Layer | 3 HEPAs |
Optional Carbon Filtration Layer | 3 Carbons |
Unit Weight* | 181 kg |
*Unit weight is an approximation and does not include weight of installed filtration
Brand | AirClean Systems |
---|
