Measuring range:
Resolution 0,1 / 0,01 pH
Automatic and manual temperature compensation
Coloured backlit high-definition LCD display
Data logger auto and manual, up to 1000 savings in GLP
Automatic calibration up to 3 points
DHS digital sensors management
Supplied as standard: Electrode holder stand, coloured buffer solutions, USB cable, power supply, and instructions for use. Complete with 201T electrode, with integrated temperature sensor.

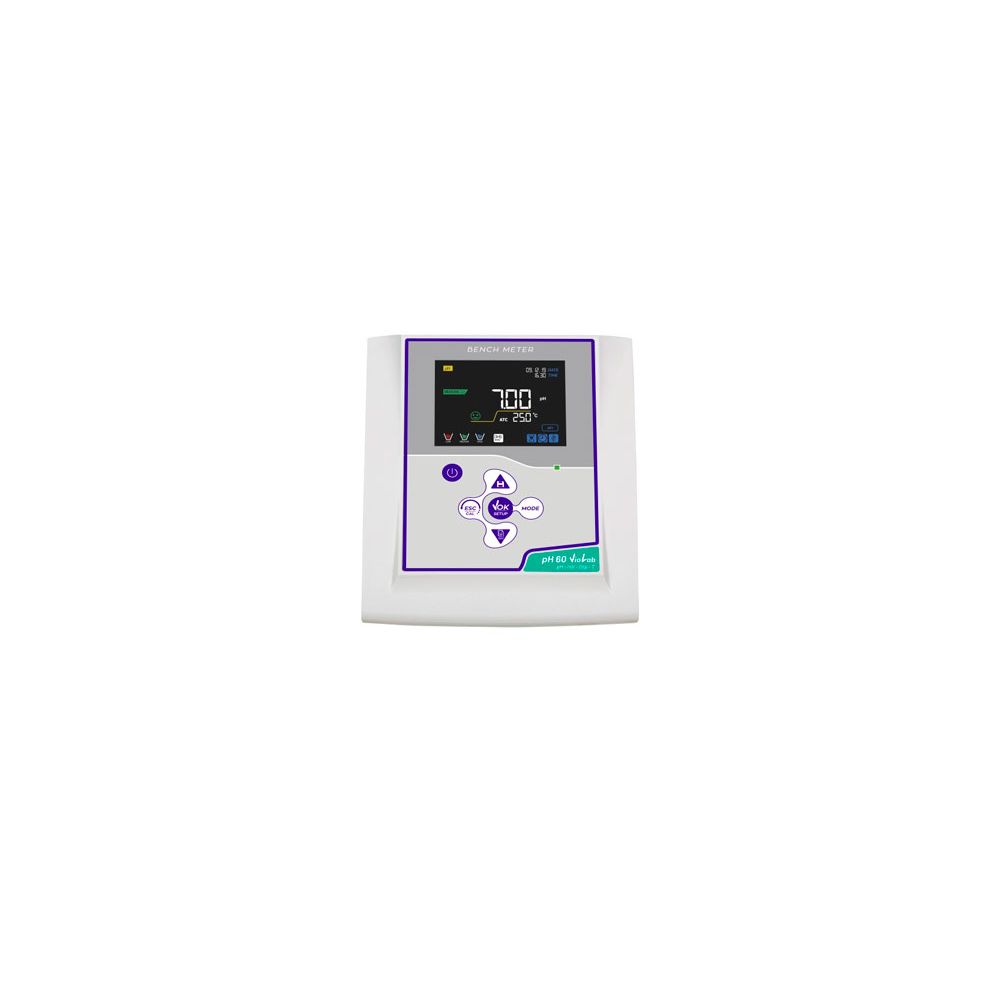

Professional benchtop pH meters with innovative high-definition colour LCD display, with the possibility of brightness adjustment. pH, mV, ORP measurement, with temperature display. Possibility to select the parameters you want to see on the display. The online guide in setup and calibration allows a simple and immediate use of the device. Automatic pH calibration with USA and NIST buffers up to 3 points and 2 points defined by the user. Automatic ORP calibration on 1 point. Indication with icons of the calibrated values. Measurement stability indicator and possibility to select 3 stability levels. GLP functions: Date and time, display of calibration data and setting of calibration deadline. Manual and automatic Data Logger with the possibility of downloading data to PC via micro-USB. Data-Link software freely downloadable from www.giorgiobormac.com. Connection to external printer via RS232 connector. All operations are constantly monitored and shown to the operator via the coloured LED above the display and self-diagnosis messages. Management of DHS digital sensors. Supplied as standard: Electrode holder stand, coloured buffer solutions, USB cable, power supply and instructions for use. Complete with 201T electrode, with integrated temperature sensor.
REGULATIONS | |
Regulations | CE |
PERFORMANCE | |
Accuracy (pH) | ± 0.02 |
Accuracy (Temperature) | ± 0.5 ° C |
mv measuring range (max.; min.) | + 1900; - 1000 |
ORP measuring range (max.; min.) | + 1900; - 1000 |
ORP resolution | 0.1 mV |
pH measuring range (max.; min.) | + 16.00; - 2.00 |
pH resolution | 0.01 |
Temperature compensation | 0.0 ... 100.0 ° C |
Temperature measuring range (max.; min.) | + 110.0 ° C; - 10.0 ° C |
Temperature resolution | 0.1 ° C |
Working temperature (max.; min.) | + 45 ° C; 0 ° C |
FEATURES | |
Calibration report | Yes, printable |
DHS compatible | Yes |
Display | Backlight coloured high-definition LCD |
GLP | Yes |
GLP calibration | Yes |
Inputs | BNC - RCA |
IP protection | IP 54 |
Memory / Datalogger | 1000 data |
Output | Micro USB - RS 232 |
PC connection | Yes |
Points of calibration ORP | 1 |
Points of calibration pH | 1 ... 3 |
Stability criteria | 3 levels |
Standard approved pH | USA - NIST - 2 custom values |
Timer calibration due | Yes |
POWER SUPPLY | |
Power supply | 100 - 240 V / 50 - 60 Hz |
DIMENSION AND WEIGHT | |
Dimension (LxWxH) | 160 x 140 x 45 mm |
Weight | 380 g |
Brand | Giorgio Bormac s.r.l |
---|
