XS PC 8 PRO Benchtop Multiparameter Meter. Includes Stirrer, 2301T Conductivity Cell and Accessories. Ph Electrode Not Included.

XS PC 8 PRO Benchtop Multiparameter Meter. Includes Stirrer, 2301T Conductivity Cell and Accessories. Ph Electrode Not Included.

ZAR25,740.51
  • pH: -2.000...16.000 (0.001 pH)
  • mV: -2000...+2000 (1 mV)
  • Cond: 0.0 microS ...500.0 mS (automatic)
  • Salinity: 0.01...100.0 ppt
  • TDS: 0.1 mg/l...100.0 g/l
  • Temperature: -20...120.0 °C (0.1 °C)
  • Supplied as standard: Magnetic stirrer, S7/BNC cable, NT 55 temperature probe, electrode holder stand, coloured buffer solutions, USB cable and multi-socket power supply.
Availability:On Request
SKU
IBOR50104152

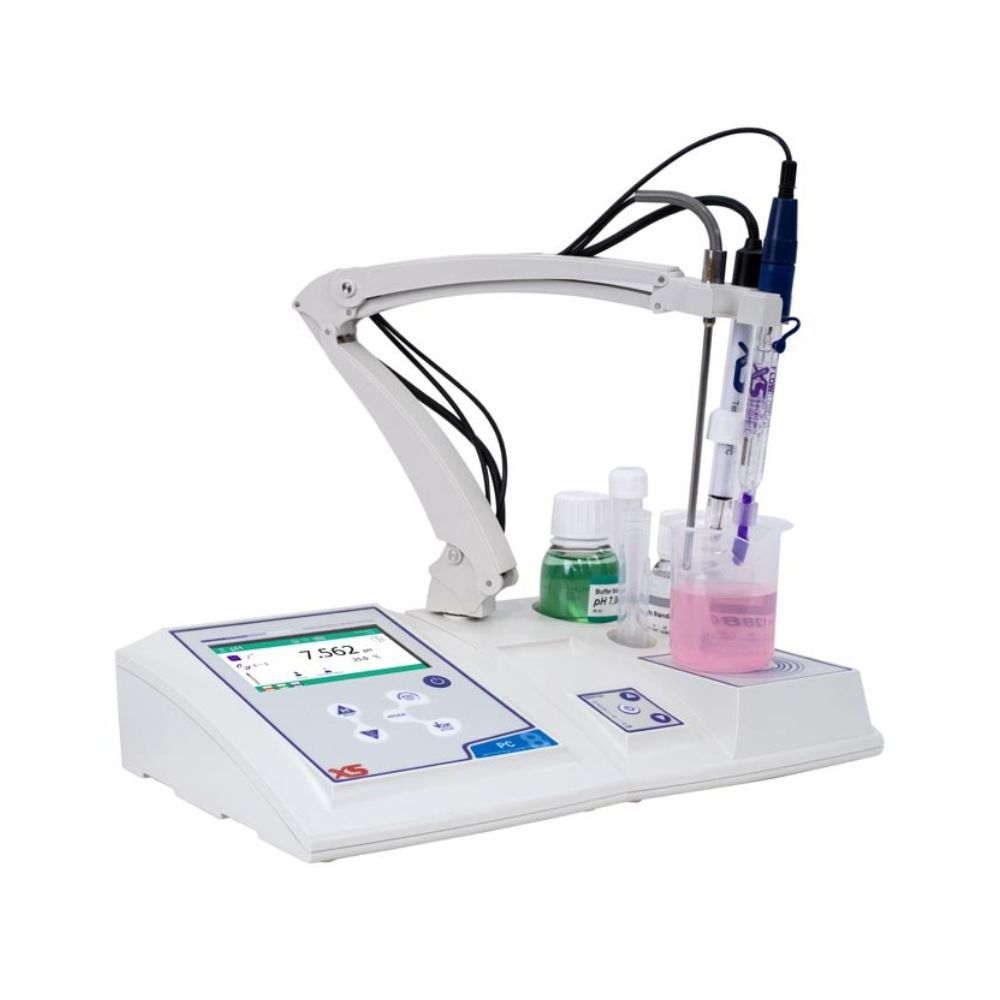

The XS PC 8 PRO is a reliable digital benchtop multiparameter designed to meet the needs of laboratories and research facilities. It provides simultaneous readings of pH, conductivity, and temperature, offering a straightforward solution for consistent and accurate measurements.

Key Features:

Simultaneous Measurements: Displays pH, conductivity, and temperature readings simultaneously, providing comprehensive data for analysis.

Calibration Options:

  • pH Calibration: Automated calibration supports various buffer families and allows custom settings for up to five values.
  • ORP Calibration: Offers both automatic and manual calibration on a single point.
  • Conductivity Calibration: Automatic calibration of up to 4 conductivity standards (84, 1413 microS, 12.88 mS, 111.8 mS) with the calculation of different cell constants and the flexibility to define custom values.
  • Recall and printing of calibration data.

Temperature Management: The device includes automatic and manual temperature compensation ranging from 0 to 100°C, with a reference range from 15 to 30 °C and a linear temperature coefficient adjustment of 0.00...10.00%.

Cell Connectivity: The stirrer accommodates 2-ring cells with selectable constants (0.1 - 1.0 - 10), ensuring compatibility across various measurement ranges.

Calibration and Measurement Integrity:

  • Expiration Alerts: Provides warnings when calibration is due, safeguarding measurement accuracy.
  • Measurement Lockout: Alerts users when readings require attention, reducing the risk of errors.
  • Alarm Functions: Features customisable alarms with an analogue display format.
  • Data Security: Protects calibration and data entries with a numeric password system.

Data Logging and Connectivity:

  • Data Logger: Stores up to 1,000 entries in GLP format, with options to transfer data to a printer or PC.
  • USB and RS232 Ports: Facilitates data export and printer connections, supported by the provided Data-Link+ software.

Multilingual Interface: The setup menu supports multiple languages, ensuring ease of use across different regions.

Why It’s a Practical Choice:

The XS PC 8 PRO Stirrer is built for precision and consistency, making it a dependable choice for any lab environment. It simplifies the process of data collection with its integrated features, such as simultaneous parameter display and flexible calibration options. The data logging capability and multilingual interface add to its practicality, ensuring it fits smoothly into various workflows.

What’s Included:

  • 1x PC8 Multimeter
  • 1x 2301T Conductivity Cell (IBOR50004002)
  • 1x Advanced Electrode Holder with Integrated Magnetic Stirrer
  • 1x NT 55 Temperature Probe (IBOR50002012)
  • 1x S7/BNC cable (IBOR33551733)
  • 1x 55ml 7.00pH Buffer solution
  • 1x 55ml 4.01pH Buffer Solution
  • 1x 55ml 1413uS Conductivity Standard
  • 1x 55ml 12.88mS Conductivity Standard
  • Manual

The XS PC 8 PRO Stirrer is designed to provide reliable performance and straightforward operation, making it a valuable addition to any laboratory setup.

Accuracy (Cond)±1 % f.s.
Accuracy (pH)±0,002
Accuracy (Salinity)±1 % f.s.
Accuracy (TDS)±1 % f.s.
Accuracy (Temperature)±0,2
Magnetic stirrerYes, independently controlled
Power supply100 - 240 V
Temperature calibrationYes
AQA calibrationYes
Temperature coefficent (max)0,00 ... 10,00 % / °C
DHS compatibilityYes
Temperature compensation0,0 ... +100,0 °C
PC CommunicationUSB type B
Stirring speed control15 levels
Cell constant0,1 / 1 / 10
Criteria for stability of the measureMed - High - Tit
DescriptionConductivity cell 2301T
Display4.3" high-definition, backlit colour TFT
TDS factor0,40 ... 1,00
AQAYes
IP rating54
Calibration data indicationYes with reports
Buffer used indicationYes with icon
Electrode status indicationYes with graph
Inputs2 x BNC - 2 x RCA
Selectable languagesEng - Ita - Deu - Esp - Fra - Por
Memory1000
NamePC 8 Pro
ParameterspH - mV - ORP - Cond - TDS - SAL - T
PasswordYes, 8 numeric characters
Weight1,255 kg
Calibration points Cond1 ... 4 automatic values - 1 user value
ORP calibration points1 automatic value - 1 user value
PH calibration points1 ... 5 automatic values - 2 user values
Cond measuring range0,00 μS ... 500 mS
mV ORP measuring range-2000 ... +2000 mV
pH measuring range-2,000 ... +16,000 pH
Salinity measuring range0,01 ppm … 100 ppt
TDS measuring range0,1 mg/l ... 200 g/l
Temperature measuring range-20,0 ... +120,0 °C
Calibration ReportYes, printable
Cond resolution0,01 / 0,1 / 1 (automatic scale) µS/cm - mS/cm
ORP resolution0.1 / 1 (automatic) mV
pH resolution0,1 / 0,01 / 0,001 pH
Temperature resolution0,1 °C
BuzzerYes
pH alarm rangeMin - Max
Swabs recognised Cond84 µS - 147 µS - 1413 µS - 12,88 mS - 111,8 mS
Recognised pH buffersUSA - NIST - DIN 19266
Working temperature0 ... +45 °C
Reference temperature+15 ... +30 °C
Timer calibration due with alarmYes
Cell type2 rings
Stirring speed0 ... 3000 rpm
Analog viewYes
Max stirring quantity2 L
