Measuring range:

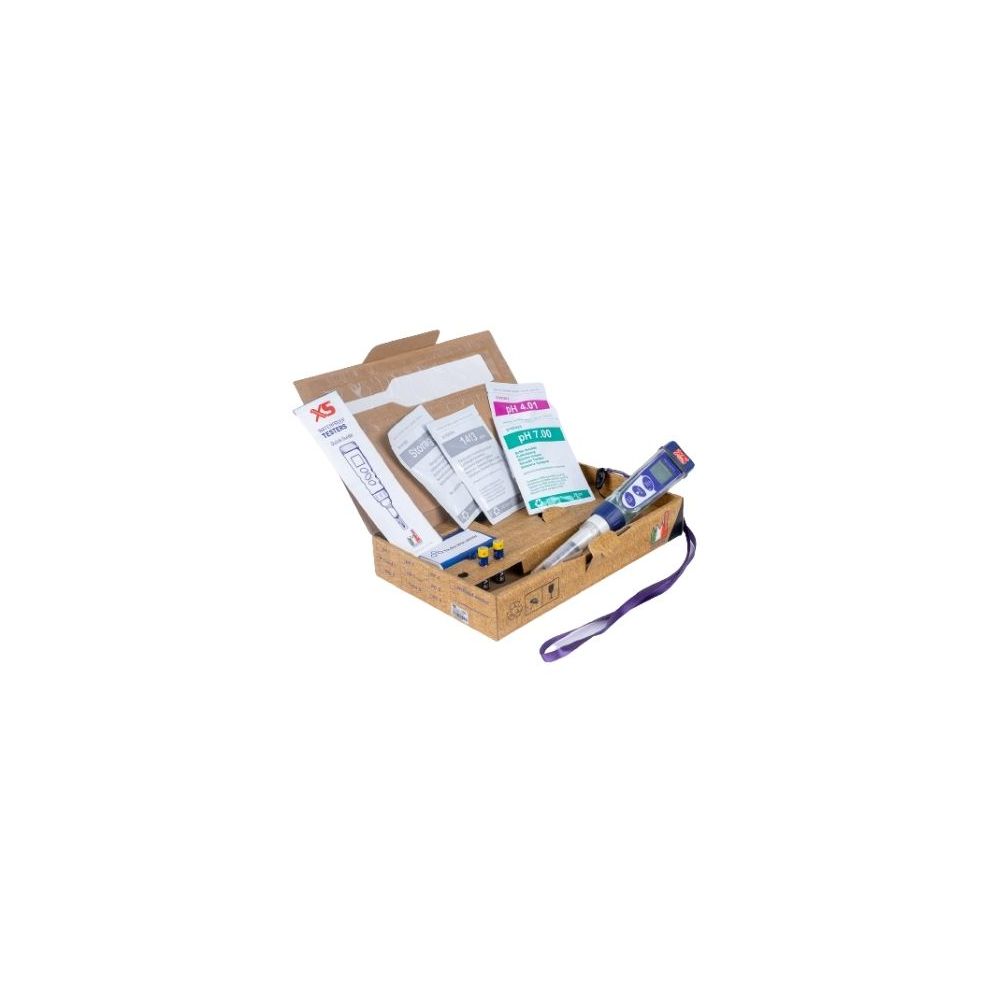

The Kit includes pH 7 and pH 4 buffer solutions (sachets 25 ml), storage solution in sachet, 1413 μS sachets 25 ml standard solution, calibration cap, lanyard, tissue, quick manual, and cardboard case.

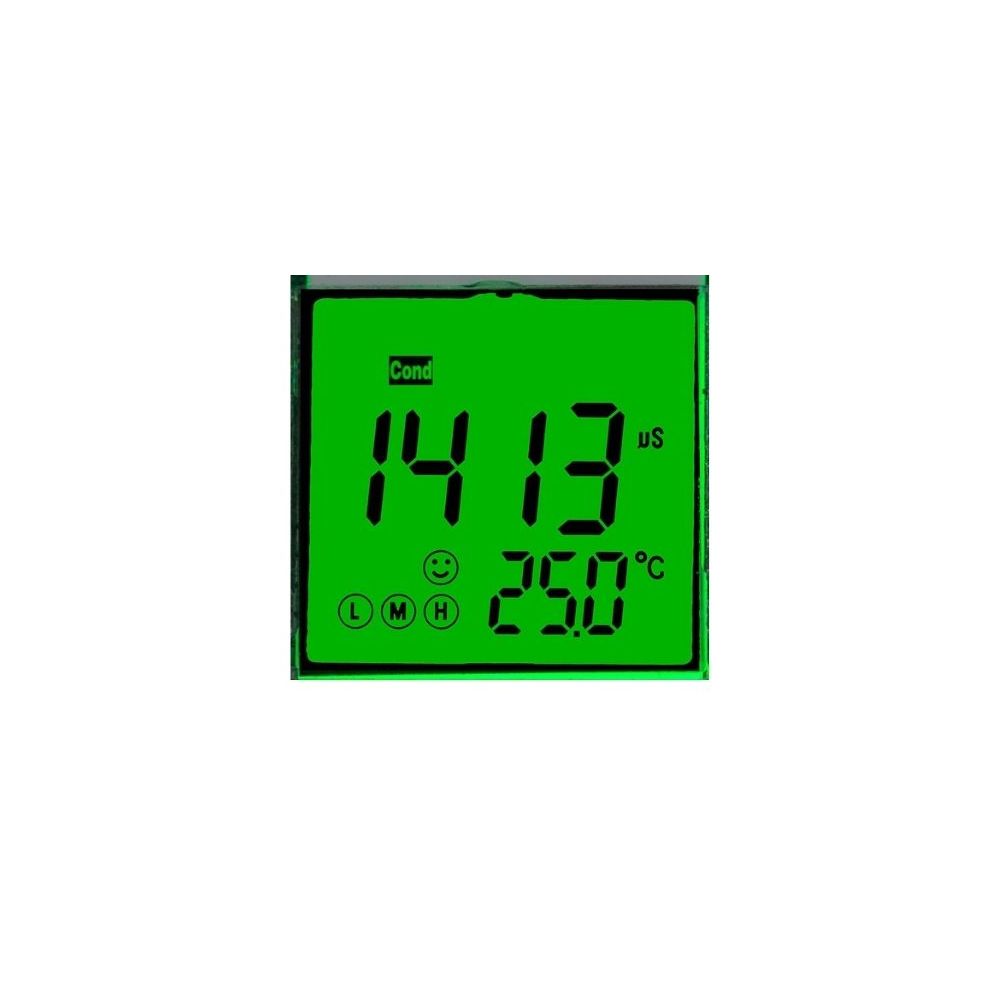

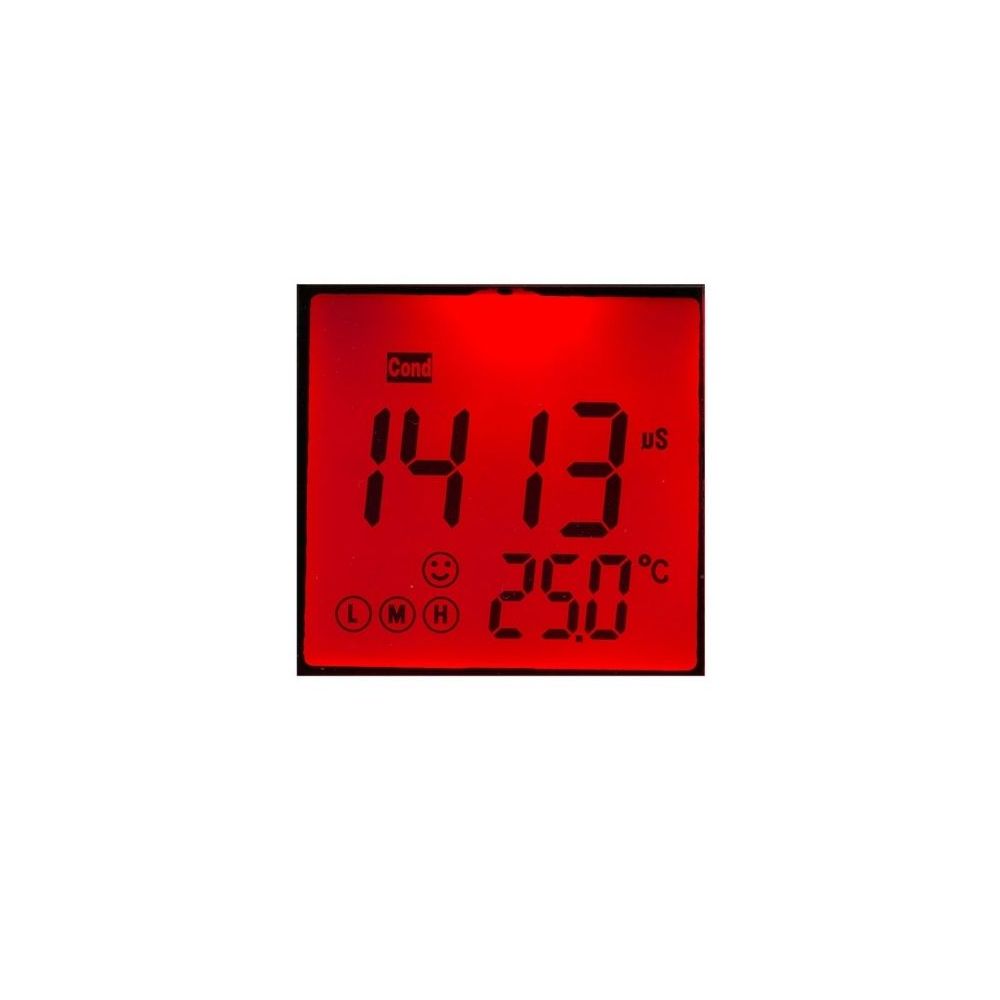

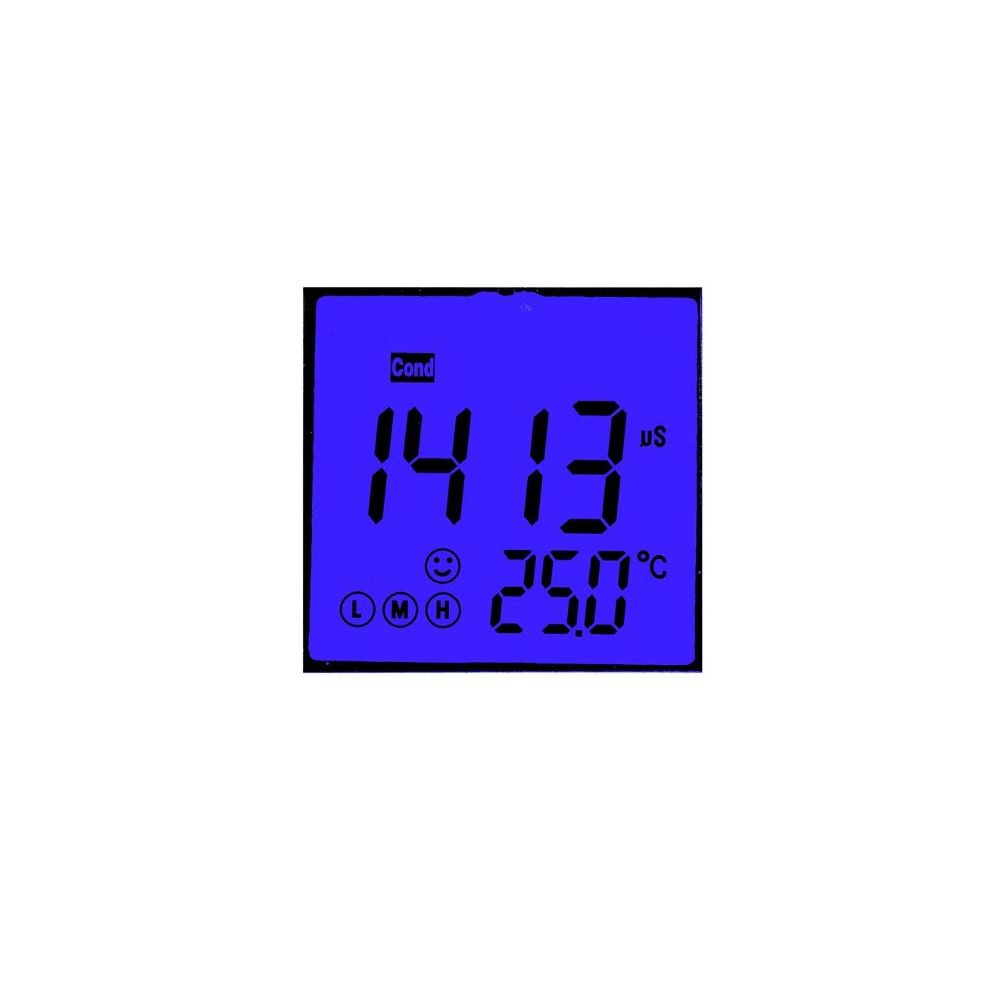

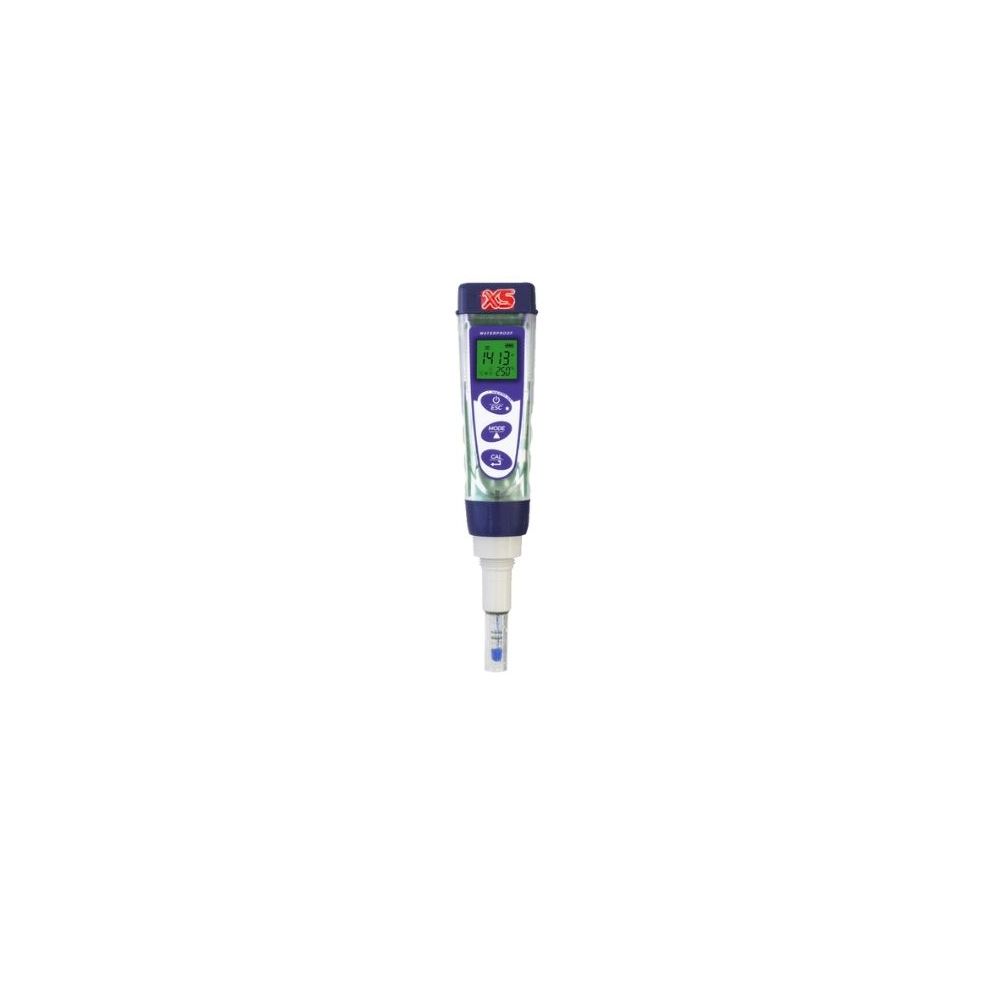

Description: IP67 watertight portable multiparameter for pH, ORP, Conductivity, TDS, and Salinity measurement. High-durable combined interchangeable electrode. Wide 3-color LCD display with indication of the buffers used for calibration and measurement stability. Automatic temperature compensation (0…100°C). Auto power-off function. Self-diagnosis messages: low batteries, calibration errors. Power supply with 2 x 1.5V AAA batteries included, compatible with rechargeable batteries too.
pH: Resolution 0,01 pH. Push-button calibration on 3 points with 5 values of USA buffers.
ORP calibration on one point defined by the user.
mV reading for pH electrode diagnosis and ORP/Redox measurement.
COND: Automatic calibration on 3 points with 3 standards, choosing between 84, 1413 μS, and 12,88mS.
Automatic temperature compensation with TR= 20/25°C and adjustable coefficient
TC= 0,00…4,00%/°C.
TDS factor: 0,40…1,00.
REGULATIONS | |
Regulations | CE |
PERFORMANCE | |
Accuracy (Cond) | ± 2 % full scale |
Accuracy (pH) | ± 0.01 |
Accuracy (TDS) | ± 2 % full scale |
Accuracy (Temperature) | ± 0.2 °C |
Cond measuring range (max.; min.) | 199.9 mS; 0.01 μS |
Cond resolution | Automatic scale |
mv measuring range (max.; min.) | + 1000 mV; - 1000 mV |
ORP measuring range (max.; min.) | + 1000 mV; - 1000 mV |
ORP resolution | 0.1 mV / 1 mV (automatic scale) |
Parameters | pH - mV - ORP - EC - TDS - SAL - T |
pH measuring range (max.; min.) | 16; - 2 |
pH resolution | 0.01 |
Reference temperature (max.; min.) | 25 °C; 20 °C |
Salinity measuring range (max.; min.) | 100.0 g/l; 0.01 mg/l |
TDS Factor (max.; min.) | 1.00; 0.40 |
TDS measuring range (max.; min.) | 199.9 ppt; 0.01 ppm |
Temperature coefficient (max.; min.) | 4.00 % / °C; 0.00 % / °C |
Temperature compensation | Yes |
Temperature compensation (auto - manual) | Automatic |
Temperature measuring range (max.; min.) | 60 °C; 0 °C |
Temperature resolution | 0.1 °C |
FEATURES | |
Display | LCD backlit 3 colors |
IP protection | IP 67 |
Reference temperature | 20 °C / 25 °C |
Replaceable sensor | Yes |
Automatic Shutcdown | after 8 minutes |
Stability indication | Yes |
Standard approved pH | 5 buffers USA - 84 μS / 1413 μS / 12.88 mS - 1 user defined point |
Standard calibration points | 1...3 (pH) / 1...3 (COND) |
POWER SUPPLY | |
Battery life | > 200 hours |
Power supply | 2 x 1.5 V batteries AAA |
DIMENSION AND WEIGHT | |
Dimension (instrument) | 40 x 200mm |
Instrument weight | 110 g |
Brand | Giorgio Bormac s.r.l |
---|
