Measuring range:

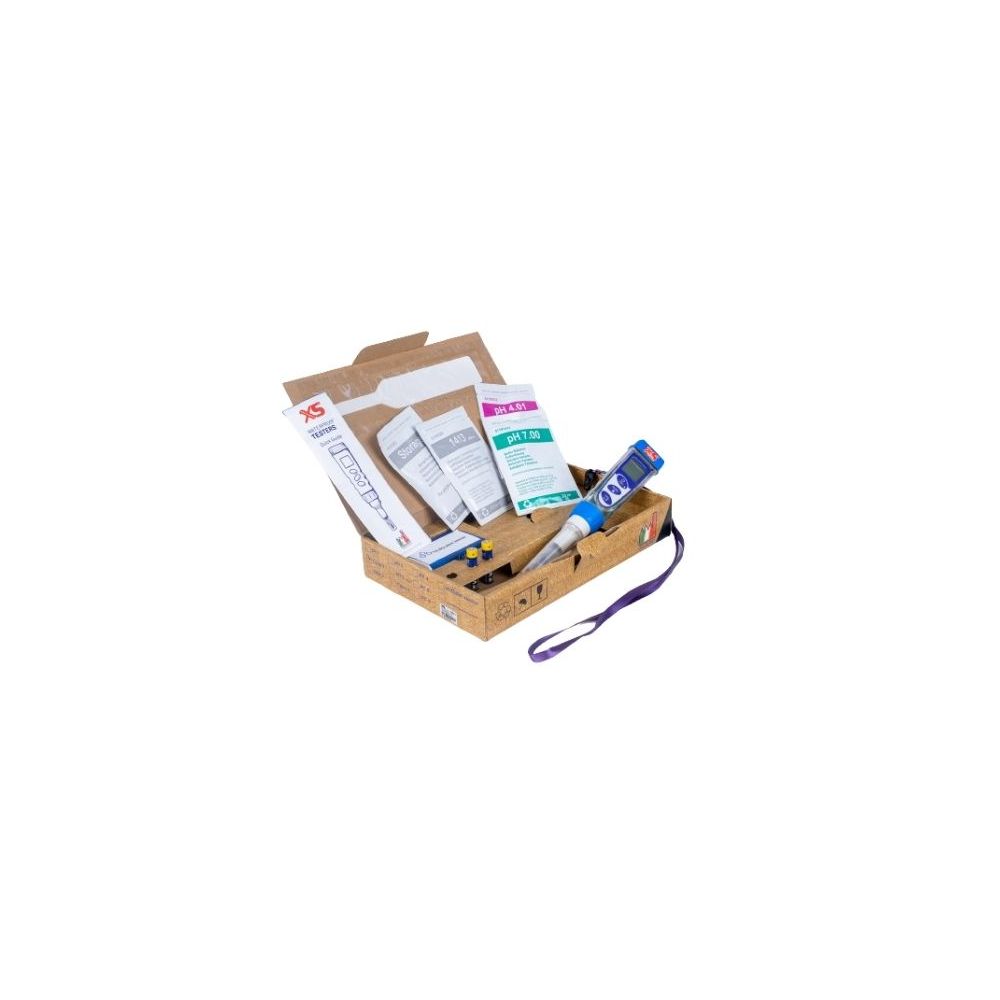

The Kit includes 1 sachet x 25ml pH 7 and pH 4, 1 sachet of electrode storage, 1 sachet x 25ml 1413 μS buffer solution, calibration cap, lanyard, tissue, quick manual, and cardboard case.

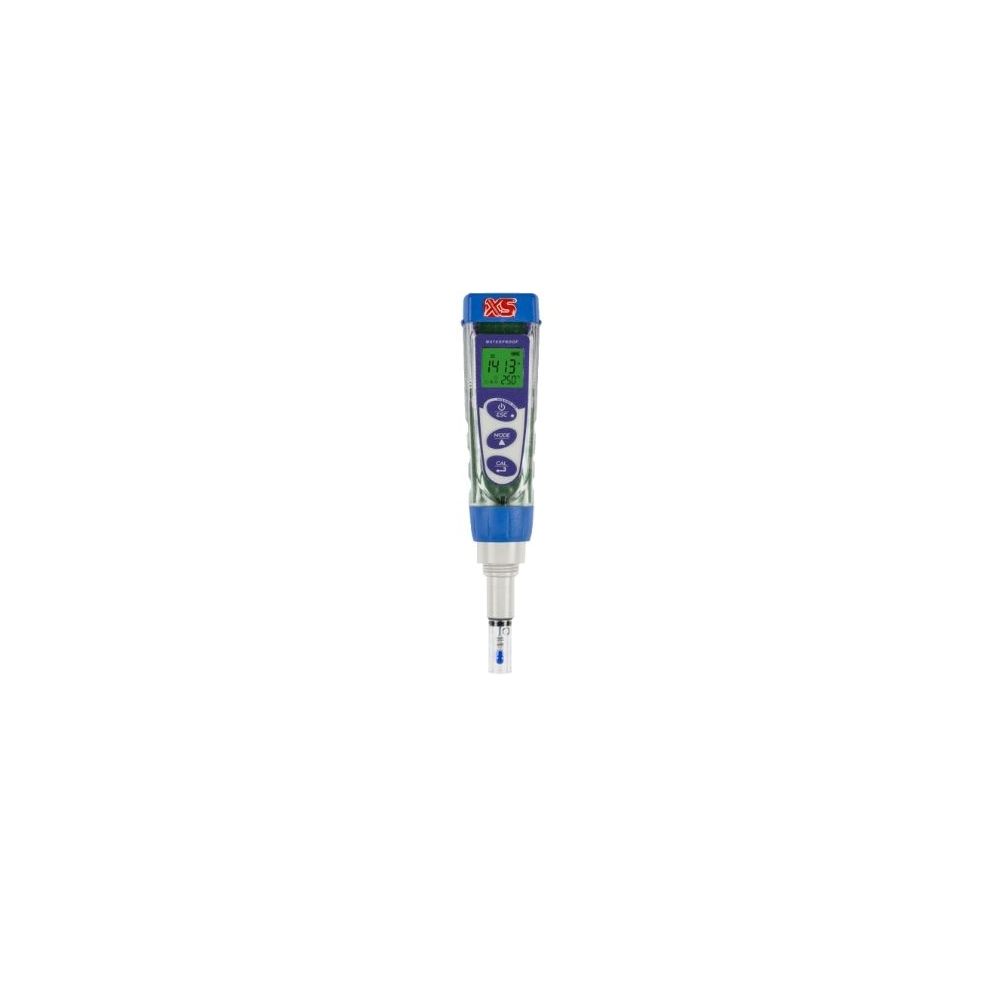

Description: IP67 watertight portable multiparameter for pH, Conductivity, TDS, and Salinity measurement. Combined interchangeable electrode. Indication of the buffers used for calibration and measurement stability. Self-diagnosis messages. Power supply with 2 x 1.5V AAA batteries included, compatible with rechargeable batteries too. Auto power-off function.
pH: Resolution 0,01 pH. Push-button calibration on 3 points with 5 values of USA buffers.
mV reading for pH electrode diagnosis.
COND: Push-button calibration on 3 points with 3 standard values, choosing between 84, 1413 μS, and 2,88 mS. Adjustable coefficient TC= 0,00…4,00%/°C.
TDS Factor: 0,40…1,00.
PERFORMANCE | |
Accuracy (Cond) | ± 2 % full scale |
Accuracy (pH) | ± 0.01 |
Accuracy (TDS) | ± 2 % full scale |
Accuracy (Temperature) | ± 0.2 °C |
Cond measuring range (max.; min.) | 199.9 mS; 0.01 μS |
Cond resolution | Automatic scale |
mv measuring range (max.; min.) | + 1900 mV; - 1000 mV |
pH measuring range (max.; min.) | 16; -2 |
pH resolution | 0.01 |
Reference temperature (max.; min.) | 20 °C; 25 °C |
Salinity measuring range (max.; min.) | 100.0 g/l; 0.01 mg/l |
TDS Factor (max.; min.) | 1.00; 0.40 |
TDS measuring range (max.; min.) | 199.9 ppt; 0.01 ppm |
Temperature coefficient (max.; min.) | 4.00 % / °C; 0.00 % / °C |
Temperature compensation | Yes |
Temperature compensation (auto - manual) | Automatic |
Temperature measuring range (max.; min.) | 60 °C; 0 °C |
Temperature resolution | 0.1 °C |
FEATURES | |

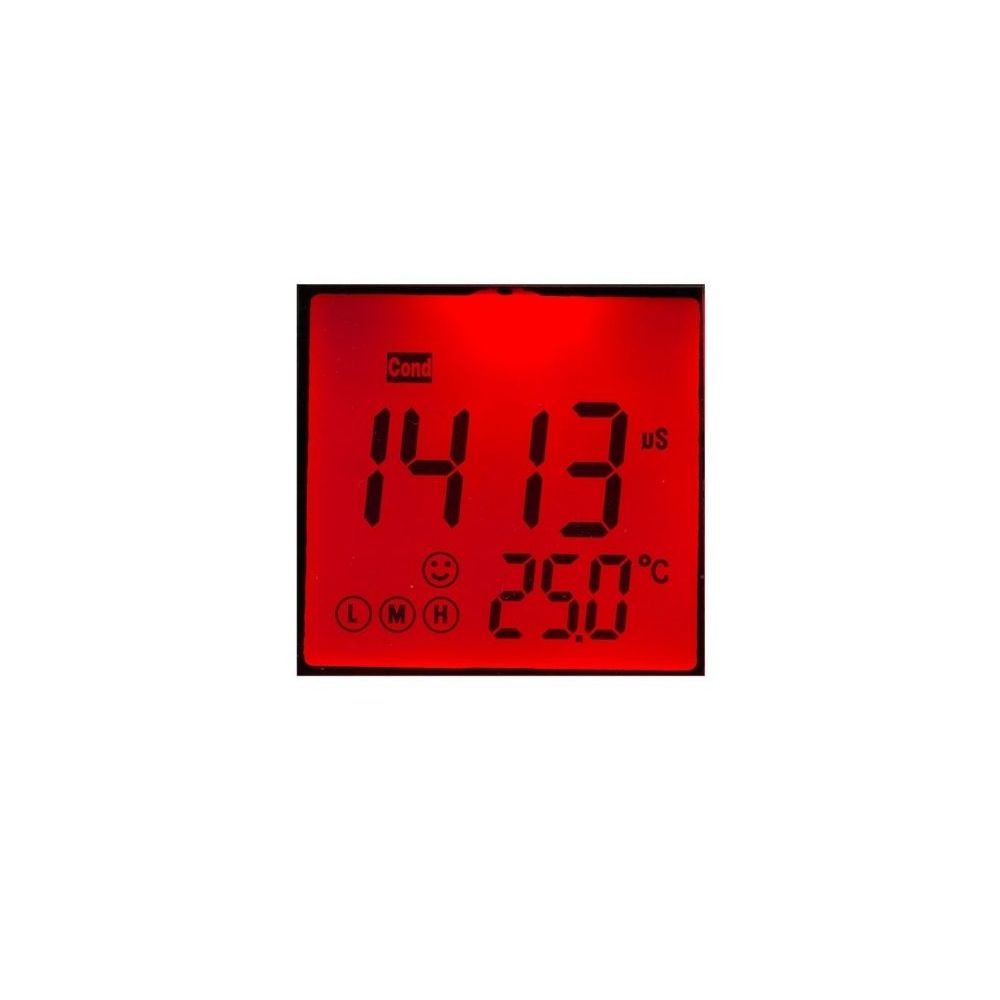

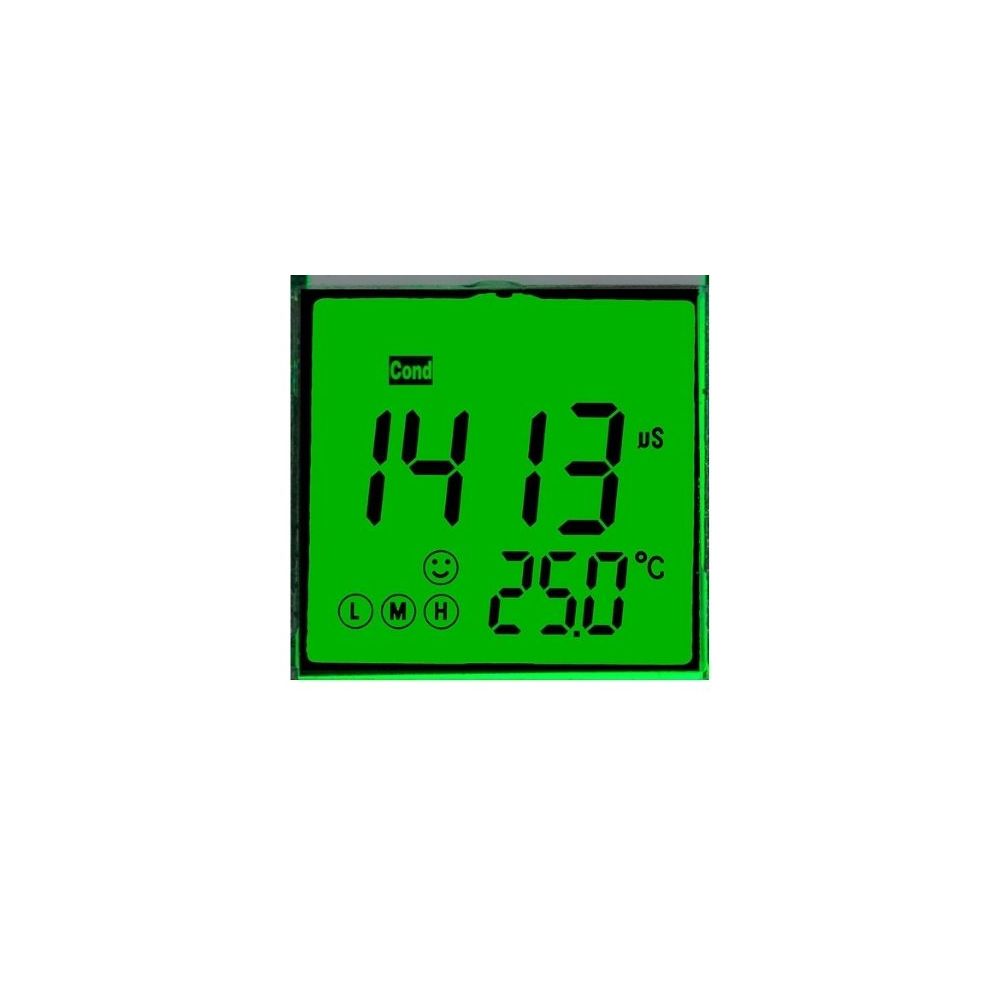

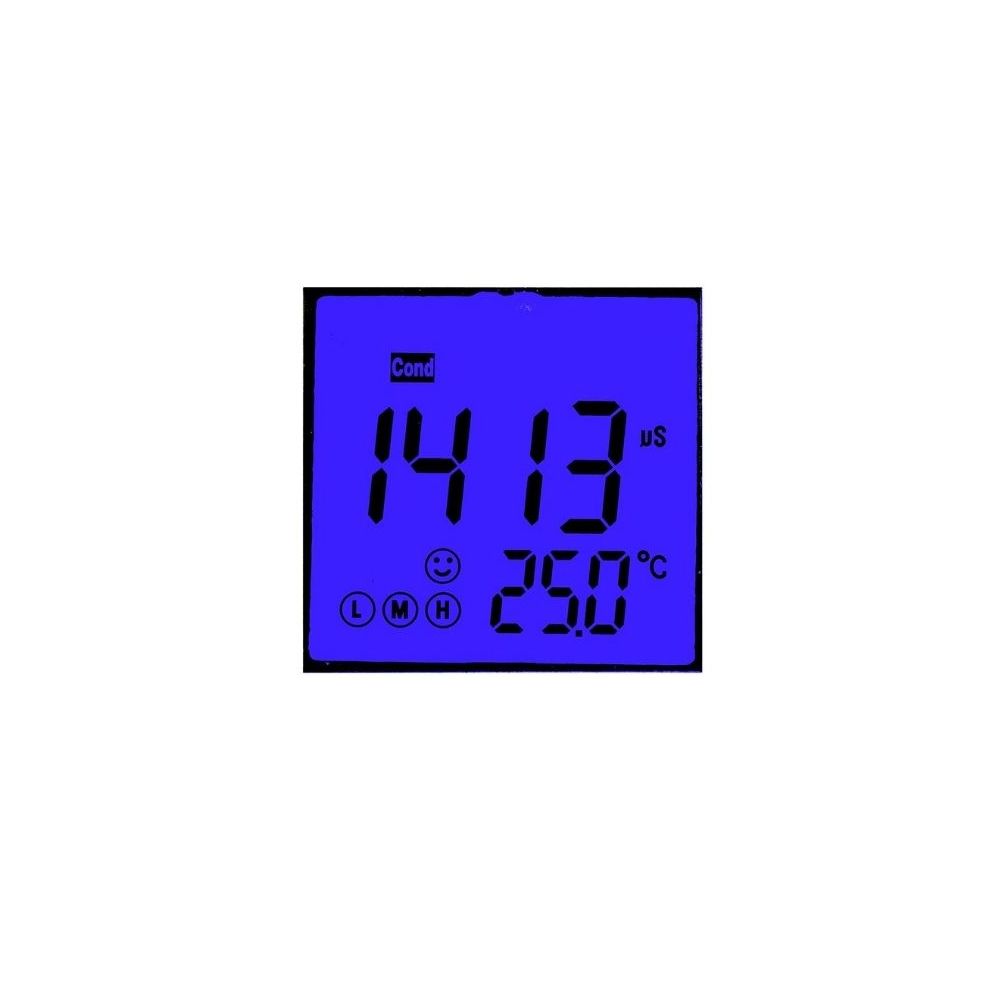

Display | LCD backlit 3 colors |
IP protection | IP 67 |
Reference temperature | 20 °C / 25 °C |
Replaceable sensor | Yes |
Automatic Shutdown | after 8 minutes |
Stability indication | Yes |
Standard approved pH | 5 buffers USA - 84 μS / 1413 μS / 12.88 mS |
Standard calibration points | 1...3 |
POWER SUPPLY | |
Battery life | > 200 hours |
Power supply | 2 x 1.5 V batteries AAA |
DIMENSION AND WEIGHT | |
Dimension (instrument) | 40 x 200 |
Instrument weight | 110 g |
Brand | Giorgio Bormac s.r.l |
---|
