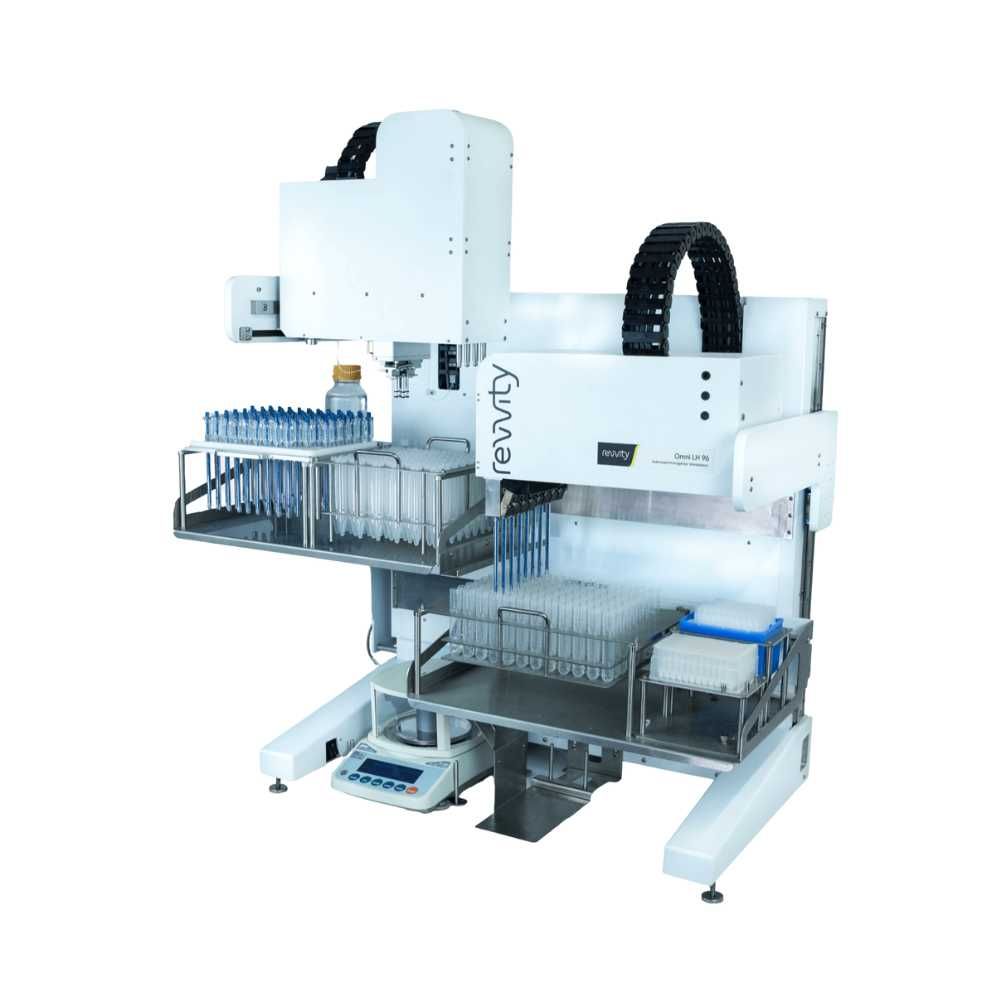

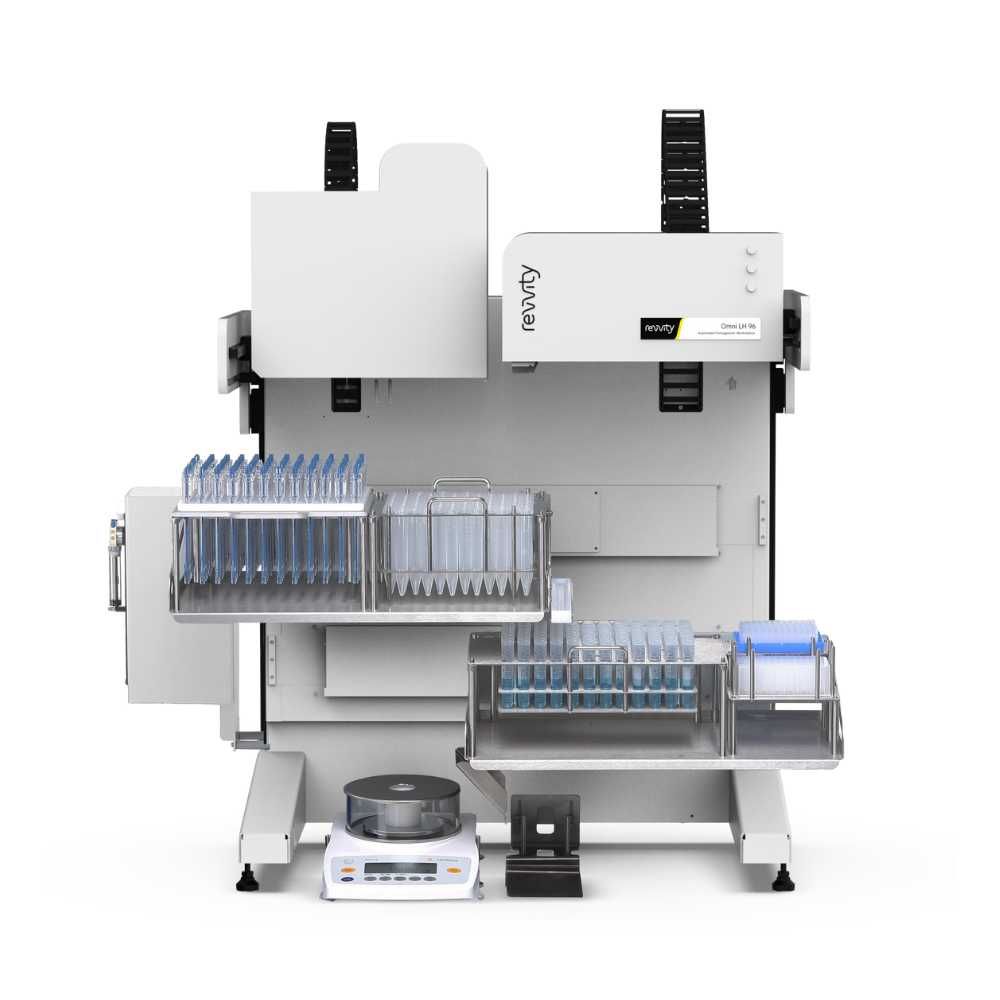

Omni LH 96 Automated Homogenizer Workstation
Enquire for Price
- Power Supply: 100-230 VAC, 50/60 Hz
- Sample Capacity: Up to 96
- Liquid Handling: Up to four separate liquids. Liquid addition.
- Liquid Transfer: 4-Channel Pipette. 25 µL to 1 mL
- Weighing: Analytical balance – readability to 1 mg
- Data logging: Sample weights logged
- Homogenization: 8-Channel Rotor-Stator homogenizer
- Homogenizer Motor Power Rating: 8 x 40 Watts (24 V)
- Probe Compatibility: Disposable Omni Tip 7 and 12 mm Plastic Probes, 7 and 12 mm Hybrid Probes, 5, 7 or 10 mm Stainless Steel Generator Probes
- Probe Cleaning: Cleaning cycle through ultrasonic bath or ejection of Omni Tips
- Processing Volume: 250 µL to 40 mL
- Programming: Customisable through Omni LH 96 software
- Speed Control: 500 to 28,000 rpm
- Dimensions: 20.0” (50.8 cm), W: 27.9” (71.1 cm), H: 39.8” (101.0 cm)
- Weight: 150 lbs. (68 kg)
- Sound Level: < 75 db
- Certification: CE, TUV
For research use only. Not for use in diagnostic procedures.
Availability:On Request
SKU
IREVLH96
BrandRevvity
High-Throughput, Fully Automated Sample Preparation Platform
Overview
The Omni LH 96 is a purpose-built homogenizer workstation designed to support laboratories that manage high volumes of sample preparation. It automates key steps in the process, including homogenization, pipetting, liquid handling, weighing, and sample transfer. With a compact footprint, this system helps preserve valuable bench space while delivering consistent, repeatable performance.
Using 8 independent 40-watt brushless motors, the LH 96 maintains processing speed accuracy within ±1%. Its integrated software allows for protocol customisation through a straightforward graphical user interface (GUI), enabling tailored workflows with minimal manual oversight.
The system is compatible with a range of generator probes, including single-use Omni Tip plastic probes and reusable stainless-steel or hybrid probes that can be cleaned automatically using the built-in ultrasonic bath.
Key Features
- Processes up to 96 samples per run with support for various tube sizes (2 mL to 50 mL)
- ±1% speed accuracy using durable brushless motors
- Automates homogenization, liquid handling, pipetting, weighing, and sample transfer
- Interactive GUI allows for easy setup and repeatable workflows
- Accepts both disposable and reusable probes for different lab requirements
- Ultrasonic cleaning bath for probe decontamination and reuse
- Optional cooling modules available for temperature-sensitive samples
- Quiet operation suitable for noise-sensitive workspaces
Common Applications
- Drug metabolism and pharmacokinetics (DMPK)
- Gene and cell therapy workflows
- Sample prep for mRNA and protein analysis
- Environmental and food safety testing
- Toxicology and tissue analysis
Why You Might Choose This System
The LH 96 is a practical choice for labs looking to streamline sample preparation without expanding their physical lab footprint. It’s designed to reduce repetitive manual tasks, improve consistency, and adapt to a range of sample types. It supports labs working in areas such as molecular biology, drug development, and toxicology studies.
Frequently Asked Questions (FAQs): Omni LH 96 Automated Homogenizer Workstation
Q: What types of samples can the LH 96 process?
A: The system supports a broad range of biological samples including tissues and cells, with volumes from 250 µL to 40 mL.
Q: Can I use both disposable and reusable probes?
A: Yes. The LH 96 accepts both Omni Tip™ disposable probes and reusable stainless steel or hybrid probes, the latter of which can be decontaminated using the built-in ultrasonic bath.
Q: Is temperature control supported?
A: Yes. The system can be configured with passive or active cooling modules for temperature-sensitive workflows.
Q: How are workflows managed?
A: Users can create and save custom protocols via the interactive GUI, allowing repeatable, automated sample preparation with minimal manual oversight.
Q: How does the LH 96 prevent cross-contamination?
A: Through the use of single-use tips or automated ultrasonic cleaning of reusable probes, cross-contamination risks are minimized.
