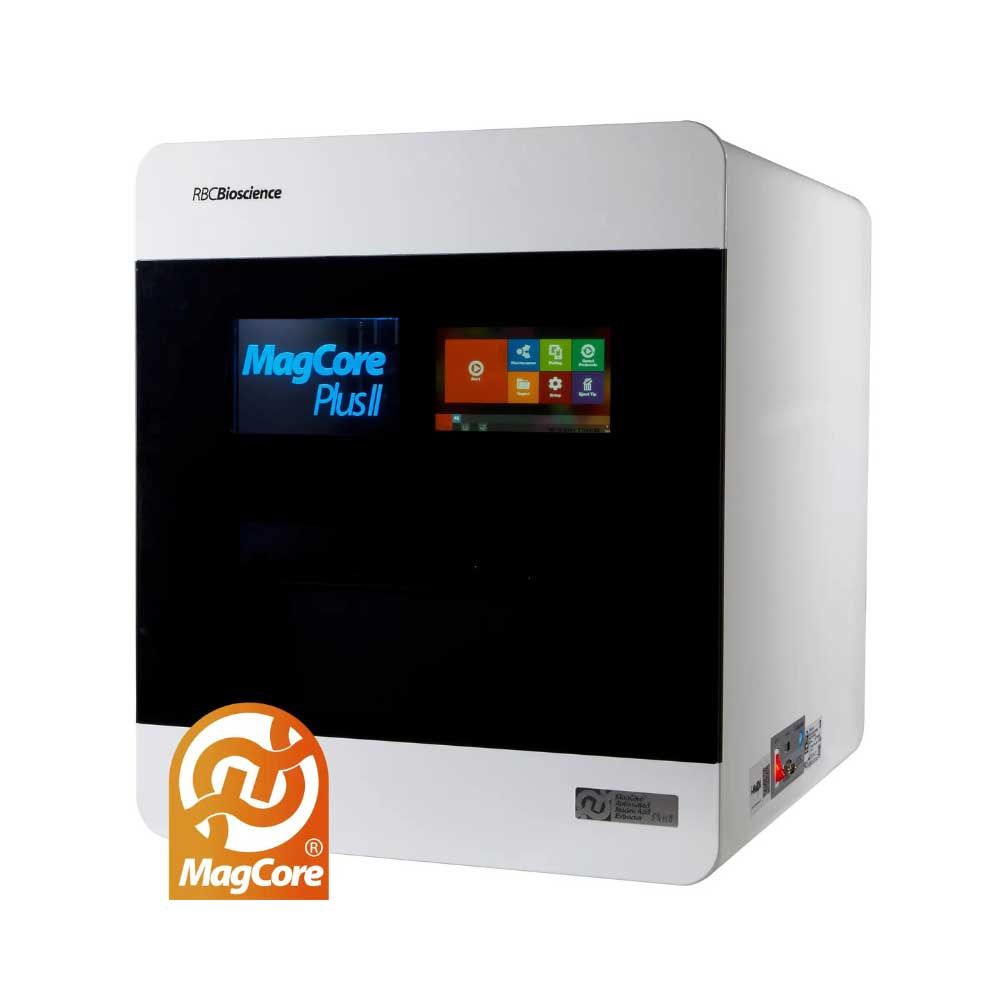

MagCore^® Plus II is the newest robotic bench-top workstation for fast and high-yield nucleic acid purification from virtually all molecular diagnostic, biological, clinical, and forensic sample types. With a small footprint, a lightweight, user-friendly interface, and a broad range of entirely built-in programs with free upgrades, 1–16 samples can be isolated simultaneously at your fingertip. The instrument simplifies your daily routine by providing full traceability of kits and samples through real-time mobile monitoring and a complete report that can be downloaded on a computer at the end of each run.

Features and Benefits

Worldwide Patented Magnetic Beads: Cellulose-coated magnetic beads, coupled with our patented binding and separation technology, guarantee high-quality extracts.
Ideal for DNA/RNA Extraction: Built-in protocols are created for extracting nucleic acids from a wide range of samples, including whole blood, plasma (circulating free nucleic acid), tissue, bacteria, viruses, plants, and forensics.
Throughput up to 16 samples per run: From cartridge piercing to final eluate, all steps are performed by the instrument, which allows running 1 to 16 samples at one time for time-saving and flexible performance.
Full traceability of the samples and kits: A report in .csv format is generated at the end of each run and contains all relevant data: the user’s name, sample and kit barcode, protocol number, sample and elution volume, and start and end time. The file opened on a computer can be subsequently processed by a LIMS.
Real-Time Mobile Monitoring: During the run, the instrument HMI can be accessed via Wi-Fi from your smartphone or tablet through the RBC Bioscience App, to see real-time information about the run processing status, remaining time, and errors. Android and iOS are compatible.
UV Decontamination: The equipped UV lamp minimizes the risk of cross-contamination and ensures user and product safety.
Barcode Scanner: For sample and kit tracking and monitoring and easier organization of the test results.

System Components
Model	HF16 Plus
Processing Capacity	Max. 16 samples per batch
Pipetting Unit	X and Y-axis movement for sample transfer and dispense.
Electric Control	PLC module, HMI, and Driver main board embedded in.
UV Light	Power 8W, life duration 11,000 Hrs.
Heating Block	RT~90°C.
Display Screen	7-inch colour touch panel
Accessories	T-racks, cartridge racks, barcode scanner, waste box
Barcode Scanner	Yes
Power Supply	Voltage: AC 100V ~240V; Frequency: 50/60Hz
Dimension	W523 x D602 x H605 (mm) / W21 x D23.7 x H23.8 (inches)
Net Weight	70kg / 154.35lbs
Operating Parameters
Processing Capacity	1~16 samples per batch
Processing Time	30-90 minutes (depends on sample type and method)
Sample Volume	200μl / 400μl / 1,200μl / 3ml / 4ml
Elution Volume	30μl / 40μl / 60μl / 100μl / 150μl / 200μl
Purity	DNA: O.D _A260/280 ratio 1.8 ± 0.1; RNA: O.D _A260/280 ratio 2.0 ± 0.2.
Pipetting Accuracy	30-60ul 20%; 60-100ul 10%; 100-1000ul 4%
Operating Environment
Temperatures allowed during transportation storage packaging	15°C~35°C
Temperatures allowed during operation	18°C~30°C
Pollution Degree	Level 2
