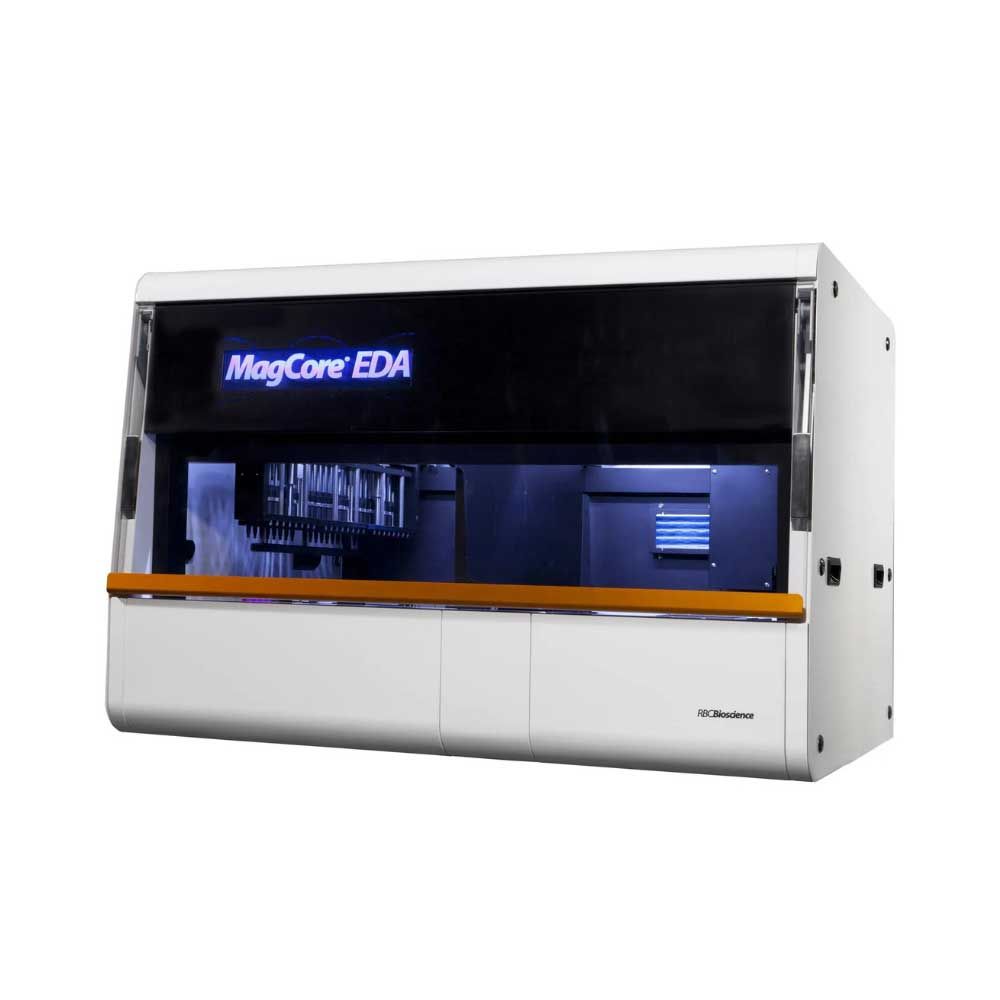

MagCore^®EDA system is a new-generation instrument for nucleic acid extraction and PCR setup pre-treatment.MagCore^® EDA can process up to 48 samples and has a built-in spectrophotometer, which makes it a complete solution to increase laboratory efficiency and simplify the workflow. Users can benefit from automatic purification, OD value retrieval, high NA concentration in the final elute, and compatibility with LIMS. Using MagCore extraction kits,MagCore^® EDA offers consistent, reliable DNA or RNA extraction in 30–120 minutes, depending on the sample type.

Features and Benefits

Worldwide Patented Magnetic Beads: With RBC patented magnetic bead technology, cellulose coating particles give high binding capacity and the best purity of nucleic acid.
Ideal for DNA/RNA Extraction: Built-in protocols are created for various sample types, including whole blood, viral nucleic acid, tissue, plants, cultured cells, etc.
UV Decontamination: The equipped UV lamp prevents the risk of cross-contamination, improving user safety and product quality.
HEPA Decontamination: A HEPA system is installed in the PCR set-up zone to eliminate contamination and ensure the purity of the samples.
Automatic Barcode Scanning: Barcode reading of the primary tube simplifies the tracking of the samples and ensures traceability.
Throughput up to 48 samples: From cartridge piercing to final elute, all steps are performed by the instrument, which allows running 1-48 samples. The instrument processes samples in batches of 24 at a time and has a run setting for 24 or 48 samples to be processed at once for time-saving and flexible performance.
Smart PCR setup: After the pre-mix buffer configuration is set, the instrument automatically calculates the required volumes of the primers and performs liquid-level detection. A pre-run report is generated to avoid errors and ensure optimal performance.

System Components
Model	EDA
Processing Capacity	1-48 samples (in batches of 24)
Power Supply	Voltage: AC 200V~220V; Frequency: 50/60Hz
Dimension	W1240 x D920 x H830 (mm)
Net Weight	280kg / 617lbs
Operating Parameters
Processing Capacity	1~48 samples per batch
Processing Time	30-120minutes (depends on sample type)
Sample Volume	200/400/1200/4000 μl (application dependent)
Elution Volume	30/40/60/100/150/200 μl (application dependent)
Yield	200μl whole blood (average 6μg gDNA); 400μl whole blood (average 12μg gDNA)
Purity DNA	DNA: O.D _A260/280 ratio 1.8 ± 0.1; RNA: O.D _A260/280 ratio 2.0 ± 0.1.
Pipetting Accuracy	Extraction Zone: 40μl <5%; 60μl <2%; 100-900μl <1.5%; PCR setup Zone: CV<1%, 5~50μl; CV<5%, 2~5μl; CV<10%, 1μl
Operating Environment
Storage Temperature	15°C~35°C
Operation Temperature	18°C~30°C
Pollution Degree	Level 2
