Lovibond® Colorimeter Model F (BS 684) with Compensating Slides

Lovibond^® Colorimeter for RYBN Scale Measurements

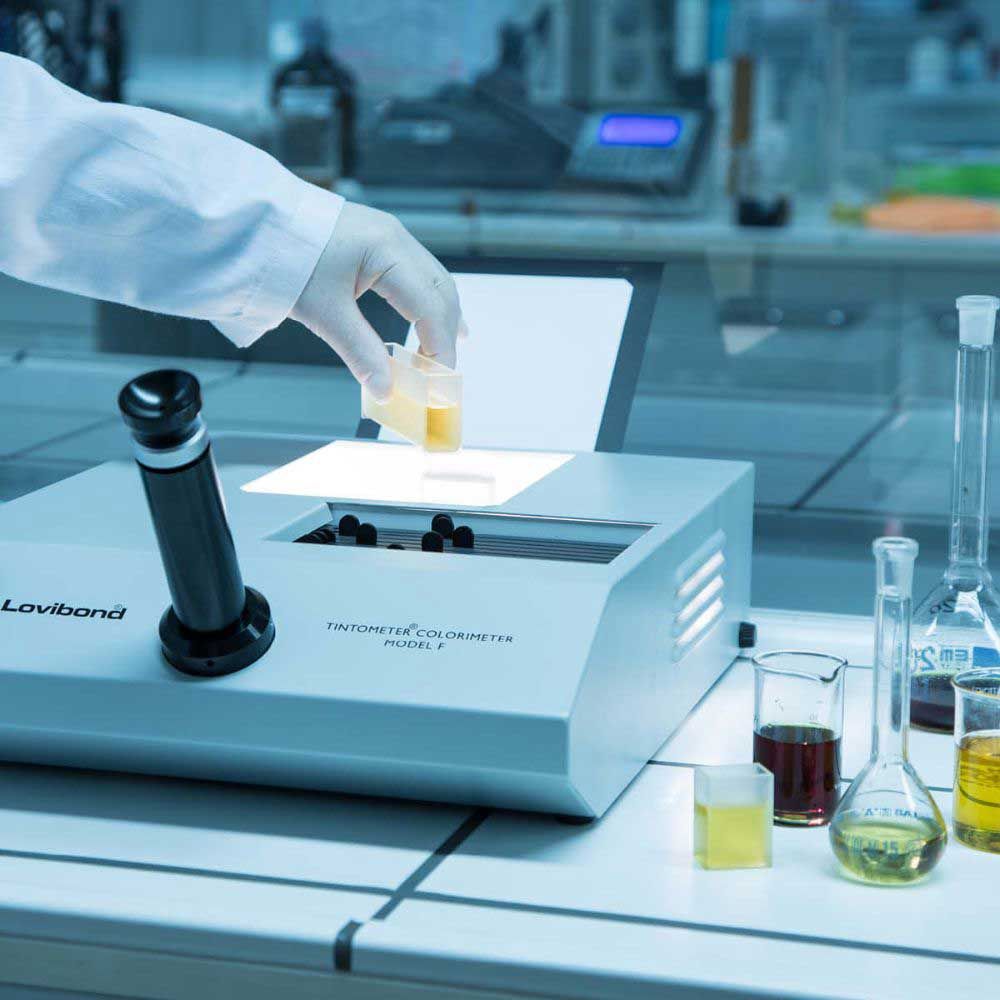

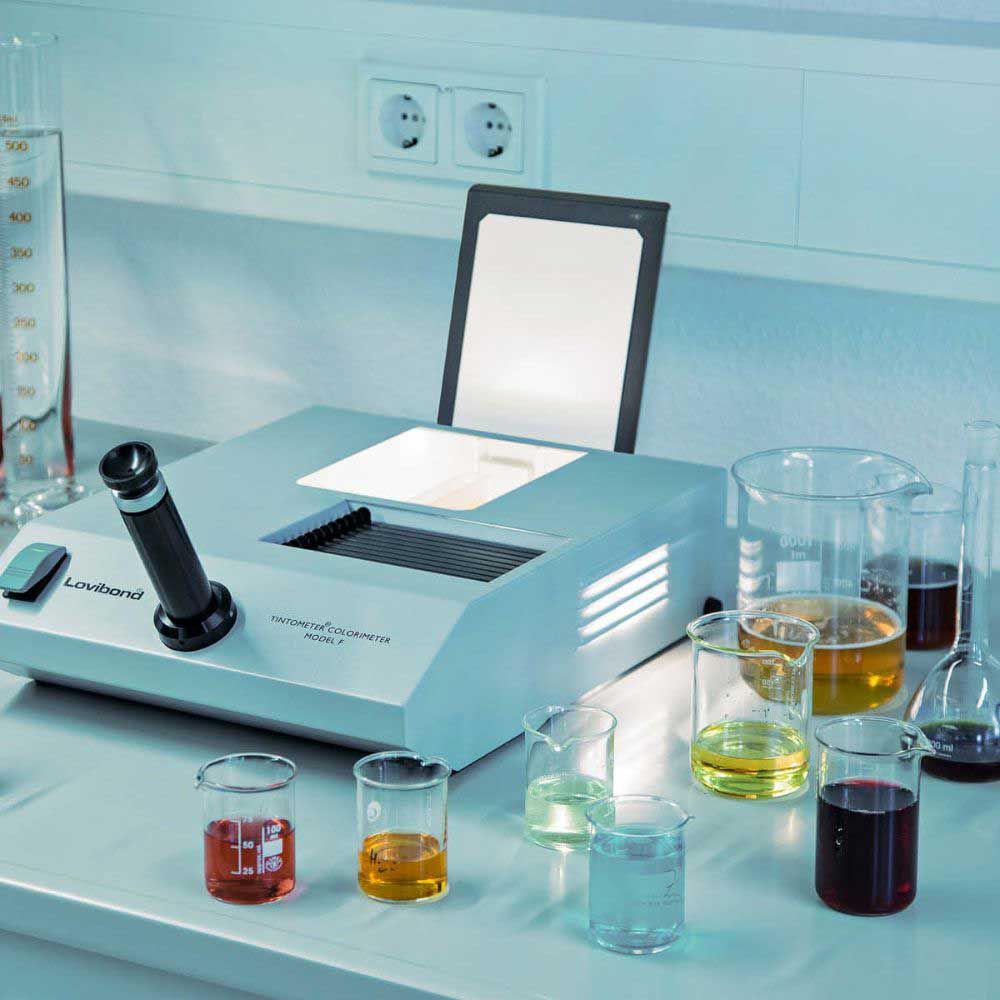

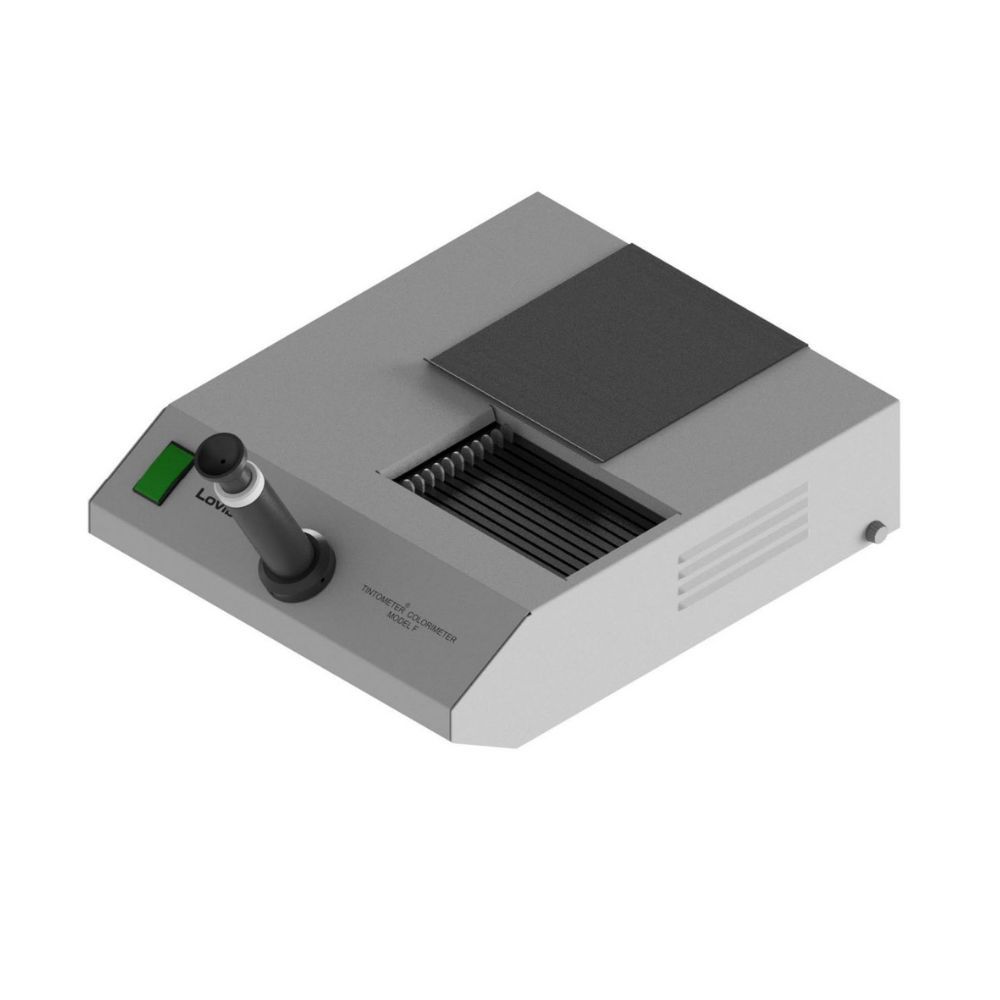

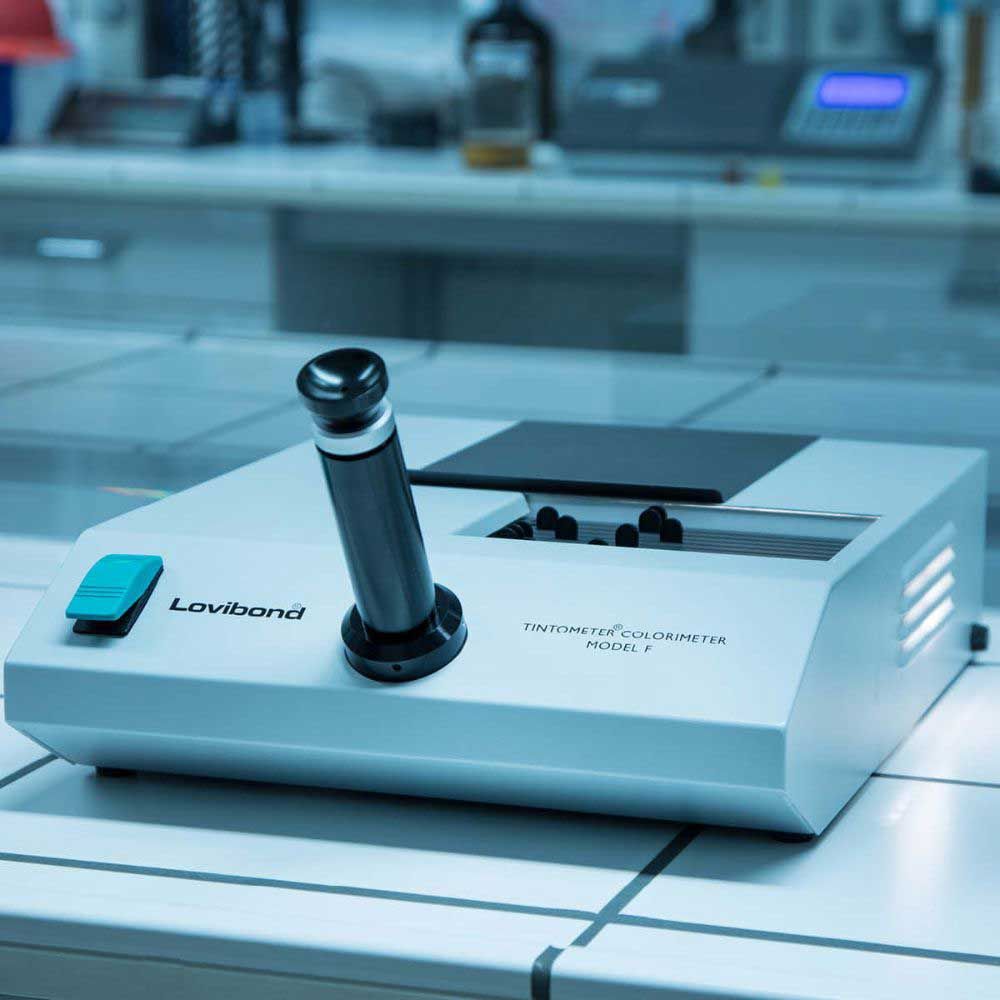

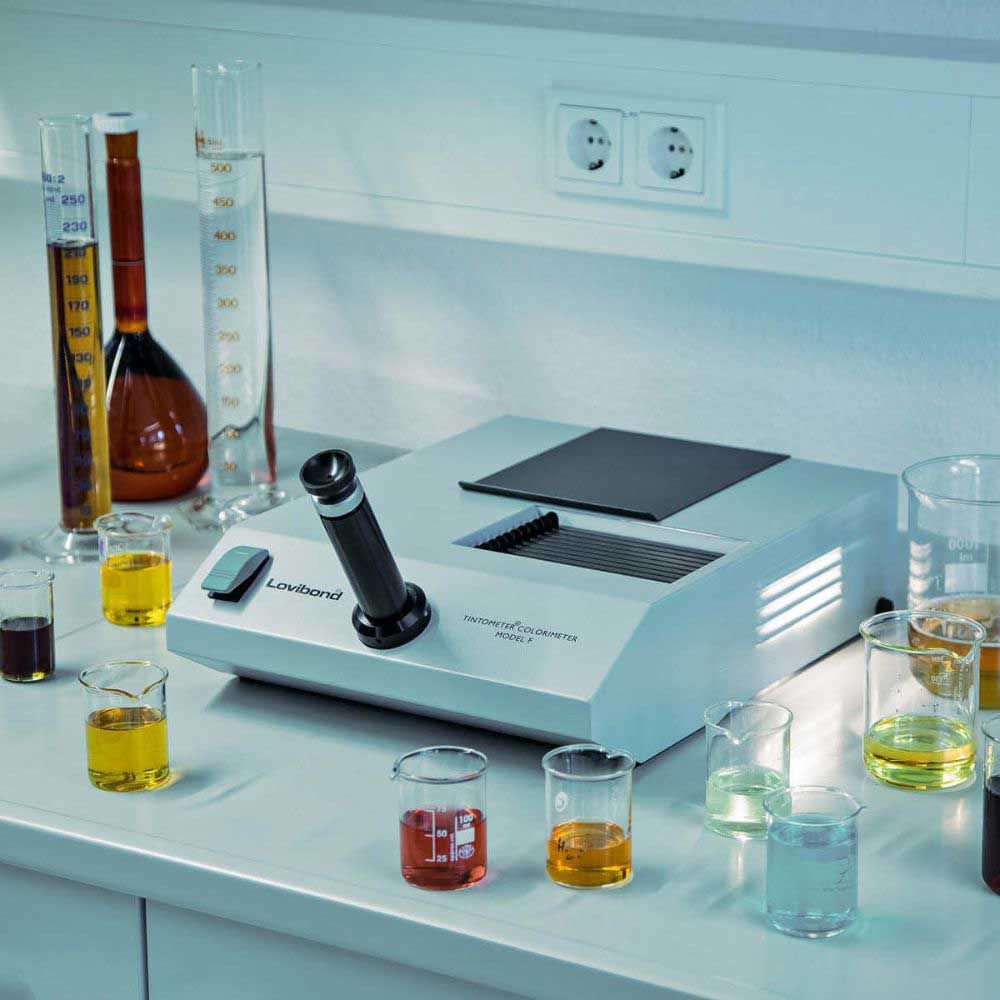

The Lovibond^® Colorimeter Model F is a visual instrument designed to optimise the use of Lovibond^® glass filters in order to express colour in terms of Lovibond^® Red, Yellow, Blue, and Neutral.

Ideal for Measuring Animal & Vegetable Fats & Oils

This version of the Lovibond^® Colorimeter Model F measures according to BS 684 Section 1.14, ISO 15305, and AOCS Method Cc 13e-92. Racks are fitted with colourless glass compensating slides in the sample field.

Two Adjacent Fields of View

The viewing tube arranges two adjacent fields of view, allowing you to observe the product in the sample field and a white reflective surface in the comparison field side by side, with suitable illumination.

Easy Colour Comparison

A simple system of sliding racks introduces the Lovibond^® glasses into the comparison field, allowing you to compare the colour of light either transmitted through or reflected from the sample. The racks are varied until a visual colour match is found for the light from the sample and its colour can then be expressed in Lovibond^® units.

Excellent Colour Matching

A series of neutral glasses in racks is also supplied; these can be introduced into the sample field to 'dull' the colour of products which are too bright to obtain a good colour match using Lovibond^® Red, Yellow or Blue glasses. The racks allow a visual colour match to be found from the light from the sample and its colour can then be expressed in Lovibond^® units.

Assured Accuracy of Lovibond^® RYBN Colour

Lovibond^® Tintometer^® is the only company that can guarantee accurate, validated Lovibond^® RYBN Colour readings.

Easy Maintenance for Optimum Performance

The Lovibond^® Tintometer is a precision optical instrument which should be kept clean to preserve its accuracy, even in the harsh operating conditions often encountered. This is

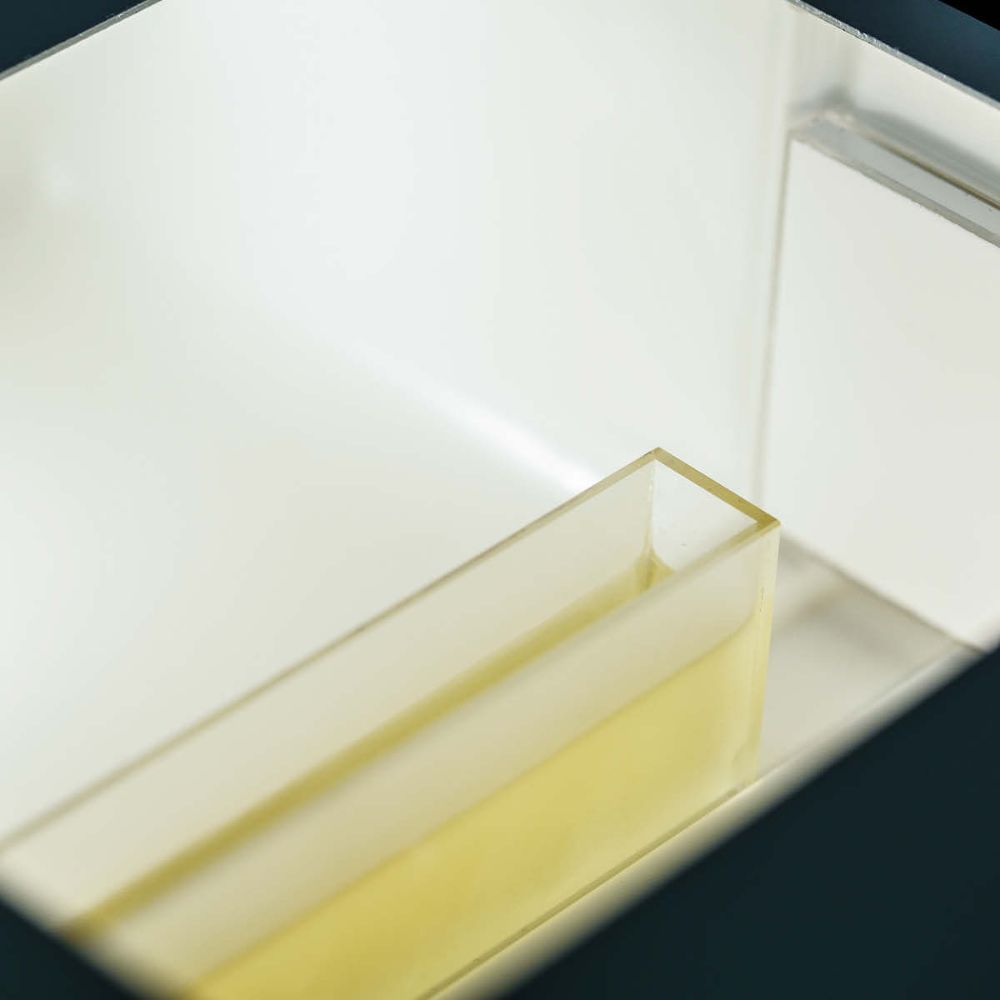

why the Model F has been designed to allow easy cleaning and maintenance with a minimum of cost and effort. The instrument includes a white plastic liner in the sample chamber, which can be removed for cleaning if a spillage takes place. It can be replaced at intervals to maintain the whiteness of the interior, an essential feature for accurate colour matching. Separate filters in the racks also simplify cleaning and allow the replacement of single glasses (as opposed to complete racks) if required.

Application Versatility

The Lovibond^® Colorimeter Model F is an easy-to-use instrument with versatile application in colour measurement of products that transmit light as well as opaque solids, powders, and pastes (an optional 'solid’ sample accessory pack may be required for colour grading of light-reflecting products).

Compliance with International Standards

It is available in slightly varying formats to meet the requirements of different applications and the national and international standardising bodies which specify the instrument in their
official methods for colour measurement.
