Safety Waste Cap LISA, S60/61
Enquire for Price
- Thread Size: S60/61
- Main Material: PTFE
- Tube Connections: 3
- Capillary Connections: 4
- Exhaust Filter Port: GL14 (plug included)
- Air Valve: Not included
- Exhaust Filters (L / M / S): Not included
- Capacity (Litres): Not applicable
- Max/Min Outer Diameter: Not specified
- Lifetime per Packaging Unit (PU): Not specified
Optional accessories are available for purchase separately. If you require a customised solution, please contact our technical specialists by selecting the "Add to enquiry" button and using our enquiry form or at sales@lasec.com.
Installation, training and special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, are chargeable in addition to standard freight and will be quoted separately before dispatch.
Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email internationallabsales@lasec.com, and our international sales team will gladly assist you through our traditional sales channels.
Availability:On Request
SKU
PSCA350060
BrandSCAT
Product Overview

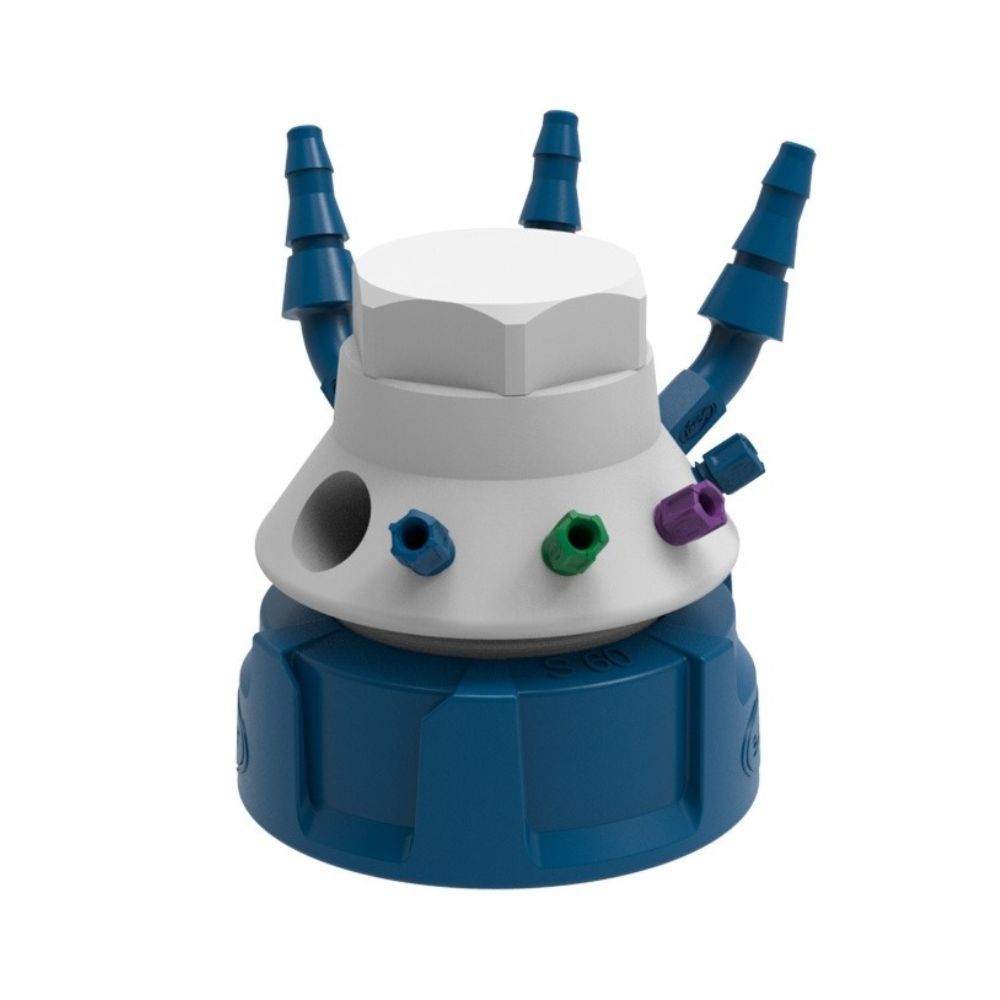

The SCAT Safety Waste Cap LISA, S60/61, is part of a modular system developed for the secure and compliant collection of liquid waste in HPLC and other laboratory environments. Designed for containers with an S60/61 thread, this cap includes multiple connection points and components, allowing users to tailor the setup to their specific waste handling needs.
The modular nature of the LISA system supports workplace safety and controlled waste disposal by preventing vapour release and ensuring secure tubing connections. The included fittings and plugs allow for easy integration into existing laboratory waste systems.

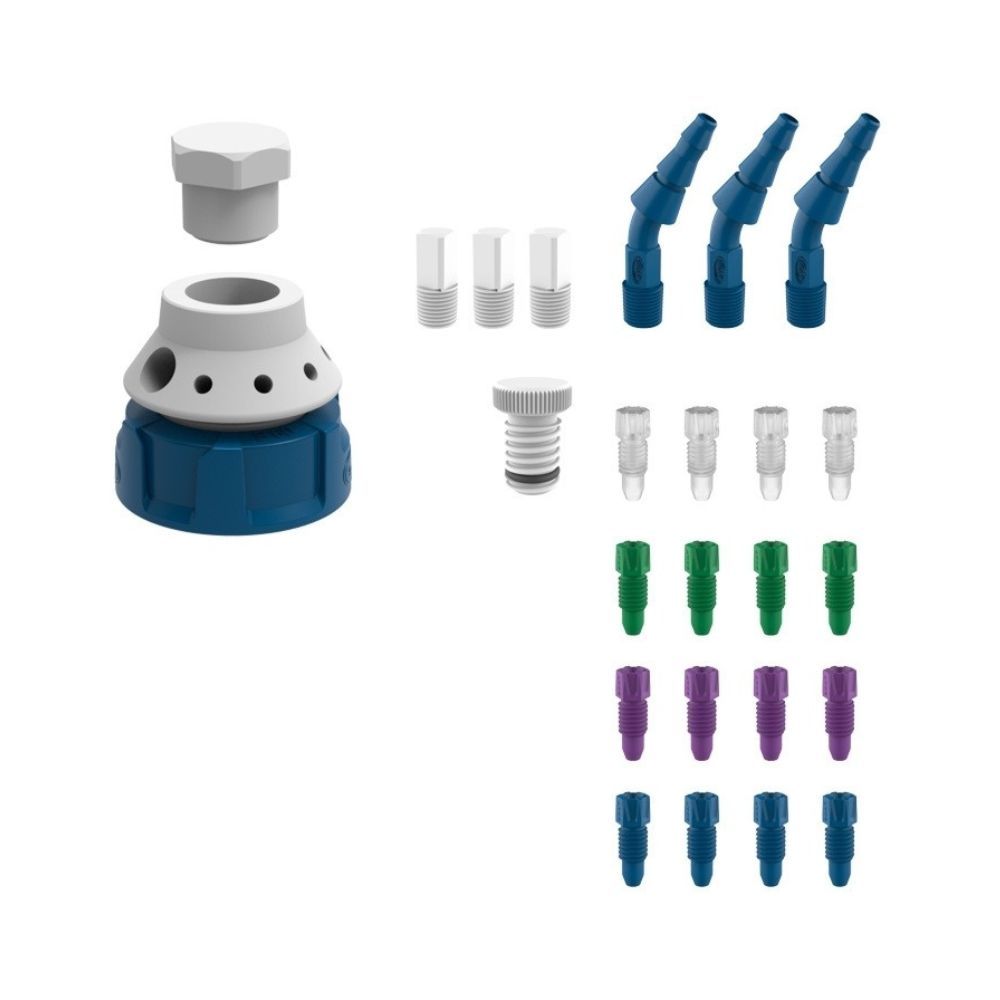

Included Components
- 3 × Polypropylene (PP) tube connectors for tubing with 5–11.5 mm outer diameter
- 4 × PFA fittings for 1.6 mm outer diameter capillaries
- 4 × PFA fittings for 2.3 mm outer diameter capillaries
- 4 × PFA fittings for 3.2 mm outer diameter capillaries
- 4 × PFA blind plugs for HPLC connections (UNF 1/4")
- 3 × PTFE blind plugs for tubing connections (NPT 1/8")
- 1 × PTFE blind plug for exhaust filter connection (GL14)
Use Case

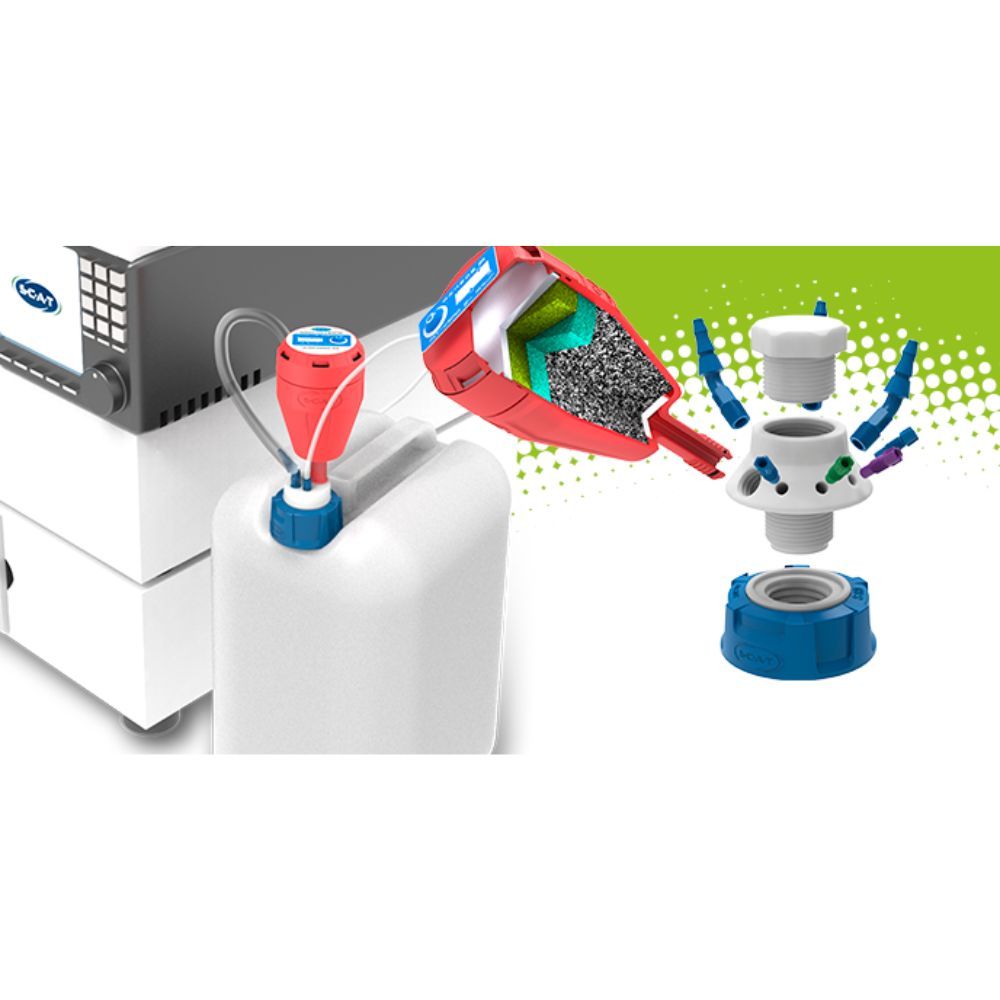

The LISA cap is designed to collect solvent, acid, and alkali waste from analytical systems such as HPLC. It provides a sealed interface between waste lines and collection containers, reducing exposure to hazardous vapours and helping to maintain compliance with laboratory safety protocols.
This cap is well-suited for facilities that require a flexible setup, especially when multiple waste lines need to be routed into a single container. The modular configuration makes it easy to add, remove, or block unused ports using the included components.
Safety Waste Caps: Function
Safety Waste Caps: Technical Details
| Brand | SCAT |
|---|
