Disc Sensor, Fill Level
Enquire for Price
- Electronic Level Control: Yes
- Air Valve: Not included
- Exhaust Filters (L / M / S): Not included
- Capillary Connections: 0
- Tube Connections: 0
- Max / Min Outer Diameter: Not specified
- Capacity (Litres): Not specified
- Lifetime per Packaging Unit (PU): Not specified
Availability:On Request
SKU
PSCA108048
BrandSCAT
Product Overview
The SCAT Disc Sensor for fill level monitoring is designed to detect liquid levels through container walls without direct contact with the contents. It is suitable for use with glass or plastic containers and is commonly used in laboratory environments, particularly in connection with HPLC systems.

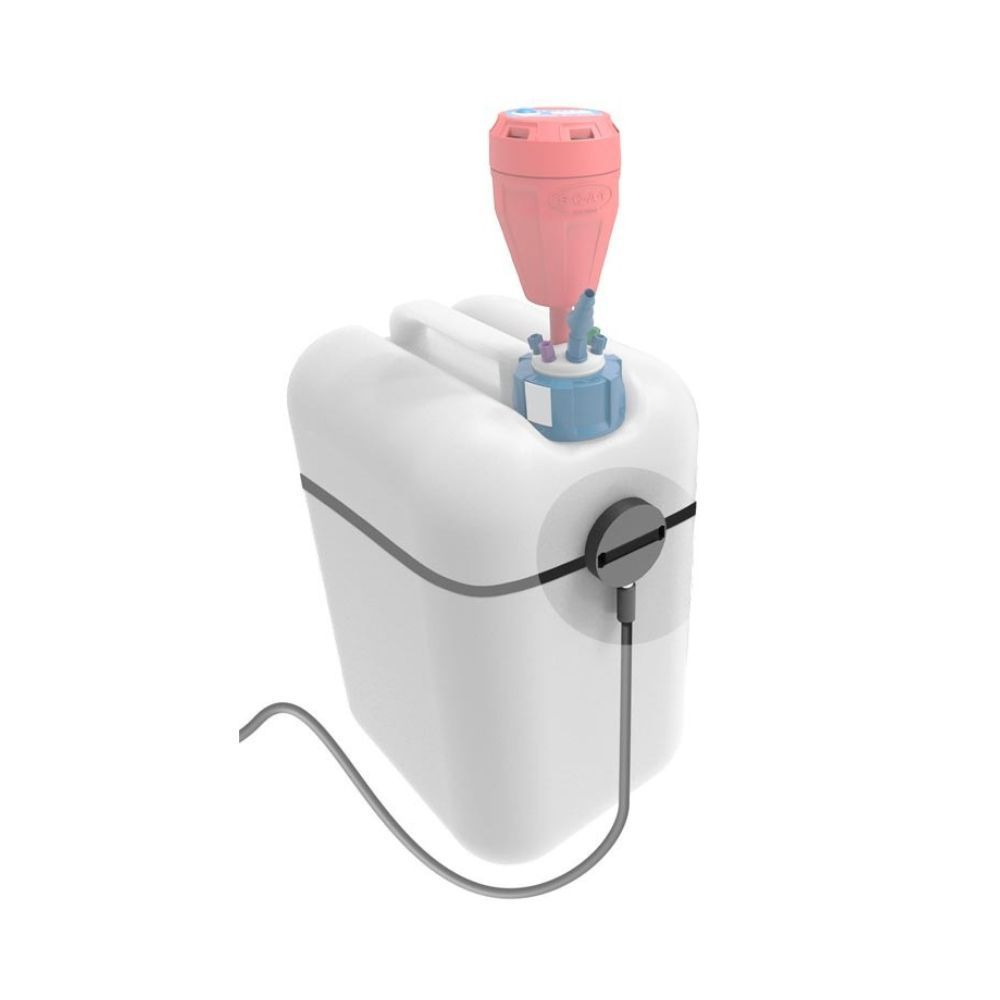

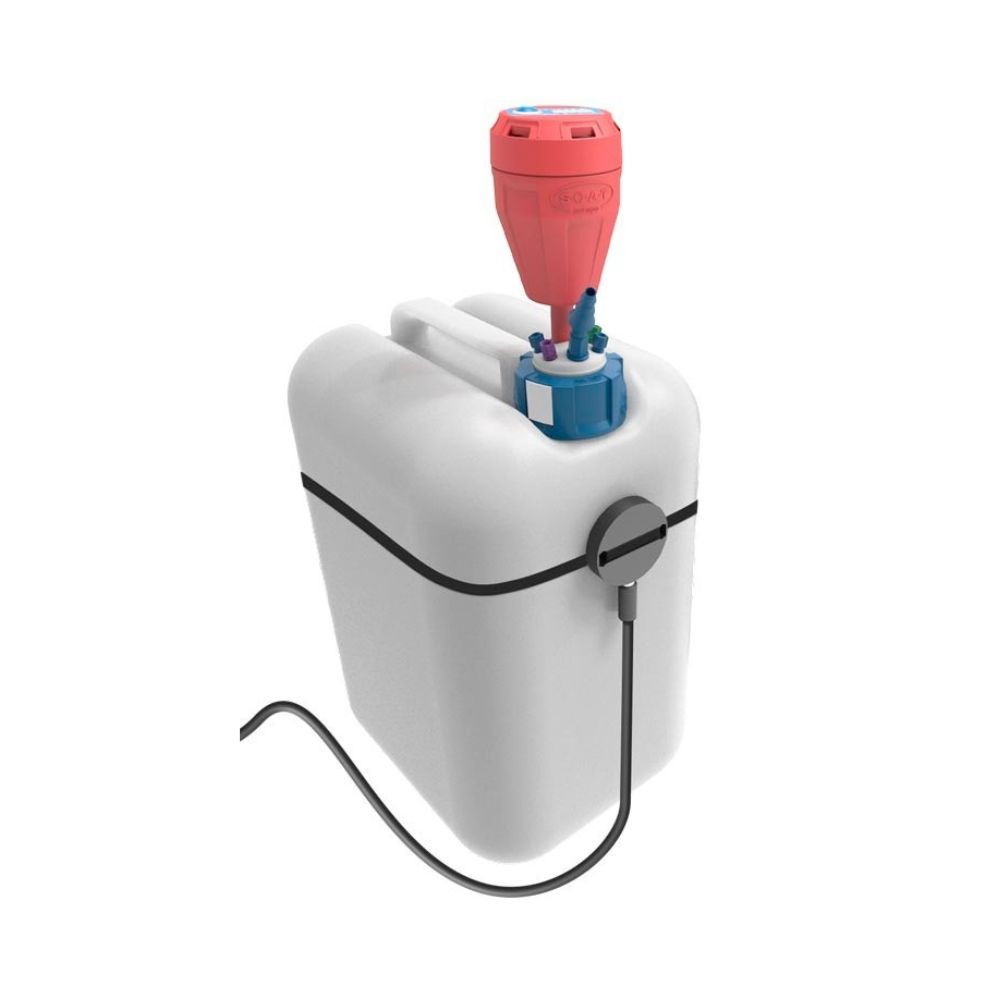

The sensor attaches externally at the required height using the included Velcro tape. Once the defined fill level is reached, the unit provides both visual and audible alerts. This version is configured to trigger an alarm at the full state. An alternative configuration for empty-level detection is also available.
Function and Application
Overfill Protection
Monitoring collection containers during use is critical to preventing leaks, spills, and interruptions. If waste containers are overfilled, fluid backflow or system pressure issues may occur, particularly in HPLC applications. The disc sensor helps avoid these problems by issuing timely alerts, allowing operators to act before critical levels are reached.
Dry-Run Protection
The system also supports level monitoring to prevent reservoirs from running empty. In HPLC, low solvent levels can introduce air into the system, which may compromise data integrity and reduce component lifespan. The disc sensor enables timely refilling to maintain stable operation.
Installation and Use
The disc sensor is installed externally, without contact with the liquid. It can be repositioned easily by adjusting the Velcro strap. This setup supports clean operation and minimises contamination risks.
| Brand | SCAT |
|---|
