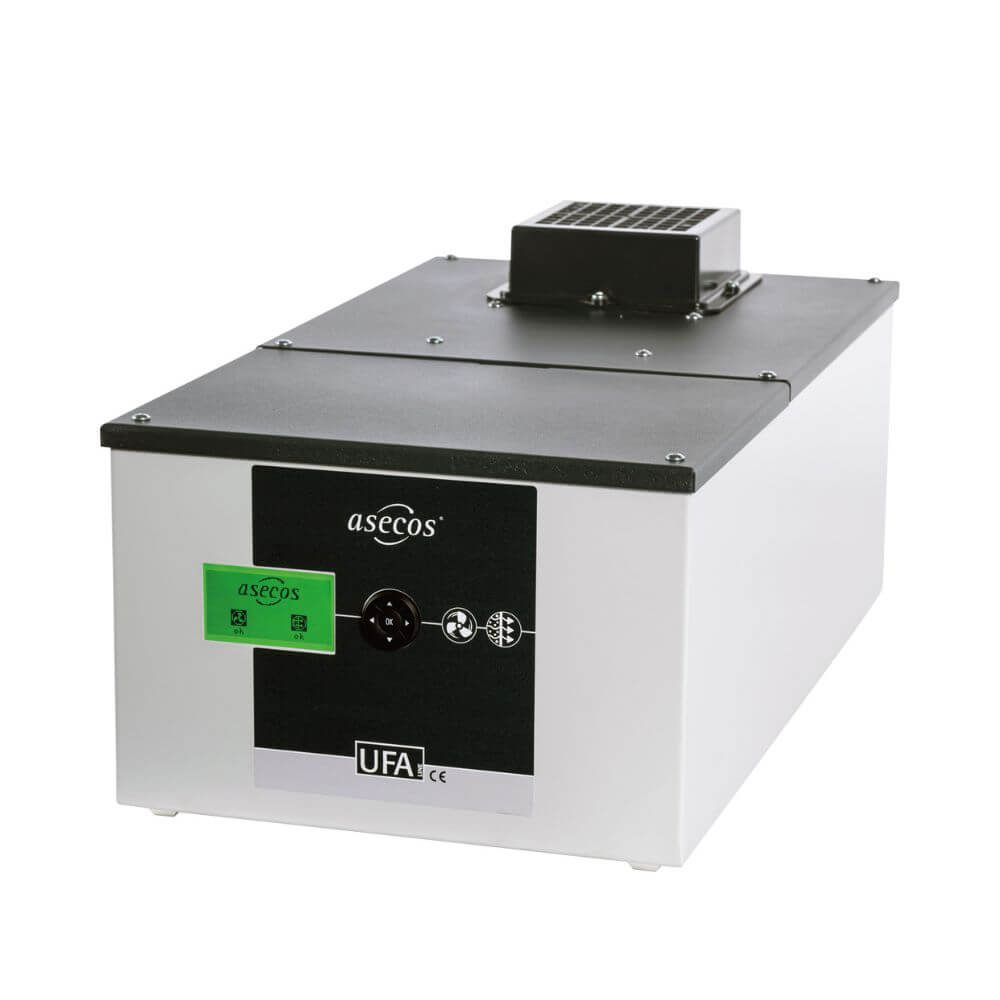

Recirculating Air Filter System Model UFA.025.030
Enquire for Price
- Model range: Extraction of hazardous materials
- Model line: Technical ventilation - safety cabinets
- Model group: UFA
- Model: UFA.025.030
- External dimensions W x D x H (mm): 308 x 555 x 256
- Weight excluding packaging (kg): 18,00
- Tariff Number: 84213925
- GTIN: 4250101190117
- Item Code: 39306
Optional accessories and technical ventilation are available and purchased separately. If you should require a customised special solution, please contact our technical specialists using our enquiry form or at sales@lasec.com.
Installation is required. Special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, will attract additional freight charges (quoted separately).
Availability:On Request
SKU
IASE39306
Brandasecos
Product Overview
Recirculating air filter unit - for the safe and sustainable ventilation of flammable liquid storage cabinet.
The plug-in recirculating air filter system, type UFA.20.30 is capable of retaining solvent vapours (hydrocarbons) permanently up to a filter saturation of more than 99.999%, under normal operating conditions as well as for a simulated accident in the safety storage cabinet.
The technologically transformed UFA.025.030 recirculating air filter unit from the UFA-LINE offers superb innovations providing more safety, comfort and sustainability when ventilating your flammable storage cabinets.

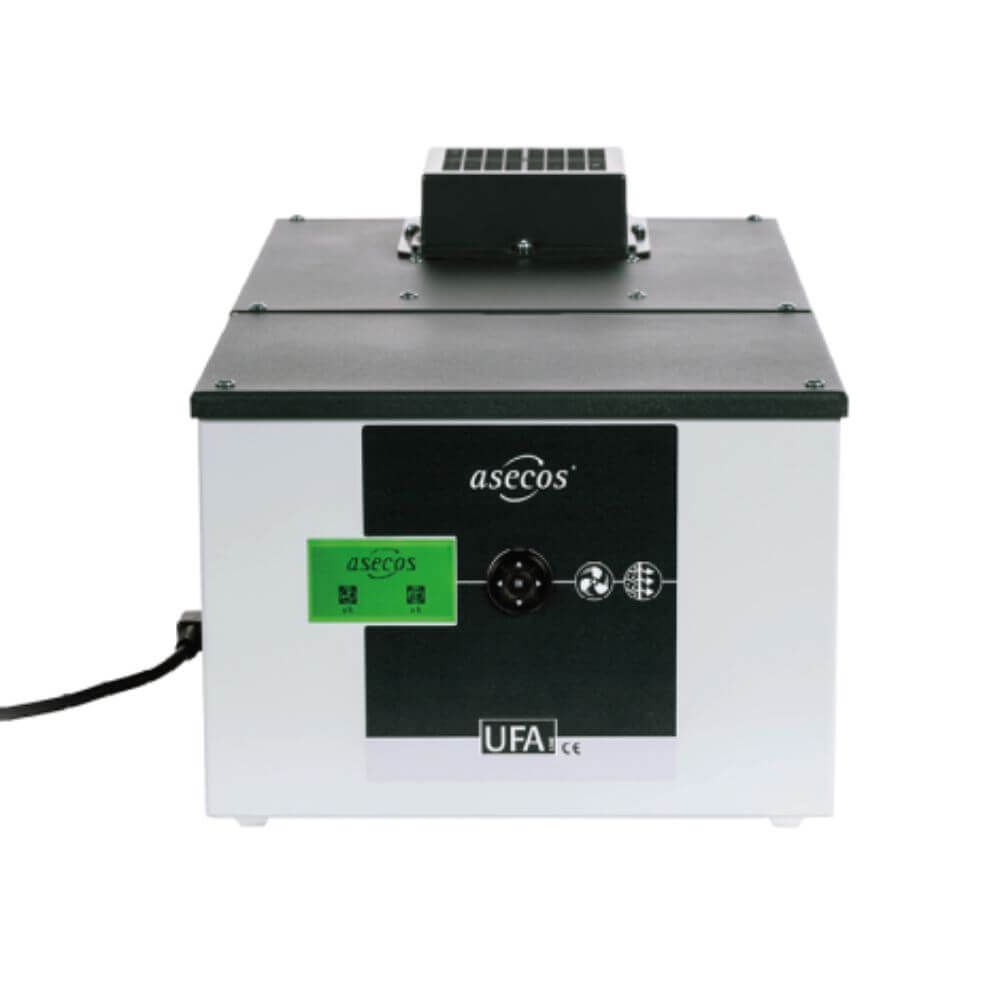

Safety - The UFA.025.030 is fitted with an LED display panel, which provides detailed information including a traffic light system indicating filter saturation, operating states and error messages. Full machined and finely calibrated sensors detect pollutant concentrations present in the exhaust air, they also measure the exhaust air flow volume accurately. In addition to the highly efficient activated carbon filter, filtering 99.999 percent of hazardous substances (hydrocarbons) a second activated carbon filter (secondary filter) now complements the unit.
Comfort - The compact, plug-in air filter unit for tall flammable safety cabinets (S-LINE, Q-LINE, V-LINE) under bench flammable safety cabinets (UB-LINE) and drum store flammable storage cabinets (XL-LINE) produces very little noise despites its multi-stage filter system and ideal for use in relatively quiet working environments where concentration on the task at hand is essential.
The UFA.025.030 recirculating air unit has also received a further improvement in terms of sustainability: the filter cassettes used inside the units are manufactured from robust plastic and can be reused many times.
Characteristics
Avoid complex wall breakthroughs and expensive exhaust air ducts.
- High flexibility in choosing the installation location
- Active personal protection through safe capture of harmful vapours with retention in the filter system
- Very low noise, only approx. 23 dB (A)
- ATEX compliant: CE Ex II 3/-G Ex ic nA IIB T4 Gc
- Housing made of sheet-steel powder-coated
- With a multi-stage filter system, secondary filter, connection cable, and mains plug
- monitoring electronics for exhaust air and filter monitoring, and a display for status and error indication
- Key control panel for navigation of the functions and status query
- Optical and acoustic alarm, including a potential-free alarm contact
- Successfully tested by the certified testing institute Infraserv Höchst
Model
- Recirculating air filter system UFA.025.030
- For all cabinet sizes
- For free-standing units and under-bench cabinets

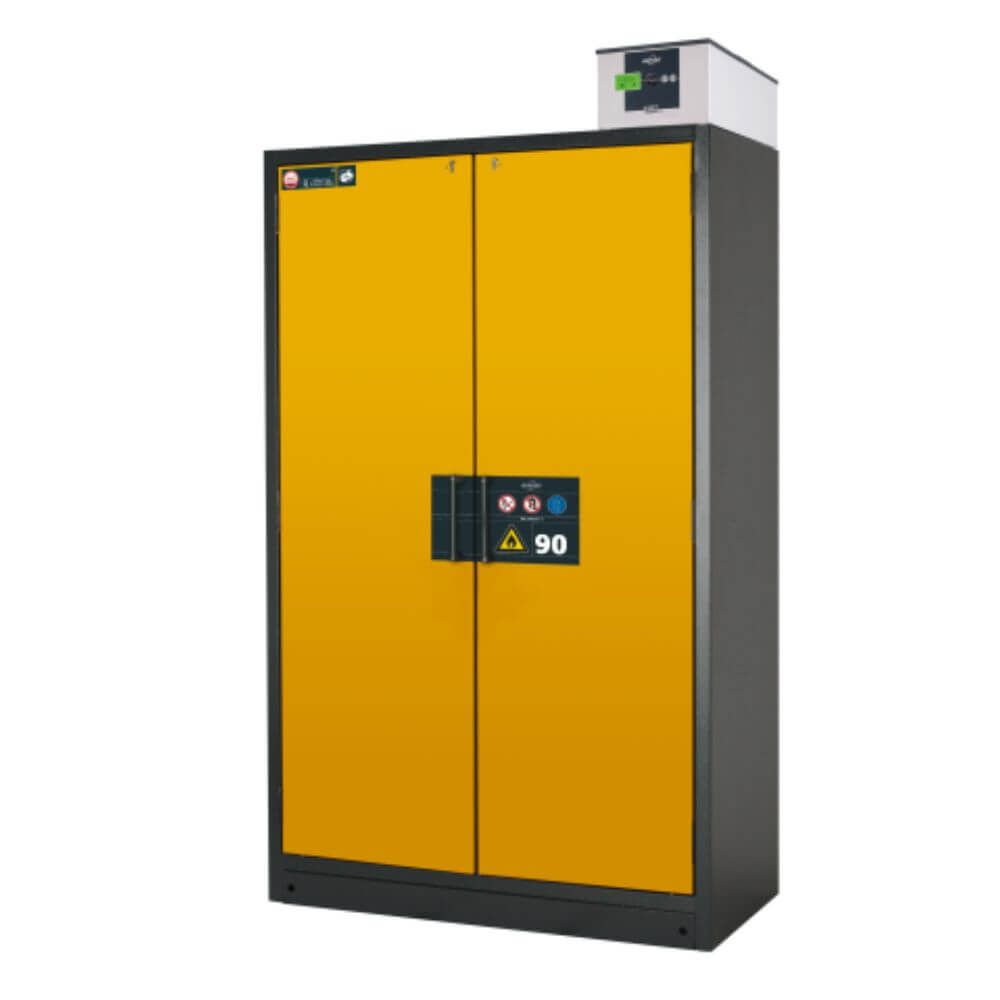

- For installation on the cabinet, wall mounting or installation in the housing unit
- Sheet steel powder-coated
- With exhaust air monitoring, including a potential-free alarm contact
- With filter monitoring
- CE compliant
- Filter type: activated carbon
- Installation in explosion zone: outside any EX-ZONE
- Extraction from explosion zone: EX-Zone 2
| Width (external) | 308 mm |
| Depth (external) | 555 mm |
| Height (external) | 256 mm |
| Weight | 18 kg |
| Extraction air | 75 DN |
| Exhaust air monitoring | Yes (1) |
| Frequency | 50/60 Hz |
| Nominal voltage | 85–265 V |
| Emission sound pressure level | 23 dB |
| Maximum current consumption | 0.13 A |
| Max. volume flow | 10 m³/h |
| Min. volume flow | 10 m³/h |
| Volume flow | 10 m³/h |
| Potential-free alarm contact | Yes (1) |
| Potential-free alarm contact: max. continuous current | 10 A |
| Potential-free alarm contact: max. nominal voltage AC | 230 V |
| Potential-free alarm contact: max. nominal voltage DC | 30 V |
| ecl@ss 5.1.4 | 22-41-90-90 |
| ecl@ss 8.1 | 22-41-90-90 |
| ecl@ss 9.1 | 22-41-90-90 |
| ecl@ss 10.0 | 22-41-90-90 |
| ecl@ss 11.0 | 22-41-90-90 |
| Brand | asecos |
|---|
