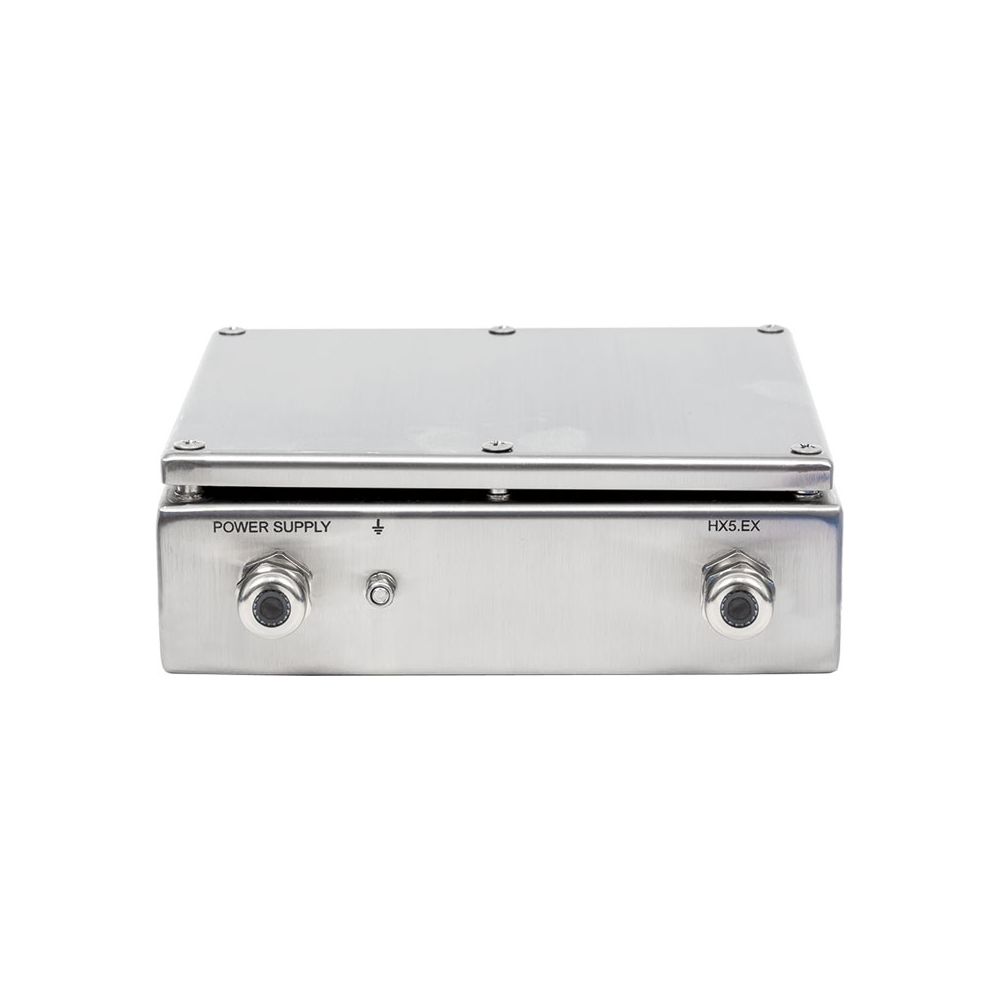

PM01.EX-1 Intrinsically Safe Power Supply for EX Scales
Enquire for Price
- Function: Supplies intrinsically safe low-voltage power to HX5.EX weighing terminals in ATEX-rated areas
- Zones: Certified for hazardous areas Zones 1/21 and 2/22
- Environment Compatibility:
– Gas: IIC, IIB, IIA (T1–T4)
– Dust: IIIC, IIIB, IIIA - Mounting: Suitable for installation in hazardous zones
- Ingress Protection: IP66-rated housing for dust and moisture resistance
- Compliance: Fully compliant with ATEX Directive and international safety standards
- Applications: Required for operating RADWAG HX5.EX scales in explosive gas or dust environments
- Accessories: Used in conjunction with RADWAG terminals and IM01.EX modules; ordered separately
Availability:On Request
SKU
WX-004-0215
BrandRADWAG
Product Overview
The PM01.EX-1 is an intrinsically safe power supply specifically designed for use with RADWAG’s HX5.EX terminal scales in environments classified as ATEX Zones 1, 2, 21, and 22. This power supply unit ensures a safe and certified power connection for weighing equipment operating in areas where explosive atmospheres may occur due to flammable gases, vapours, mists, or dusts.
The PM01.EX-1 meets the strict requirements of the ATEX directive and is suitable for group IIC (gas) and group IIIC (dust) explosion classifications, covering temperature classes T1 through T4. This makes it compliant for use in a wide range of hazardous industrial environments such as chemical processing, refineries, and pharmaceuticals.
Encased in a durable IP66-rated enclosure, the PM01.EX-1 can be installed directly in the hazardous area, offering flexibility in system layout and minimising the need for external barrier systems. It ensures stable, isolated low-voltage power delivery to RADWAG's EX-certified weighing terminals, supporting consistent performance and regulatory compliance.
Key Features
- Certified for use in ATEX Zones 1, 2, 21, and 22
- Compatible with RADWAG HX5.EX weighing terminals
- Provides intrinsically safe power for equipment in explosive atmospheres
- Suitable for gas groups IIA, IIB, IIC and dust groups IIIA, IIIB, IIIC
- Supports temperature classes T1, T2, T3, T4
- Enclosed in IP66-rated housing for high environmental resistance
- Enables direct connection of weighing equipment without additional barriers
- Contributes to system-wide compliance with ATEX and IECEx requirements
| Physical parameters | |
|---|---|
| Cable length | 3 m |
| Device dimensions W x D x H | 216×174×64 mm |
| Construction | |
| Protection class | IP 66 / 68 |
| ATEX Certification | II 2G Ex eb mb [ib] IIC T4 Gb II 2D Ex tb [ib] IIIC T70°C Db |
| Housing | Stainless steel |
| Working in zones | 1, 2 (gases); 21, 22 (dusts) |
| Electrical parameters | |
| Power supply | 100 – 240 V AC 50/60 Hz |
| Power consumption max. | 15 W |
| Environmental conditions | |
| Operating temperature | -20 – +40 °C |
| Storage temperature | -20 – +60 °C |
| Relative humidity | 10% – 85% RH no condensation |
| Brand | RADWAG |
|---|
