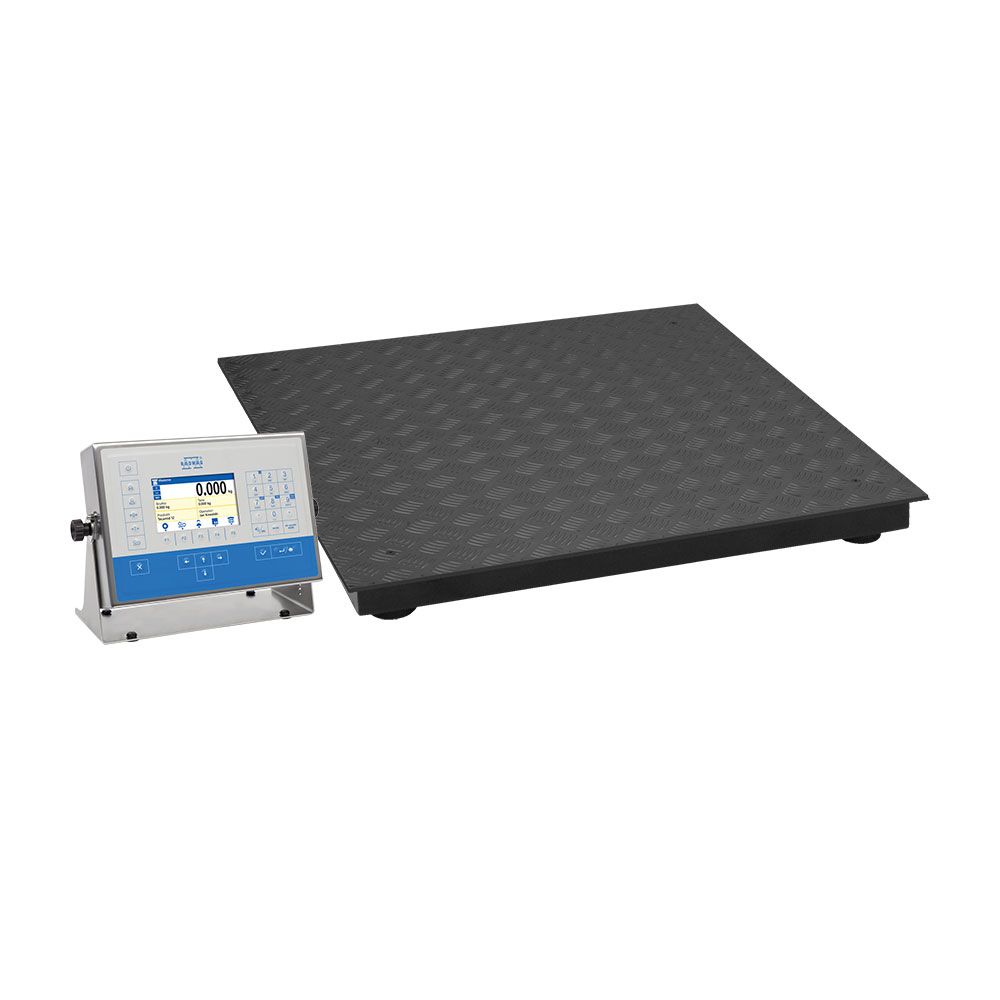

HX5.EX-1.4.600.C6 4-Load Cell Platform Scale
Enquire for Price
- Functions: Weighing, Labelling, Dosing, Plus/Minus Control, Percent Weighing, Parts Counting, Statistics, ALIBI Memory
- Zones: Certified for hazardous areas (Zones 1/21 and 2/22)
- Interfaces: 2 × RS232, 1 × RS485 (intrinsically safe); optional: Ethernet, USB, Profibus DP, analog outputs (4–20 mA / 0–10 V), and digital I/O via IM01.EX module
- Display: 5" colour LCD with customizable widgets and status indicators
- Construction: Four C6-class load cells, stainless steel platform, IP66/IP68 protection
- Power Supply: PM01.EX-1 for ATEX areas, PM01.EX-2 for safe areas (ordered separately)
- Compliance: ATEX directive compliant, suitable for explosive gas/dust environments
- Applications: Designed for heavy-load weighing in hazardous industrial settings
- Accessories: Optional accessories available separately, including barcode scanners, printers, signal towers
Availability:On Request
SKU
WW-008-0004
BrandRADWAG
Product Overview
The HX5.EX-1.4.600.C6 is an advanced platform weighing scale designed for use in hazardous areas, compliant with the ATEX directive for environments where explosive gases or dust may be present. It combines a robust four-load cell construction with the high-performance PUE HX5.EX-1 weighing terminal, offering safety, precision, and adaptability for industrial processes.
The platform is engineered for high-capacity weighing applications, with a maximum load of 600 kg and a readability of 200 g. The use of four C6-class strain gauge load cells ensures accurate weight distribution and reliable measurement, even under challenging conditions.
The integrated PUE HX5.EX-1 terminal provides a 5” colour LCD display, housed in a stainless steel IP66/IP68 enclosure, and offers intuitive user interaction via a membrane keypad. Certified for ATEX Zones 1/21 and 2/22, the terminal includes intrinsically safe communication interfaces (2 × RS232 and 1 × RS485) and supports extended connectivity through the IM01.EX communication module, which can be installed outside the hazardous zone.
This model is suitable for industrial environments where large or heavy items are weighed, including chemical processing, paint production, and flammable material storage facilities.
Key Features
- Explosion-proof design for ATEX Zones 1/21 and 2/22
- Four high-precision C6 load cells for improved weight distribution
- Max capacity: 600 kg; Readability: 200 g
- Stainless steel weighing platform, robust structure for industrial use
- Equipped with PUE HX5.EX-1 terminal (colour display, IP66/68 housing)
- Built-in ALIBI memory for secure data storage
- Supports advanced functions such as parts counting, percent weighing, dosing, labelling, and more
- Optional IM01.EX module adds support for Ethernet, USB, analog outputs (4–20 mA/0–10 V), and digital I/O
| Metrological parameters | |
|---|---|
| Maximum capacity [Max] | 600 kg |
| Minimum load | 4 kg |
| Readability [d] | 200 g |
| Tare range | -600 kg |
| Physical parameters | |
| Display | 5” graphic colour |
| Cable length | 3 m |
| Weighing pan dimensions | 800×800 mm |
| Net weight | 62.8 kg |
| Gross weight | 63 kg |
| Construction | |
| Protection class | IP 65 construction, IP 67 cell, IP 66 / 68 terminal |
| ATEX Certification | II 2G Ex ib IIB T4 Gb |
| IECEx Certification | Ex ib IIB T4 Gb |
| Construction | mild steel ST3S |
| Communication interface | |
| Communication interface | 2×RS232, RS485 |
| Electrical parameters | |
| Power supply | 100 – 240 V AC 50/60 Hz |
| Power consumption max. | 15 W |
| Environmental conditions | |
| Operating temperature | -10 – +40 °C |
| Relative humidity | 10% – 85% RH no condensation |
| Indicator | PUE HX5.EX-1 |
| Brand | RADWAG |
|---|
