Safety Storage Cabinet Q-CLASSIC-90 Model Q90.195.120 with 3 x Shelf, 1 Perforated Insert and 1 Bottom Collection Sump
Enquire for Price
- Model range: Safety cabinet
- Model line: Q-LINE
- Model group: Q-CLASSIC-90
- Model: Q90.195.120
- External dimensions W x D x H (mm): 1193 x 615 x 1953
- Internal dimensions W x D x H (mm): 1050 x 522 x 1647
- Weight excluding packaging (kg): 461,5
- Tariff Number: 94032080
- GTIN: 4054923113176
- Item Code: 30001-040-33635

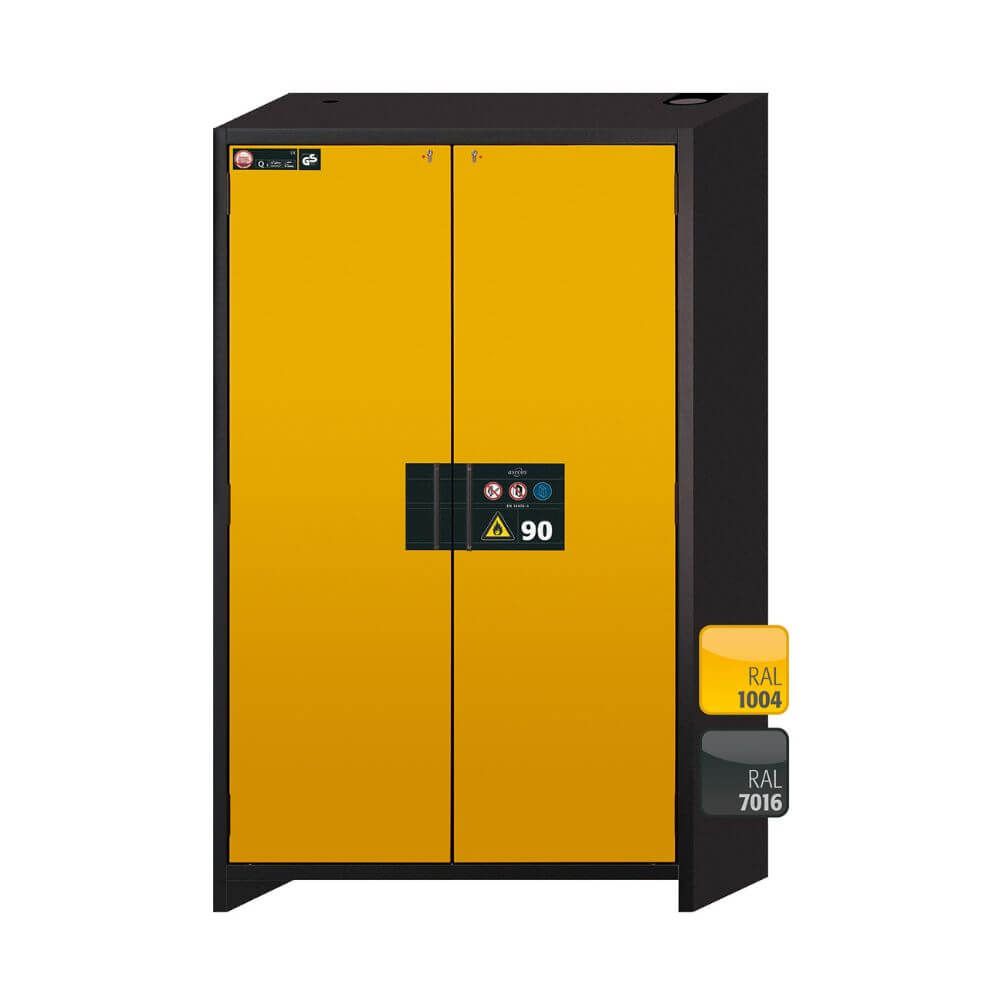

- Colour: Body: RAL 7016 anthracite grey; Door(s): RAL 1004 warning yellow, textured
Optional accessories and technical ventilation are available and purchased separately. If you should require a customised special solution, please contact our technical specialists using our enquiry form or at sales@lasec.com.
Installation is required. Special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, will attract additional freight charges (quoted separately).
Availability:On Request
SKU
IASE30001040-1
Brandasecos
Product Overview
Safety storage cabinets with sturdy construction and a transport base for flexible internal transport.
Safety storage cabinets for unrestricted storage of flammable hazardous materials in work areas in accordance with EN 14470-1 and TRGS 510.
Extremely robust design with scratch-proof surface, triple hinged door for extreme strain. Doors stay in place at any opening angle for a more convenient handling of containers. Integrated transport base for simple inhouse transport, cabinet can be transported upright through doors (all Q-LINE models).
- Fire resistance of 90 minutes (type 90), type-tested in accordance with EN 14470-1
- GS-tested (depending on model)
- Conformity in accordance with the requirements of EN 16121 and 16122
- Excellent products with a special manufacturer's warranty. For more information, click here.
- Certain cabinets of this model group have been additionally tested in accordance with FM Standard 6050
- Certain cabinets of this model group have been additionally tested in accordance with Underwriters Laboratories-Standard UL/ULC 1275
Model
- Type 90 Safety storage cabinet
- Free-standing unit with wing doors
- With cylinder locking and a locking state indicator
- Integrated adjusting aids to compensate for the uneven floor
- Model line Q-LINE
- Model class Q-CLASSIC-90
- Model Q90.195.120
- Type tested in accordance with EN 14470-1
- DIN EN 16121/16122
- GS certified
- CE compliant
- Dimensions exterior: W x D x H (mm) 1193 x 615 x 1953
- Dimensions interior: W x D x H (mm) 1050 x 522 x 1647
Colour
- Body colour anthracite grey (RAL 7016)
- With wing doors in Warning yellow (RAL 1004)

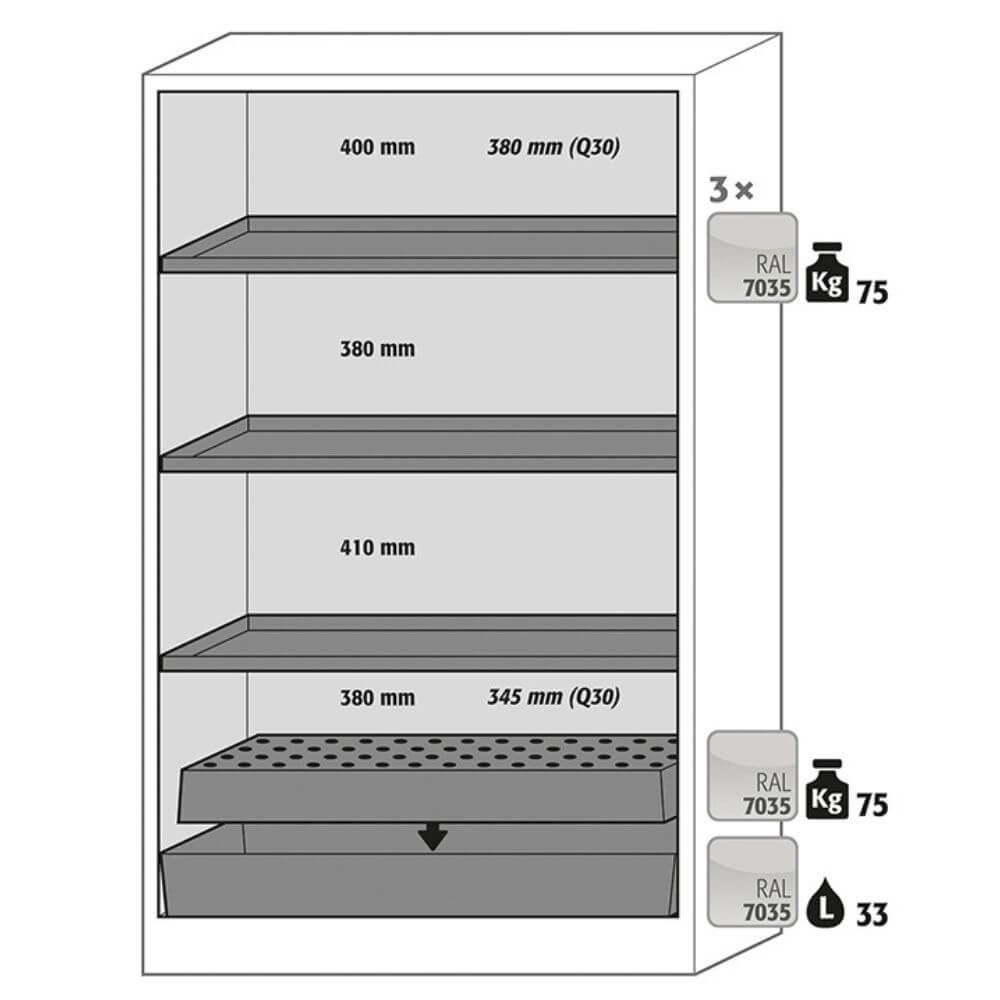

Interior Equipment With
- 3 x shelf, load capacity: 75 kg, powder-coated sheet steel, RAL 7035 light grey
- 1 x perforated insert, load capacity: 75 kg, powder-coated sheet steel, RAL 7035 light grey
- 1 x bottom collecting sump, capacity: 33 litres, powder-coated sheet steel, RAL 7035 light grey
| CE compliant | Yes (1) |
| GS certified | Yes (1) |
| External dimensions W x D x H | 1193 x 615 x 1953 mm |
| Internal dimensions W x D x H | 1050 x 522 x 1647 mm |
| Weight | 474.5 kg |
| Differential pressure (10 times air change) | 5 Pa |
| Differential pressure (10 times air change EK5/AK4) | 5 Pa |
| Minimum exhaust air quantity 10 times | 9 m³/h |
| Distributed load | 531 kg/m² |
| Maximum load | 600 kg |
| Entry width transport base | 1,120 mm |
| Entry height transport base | 90 mm |
| Max. load of shelves | 75.00 kg |
| Max. load of perforated insert | 75.00 kg |
| Capacity of bottom collecting sump | 33.00 litres |
| ecl@ss 5.1.4 | 21-10-04-07 |
| ecl@ss 9.1 | 40-06-90-90 |
| ecl@ss 10.0 | 40-06-90-90 |
| ecl@ss 11.0 | 40-06-01-09 |
| ecl@ss 14.0 | 40-06-01-09 |
| GTIN | 4054923113176 |
| Customs tariff number | 94032080 |
| Brand | asecos |
|---|
