Combi Safety Storage Cabinet K-PHOENIX Vol.2-90 Model K90.196.120.MF.FWAC with 3 x Shelf and 4 x Pull-Out Shelf
Enquire for Price
- Model range: Safety cabinet
- Model line: K-LINE
- Model group: K-PHOENIX Vol.2-90
- Model: K90.196.120.MF.FWAC
- External dimensions W x D x H (mm): 1197 x 617 x 1969
- Internal dimensions W x D x H (mm): Left: 450 x 524 x 1742; Top Right: 491 x 542 x 862; Bottom Right: 491 x 542 x 862
- Weight excluding packaging (kg): 524,00
- Tariff Number: 94032080
- GTIN: 4054923137240
- Item Code: 30334-001-33838
- Colour: Body and Door(s): RAL 7035 light grey, plain
Optional accessories and technical ventilation are available and purchased separately. If you should require a customised special solution, please contact our technical specialists using our enquiry form or at sales@lasec.com.
Installation is required. Special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, will attract additional freight charges (quoted separately).
Availability:On Request
SKU
IASE30334-1
Brandasecos
Product Overview

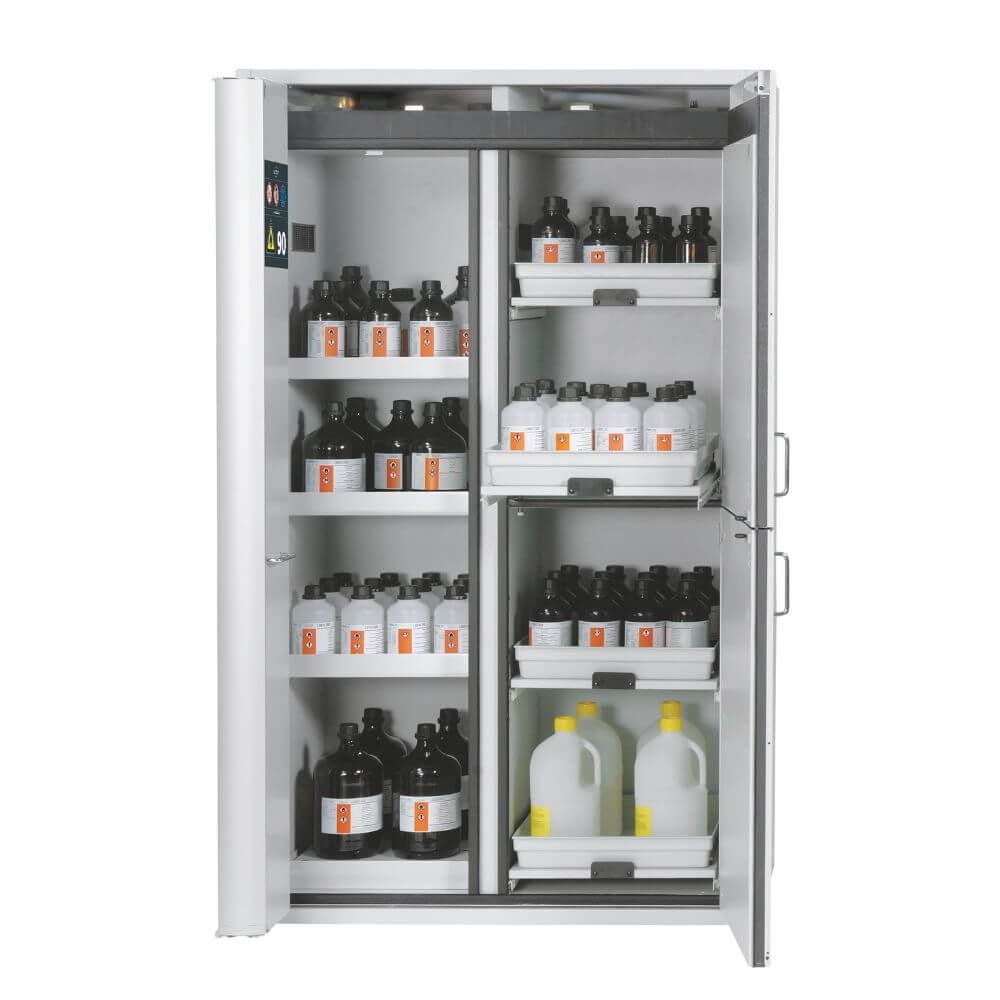

Combi safety storage cabinets for the combined storage of flammable and non-flammable, aggressive chemicals in separate storage compartments.
Combi safety storage cabinets for the unrestricted storage of flammable and aggressive hazardous materials in working areas.
Safe and separated storage of acids, alkalis and flammable hazardous materials in one cabinet. Two hermetically separated storage compartments with fire resistant dividing wall; integrated aeration and venting system; corrosion resistance of the metal-free air ducts.
- Fire resistance of 90 minutes (type 90), type-tested in accordance with EN 14470-1
- GS-tested
- Conformity in accordance with the requirements of EN 16121 and 16122
- Excellent products with a special manufacturer's warranty. For more information, click here.
Model
- Type 90 Combi safety storage cabinet
- Free-standing unit with wing/folding doors, automatic closing (TSA)
- With cylinder locking
- Version vertical dividing wall, fire-resistant
- Integrated adjusting aids to compensate for the uneven floor
- Model line K-LINE
- Model class K-PHOENIX Vol.2-90
- Model K90.196.120.MF.FWAC
- Type tested in accordance with EN 14470-1
- DIN EN 16121/16122
- GS certified
- CE compliant
- Dimensions exterior: W x D x H (mm) 1197 x 617 x 1969
- Dimensions interior: W x D x H (mm) 450 x 524 x 1742
Colour

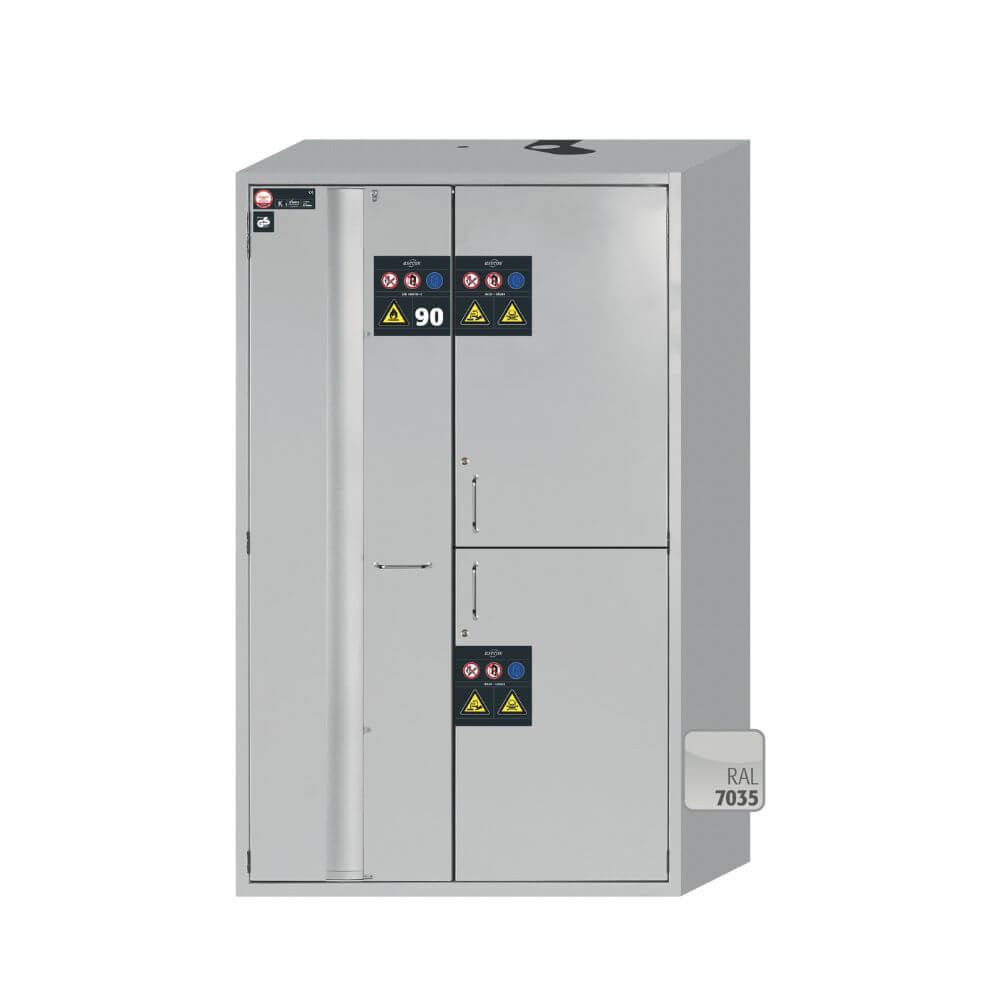

- Body colour light grey (RAL 7035)
- With a wing and a folding door in light grey (RAL 7035)

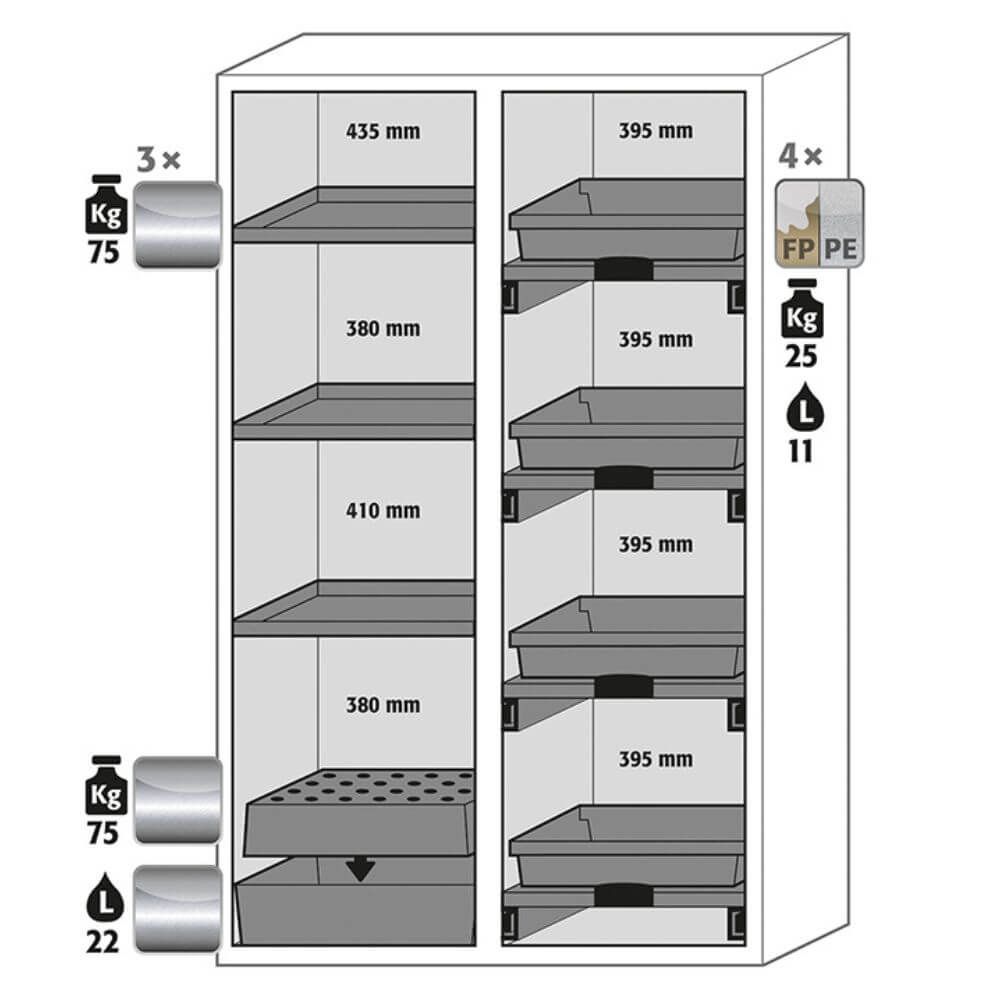

Interior Equipment With
- 3 x shelf, load capacity: 75 kg, powder-coated sheet steel, RAL 7035 light grey
- 1 x perforated insert, load capacity: 75 kg, powder-coated sheet steel, RAL 7035 light grey
- 1 x bottom collecting sump, capacity: 22 litres, powder-coated sheet steel, RAL 7035 light grey
- 4 x pull-out shelf with plastic sump, load capacity: 25 kg, capacity: 11 litres, panel melamine resin-coated/PP
| CE compliant | Yes (1) |
| GS certified | Yes (1) |
| External dimensions W x D x H | 1197 x 617 x 1969 mm |
| Internal dimensions W x D x H | Left: 450 x 524 x 1742 mm Top Right: 491 x 542 x 862 mm Bottom Right: 491 x 542 x 862 mm |
| Weight | 541 kg |
| Differential pressure (10 times air change) | 5 Pa |
| Differential pressure (30 times air change) | 28 Pa |
| Differential pressure (10 times air change EK5/AK4) | 5 Pa |
| Minimum exhaust air quantity 10 times | 9 m³/h |
| Recommended exhaust air quantity 30 times | 29 m³/h |
| Distributed load | 576 kg/m² |
| Maximum load | 600 kg |
| Entry width optional transport base | 2 x 440 mm |
| Entry height optional transport base | 100 mm |
| Max. load of shelves | 30.00 kg |
| Max. load of perforated insert | 75.00 kg |
| Max. load of drawers | 25 kg |
| Volume of pull-outs | 11.00 litres |
| Capacity of bottom collecting sump | 22.00 litres |
| ecl@ss 5.1.4 | 21-10-04-07 |
| ecl@ss 9.1 | 40-06-01-02 |
| ecl@ss 10.0 | 40-06-01-02 |
| ecl@ss 11.0 | 40-06-01-02 |
| ecl@ss 14.0 | 40-06-01-02 |
| GTIN | 4054923137240 |
| Customs tariff number | 94032080 |
| Brand | asecos |
|---|
