Safety Storage Cabinet for Lithium-Ion Batteries ION-PRO-90 model IO90.195.120.PS.WDC with 4 x Insulated Shelf
Enquire for Price
- Model range: Safety cabinet
- Model line: ION-LINE
- Model group: ION-PRO-90
- Model: IO90.195.120.PS.WDC

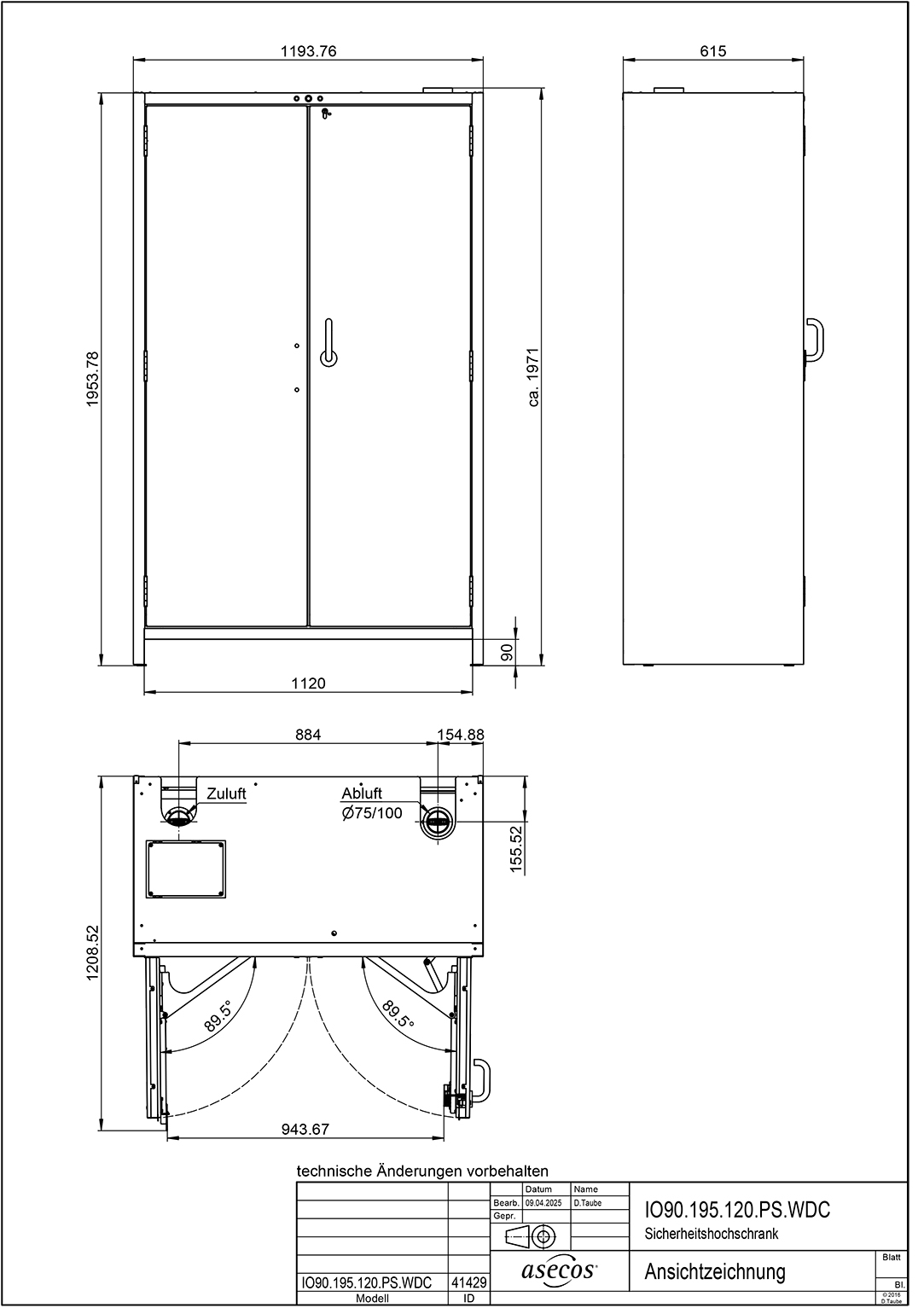

- External dimensions W x D x H (mm): 1193 x 615 x 1953
- Internal dimensions W x D x H (mm): 1050 x 503 x 1647
- Weight excluding packaging (kg): 530,00
- Tariff Number: 94032080
- GTIN: 4054923268241
- Item Code: 41429-047-41387
- Colour: Body: RAL 7016 anthracite grey; Door(s): RAL 5010 gentian blue, textured
Optional accessories and technical ventilation are available and purchased separately. If you should require a customised special solution, please contact our technical specialists using our enquiry form or at sales@lasec.com.
Installation is required. Special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, will attract additional freight charges (quoted separately).
Availability:On Request
SKU
41429-047-41387
Brandasecos
Product Overview
ION-PRO-90 Model IO90.195.120.PS.WDC
- DIN EN 14470-1: Fire resistance of 90 minutes (type 90) from outside to inside
- VDMA 24994: Fire resistance in the event of a thermal runaway by means of a real fire test
- DIN EN 1363-1: Fire resistance of 90 minutes from inside to outside
- CE compliant
Characteristics
- Hazards reliably identified – with the LED display and visual/audible alarms, you can quickly recognise developing fires without having to open the cabinet doors.
- The insulated shelf – Propagation tested for safety at every storage level. In the event of a battery fire, the spread to other batteries is prevented.
- Smoke detectors and two temperature sensors detect even incipient fires and can quickly transmit alarms to the building control system.
Cabinet Locking
- Convenient cabinet entry: open both doors at the same time with just one hand (AGT)
- The additional 3-point locking system combines convenient operation with successfully tested safety of closed doors in a real fire.
Colour
- Body colour anthracite grey (RAL 7016)
- With wing doors in gentian blue (RAL 5010)
Interior Equipment With

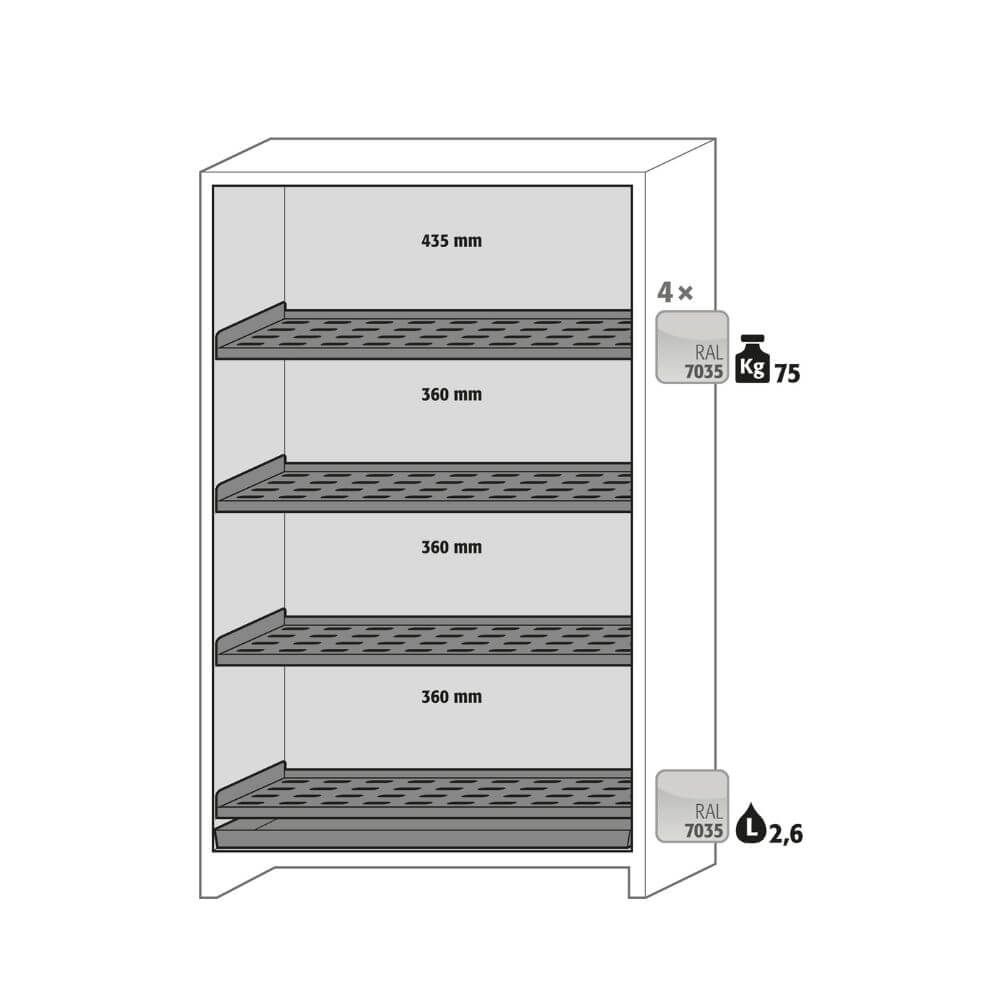

- 4 x insulated shelf, load capacity: 75 kg, powder-coated sheet steel, RAL 7035 light grey
- 1 x bottom collecting sump, capacity: 3 litres, powder-coated sheet steel, RAL 7035 light grey
| VDMA 24994 certified | Yes |
| CE compliant | Yes (1) |
| GS certified | No (0) |
| External dimensions W x D x H | 1193 x 615 x 1953 mm |
| Internal dimensions W x D x H | 1050 x 503 x 1647 mm |
| Net weight configuration | 530.00 kg |
| Distributed load | 563 kg/m² |
| Maximum load | 600 kg |
| Entry width transport base | 1,120 mm |
| Entry height transport base | 90 mm |
| Power consumption in operation | 11.5 W |
| Maximum current consumption | 0.05 A |
| Nominal voltage | 230 V |
| Max. load of shelves | 75.00 kg |
| Capacity of bottom collecting sump | 2.60 litres |
| ecl@ss 11.0 | 40-06-01-90 |
| ecl@ss 14.0 | 40-06-01-90 |
| GTIN | 4054923268241 |
| Customs tariff number | 94032080 |
| Brand | asecos |
|---|
