Safety Storage Cabinet for Lithium-Ion Batteries ION-CORE-90 Model IO90.195.060.CC.WDC with 4 x Insulated Shelf and 2 x Socket Strip (EU-Version)
Enquire for Price
- Model range: Safety cabinet
- Model line: ION-LINE
- Model group: ION-CORE-90
- Model: IO90.195.060.CC.WDC

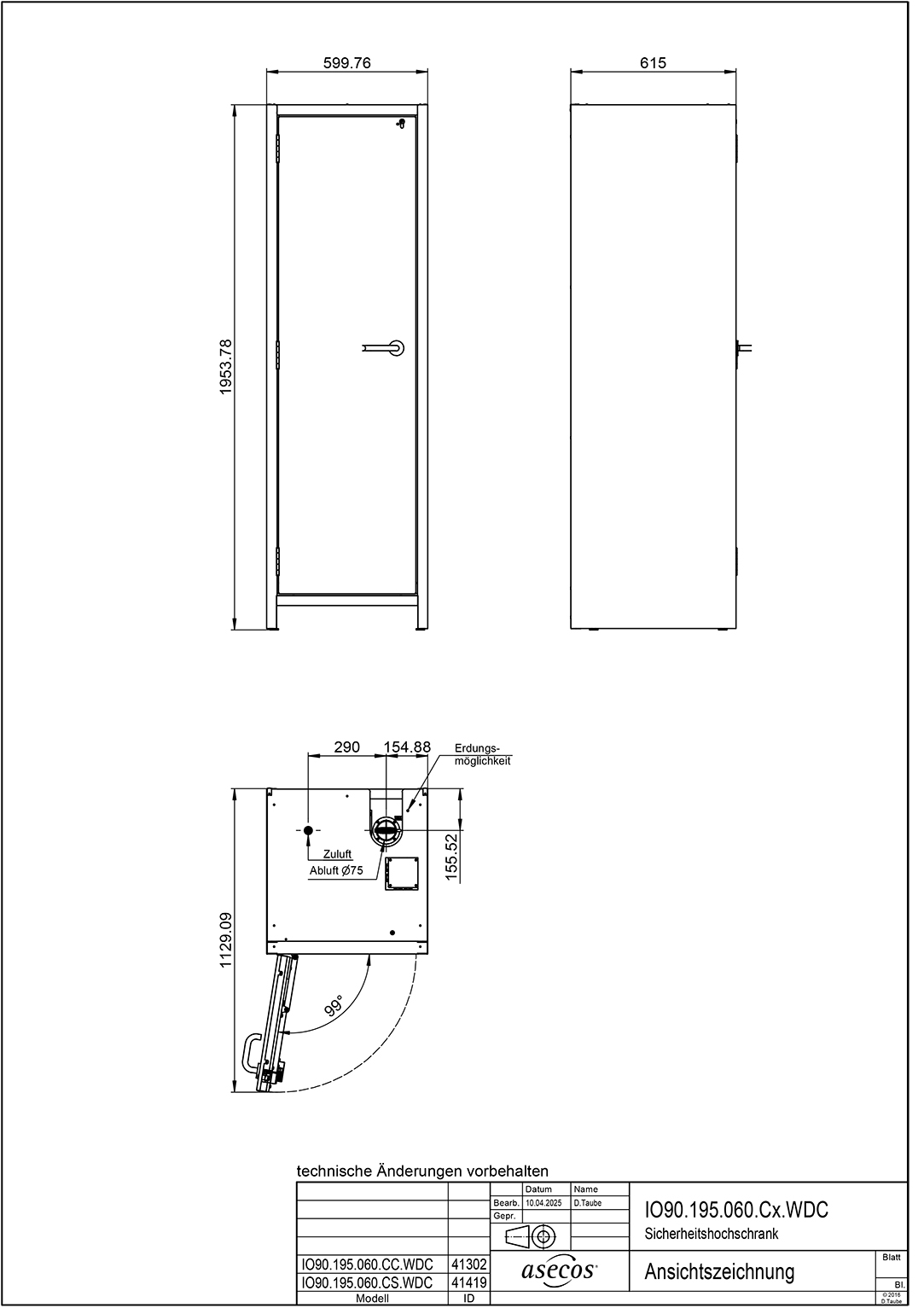

- External dimensions W x D x H (mm): 599 x 615 x 1953
- Internal dimensions W x D x H (mm): 450 x 503 x 1647
- Weight excluding packaging (kg): 330,00
- Tariff Number: 94032080
- GTIN: 4054923265394
- Item Code: 41302-047-41366
- Colour: Body: RAL 7016 anthracite grey; Door(s): RAL 5010 gentian blue, textured
Optional accessories and technical ventilation are available and purchased separately. If you should require a customised special solution, please contact our technical specialists using our enquiry form or at sales@lasec.com.
Installation is required. Special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, will attract additional freight charges (quoted separately).
Availability:On Request
SKU
IASE41302047-1
Brandasecos
Product Overview
ION-CORE-90 Model IO90.195.060.CC.WDC
- DIN EN 14470-1: Fire resistance of 90 minutes (type 90) from outside to inside
- DIN EN 1363-1: Fire resistance of 90 minutes from inside to outside
- CE compliant
Characteristics
- The insulated shelf – Propagation tested for safety at every storage level. In the event of a battery fire, the spread to other batteries is prevented.
- A smoke detector detects even incipient fires and can quickly transmit alarms to the building control system.
- If your work area is not staffed, the standard potential-free switching contacts forward differentiated alarms immediately to a connected control centre. An optional remote signalling module is available.
Cabinet Locking
- Profile cylinder lock with locking state indicator
Colour
- Body colour anthracite grey (RAL 7016)
- With wing doors in gentian blue (RAL 5010)

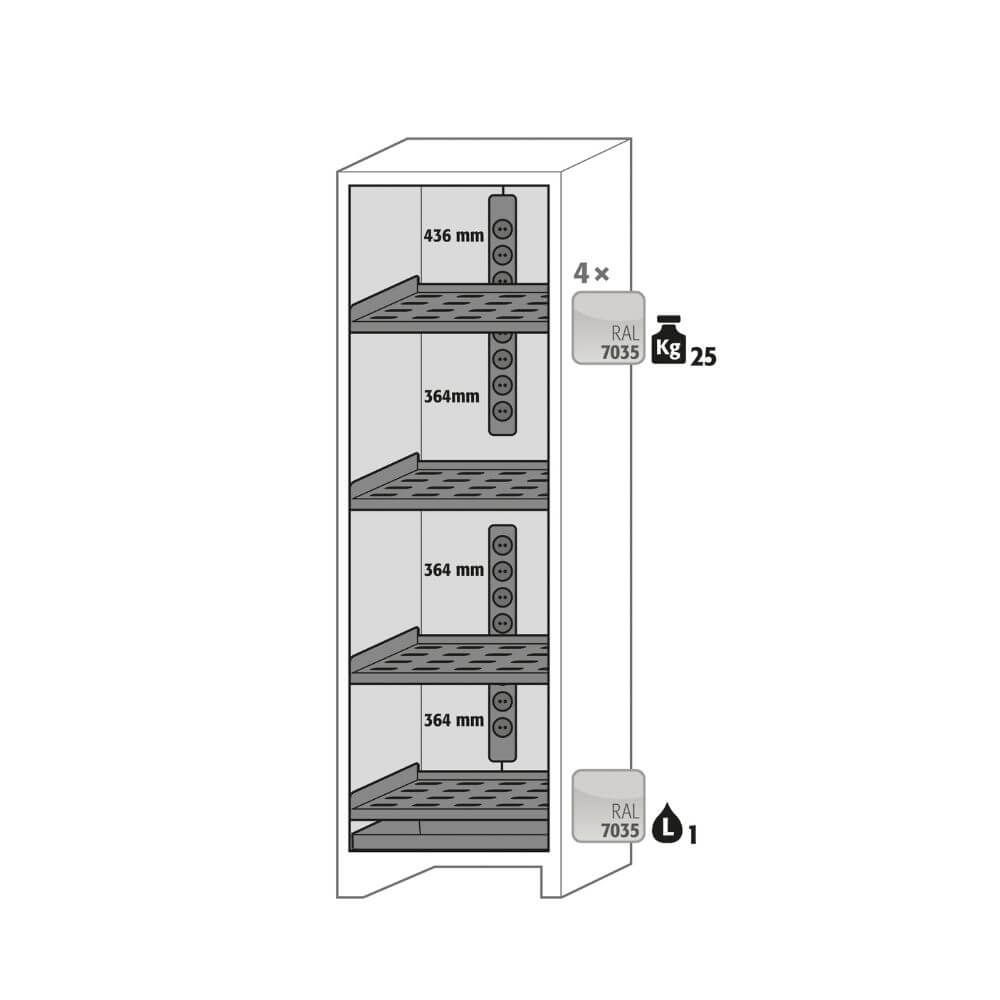

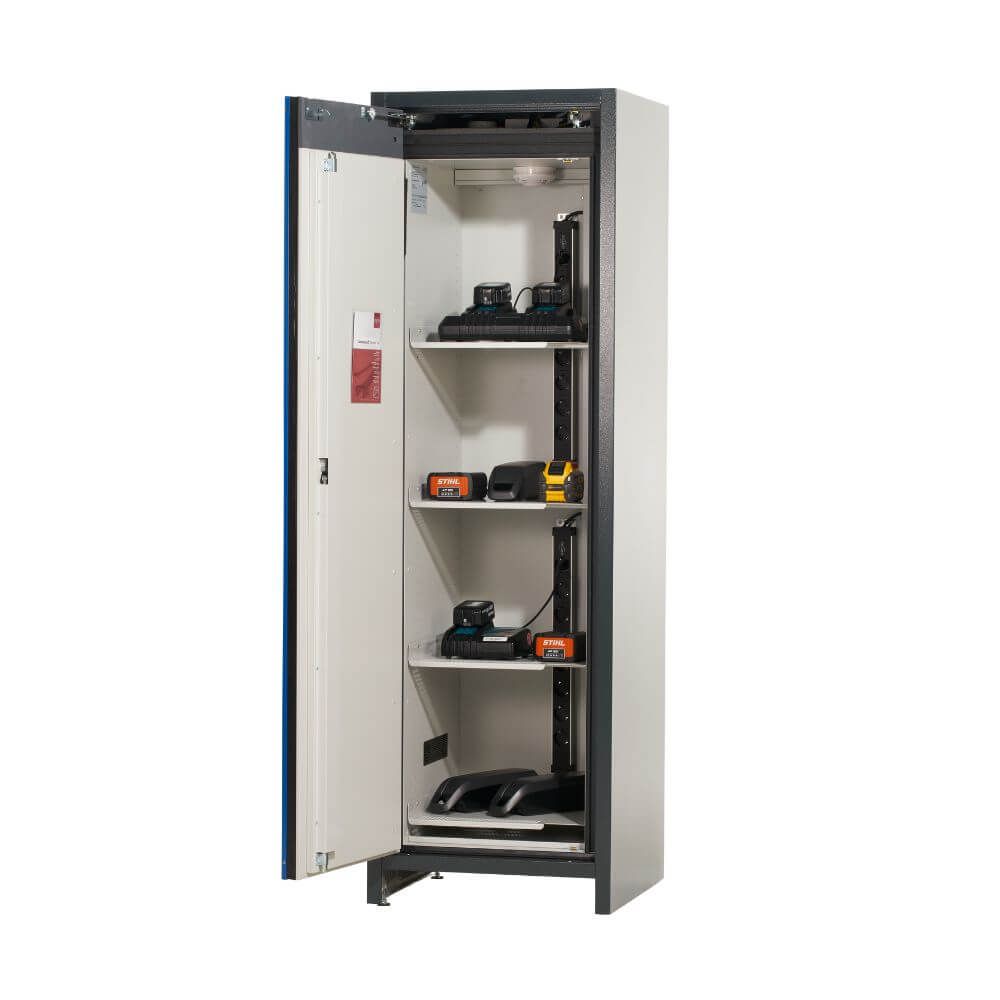

Interior Equipment With
- 2 x socket strip, EU-version
- 4 x insulated shelf, load capacity: 25 kg, powder-coated sheet steel, RAL 7035 light grey
- 1 x bottom collecting sump, capacity: 1 litres, powder-coated sheet steel, RAL 7035 light grey
Note: The socket strips are each equipped with 8 sockets.
| CE compliant | Yes (1) |
| GS certified | No (0) |
| External dimensions W x D x H | 599 x 615 x 1953 mm |
| Internal dimensions W x D x H | 450 x 503 x 1647 mm |
| Net weight configuration | 330.00 kg |
| Distributed load | 935.5 kg/m² |
| Maximum load | 600 kg |
| Entry width transport base | 526 mm |
| Entry height transport base | 90 mm |
| Number of socket strips | 2 piece |
| Number of socket outlets per strip | 8 piece |
| Nominal voltage | 230/400 V |
| Fuse (1-phase) | 16 A |
| Fuse (2-phase) | 2 x 16 A |
| Power max. (2-phase) | 7.36 kW |
| Power max. (1-phase) | 3.68 kW |
| Max. load of shelves | 25.00 kg |
| Capacity of bottom collecting sump | 1.00 litres |
| ecl@ss 11.0 | 40-06-01-90 |
| ecl@ss 14.0 | 40-06-01-90 |
| GTIN | 4054923265394 |
| Customs tariff number | 94032080 |
| Brand | asecos |
|---|
