Name: HPLC Starter Kit I
Brand: SCAT
SKU: PSCA399200
Availability: OutOfStock

Product Overview

The SCAT HPLC Starter Kit I is a complete setup for safely supplying solvents to an HPLC system. Designed as an initial equipment package, it includes components for up to four solvent bottles and provides a practical starting point for laboratories setting up or standardising their HPLC waste management and solvent delivery systems.

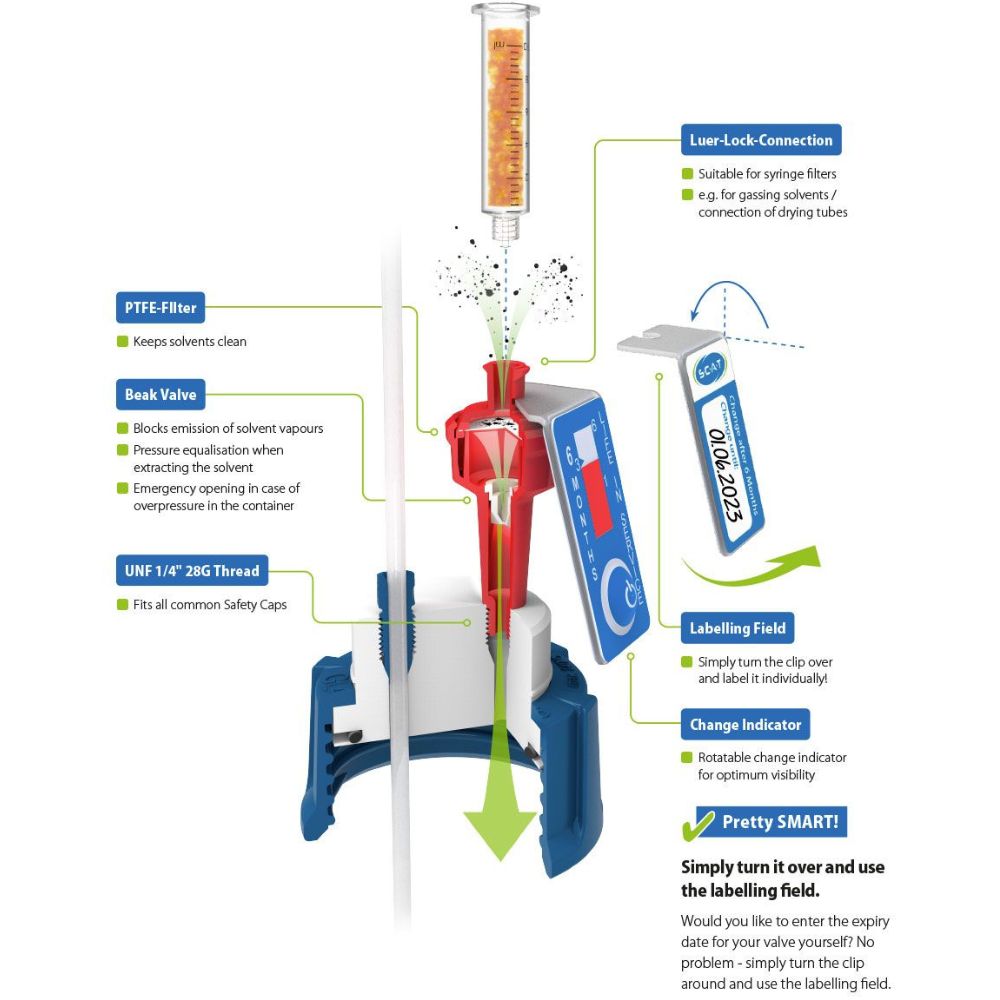

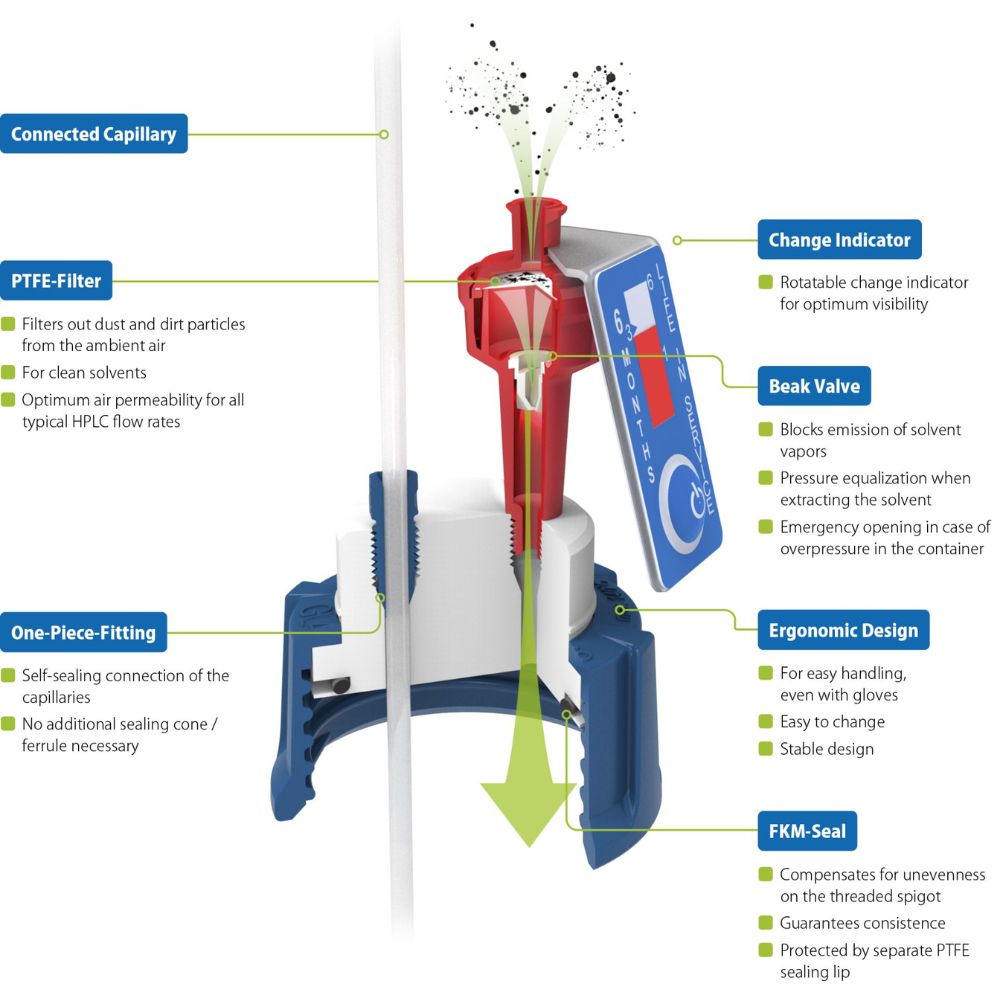

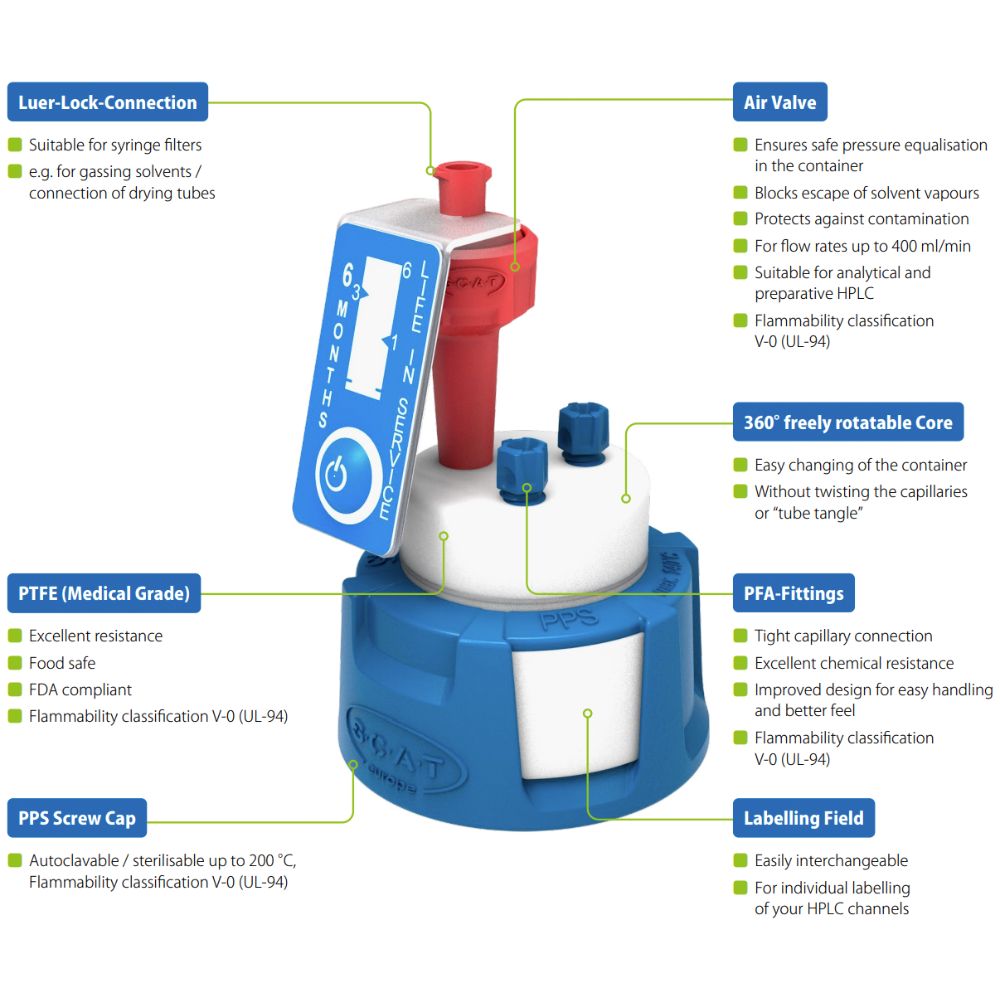

The kit includes SCAT Safety Caps with GL45 threads, suitable for standard laboratory bottles such as those from SCHOTT, DURAN, WHEATON, and KIMBLE (DWK). The caps offer a sealed connection to reduce solvent evaporation and exposure to vapours. Air valves and change indicators are included for each bottle, supporting proper ventilation and filter maintenance.

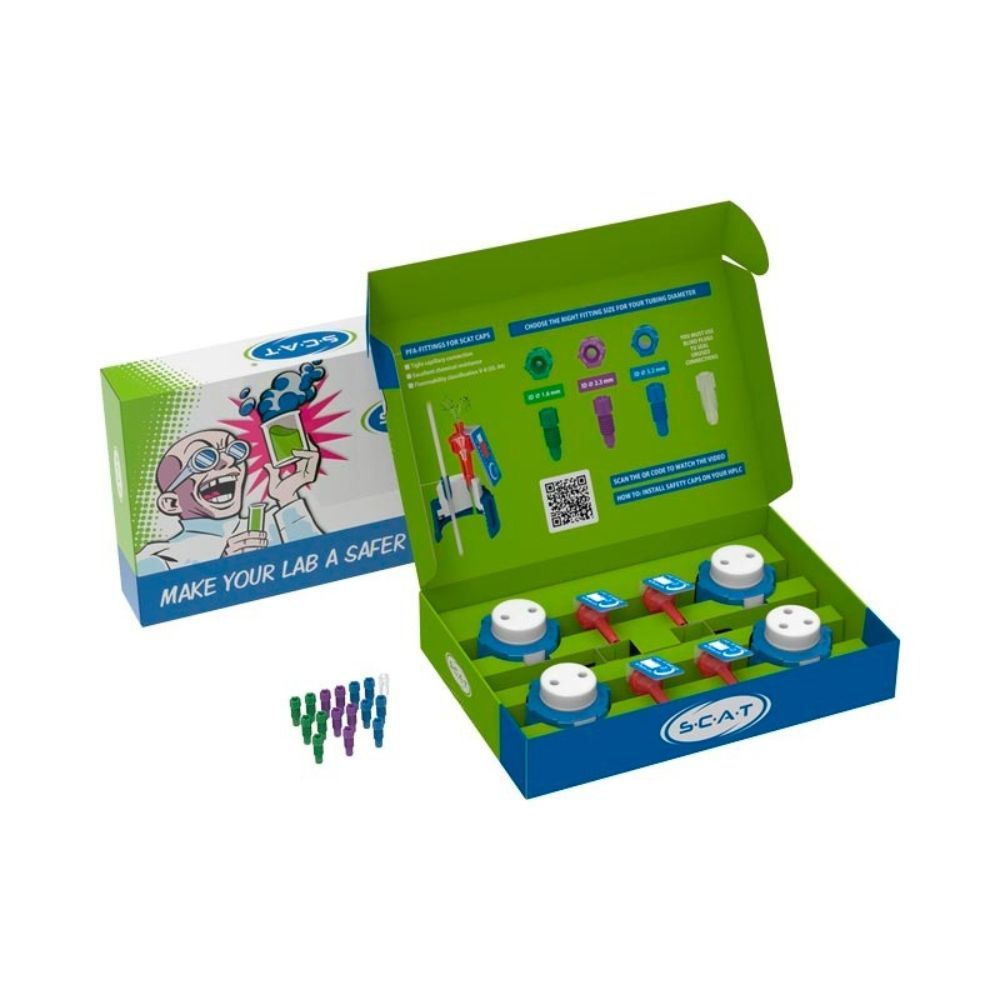

Included Components

3 × Safety Cap I, GL45
1 × Safety Cap II, GL45
4 × Air valves
4 × Change indicators
5 × PFA fittings, 1.6 mm OD (green)
5 × PFA fittings, 2.3 mm OD (violet)
5 × PFA fittings, 3.2 mm OD (blue)
1 × PFA blind plug
4 × Label fields

Use Case

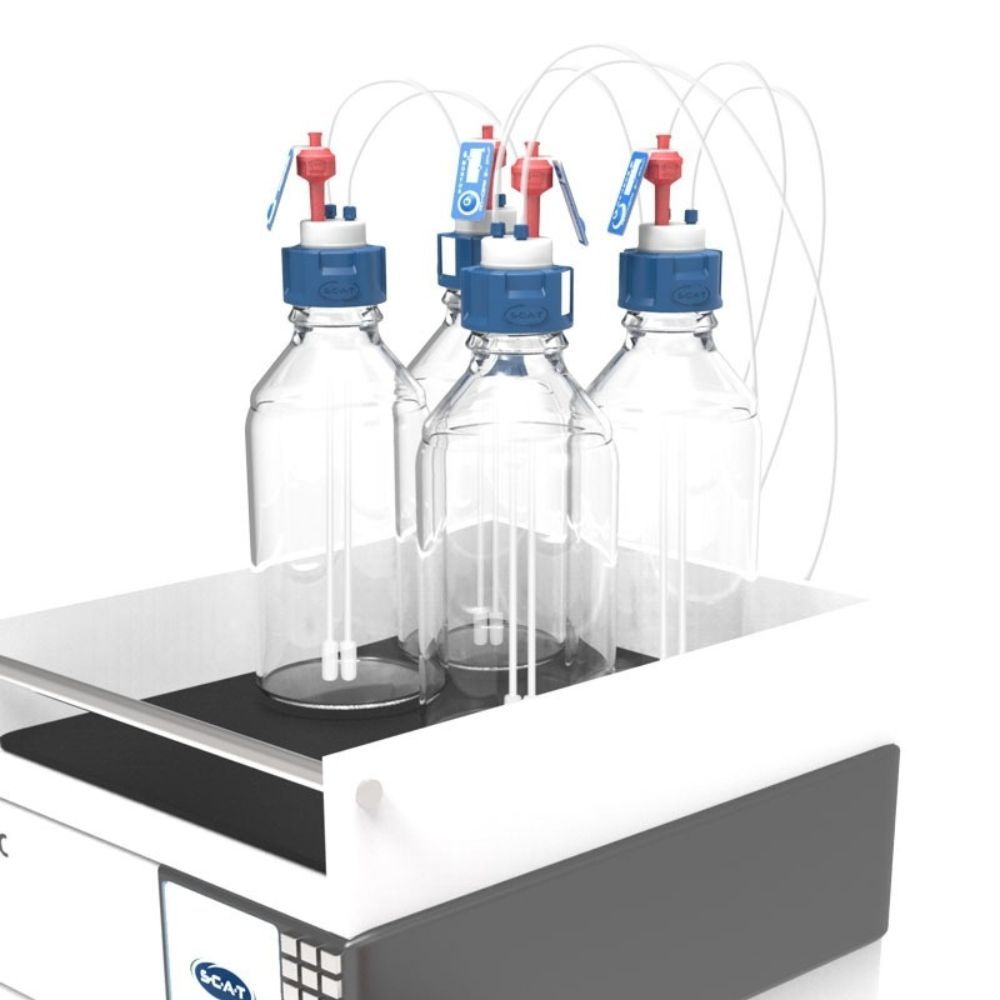

This starter kit is designed for laboratories that need a ready-to-use system for safely supplying solvents to HPLC instruments. The kit supports up to four containers and provides secure, vapour-tight connections using SCAT Safety Caps and fittings. Each bottle is equipped with an air valve and a change indicator to monitor filter saturation levels and maintain operational safety.

This configuration is suitable for new installations or for standardising solvent supply across multiple HPLC workstations.
