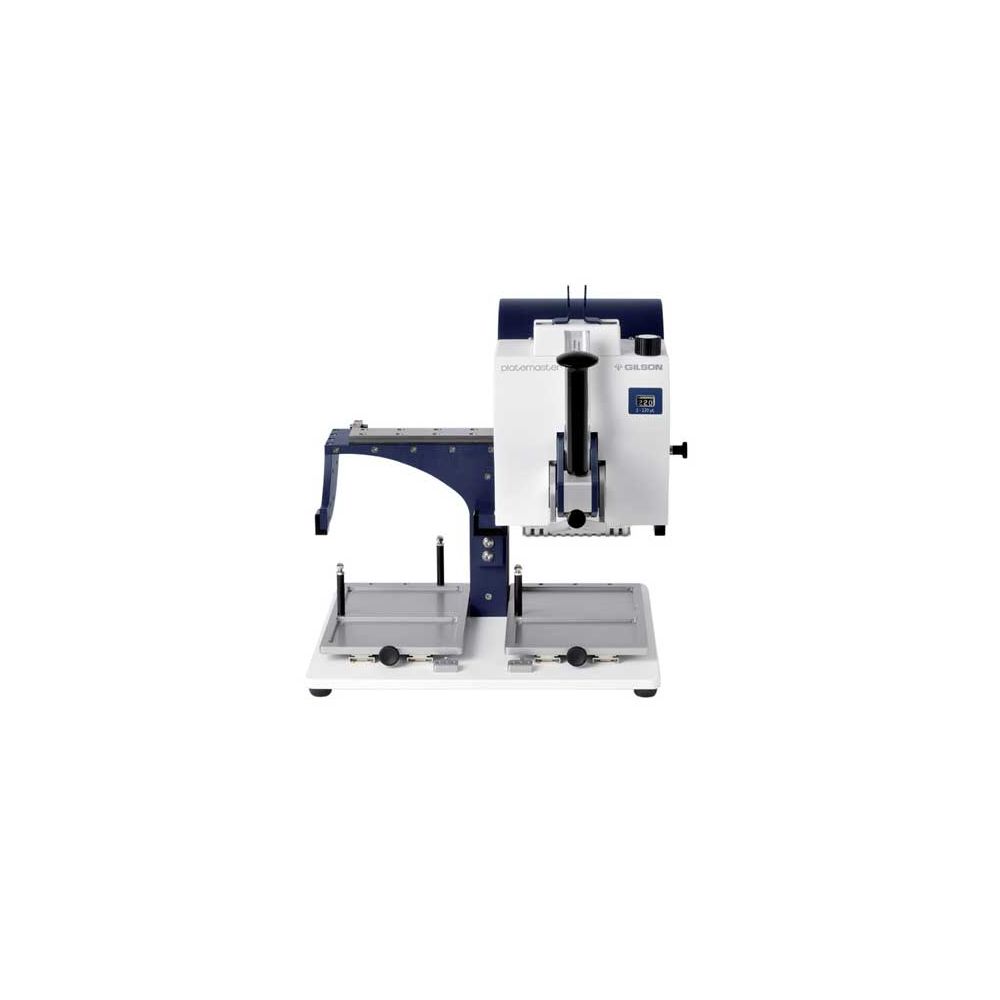

The PLATEMASTER® is an easy-to-use, accurate solution for high-throughput manual pipetting of 96- and 384-well microplates.
SPECIFICATIONS:
Model: PLATEMASTER® P220
Number of channels: 96
Volume Setting: Adjustable in 1 µL increments
Volume Range: 2-220 µL
Systematic Error (µL): ± 0.12 to ± 1.8
Random Error (µL): ≤ 0.15 to ≤ 0.80
Working temperature Range: 20°C to 25°C
Device Dimensions: 300 x 450 x 400mm / 30 x 45 x 40cm
Device weight: ± 16kg
Two models are available: PLATEMASTER® P20 for pipetting volumes from 0.5−20 µL and PLATEMASTER® P220 for pipetting volumes from 2−220 µL.
PURCHASE INCLUDES:
1x PLATEMASTER® Pipetting Head
1x PLATEMASTER® Base Stand
1x Set of height adjusters
1x Allen Key (For securing pipetting head to base stand)
1x Lubrication box for O-rings
1x User Guide
BENEFITS:
1. INCREASE PRODUCTIVITY OF YOUR WORKFLOWS
The PLATEMASTER®’s 96-channel design greatly reduces the number of pipetting steps necessary to fill a microplate when compared to using regular manual multichannel pipettes. When using PLATEMASTER®, the time it takes to fill 96-well plates is significantly reduced to approximately 10-20 seconds or less, and 384-wells can typically be filled in less than a minute using only four pipetting steps and the available 384-well plat adapters.
2. INCREASED ACCURACY, PRECISION AND REPRODUCIBILITY:
Using PLATEMASTER® for higher throughput applications reduces the risk of human error. In a single motion, accuracy and precision levels can equal that of an 8- or 12-channel pipettes, while avoiding the risk of skipping or repeating wells. Additionally, all enzymatic reactions and cell-based applications across all wells can be started and stopped at the same time. From 0.5 µL to 220 µL pipetting volumes, expect improved well-to-well and plate-to-plate reproducibility.
3. VERSATILE AND EASY TO USE:
PLATEMASTER® is as intuitive as a PIPETMAN® and does not require programming, long training, or power for use. Through a variety of accessories, such as adapters for loading 384-well microplates, reagent reservoirs, or sample heater blocks, PLATEMASTER® can be fully adapted to a variety of application needs. Its compact and portable design easily integrates into the lab, allowing it to fit on most benchtops, under hoods, or in cold rooms.
COMMON APPLICATIONS:
OPTIONAL ACCESSORIES INCLUDE:
F1077602: 384-well adapter, positioning done by the wheel.
F1077603: 384-well adapter, positioning done by hand.
F1077604: Aluminium heater block for 96 x 0.2 mL tubes, PCR tubes, PCR Strip tubes & PCR plates Ø 7.8 mm
F1077605: Pipetting head height adjusters (2 units)
F1077606: Lubrication box of O-rings
Brand | Gilson |
---|
