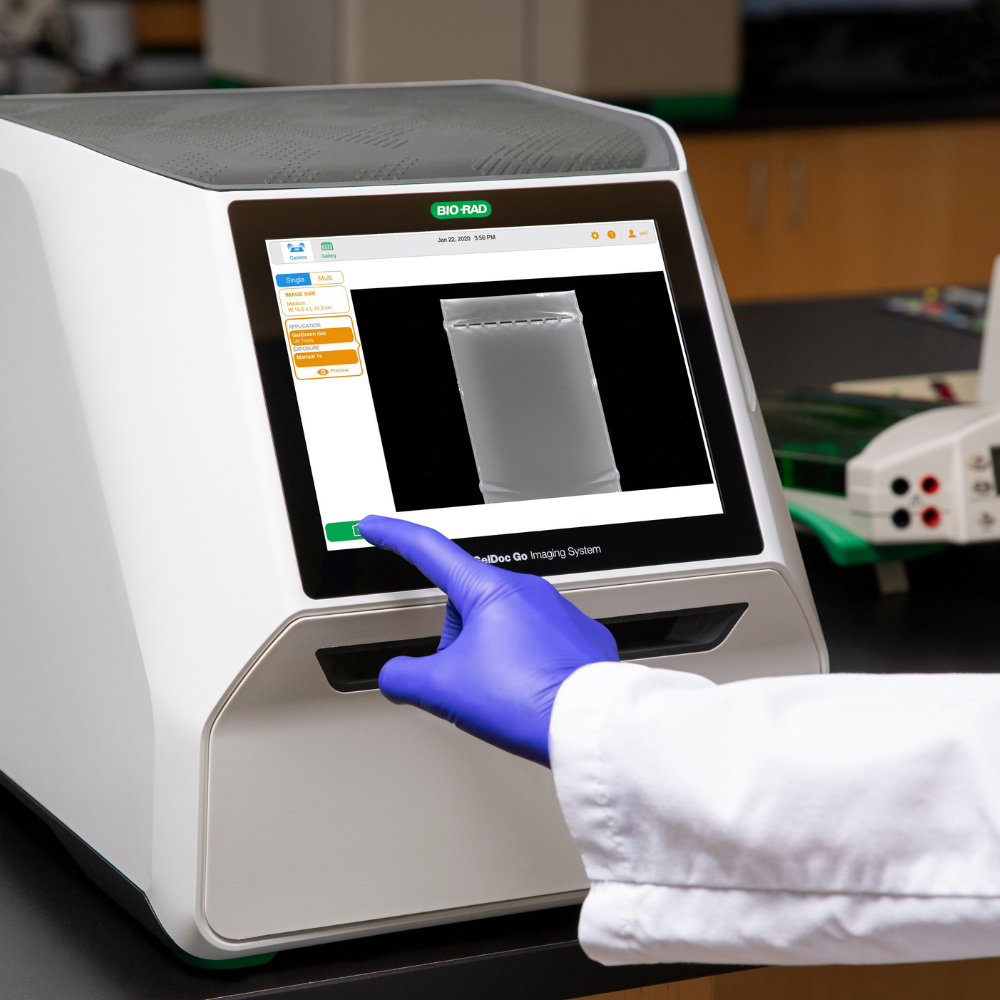

GelDoc Go Gel Imaging System with Image Lab Touch Software
Enquire for Price
The GelDoc Go Gel Imaging System with Image Lab Touch Software gives you a benchtop imaging solution in a compact and evolved package. Acquire high-resolution, publication-quality images of both nucleic acid and protein gels.
Need a customised solution?
Optional accessories are available for purchase separately. If your order needs a customised configuration, our technical specialists will follow up with full details before your order is finalised. Contact us via the enquiry form or sales@lasec.com.
Installation, training and special delivery
Some products require installation, training, or special delivery (such as tail-lift trucks, extra labour, or hazardous material packaging). If your order needs this, we'll contact you with the additional cost before dispatch, so your final invoice may differ from the listed price.
Ordering from outside South Africa
Online ordering is currently limited to South African customers, but our full range is still available. Log an enquiry or email international@lasec.com and our international sales team will assist you through our traditional sales channels.
DISCLAIMER: All product images are for illustrative purposes only. Actual products may vary slightly in colours, controls, and visible features.
Availability:On Request
SKU
IBRD12009077
BrandBio-Rad
The GelDoc Go Gel Imaging System gives you a benchtop imaging solution in a compact and evolved package. Acquire high-resolution, publication-quality images of both nucleic acid and protein gels. Advanced optical design for a large imaging area allows you to image up to four mini gels at once but still retain a compact size. Easily set up and control the GelDoc Go with Image Lab Touch Software. Powerful to move your research forward. Small enough to fit anywhere. The GelDoc Go Gel Imaging System features the intuitive Image Lab Touch Software onboard, with capabilities such as auto image capture, auto analysis, user preferences, and many other features, making gel imaging and analysis incredibly easy.
Features and Benefits
- Quickly set up the GelDoc Go System to capture your image, add notes, and export or print your files
- Easily manage user accounts and set permissions and security options
- Works with Image Lab Desktop Software for deep and accurate analysis of your data
Included Components
- GelDoc Go Gel Imaging System with Image Lab Touch Software
- UV/stain-free imaging sample tray (additional imaging trays available separately)
| Fluorescence | Yes |
| Chemiluminescence | No |
| Colorimetry | Yes |
| Gel documentation | Yes |
| Maximum image area | 14 cm x 21 cm (L x W) |
| Touch screen functionality | Multi-touch capable Display resolution 1024 x 768 pixels 9.7” (24.64 cm) display |
| Onboard computer system | 2 GB RAM 32 GB disk space 4 USB ports |
| Sample thickness | Ideal thickness: 5 mm |
| Excitation source | Trans-UVB (standard) Epi-white (standard) Trans-white (optional) Trans-blue (optional) |
| Detector | 6.3 MP CMOS |
| Pixel size | 2.4 µm x 2.4 µm |
| Emission filters | 535-645 nm (standard) |
| Pixel density (gray levels) | 65,535 |
| Instrument size (L x W x H) | Depth: 44.8 cm (18”) Width: 36.0 cm (14.2”) Height: 35.3 cm (14”) |
| Instrument weight | ~16 kg (~35 lb) |
| Operating voltage | 100-240 VAC, 50-60 Hz |
| Operating temperature | 10-28°C |
| Operating humidity | 20-80% relative humidity (noncondensing) |
| Workflow automated selection | Application driven, tray-based imaging and autoselection of excitation source |
| Image flat fielding | Dynamic; precalibrated and optimized per application |
| Autoexposure | 2 user-defined modes (rapid or optimal) |
| Brand | Bio-Rad |
|---|
