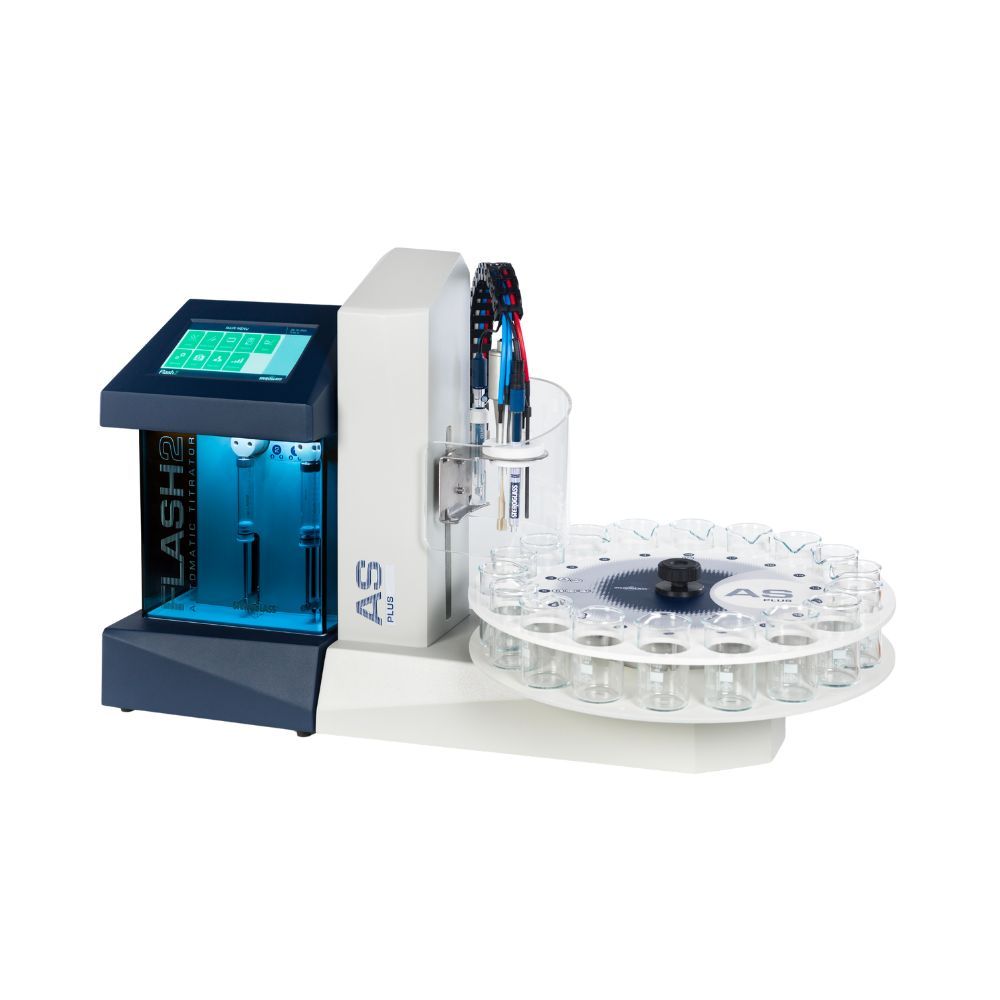

Flash2 Automatic Titrator with 2 Burettes and 2 Pumps
Enquire for Price
- Dimensions: 25.5 x 20.5 x 44 cm
- Weight: ~10 kg
- Power Supply: 230 Vac 50Hz, 115 Vac 60Hz
Included:
- Flash2 Titrator Unit
- User Interface Software (Flash2Data)
- Built-in memory for methods and data
Not Included (Sold Separately):
- Titrants and reagents
- Electrodes
- Sample cups

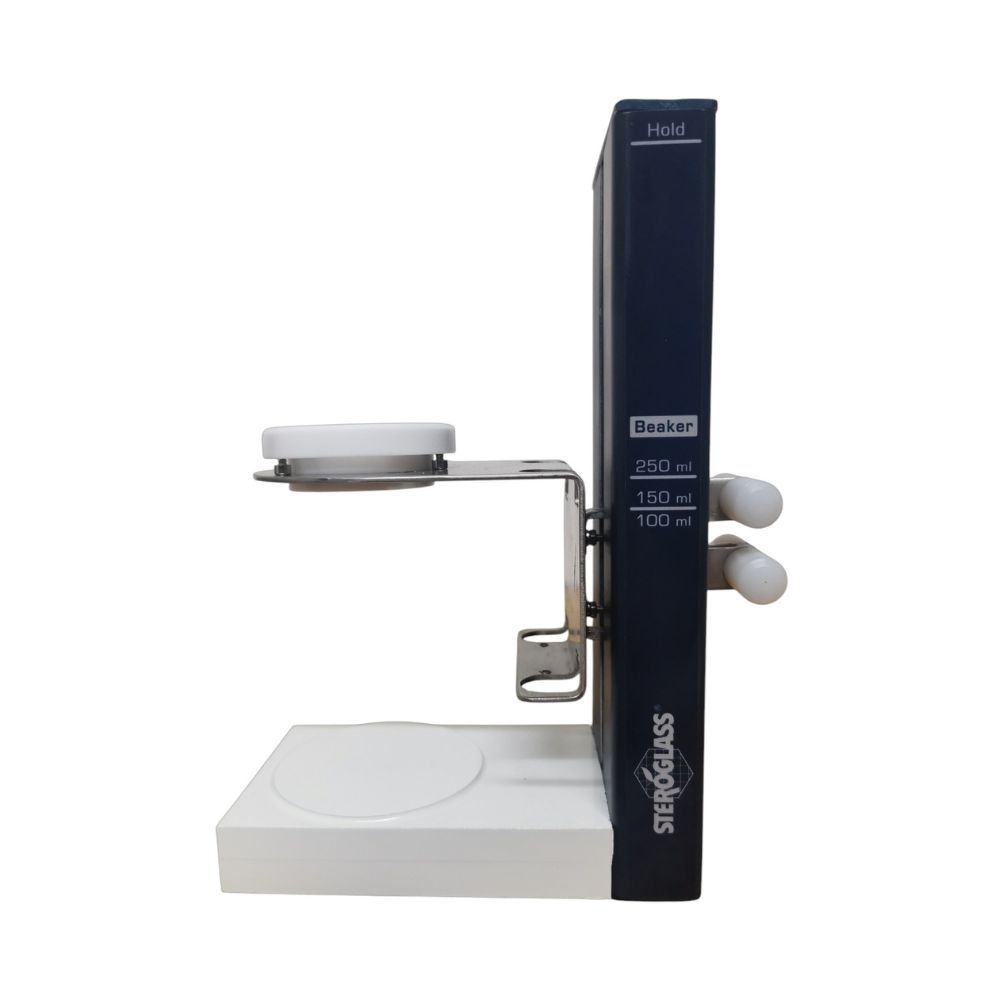

- Sample stand (choose between single or autosampler options)
Autosampler Options:
- 14-position (150 ml beakers)
- 18-position (100 ml beakers)
- 30-position (25 ml test tubes)
Installation Recommended: Professional installation is advised and is quoted separately.
Availability:On Request
SKU
ISTGSQTR091647
BrandSteroglass
Product Overview

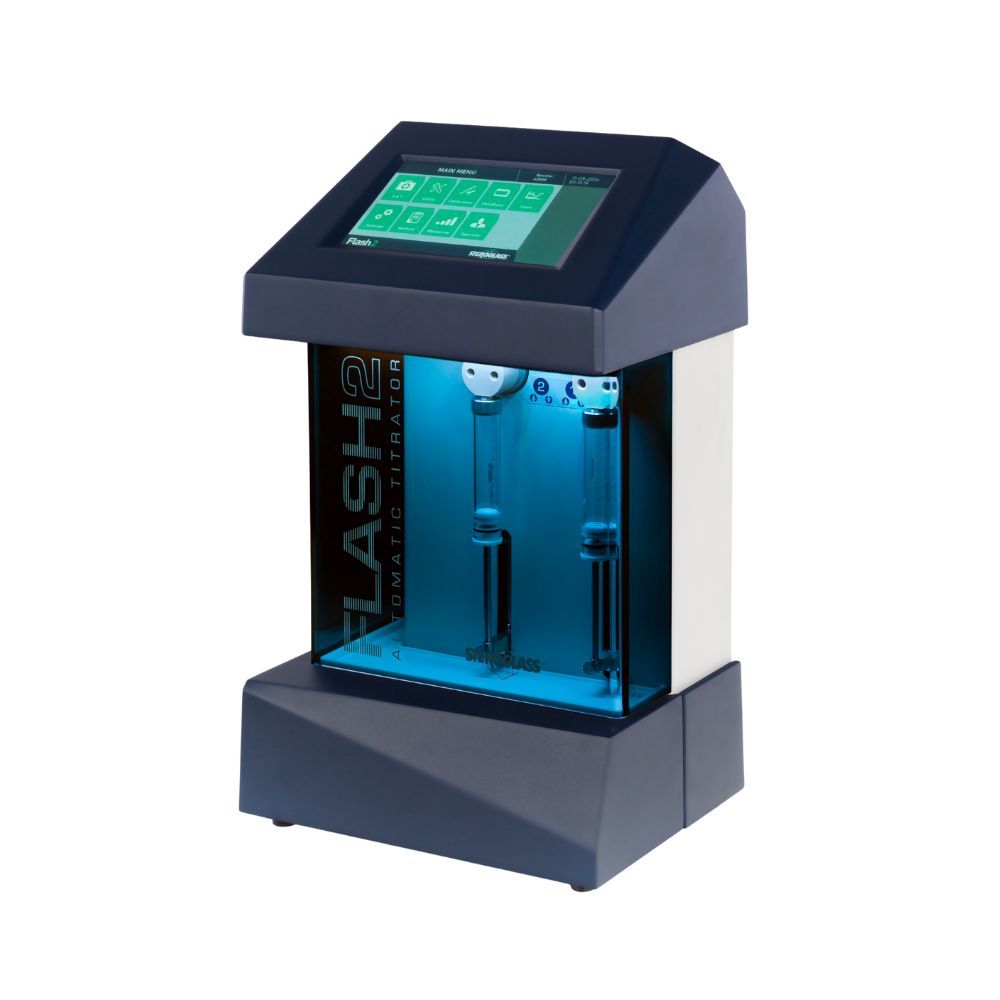

The Flash2 Automatic Titrator is a compact, multi-application titration system developed by Steroglass for accurate and efficient chemical analysis. Now in its fifth generation, Flash2 supports a broad range of titration methods across multiple industries, including oenology, food and beverage, environmental testing, and chemical manufacturing.
Flash2 offers automated operation, customizable user settings, and integrated data handling. It allows laboratories to reduce analysis time, improve reproducibility, and maintain full traceability of results while minimizing reagent use and operator exposure to hazardous substances.
Typical Applications
Flash2 is suitable for titrations across a wide range of matrices and industries:

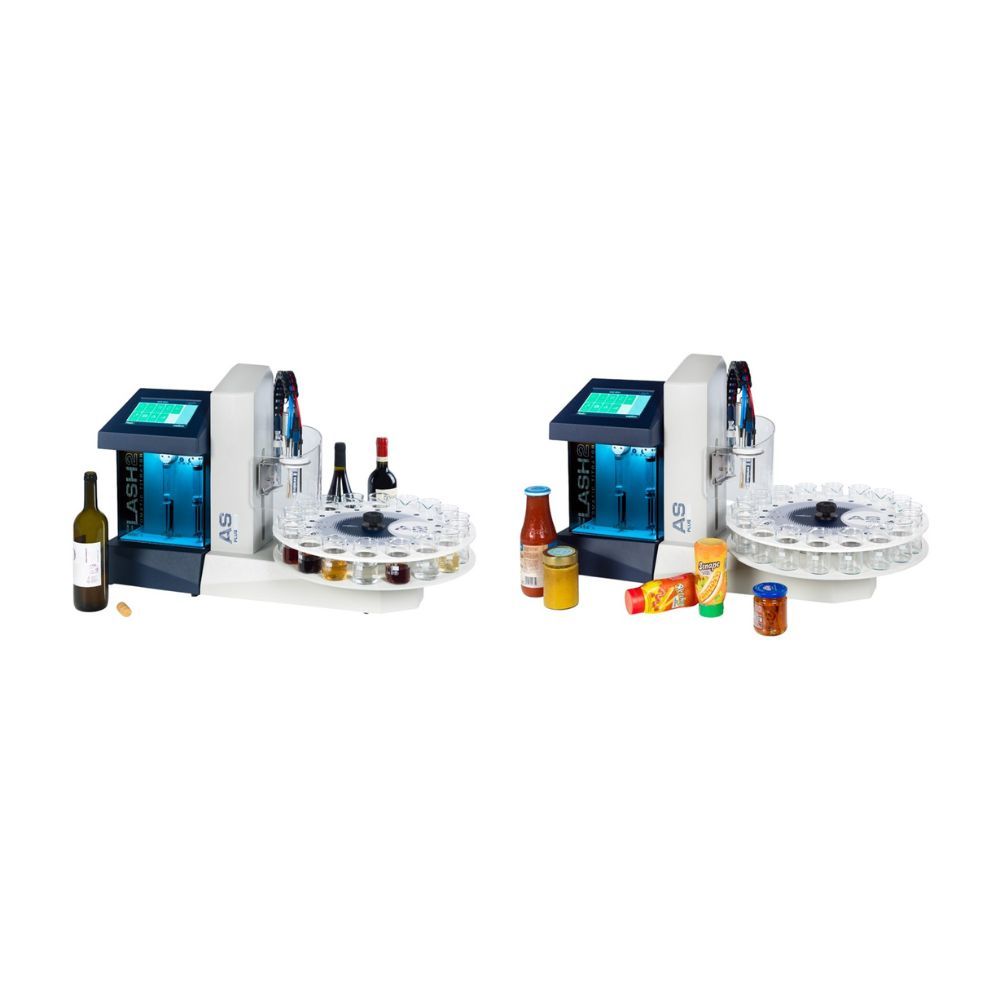

Oenological Analysis (Wines & Musts):
- pH
- Titratable Acidity
- Free and Total SO₂
- Buffer Capacity
Food & Beverage Analysis:
- Acidity and Chlorides in milk, dairy, and preserved products
- Ascorbic Acid (Vitamin C) in juices and sauces
- Sulfite content in solid matrices
- Acidity and peroxide values in edible oils
- Protein/Nitrogen in feed (Kjeldahl method)
Environmental Testing (Water Analysis):
- pH
- Conductivity
- COD (Chemical Oxygen Demand)
- TOC (Total Organic Carbon)
- Alkalinity
- Hardness
Chemical and Galvanic Applications:
- Acid-Base Titrations
- TAN (Total Acid Number) / TBN (Total Base Number)
- Determination of active chlorine, hydrogen peroxide, iron, soda, potash, and other substances
Key Features and Benefits
- Wide Analytical Range: Covers common titration needs in food, water, wine, and industrial chemistry.
- Automatic Sampling & Reagent Handling: Reduces analysis time and operator input.
- Compact Format: Space-saving design with a small footprint.
- User-Friendly Interface: 7" RGB touchscreen guides users through analysis steps.
- GLP Compliance: Built-in result traceability, user roles, and LIMS connectivity.

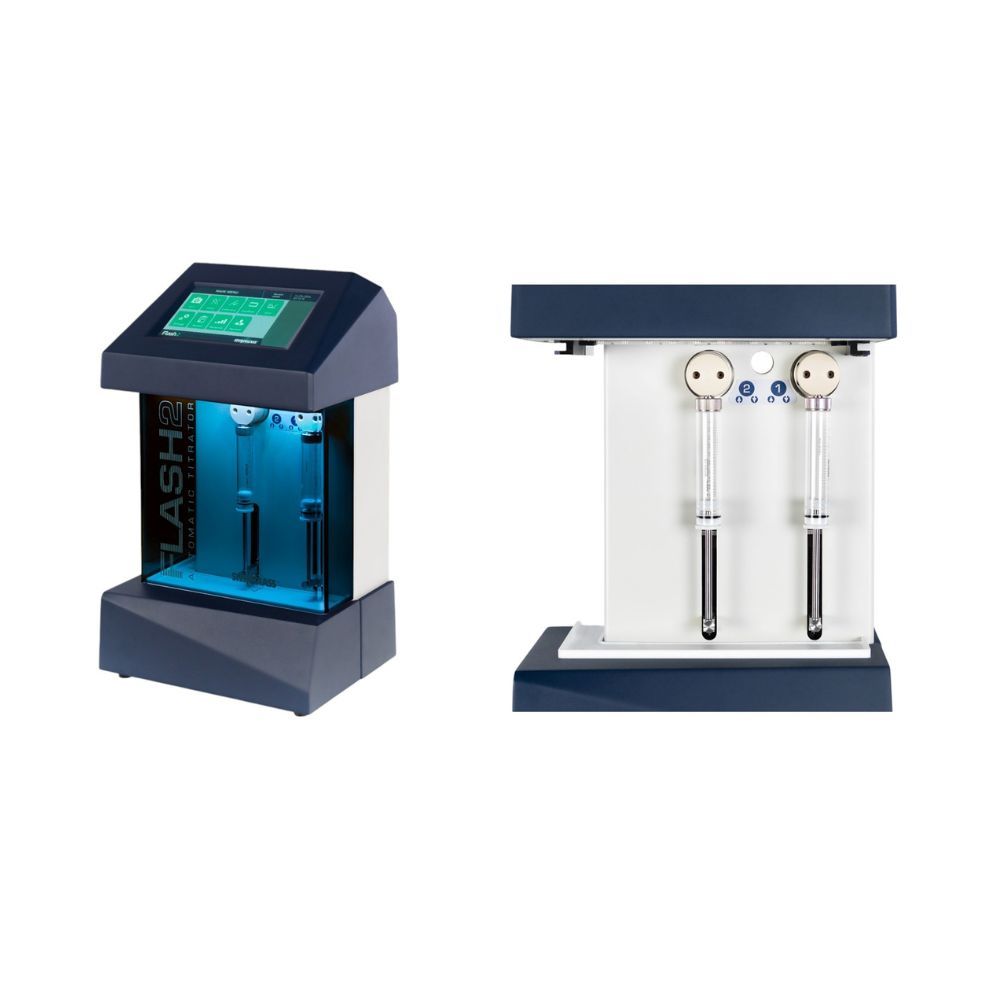

- Up to Two Burettes: Stepper motor driven, resolution > 1.5 million steps.
- Peristaltic Pumps: Up to three pumps for auxiliary reagents and autosampler support.

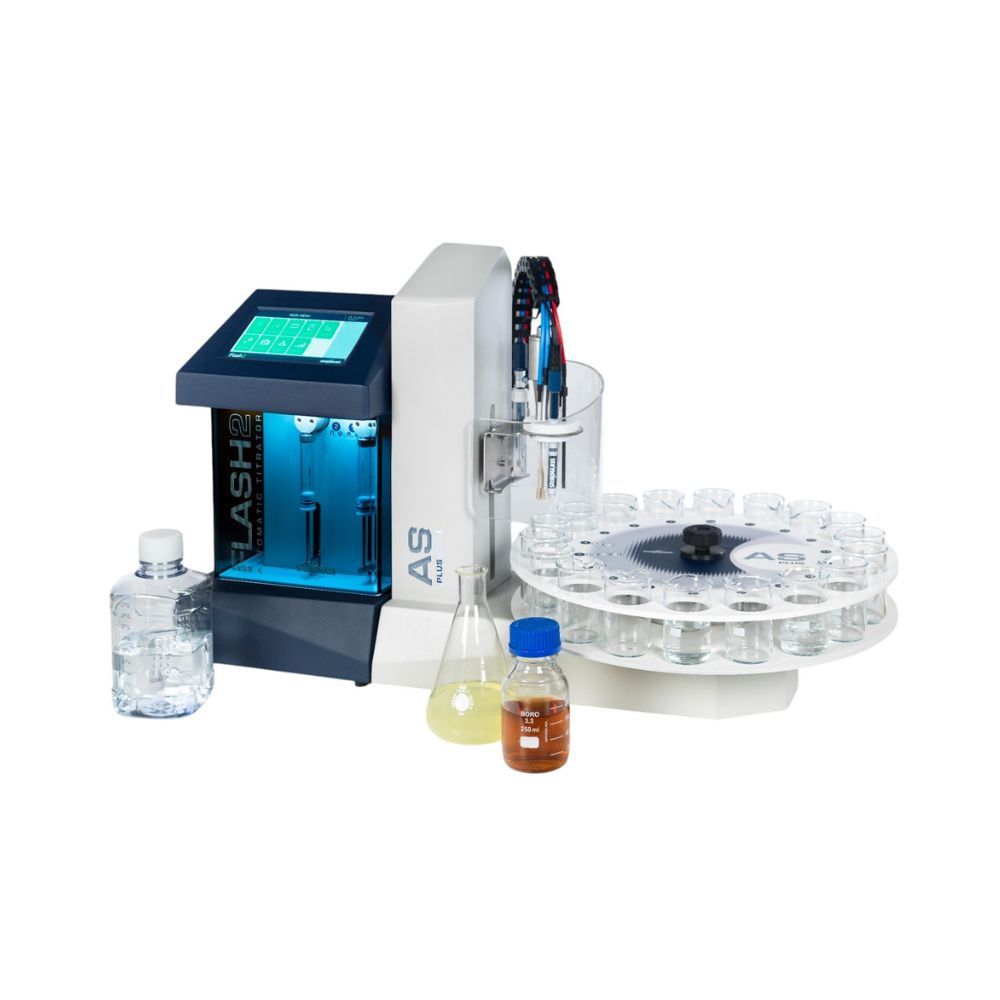

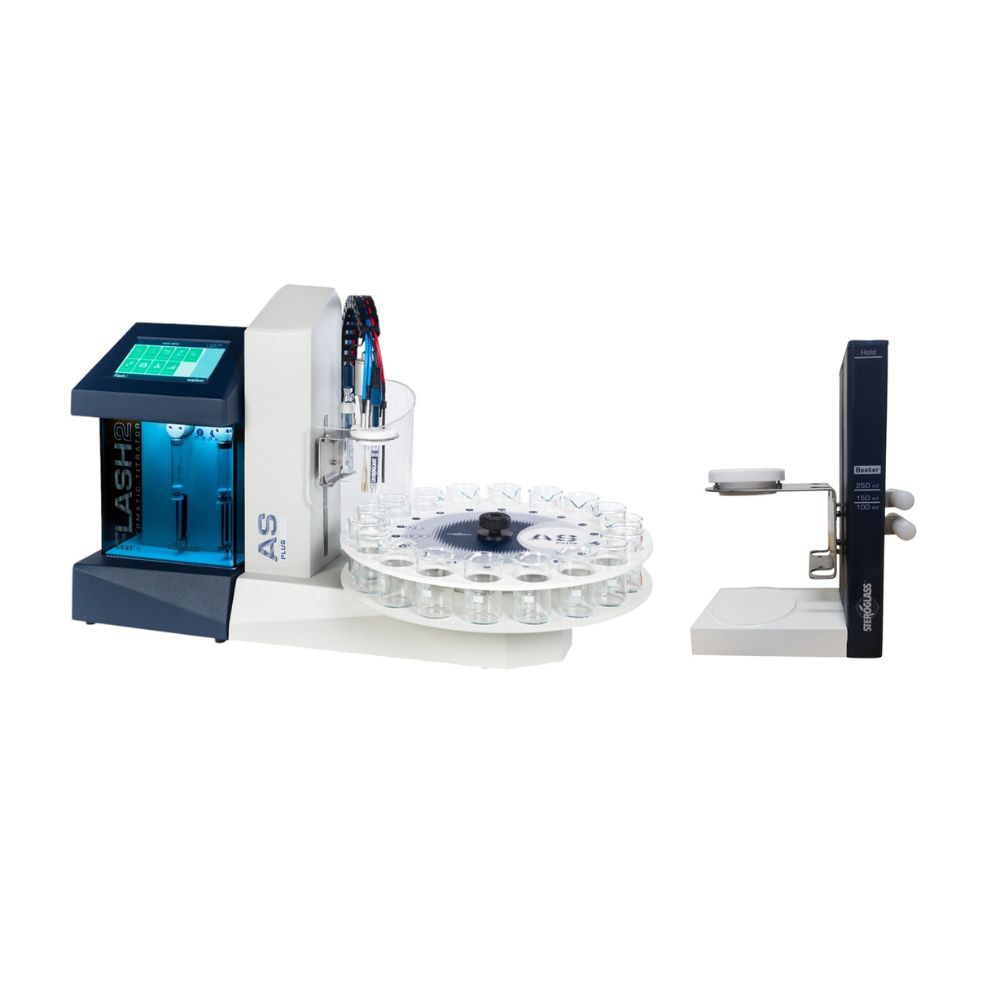

- Flexible Sample Handling: Compatible with a single stand or AS Plus autosampler (14, 18, or 30 positions).
- Pre-Installed & Editable Methods: 30 methods stored internally, editable and transferable via USB.
- Multi-Language Support: Interface available in six languages.
Compliance and Laboratory Use
Flash2 is designed to meet the operational needs of analytical laboratories performing routine or complex titrations. Its design supports Good Laboratory Practice (GLP) and meets standard industry expectations for result reproducibility, traceability, and data integrity.
| Dimensions | 25.5 x 20.5 x 44 cm |
| Weight | ~10 kg |
| Power Supply | 230 Vac 50Hz, 115 Vac 60Hz |
| Display | 7-inch high-brightness RGB touchscreen |
| RGB LED | Four colours for instrument status (standby, analysis in progress, error, result) |
| Burettes | Up to two, stepper motor, resolution > 1.5 million steps |
| Syringes | Interchangeable (5-10-25 ml) |
| Peristaltic Pumps | Up to two, 0.85 ml/sec flow rate + one for AS Plus autosampler |
| Electrode Channels | Three (2 pH/mV and 1 μA) |
| Peripheral Connections | RS232 for up to three devices (printer, balance, barcode scanner, conductivity meter) |
| Additional Ports | Three USB, one Aux connector |
| Languages | Italian, English, French, Spanish, German, Portuguese |
| Methods | Internal memory for up to 30 user-editable methods, import/export via USB |
| Database Memory | Up to 300 results, calibrations, titrant concentrations, factors, blanks, electrodes, pH buffers |
| Software | Flash2Data for result handling, sample input, and remote analysis control |
| Data Export | USB (.csv file), Flash2Data software, LIMS, or printer |
| User Management | Two levels—eight secondary users + one administrator |
| Sampling System | Single analysis stand or AS Plus autosampler with 18 positions (100 ml beakers), 14 positions (150 ml beakers), or 30 positions (25 ml test tubes) |
| Brand | Steroglass |
|---|
