Filtration Assembly, 1000ml Flask, 300ml Funnel, 47mm Vacuum Base with Sintered Disk and Clamp
R 2,238.12
- Pack Size: 1 Set (4 Components)
- High‑Grade Borosilicate Glass: Exceptional resistance to heat and chemical corrosion
- Complete Filtration Kit: Includes flask, funnel, vacuum base with sintered disk, and clamp
- G2 Sintered Disk: 40–90 µm porosity for reliable flow and separation
- Effective Filtration Area: 9.6cm² (47 mm diameter)
- Easy Assembly & Disassembly: Quick setup for routine lab workflows
- Thermal & Chemical Resistance: Strain point – 515 °C; annealing 565 °C; softening 820 °C
- Wide Range of Applications: Tissue culture media, biological fluids, HPLC solvents, aqueous solutions
Optional accessories are available for purchase separately. If you require a customised solution, please contact our technical specialists by selecting the "Add to enquiry" button and using our enquiry form or at sales@lasec.com.
Installation, training and special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, are chargeable in addition to standard freight and will be quoted separately before dispatch.
Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email internationallabsales@lasec.com, and our international sales team will gladly assist you through our traditional sales channels.
Availability:On Request
SKU
GLAS3F1M25801
Product Overview

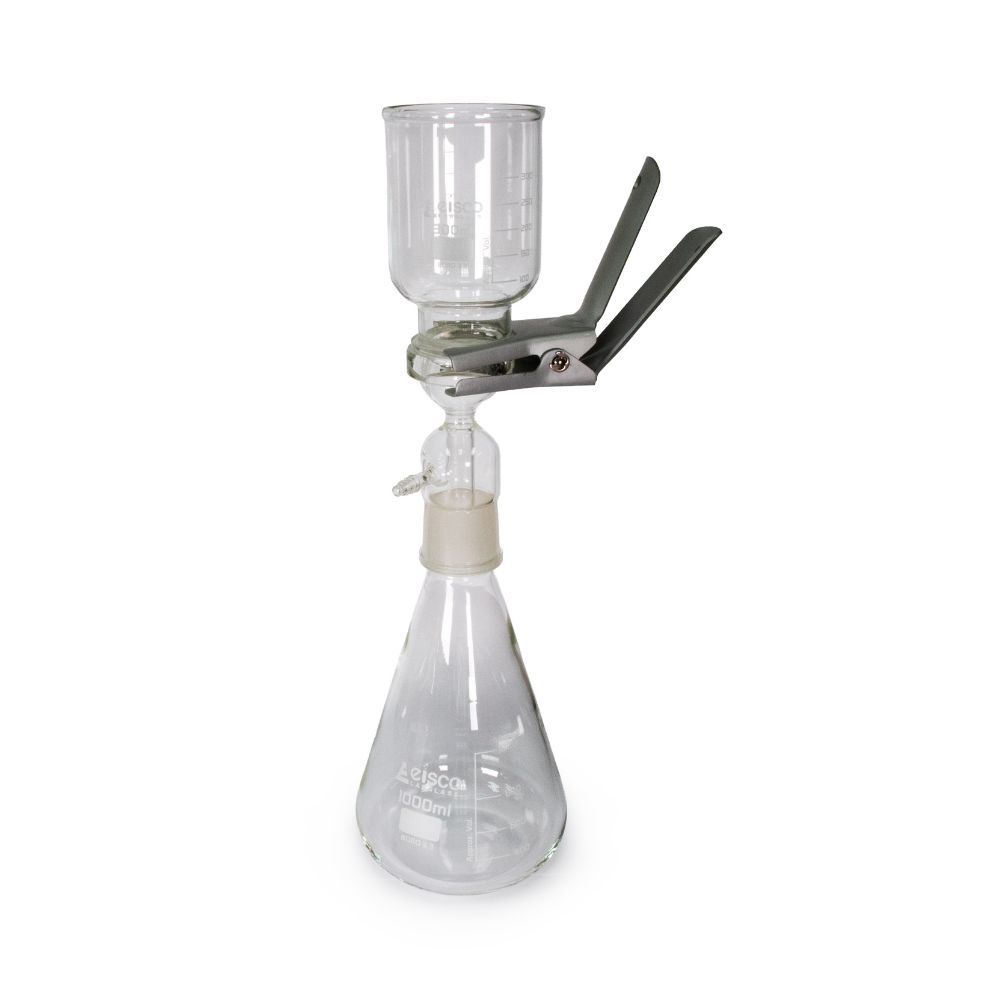

This high-quality vacuum filtration assembly is designed for laboratory use in applications such as filtration of tissue culture media, biological fluids, HPLC solutions, and other aqueous samples. The set includes four precision-crafted components made from chemically resistant borosilicate glass for durability and reliability under vacuum pressure.
The assembly features a G2 porosity sintered glass filter disk (40–90 micron range), offering effective filtration over a 9.6 cm² area using standard 47 mm membranes. The design is optimised to maximise flow rate while minimising foaming, ideal for sensitive biological applications.
Key Features
- Material: High-grade Borosilicate Glass
- G2 Sintered Disk Porosity: 40–90 µm
- Effective Filtration Area: 9.6cm² (47 mm diameter)
- Easy Assembly & Disassembly
- Chemical & Heat Resistance: Strain Point: –515°C; Annealing Point: 565°C; Softening Point: 820°C
Typical Applications
- Vacuum filtration of tissue culture media
- Clarification of biological fluids
- Solvent filtration for HPLC
- Filtration of general aqueous solutions
- Routine laboratory sample preparation
Set Includes
- 1000ml Borosilicate Glass Flask
- 300ml Borosilicate Glass Funnel
- 47mm Vacuum Base with G2 Sintered Glass Disk
- 47mm Aluminium Clamp for secure sealing between funnel and base
Dimensions (Assembled)
- Overall Height: 17.25"
- Base Width/Length: 8"
- Flask Height: 9", Base Ø 5.25", Neck Ø 1"
- Funnel Height: 5", Top Ø 3", Bottom Ø 1.5"
- Vacuum Base Height: 5", Top Ø 1.75", Filter Ø 1.75", Tube ID 0.5"
- Clamp Size: 6.25" x 3.25" x 3.25"
Certificates & Compliance
Certificates of conformity and other supporting documentation for this product are available for download.
Click here to access product certificates
If you require assistance locating a specific certificate, please contact our support team.
