Constant Climate Chamber 256L with 23mm Entry Port, HPP260ecoF0

Constant Climate Chamber 256L with 23mm Entry Port, HPP260ecoF0

R319,650.00
  • Interior: Stainless steel, mat. 1.4301 (ASTM 304), deep- drawn

  • Housing: Textured stainless steel, rear zinc-plated steel, intuitively operated TwinDISPLAY (TFT colour display) with touchscreen

  • Double doors: Outside fully insulated stainless steel door with 2-point locking (compression door lock); Inner glass door

  • Internal Volume: 256 L
  • Heating Concept: energy-saving Peltier heating-/cooling system integrated in the rear (heat pump principle)
  • Standard accessories: Water tank including connection hose

  • Standard works calibration certificate: +25 °C / 60 % rh, +40 °C / 75 % rh

  • Voltage Electrical load: 230 V, 50/60 Hz approx. 700 W; 115 V, 50/60 Hz approx. 700 W

  • Entry port, 23 mm clear diameter, for introducing connections at the side, moisture tight, can be closed by flap and silicone stopper, standard position left centre/centre
Availability:On Request
SKU
IMEMHPP260ECOF0
BrandMemmert

Constant climate chamber HPPeco

Maximum energy efficiency in continuous operation - tailor-made for stability studies according to ICH guidelines, stability tests for cosmetics and foods as well as environmental testing and material testing

A new dimension of energy efficiency and precision

This powerful climate chamber with Advanced Peltier Technology has more than earned the 'eco’ epithet. In continuous operation, it works around 90% more energy efficiently than compressor-cooled devices, does not require any refrigerant and is therefore nearly maintenance-free. The temperature control from +0 °C to +70 °C as well as the active humidification and dehumidification from 10% to 90% rh in the HPPeco are optimally tailored to the requirements of stability tests in pharmaceutical industry (Q1A). Due to its quiet operation the compact constant climate chamber is also suitable for breeding insects or zebra fish.

  • Temperature range from +0 °C up to +70 °C
  • 7 model sizes (108 to 2140 litres volume)
  • 1 model variant: TwinDISPLAY
  • Digitally controlled active humidification and dehumidification up to 90% rh
  • double doors as standard with fully insulated stainless steel. Inside glass: prevention of contamination and drops or rises in temperature.
  • An optimal view of the sensitive load through wide-area interior glass doors (size 1400/2200 stainless steel doors with glass sector; sizes 750, 1060 and 1400 two leaves, size 2200 three leaves) are possible.

Unique homogeneity of temperature and humidity

The high-precision control guarantees a homogeneous and stable distribution of temperature and humidity across various parameters. With the new micro-dosing pump and smart control, the interior of the HPPeco is delicately and quickly humidified. In addition, a Peltier-based dehumidification system ensures the climate is precisely controlled even at low relative humidity levels. This provides constant climatic conditions in the chamber even when the test material emits moisture.

Optional illumination unit for constant climate chamber HPPeco

If you select the light module option, you can also use this uniquely precise climate chamber for applications such as seed germination, plant cultivation or breeding of zebra fish or insects, especially Drosophila breeding, under a constant climate and under daylight conditions. As an alternative, you can choose cold white light (6,500 Kelvin) or a combination of cold white and warm white light (2,700 Kelvin), dimmable in steps of 1%.

A Memmert constant climate offers unique advantages

  • intuitive and easy-to-use operating menu
  • temperature and humidity ramps programmable via AtmoCONTROL software
  • almost exclusive use of high-quality, corrosion-resistant and easily cleanable stainless steel for the working chamber and housing
  • Peltier heating and cooling concept specifically adapted for a precise and homogenous temperature control
  • a wide range of options for programming and documentation using interfaces, integrated data logger and software AtmoCONTROL

Temperature setting range from 0 °C

The Peltier-cooled climate chamber HPPeco is specifically designed for stability studies according to ICH guidelines (Q1A) as well as stability tests for cosmetics and food. With the large working range ascending from the freezing point, the climate chamber is also ideal for working materials testing and environmental tests in industry.

Temperature setting range from 0 ℃

Temperature
Setting temperature rangewithout light, with humidity: +5 to +70 °C
Setting temperature rangewith light, with humidity: +5 to +70 °C
Setting temperature rangewith light, without humidity: 0 to +70 °C
Setting temperature rangewithout light, without humidity: 0 to +70 °C
Working temperature rangewith light, without or with humidity: 15 to +40 °C
Working temperature rangewithout light, with humidity: +5 (at least 20 below ambient temperature) to +70 °C
Working temperature rangewithout light, without humidity: 0 (at least 20 below ambient temperature) to +70 °C
Setting accuracy temperature0.1 °C
Temperature sensor2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Humidity
Setting range humidity10 - 90 % rh
Humidityhumidity supply with distilled water from external tank by self-priming pump
Humidificationhumidification by hot steam generator
Dehumidificationdehumidification by cold trap using the Peltier technology
Setting accuracy humidity0.5 % rh
Control technology
ControlCOCKPITTwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Language settingGerman, English, Spanish, French, Polish, Czech, Hungarian
adjustable parameterstemperature (Celsius or Fahrenheit), relative humidity, programme time, time zones, summertime/wintertime
TimerDigital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAITthe process time does not start until the set temperature is reached
Calibrationthree freely selectable values each, temperature and humidity
Communication
InterfaceEthernet LAN, USB
Documentationprogramme stored in case of power failure
ProgrammingAtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
Safety
Temperature controlover- and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETYadditionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating function is switched off in case of overtemperature, cooling function in case of undertemperature
Autodiagnostic systemintegral fault diagnostics for temperature and humidity control
Alarmvisual and acoustic
Heating concept
Peltierenergy-saving Peltier heating-/cooling system integrated in the rear (heat pump principle)
Standard equipment
Standard works calibration certificate+25 °C / 60 % rh, +40 °C / 75 % rh
Doorfully insulated stainless steel door with 2-point locking (compression door lock)
Doorinner glass door
Internals2 stainless steel grid(s), electropolished
Standard accessoriesWater tank including connection hose
Stainless steel interior

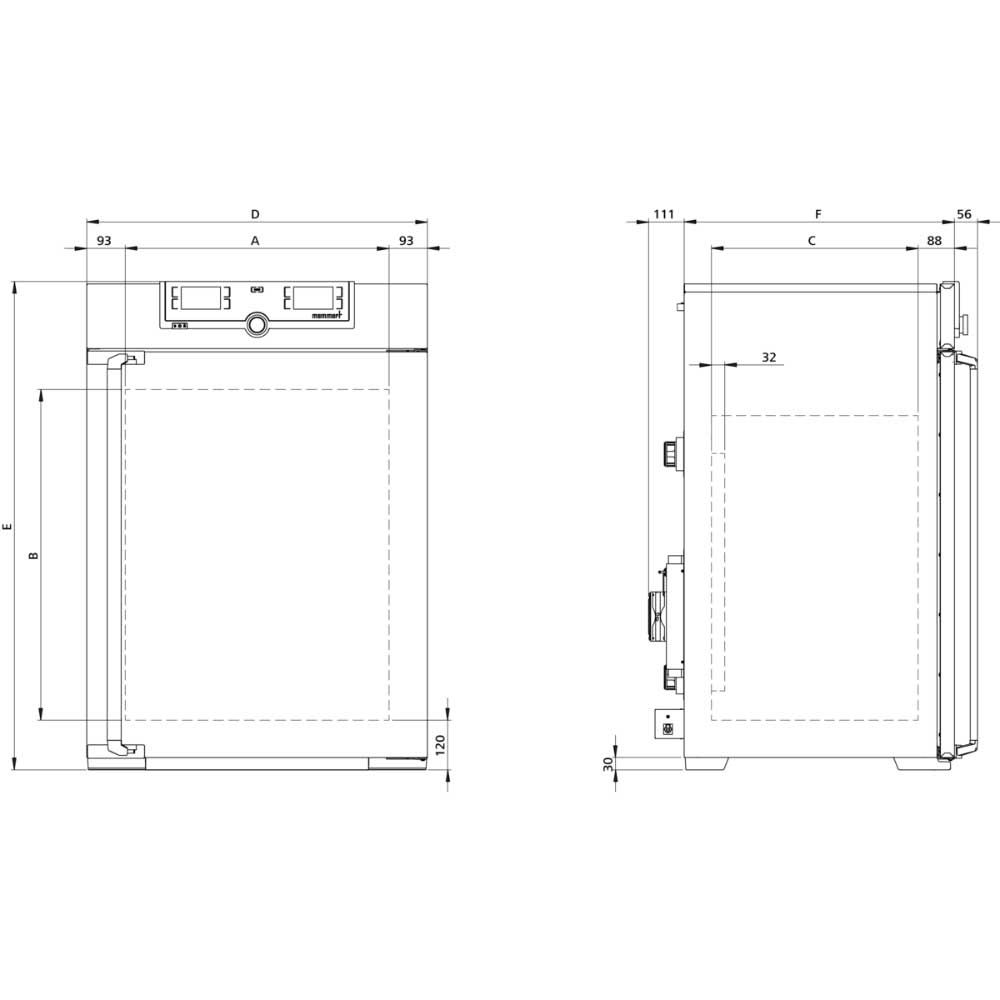

Dimensionsw(A) x h(B) x d(C): 640 x 800 x 500 mm (d less 32 mm for fan - Peltier)
Volume256 l
Max. number of internals9
Max. loading of chamber200 kg
Max. loading per internal20 kg
Textured stainless steel casing
Dimensionsw(D) x h(E) x d(F):824 x 1183 x 655 mm (d +56mm door handle & +111mm Peltier element)
Housingrear zinc-plated steel
Electrical data
Voltage Electrical load230 V, 50/60 Hz approx. 700 W
Voltage Electrical load115 V, 50/60 Hz approx. 700 W
Ambient conditions
Set UpThe distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.
Ambient temperature16 ºC to 40 ºC
Humidity rhmax. 70 %, non-condensing
Altitude of installationmax. 2,000 m above sea level
Overvoltage categoryII
Pollution degree2
