Measuring range:
Resolution 0,01 μS
Automatic and manual temperature compensation
Automatic calibration on 4 standard points and 1 custom
Data logger auto and manual, up to 1000 savings in GLP
Coloured backlit high-definition LCD display
GLP functions
Complete with conductivity standard, USB cable, power supply, and instructions for use and carrying case. Instrument with accessories, without cell.

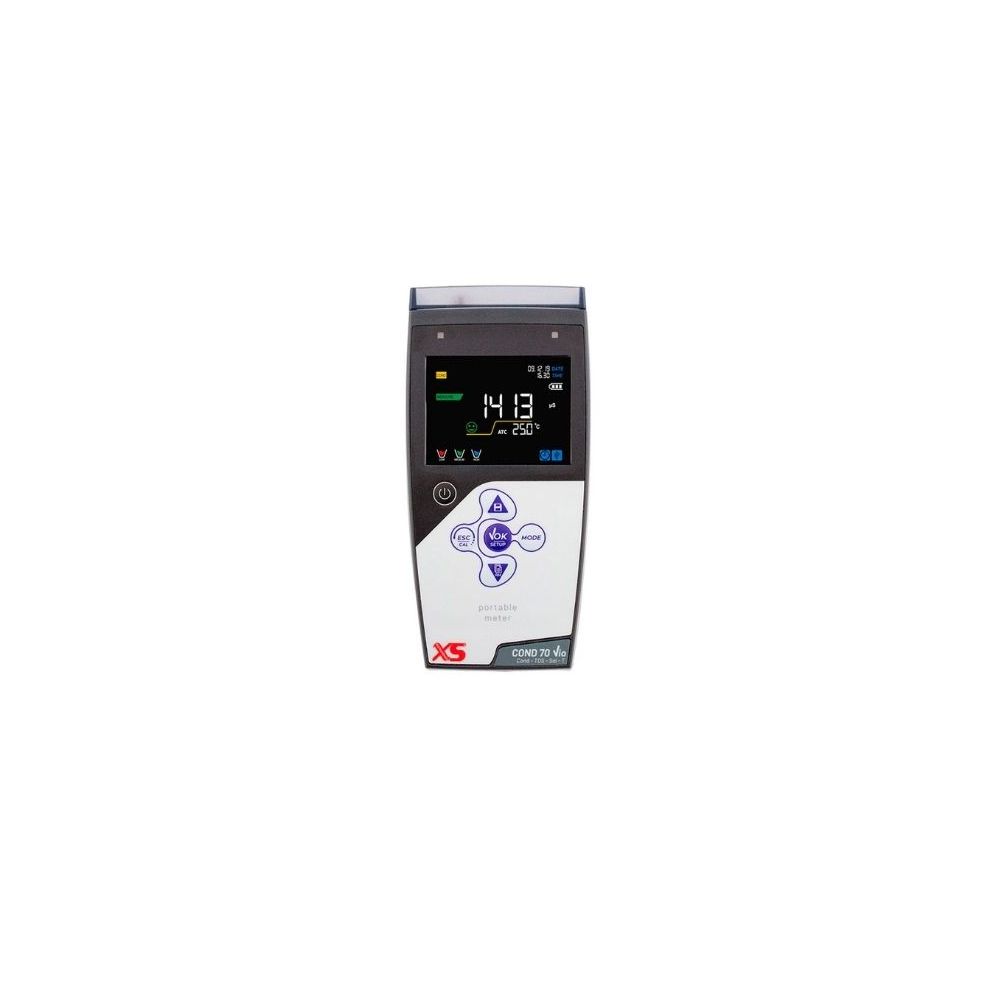

Description: Professional portable conductivity meter with triple power supply (battery, PC, mains) with innovative high-resolution colour display, for excellent data visualization in all lighting conditions, thanks also to the possibility of automatically and manually adjusting contrast and lighting of the display. Conductivity, TDS, Salinity measurement, temperature display, and the possibility to select the parameters you want to view. The online guide in setup and calibration allows simple and immediate use of the device. Automatic calibration of conductivity up to 5 points (84; 147; 1413 µS and 12.88; 111 mS) and 1 point defined by the user. Adjustable reference temperature and selectable cell constant. Indication with icons of the calibrated points. GLP functions: Date and time, display of calibration data, and setting of calibration deadline. Manual and automatic Data Logger with the possibility of downloading data to PC via micro-USB. Measurement stability indicator and possibility to select 3 stability levels. All operations are constantly monitored and shown to the operator via the coloured LED above the display and the self-diagnosis messages.
REGULATIONS | |
Regulations | CE |
PERFORMANCE | |
Accuracy (Cond) | ± 2 % f.s. |
Accuracy (Temperature) | ± 0.5 °C |
Cond measuring range (max.; min.) | 200 mS; 0.00 μS |
Cond resolution | 0.01 / 0.1 / 1 μS/cm (automatic scale) |
Reference temperature (max.; min.) | + 30 °C; + 15 °C |
Salinity measuring range (max.; min.) | 100 ppt; 0.1 ppm |
TDS Factor (max.; min.) | 1.00; 0.40 |
TDS measuring range (max.; min.) | 200 g/l; 0.1 mg/l |
Temperature coefficient (max.; min.) | 10.00 % / °C; 0.00 % / °C |
Temperature compensation | 0.0...100.0 °C |
Temperature measuring range (max.; min.) | + 110.0 °C; - 10.0 °C |
Temperature resolution | 0.1 °C |
Working temperature (max.; min.) | + 45 °C; 0 °C |
Automatic brightness control | Yes |
FEATURES | |
Calibration report | Yes |
Display | Backlight coloured high-definition LCD |
GLP | Yes |
Inputs | BNC - RCA |
IP protection | IP 57 |
Memory | 1000 data |
Output | Micro USB |
PC connection | Yes |
Points of calibration | Cond 1...4 |
Stability filter | 3 levels |
Standard approved Cond | 84 μS - 147 μS - 1413 μS – 12.88 mS – 111.8 mS - 1 user value |
Timer calibration due | Yes |
POWER SUPPLY | |
Power supply | 3 batteries AA 1.5 V |
DIMENSION AND WEIGHT | |
Dimension (instrument) | 185 x 85 x 45 mm |
Instrument weight | 400 g |
Brand | Giorgio Bormac s.r.l |
---|
